A class representing a pcap file. More...

#include <pcap-file.h>

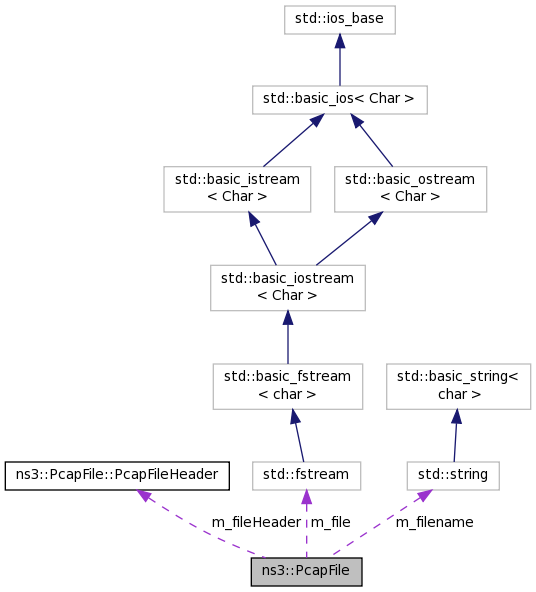

Collaboration diagram for ns3::PcapFile:

Classes
struct	PcapFileHeader

struct	PcapRecordHeader

Public Member Functions
	PcapFile ()

	~PcapFile ()

void	Clear (void)
	Clear all state bits of the underlying iostream. More...

void	Close (void)
	Close the underlying file. More...

bool	Eof (void) const

bool	Fail (void) const

uint32_t	GetDataLinkType (void)

uint32_t	GetMagic (void)

uint32_t	GetSigFigs (void)

uint32_t	GetSnapLen (void)

bool	GetSwapMode (void)
	Get the swap mode of the file. More...

int32_t	GetTimeZoneOffset (void)

uint16_t	GetVersionMajor (void)

uint16_t	GetVersionMinor (void)

void	Init (uint32_t dataLinkType, uint32_t snapLen=SNAPLEN_DEFAULT, int32_t timeZoneCorrection=ZONE_DEFAULT, bool swapMode=false)
	Initialize the pcap file associated with this object. More...

void	Open (std::string const &filename, std::ios::openmode mode)
	Create a new pcap file or open an existing pcap file. More...

void	Read (uint8_t *const data, uint32_t maxBytes, uint32_t &tsSec, uint32_t &tsUsec, uint32_t &inclLen, uint32_t &origLen, uint32_t &readLen)
	Read next packet from file. More...

void	Write (uint32_t tsSec, uint32_t tsUsec, uint8_t const *const data, uint32_t totalLen)
	Write next packet to file. More...

void	Write (uint32_t tsSec, uint32_t tsUsec, Ptr< const Packet > p)
	Write next packet to file. More...

void	Write (uint32_t tsSec, uint32_t tsUsec, Header &header, Ptr< const Packet > p)
	Write next packet to file. More...

Static Public Member Functions
static bool	Diff (std::string const &f1, std::string const &f2, uint32_t &sec, uint32_t &usec, uint32_t snapLen=SNAPLEN_DEFAULT)
	Compare two PCAP files packet-by-packet. More...

Static Public Attributes
static const uint32_t	SNAPLEN_DEFAULT = 65535
	Default value for maximum octets to save per packet. More...

static const int32_t	ZONE_DEFAULT = 0
	Time zone offset for current location. More...

Private Member Functions
void	ReadAndVerifyFileHeader (void)

uint8_t	Swap (uint8_t val)

uint16_t	Swap (uint16_t val)

uint32_t	Swap (uint32_t val)

void	Swap (PcapFileHeader from, PcapFileHeader to)

void	Swap (PcapRecordHeader from, PcapRecordHeader to)

void	WriteFileHeader (void)

uint32_t	WritePacketHeader (uint32_t tsSec, uint32_t tsUsec, uint32_t totalLen)

Private Attributes
std::fstream	m_file

PcapFileHeader	m_fileHeader

std::string	m_filename

bool	m_swapMode

Detailed Description

A class representing a pcap file.

A class representing a pcap file. This allows easy creation, writing and reading of files composed of stored packets; which may be viewed using standard tools.

Definition at line 42 of file pcap-file.h.

Constructor & Destructor Documentation

ns3::PcapFile::PcapFile ( )

Definition at line 49 of file pcap-file.cc.

References m_file, NS_LOG_FUNCTION, and ns3::FatalImpl::RegisterStream().

Here is the call graph for this function:

ns3::PcapFile::~PcapFile ( )

Definition at line 57 of file pcap-file.cc.

References Close(), m_file, NS_LOG_FUNCTION, and ns3::FatalImpl::UnregisterStream().

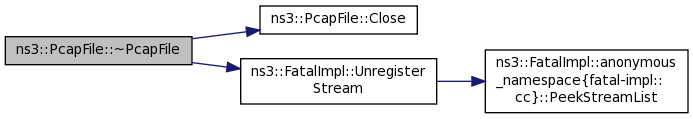

Here is the call graph for this function:

Member Function Documentation

void ns3::PcapFile::Clear ( void )

Clear all state bits of the underlying iostream.

Definition at line 78 of file pcap-file.cc.

References m_file, and NS_LOG_FUNCTION.

Referenced by ns3::PcapFileWrapper::Clear(), and ReadModeCreateTestCase::DoRun().

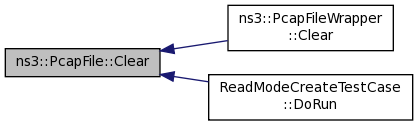

Here is the caller graph for this function:

void ns3::PcapFile::Close ( void )

Close the underlying file.

Definition at line 86 of file pcap-file.cc.

References m_file, and NS_LOG_FUNCTION.

Referenced by ns3::PcapFileWrapper::Close(), WriteModeCreateTestCase::DoRun(), ReadModeCreateTestCase::DoRun(), FileHeaderTestCase::DoRun(), RecordHeaderTestCase::DoRun(), ReadFileTestCase::DoRun(), DiffTestCase::DoRun(), Ns3TcpStateTestCase::DoTeardown(), Ns3TcpLossTestCase::DoTeardown(), Ns3TcpInteroperabilityTestCase::DoTeardown(), and ~PcapFile().

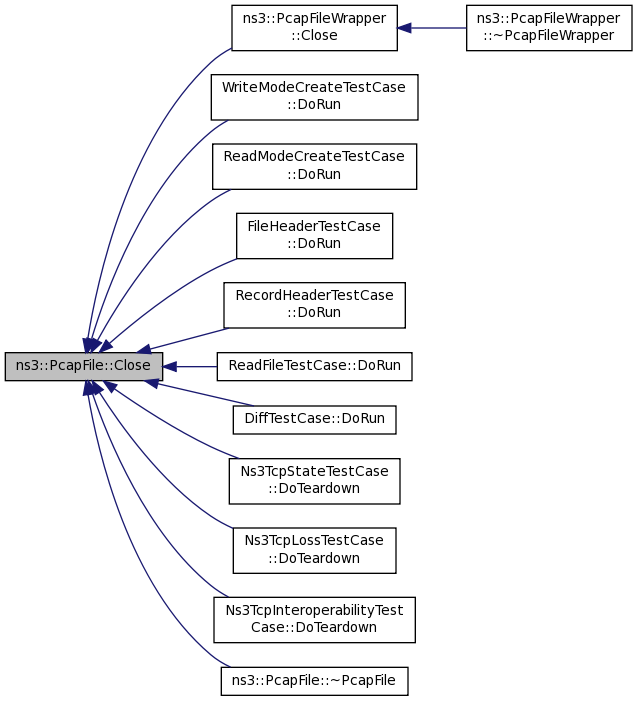

Here is the caller graph for this function:

bool ns3::PcapFile::Diff	(	std::string const &	f1,
		std::string const &	f2,
		uint32_t &	sec,
		uint32_t &	usec,
		uint32_t	snapLen = `SNAPLEN_DEFAULT`
	)

static

Compare two PCAP files packet-by-packet.

Returns: true if files are different, false otherwise

Parameters

f1	First PCAP file name
f2	Second PCAP file name
sec	[out] Time stamp of first different packet, seconds. Undefined if files doesn't differ.
usec	[out] Time stamp of first different packet, microseconds. Undefined if files doesn't differ.
snapLen	Snap length (if used)

Definition at line 496 of file pcap-file.cc.

References Eof(), Fail(), NS_LOG_FUNCTION, Open(), and Read().

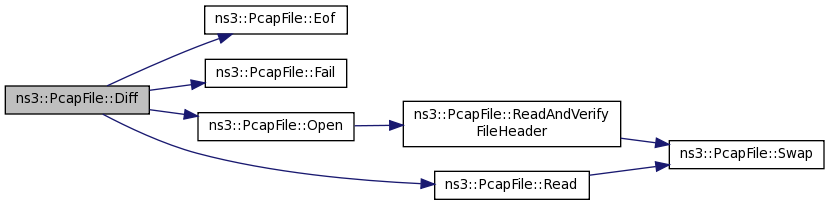

Here is the call graph for this function:

bool ns3::PcapFile::Eof ( void ) const

Returns: true if the 'eof' bit is set in the underlying iostream, false otherwise.

Definition at line 72 of file pcap-file.cc.

References m_file, and NS_LOG_FUNCTION.

Referenced by Diff(), ReadFileTestCase::DoRun(), and ns3::PcapFileWrapper::Eof().

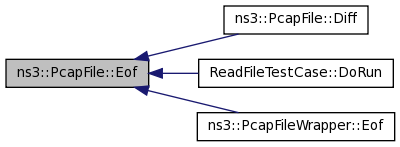

Here is the caller graph for this function:

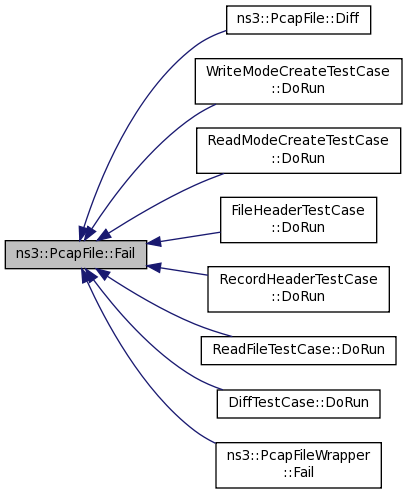

bool ns3::PcapFile::Fail ( void ) const

Returns: true if the 'fail' bit is set in the underlying iostream, false otherwise.

Definition at line 66 of file pcap-file.cc.

References m_file, and NS_LOG_FUNCTION.

Referenced by Diff(), WriteModeCreateTestCase::DoRun(), ReadModeCreateTestCase::DoRun(), FileHeaderTestCase::DoRun(), RecordHeaderTestCase::DoRun(), ReadFileTestCase::DoRun(), DiffTestCase::DoRun(), and ns3::PcapFileWrapper::Fail().

Here is the caller graph for this function:

uint32_t ns3::PcapFile::GetDataLinkType ( void )

Definition at line 135 of file pcap-file.cc.

References m_fileHeader, ns3::PcapFile::PcapFileHeader::m_type, and NS_LOG_FUNCTION.

Referenced by FileHeaderTestCase::DoRun(), Ns3TcpStateTestCase::DoSetup(), Ns3TcpLossTestCase::DoSetup(), Ns3TcpInteroperabilityTestCase::DoSetup(), and ns3::PcapFileWrapper::GetDataLinkType().

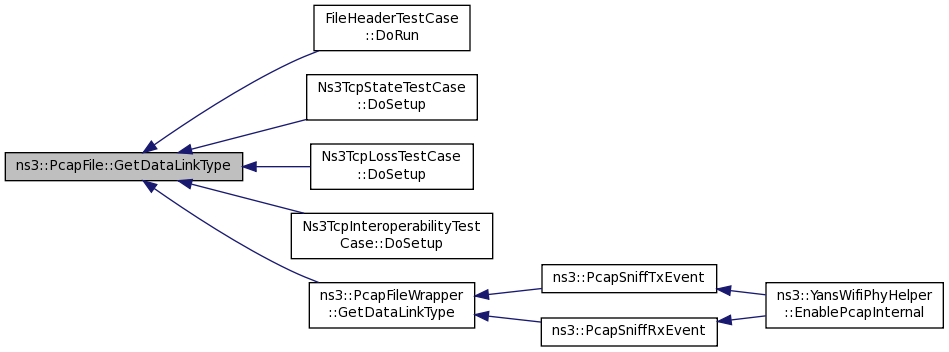

Here is the caller graph for this function:

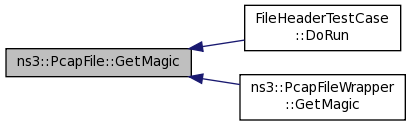

uint32_t ns3::PcapFile::GetMagic ( void )

Definition at line 93 of file pcap-file.cc.

References m_fileHeader, ns3::PcapFile::PcapFileHeader::m_magicNumber, and NS_LOG_FUNCTION.

Referenced by FileHeaderTestCase::DoRun(), and ns3::PcapFileWrapper::GetMagic().

Here is the caller graph for this function:

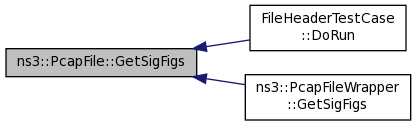

uint32_t ns3::PcapFile::GetSigFigs ( void )

Definition at line 121 of file pcap-file.cc.

References m_fileHeader, ns3::PcapFile::PcapFileHeader::m_sigFigs, and NS_LOG_FUNCTION.

Referenced by FileHeaderTestCase::DoRun(), and ns3::PcapFileWrapper::GetSigFigs().

Here is the caller graph for this function:

uint32_t ns3::PcapFile::GetSnapLen ( void )

Definition at line 128 of file pcap-file.cc.

References m_fileHeader, ns3::PcapFile::PcapFileHeader::m_snapLen, and NS_LOG_FUNCTION.

Referenced by FileHeaderTestCase::DoRun(), and ns3::PcapFileWrapper::GetSnapLen().

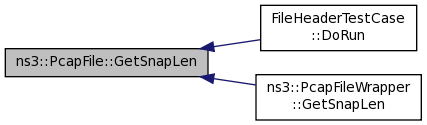

Here is the caller graph for this function:

bool ns3::PcapFile::GetSwapMode ( void )

Get the swap mode of the file.

Pcap files use a magic number that is overloaded to identify both the format of the file itself and the byte ordering of the file. The magic number (and all data) is written into the file according to the native byte ordering of the writing system. If a reading application reads the magic number identically (for example 0xa1b2c3d4) then no byte swapping is required to correctly interpret the file data. If the reading application sees the magic number is byte swapped (for example 0xd4c3b2a1) then it knows that it needs to byteswap appropriate fields in the format.

GetSWapMode returns a value indicating whether or not the fields are being byteswapped. Used primarily for testing the class itself, but may be useful as a flag indicating a difference in endianness of the writing system.

Definition at line 142 of file pcap-file.cc.

References m_swapMode, and NS_LOG_FUNCTION.

Referenced by FileHeaderTestCase::DoRun().

Here is the caller graph for this function:

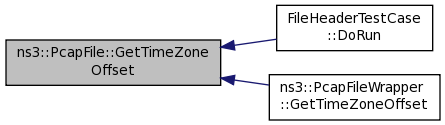

int32_t ns3::PcapFile::GetTimeZoneOffset ( void )

Definition at line 114 of file pcap-file.cc.

References m_fileHeader, ns3::PcapFile::PcapFileHeader::m_zone, and NS_LOG_FUNCTION.

Referenced by FileHeaderTestCase::DoRun(), and ns3::PcapFileWrapper::GetTimeZoneOffset().

Here is the caller graph for this function:

uint16_t ns3::PcapFile::GetVersionMajor ( void )

Definition at line 100 of file pcap-file.cc.

References m_fileHeader, ns3::PcapFile::PcapFileHeader::m_versionMajor, and NS_LOG_FUNCTION.

Referenced by FileHeaderTestCase::DoRun(), and ns3::PcapFileWrapper::GetVersionMajor().

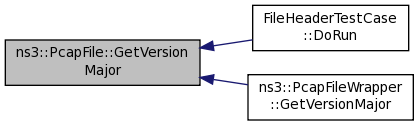

Here is the caller graph for this function:

uint16_t ns3::PcapFile::GetVersionMinor ( void )

Definition at line 107 of file pcap-file.cc.

References m_fileHeader, ns3::PcapFile::PcapFileHeader::m_versionMinor, and NS_LOG_FUNCTION.

Referenced by FileHeaderTestCase::DoRun(), and ns3::PcapFileWrapper::GetVersionMinor().

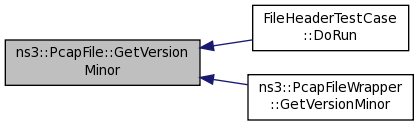

Here is the caller graph for this function:

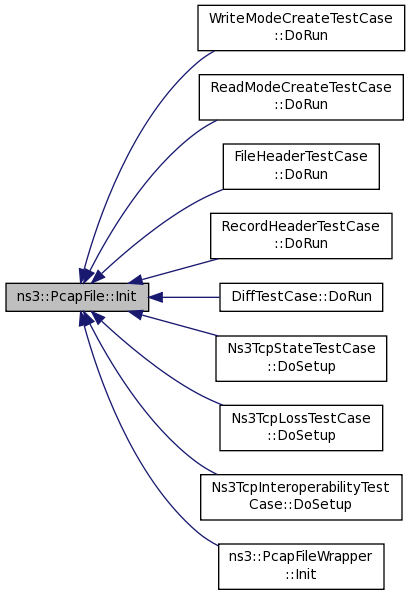

void ns3::PcapFile::Init	(	uint32_t	dataLinkType,
		uint32_t	snapLen = `SNAPLEN_DEFAULT`,
		int32_t	timeZoneCorrection = `ZONE_DEFAULT`,
		bool	swapMode = `false`
	)

Initialize the pcap file associated with this object.

This file must have been previously opened with write permissions.

Parameters

dataLinkType	A data link type as defined in the pcap library. If you want to make resulting pcap files visible in existing tools, the data link type must match existing definitions, such as PCAP_ETHERNET, PCAP_PPP, PCAP_80211, etc. If you are storing different kinds of packet data, such as naked TCP headers, you are at liberty to locally define your own data link types. According to the pcap-linktype man page, "well-known" pcap linktypes range from 0 to 177. If you use a large random number for your type, chances are small for a collision.
snapLen	An optional maximum size for packets written to the file. Defaults to 65535. If packets exceed this length they are truncated.
timeZoneCorrection	An integer describing the offset of your local time zone from UTC/GMT. For example, Pacific Standard Time in the US is GMT-8, so one would enter -8 for that correction. Defaults to 0 (UTC).
swapMode	Flag indicating a difference in endianness of the writing system. Defaults to false.

Returns: false if the open succeeds, true otherwise.

Warning: Calling this method on an existing file will result in the loss any existing data.

Definition at line 329 of file pcap-file.cc.

References m_fileHeader, ns3::PcapFile::PcapFileHeader::m_magicNumber, ns3::PcapFile::PcapFileHeader::m_sigFigs, ns3::PcapFile::PcapFileHeader::m_snapLen, m_swapMode, ns3::PcapFile::PcapFileHeader::m_type, ns3::PcapFile::PcapFileHeader::m_versionMajor, ns3::PcapFile::PcapFileHeader::m_versionMinor, ns3::PcapFile::PcapFileHeader::m_zone, ns3::MAGIC, NS_LOG_FUNCTION, ns3::VERSION_MAJOR, ns3::VERSION_MINOR, and WriteFileHeader().

Referenced by WriteModeCreateTestCase::DoRun(), ReadModeCreateTestCase::DoRun(), FileHeaderTestCase::DoRun(), RecordHeaderTestCase::DoRun(), DiffTestCase::DoRun(), Ns3TcpStateTestCase::DoSetup(), Ns3TcpLossTestCase::DoSetup(), Ns3TcpInteroperabilityTestCase::DoSetup(), and ns3::PcapFileWrapper::Init().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PcapFile::Open	(	std::string const &	filename,
		std::ios::openmode	mode
	)

Create a new pcap file or open an existing pcap file.

Semantics are similar to the stdc++ io stream classes, but differ in that positions in the file are based on packets not characters. For example if the file is opened for reading, the file position indicator (seek position) points to the beginning of the first packet in the file, not zero (which would point to the start of the pcap header).

Since a pcap file is always a binary file, the file type is automatically selected as a binary file (fstream::binary is automatically ored with the mode field).

Parameters

filename	String containing the name of the file.
mode	the access mode for the file.

Definition at line 310 of file pcap-file.cc.

References m_file, NS_ASSERT, NS_LOG_FUNCTION, and ReadAndVerifyFileHeader().

Referenced by Diff(), WriteModeCreateTestCase::DoRun(), ReadModeCreateTestCase::DoRun(), FileHeaderTestCase::DoRun(), RecordHeaderTestCase::DoRun(), ReadFileTestCase::DoRun(), DiffTestCase::DoRun(), Ns3TcpStateTestCase::DoSetup(), Ns3TcpLossTestCase::DoSetup(), Ns3TcpInteroperabilityTestCase::DoSetup(), and ns3::PcapFileWrapper::Open().

Here is the call graph for this function:

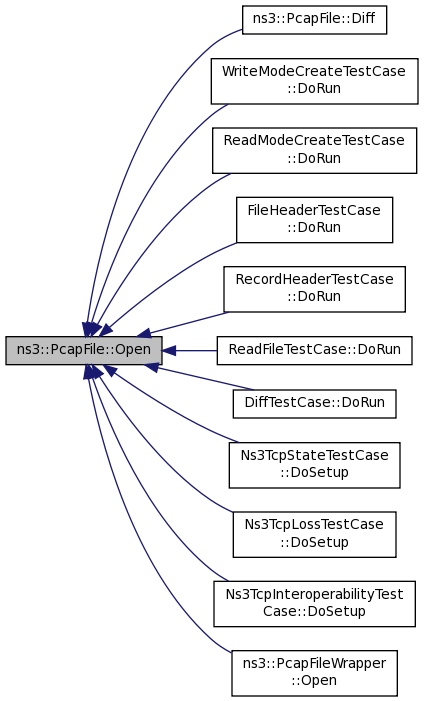

Here is the caller graph for this function:

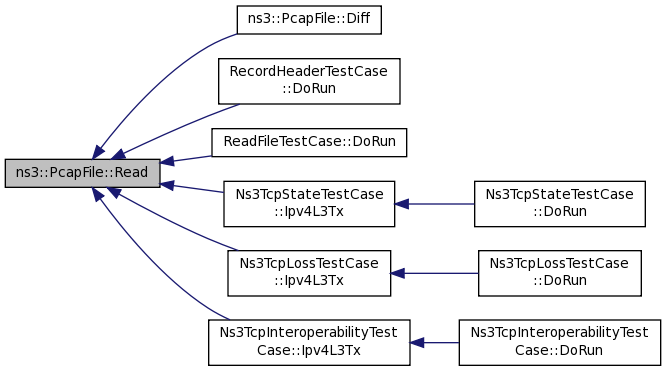

void ns3::PcapFile::Read	(	uint8_t *const	data,
		uint32_t	maxBytes,
		uint32_t &	tsSec,
		uint32_t &	tsUsec,
		uint32_t &	inclLen,
		uint32_t &	origLen,
		uint32_t &	readLen
	)

Read next packet from file.

Parameters

data	[out] Data buffer
maxBytes	Allocated data buffer size
tsSec	[out] Packet timestamp, seconds
tsUsec	[out] Packet timestamp, microseconds
inclLen	[out] Included length
origLen	[out] Original length
readLen	[out] Number of bytes read
