ns3::QosWaveMacHelper Class Reference

#include <wave-mac-helper.h>

Inheritance diagram for ns3::QosWaveMacHelper:

Collaboration diagram for ns3::QosWaveMacHelper:

Public Member Functions
	QosWaveMacHelper (void)
	Create a QosWaveMacHelper that is used to make life easier when working with Wifi 802.11p devices using a QOS MAC layer. More...
virtual	~QosWaveMacHelper (void)
virtual void	SetType (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())
Public Member Functions inherited from ns3::QosWifiMacHelper
	QosWifiMacHelper ()
	Create a QosWifiMacHelper that is used to make life easier when working with Wifi devices using a QOS MAC layer. More...
virtual	~QosWifiMacHelper ()
void	SetBlockAckInactivityTimeoutForAc (enum AcIndex ac, uint16_t timeout)
	Sets value of block ack inactivity timeout for a specific access class. More...
void	SetBlockAckThresholdForAc (enum AcIndex ac, uint8_t threshold)
	This method sets value of block ack threshold for a specific access class. More...
void	SetMsduAggregatorForAc (AcIndex ac, std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue())
	Set the class, type and attributes for the Msdu aggregator. More...
Public Member Functions inherited from ns3::WifiMacHelper
virtual	~WifiMacHelper ()

Static Public Member Functions
static QosWaveMacHelper	Default (void)
	Create a mac helper in a default working state. More...
Static Public Member Functions inherited from ns3::QosWifiMacHelper
static QosWifiMacHelper	Default (void)
	Create a mac helper in a default working state. More...

Additional Inherited Members
Protected Attributes inherited from ns3::QosWifiMacHelper
ObjectFactory	m_mac

Detailed Description

Definition at line 86 of file wave-mac-helper.h.

Constructor & Destructor Documentation

ns3::QosWaveMacHelper::QosWaveMacHelper

(

void

)

Create a QosWaveMacHelper that is used to make life easier when working with Wifi 802.11p devices using a QOS MAC layer.

Definition at line 80 of file wave-mac-helper.cc.

ns3::QosWaveMacHelper::~QosWaveMacHelper ( void  )

virtual

Internal:

Destroy a QosWaveMacHelper

Definition at line 83 of file wave-mac-helper.cc.

Member Function Documentation

QosWaveMacHelper ns3::QosWaveMacHelper::Default ( void  )

static

Create a mac helper in a default working state.

Definition at line 87 of file wave-mac-helper.cc.

References SetType().

Here is the call graph for this function:

void ns3::QosWaveMacHelper::SetType ( std::string  type, std::string  n0 = "", const AttributeValue &  v0 = EmptyAttributeValue (), std::string  n1 = "", const AttributeValue &  v1 = EmptyAttributeValue (), std::string  n2 = "", const AttributeValue &  v2 = EmptyAttributeValue (), std::string  n3 = "", const AttributeValue &  v3 = EmptyAttributeValue (), std::string  n4 = "", const AttributeValue &  v4 = EmptyAttributeValue (), std::string  n5 = "", const AttributeValue &  v5 = EmptyAttributeValue (), std::string  n6 = "", const AttributeValue &  v6 = EmptyAttributeValue (), std::string  n7 = "", const AttributeValue &  v7 = EmptyAttributeValue ()  )

virtual

Parameters

type	the type of ns3::WifiMac to create.
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set

All the attributes specified in this method should exist in the requested mac.

note: Here we require users set type with OcbWifiMac or its subclass, otherwise it will become error

Reimplemented from ns3::QosWifiMacHelper.

Definition at line 100 of file wave-mac-helper.cc.

References NS_FATAL_ERROR, and ns3::QosWifiMacHelper::SetType().

Referenced by Default().

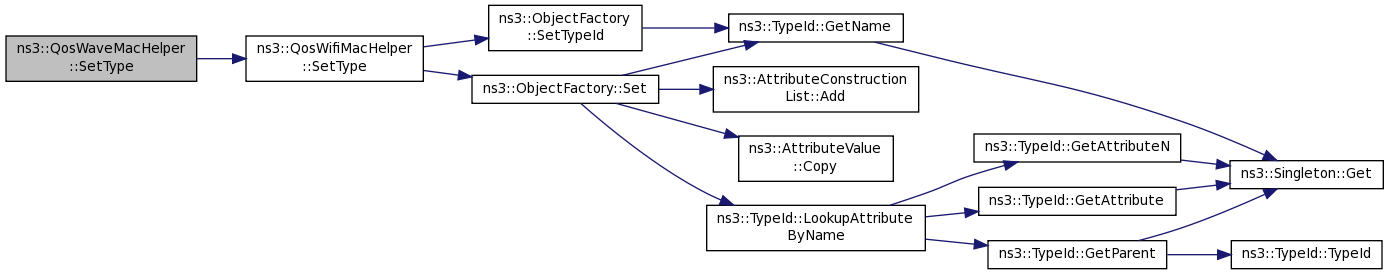

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/wave/helper/wave-mac-helper.h
• src/wave/helper/wave-mac-helper.cc
