ns3::RadvdHelper Class Reference

Radvd application helper. More...

#include <radvd-helper.h>

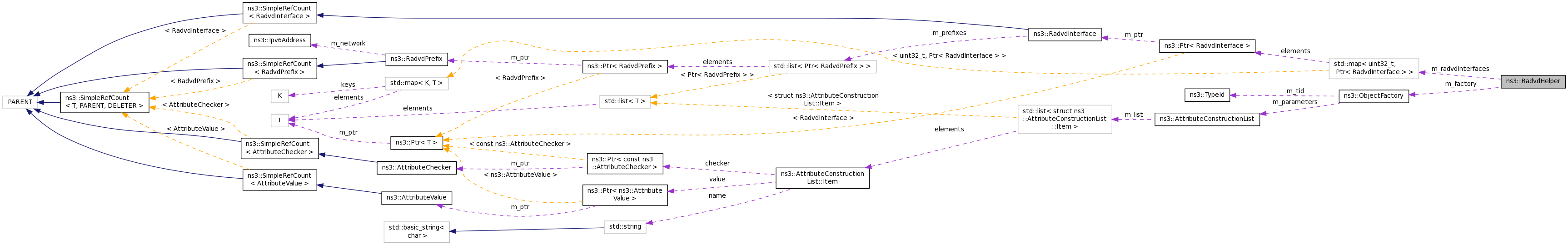

Collaboration diagram for ns3::RadvdHelper:

Public Member Functions
	RadvdHelper ()
	Constructor. More...
void	AddAnnouncedPrefix (uint32_t interface, Ipv6Address prefix, uint32_t prefixLength)
	Add a new prefix to be announced through an interface. More...
void	ClearPrefixes ()
	Clear the stored Prefixes. More...
void	DisableDefaultRouterForInterface (uint32_t interface)
	Disable the router as default router for the interface. More...
void	EnableDefaultRouterForInterface (uint32_t interface)
	Enable the router as default router for the interface. More...
Ptr< RadvdInterface >	GetRadvdInterface (uint32_t interface)
	Get the low-level RadvdInterface specification for an interface. More...
ApplicationContainer	Install (Ptr< Node > node)
	Install the application in a Node. More...
void	SetAttribute (std::string name, const AttributeValue &value)
	Set some attributes. More...

Private Types
typedef std::map< uint32_t, Ptr< RadvdInterface > >	RadvdInterfaceMap
	Container: interface index, RadvdInterface. More...
typedef std::map< uint32_t, Ptr< RadvdInterface > >::iterator	RadvdInterfaceMapI
	Container Iterator: interface index, RadvdInterface. More...

Private Attributes
ObjectFactory	m_factory
	An object factory. More...
RadvdInterfaceMap	m_radvdInterfaces
	RadvdInterface(s) More...

Detailed Description

Radvd application helper.

Definition at line 42 of file radvd-helper.h.

Member Typedef Documentation

typedef std::map<uint32_t, Ptr<RadvdInterface> > ns3::RadvdHelper::RadvdInterfaceMap

private

Container: interface index, RadvdInterface.

Definition at line 106 of file radvd-helper.h.

typedef std::map<uint32_t, Ptr<RadvdInterface> >::iterator ns3::RadvdHelper::RadvdInterfaceMapI

private

Container Iterator: interface index, RadvdInterface.

Definition at line 108 of file radvd-helper.h.

Constructor & Destructor Documentation

ns3::RadvdHelper::RadvdHelper

(

)

Constructor.

Definition at line 34 of file radvd-helper.cc.

References ns3::Radvd::GetTypeId(), m_factory, and ns3::ObjectFactory::SetTypeId().

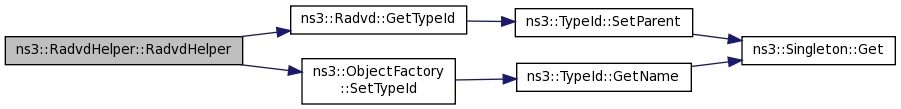

Here is the call graph for this function:

Member Function Documentation

void ns3::RadvdHelper::AddAnnouncedPrefix	(	uint32_t	interface,
		Ipv6Address	prefix,
		uint32_t	prefixLength
	)

Add a new prefix to be announced through an interface.

Parameters

interface	outgoing interface
prefix	announced IPv6 prefix
prefixLength	announced IPv6 prefix length

Definition at line 39 of file radvd-helper.cc.

References m_radvdInterfaces, NS_LOG_FUNCTION, NS_LOG_LOGIC, and NS_LOG_WARN.

Referenced by main().

Here is the caller graph for this function:

void ns3::RadvdHelper::ClearPrefixes

(

)

Clear the stored Prefixes.

Definition at line 101 of file radvd-helper.cc.

References m_radvdInterfaces.

void ns3::RadvdHelper::DisableDefaultRouterForInterface

(

uint32_t

interface

)

Disable the router as default router for the interface.

The effect is to set the Router Lifetime to zero

Parameters

interface

outgoing interface

Definition at line 83 of file radvd-helper.cc.

References m_radvdInterfaces.

void ns3::RadvdHelper::EnableDefaultRouterForInterface

(

uint32_t

interface

)

Enable the router as default router for the interface.

The effect is to set the Router Lifetime to the default value (30 minutes)

Parameters

interface

outgoing interface

Definition at line 73 of file radvd-helper.cc.

References m_radvdInterfaces.

Ptr< RadvdInterface > ns3::RadvdHelper::GetRadvdInterface

(

uint32_t

interface

)

Get the low-level RadvdInterface specification for an interface.

This method is provided to enable fine-grain parameter setup.

Parameters

interface

outgoing interface

Returns

the RadvdInterface

Definition at line 92 of file radvd-helper.cc.

References m_radvdInterfaces.

Referenced by main().

Here is the caller graph for this function:

ApplicationContainer ns3::RadvdHelper::Install

(

Ptr< Node >

node

)

Install the application in a Node.

Parameters

node

the Node

Returns

application container

Definition at line 111 of file radvd-helper.cc.

References ns3::ApplicationContainer::Add(), ns3::Node::AddApplication(), ns3::ObjectFactory::Create(), m_factory, and m_radvdInterfaces.

Referenced by main().

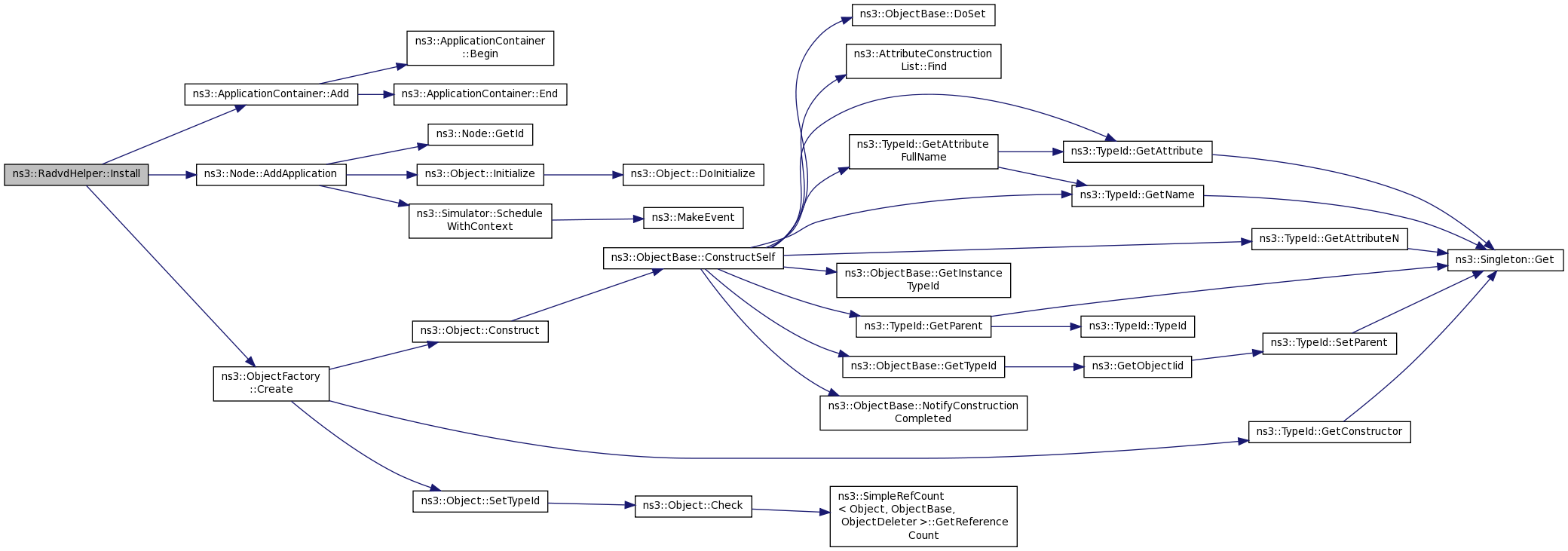

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadvdHelper::SetAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Set some attributes.

Parameters

name	attribute name
value	attribute value

Definition at line 106 of file radvd-helper.cc.

References m_factory, and ns3::ObjectFactory::Set().

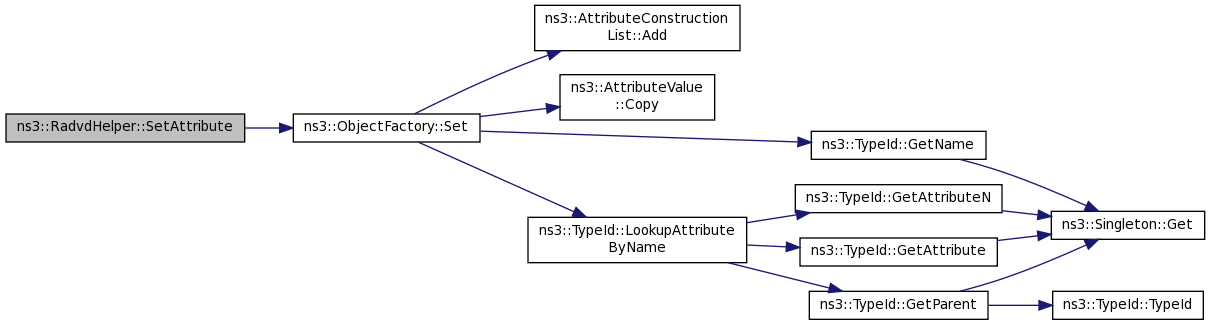

Here is the call graph for this function:

Member Data Documentation

ObjectFactory ns3::RadvdHelper::m_factory

private

An object factory.

Definition at line 103 of file radvd-helper.h.

Referenced by Install(), RadvdHelper(), and SetAttribute().

RadvdInterfaceMap ns3::RadvdHelper::m_radvdInterfaces

private

RadvdInterface(s)

Definition at line 110 of file radvd-helper.h.

Referenced by AddAnnouncedPrefix(), ClearPrefixes(), DisableDefaultRouterForInterface(), EnableDefaultRouterForInterface(), GetRadvdInterface(), and Install().

---

The documentation for this class was generated from the following files:

• src/applications/helper/radvd-helper.h
• src/applications/helper/radvd-helper.cc
