ns3::RarLteControlMessage Class Reference

abstract model for the MAC Random Access Response message More...

#include <lte-control-messages.h>

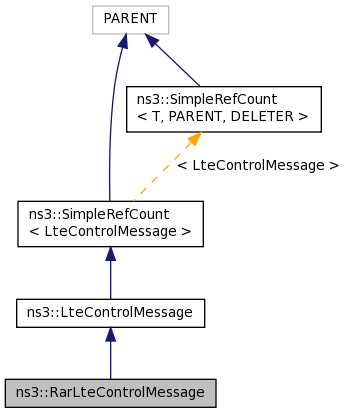

Inheritance diagram for ns3::RarLteControlMessage:

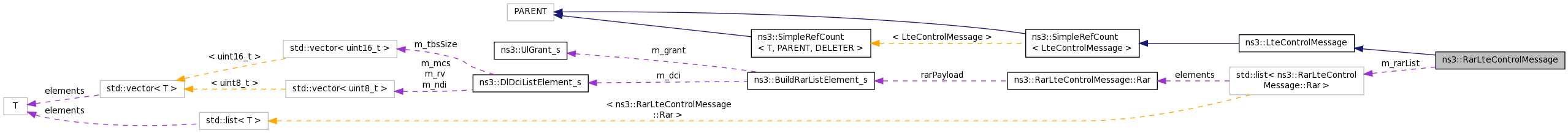

Collaboration diagram for ns3::RarLteControlMessage:

Classes
struct	Rar
	a MAC RAR and the corresponding RAPID subheader More...

Public Member Functions
	RarLteControlMessage (void)
void	AddRar (Rar rar)
	add a RAR to the MAC PDU, see 3GPP TS 36.321 6.2.3 More...
uint16_t	GetRaRnti () const
std::list< Rar >::const_iterator	RarListBegin () const
std::list< Rar >::const_iterator	RarListEnd () const
void	SetRaRnti (uint16_t raRnti)
Public Member Functions inherited from ns3::LteControlMessage
	LteControlMessage (void)
virtual	~LteControlMessage (void)
MessageType	GetMessageType (void)
	Get the type of the message. More...
void	SetMessageType (MessageType type)
	Set the type of the message. More...
Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
std::list< Rar >	m_rarList
uint16_t	m_raRnti

Additional Inherited Members
Public Types inherited from ns3::LteControlMessage
enum	MessageType {   DL_DCI, UL_DCI, DL_CQI, UL_CQI,   BSR, DL_HARQ, RACH_PREAMBLE, RAR,   MIB, SIB1 }
	The type of the message NOTE: The messages sent by UE are filtered by the LteEnbPhy::ReceiveLteControlMessageList in order to remove the ones that has been already handoff by the eNB for avoiding propagation of spurious messages. More...
Static Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
static void	Cleanup (void)
	Noop. More...

Detailed Description

abstract model for the MAC Random Access Response message

Definition at line 275 of file lte-control-messages.h.

Constructor & Destructor Documentation

ns3::RarLteControlMessage::RarLteControlMessage

(

void

)

Definition at line 200 of file lte-control-messages.cc.

References ns3::LteControlMessage::RAR, and ns3::LteControlMessage::SetMessageType().

Here is the call graph for this function:

Member Function Documentation

void ns3::RarLteControlMessage::AddRar

(

Rar

rar

)

add a RAR to the MAC PDU, see 3GPP TS 36.321 6.2.3

Parameters

rar

the rar

Definition at line 220 of file lte-control-messages.cc.

References m_rarList.

uint16_t ns3::RarLteControlMessage::GetRaRnti

(

)

const

Returns

the RA-RNTI, see 3GPP TS 36.321 5.1.4

Definition at line 213 of file lte-control-messages.cc.

References m_raRnti.

std::list< RarLteControlMessage::Rar >::const_iterator ns3::RarLteControlMessage::RarListBegin

(

)

const

Returns

a const iterator to the beginning of the RAR list

Definition at line 226 of file lte-control-messages.cc.

References m_rarList.

std::list< RarLteControlMessage::Rar >::const_iterator ns3::RarLteControlMessage::RarListEnd

(

)

const

Returns

a const iterator to the end of the RAR list

Definition at line 232 of file lte-control-messages.cc.

References m_rarList.

void ns3::RarLteControlMessage::SetRaRnti

(

uint16_t

raRnti

)

Parameters

raRnti

the RA-RNTI, see 3GPP TS 36.321 5.1.4

Definition at line 207 of file lte-control-messages.cc.

References m_raRnti.

Member Data Documentation

std::list<Rar> ns3::RarLteControlMessage::m_rarList

private

Definition at line 322 of file lte-control-messages.h.

Referenced by AddRar(), RarListBegin(), and RarListEnd().

uint16_t ns3::RarLteControlMessage::m_raRnti

private

Definition at line 323 of file lte-control-messages.h.

Referenced by GetRaRnti(), and SetRaRnti().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-control-messages.h
• src/lte/model/lte-control-messages.cc
