ns3::RrcHeaderTestCase Class Reference

This class provides common functions to be inherited by the children TestCases. More...

Inheritance diagram for ns3::RrcHeaderTestCase:

Collaboration diagram for ns3::RrcHeaderTestCase:

Public Member Functions
	RrcHeaderTestCase (std::string s)
void	AssertEqualRadioResourceConfigDedicated (LteRrcSap::RadioResourceConfigDedicated rrcd1, LteRrcSap::RadioResourceConfigDedicated rrcd2)
LteRrcSap::RadioResourceConfigDedicated	CreateRadioResourceConfigDedicated ()
virtual void	DoRun (void)=0
	Implementation to actually run this TestCase. More...
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

Protected Attributes
Ptr< Packet >	packet

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)
bool	GetErrorStatus (void) const NS_DEPRECATED
std::string	GetName (void) const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
void	SetDataDir (std::string directory)

Detailed Description

This class provides common functions to be inherited by the children TestCases.

Definition at line 91 of file test-asn1-encoding.cc.

Constructor & Destructor Documentation

ns3::RrcHeaderTestCase::RrcHeaderTestCase

(

std::string

s

)

Definition at line 103 of file test-asn1-encoding.cc.

Member Function Documentation

void ns3::RrcHeaderTestCase::AssertEqualRadioResourceConfigDedicated	(	LteRrcSap::RadioResourceConfigDedicated	rrcd1,
		LteRrcSap::RadioResourceConfigDedicated	rrcd2
	)

Definition at line 159 of file test-asn1-encoding.cc.

References ns3::LteRrcSap::PhysicalConfigDedicated::antennaInfo, ns3::LteRrcSap::RadioResourceConfigDedicated::drbToAddModList, ns3::LteRrcSap::RadioResourceConfigDedicated::drbToReleaseList, ns3::LteRrcSap::PhysicalConfigDedicated::haveAntennaInfoDedicated, ns3::LteRrcSap::RadioResourceConfigDedicated::havePhysicalConfigDedicated, ns3::LteRrcSap::PhysicalConfigDedicated::haveSoundingRsUlConfigDedicated, NS_TEST_ASSERT_MSG_EQ, ns3::LteRrcSap::RadioResourceConfigDedicated::physicalConfigDedicated, ns3::LteRrcSap::PhysicalConfigDedicated::soundingRsUlConfigDedicated, ns3::LteRrcSap::RadioResourceConfigDedicated::srbToAddModList, ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsBandwidth, ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsConfigIndex, ns3::LteRrcSap::AntennaInfoDedicated::transmissionMode, and ns3::LteRrcSap::SoundingRsUlConfigDedicated::type.

Referenced by ns3::RrcConnectionSetupTestCase::DoRun(), ns3::RrcConnectionReconfigurationTestCase::DoRun(), ns3::HandoverPreparationInfoTestCase::DoRun(), and ns3::RrcConnectionReestablishmentTestCase::DoRun().

Here is the caller graph for this function:

LteRrcSap::RadioResourceConfigDedicated ns3::RrcHeaderTestCase::CreateRadioResourceConfigDedicated

(

)

Definition at line 108 of file test-asn1-encoding.cc.

References ns3::LteRrcSap::PhysicalConfigDedicated::antennaInfo, ns3::LteRrcSap::LogicalChannelConfig::bucketSizeDurationMs, ns3::LteRrcSap::RlcConfig::choice, ns3::LteRrcSap::DrbToAddMod::drbIdentity, ns3::LteRrcSap::RadioResourceConfigDedicated::drbToAddModList, ns3::LteRrcSap::RadioResourceConfigDedicated::drbToReleaseList, ns3::LteRrcSap::DrbToAddMod::epsBearerIdentity, ns3::LteRrcSap::PhysicalConfigDedicated::haveAntennaInfoDedicated, ns3::LteRrcSap::RadioResourceConfigDedicated::havePhysicalConfigDedicated, ns3::LteRrcSap::PhysicalConfigDedicated::haveSoundingRsUlConfigDedicated, ns3::LteRrcSap::DrbToAddMod::logicalChannelConfig, ns3::LteRrcSap::LogicalChannelConfig::logicalChannelGroup, ns3::LteRrcSap::DrbToAddMod::logicalChannelIdentity, ns3::LteRrcSap::RadioResourceConfigDedicated::physicalConfigDedicated, ns3::LteRrcSap::LogicalChannelConfig::prioritizedBitRateKbps, ns3::LteRrcSap::LogicalChannelConfig::priority, ns3::LteRrcSap::DrbToAddMod::rlcConfig, ns3::LteRrcSap::SoundingRsUlConfigDedicated::SETUP, ns3::LteRrcSap::PhysicalConfigDedicated::soundingRsUlConfigDedicated, ns3::LteRrcSap::RadioResourceConfigDedicated::srbToAddModList, ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsBandwidth, ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsConfigIndex, ns3::LteRrcSap::AntennaInfoDedicated::transmissionMode, ns3::LteRrcSap::SoundingRsUlConfigDedicated::type, and ns3::LteRrcSap::RlcConfig::UM_BI_DIRECTIONAL.

Referenced by ns3::RrcConnectionSetupTestCase::DoRun(), ns3::RrcConnectionReconfigurationTestCase::DoRun(), ns3::HandoverPreparationInfoTestCase::DoRun(), and ns3::RrcConnectionReestablishmentTestCase::DoRun().

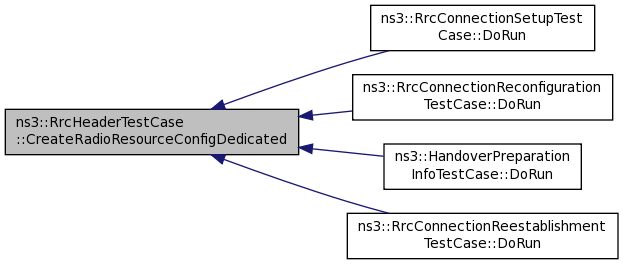

Here is the caller graph for this function:

virtual void ns3::RrcHeaderTestCase::DoRun ( void  )

pure virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Implemented in ns3::MeasurementReportTestCase, ns3::RrcConnectionRejectTestCase, ns3::RrcConnectionReestablishmentCompleteTestCase, ns3::RrcConnectionReestablishmentTestCase, ns3::RrcConnectionReestablishmentRequestTestCase, ns3::HandoverPreparationInfoTestCase, ns3::RrcConnectionReconfigurationTestCase, ns3::RrcConnectionReconfigurationCompleteTestCase, ns3::RrcConnectionSetupCompleteTestCase, ns3::RrcConnectionSetupTestCase, and ns3::RrcConnectionRequestTestCase.

Member Data Documentation

Ptr<Packet> ns3::RrcHeaderTestCase::packet

protected

Definition at line 100 of file test-asn1-encoding.cc.

Referenced by ns3::RrcConnectionRequestTestCase::DoRun(), ns3::RrcConnectionSetupTestCase::DoRun(), ns3::RrcConnectionSetupCompleteTestCase::DoRun(), ns3::RrcConnectionReconfigurationCompleteTestCase::DoRun(), ns3::RrcConnectionReconfigurationTestCase::DoRun(), ns3::HandoverPreparationInfoTestCase::DoRun(), ns3::RrcConnectionReestablishmentRequestTestCase::DoRun(), ns3::RrcConnectionReestablishmentTestCase::DoRun(), ns3::RrcConnectionReestablishmentCompleteTestCase::DoRun(), ns3::RrcConnectionRejectTestCase::DoRun(), and ns3::MeasurementReportTestCase::DoRun().

---

The documentation for this class was generated from the following file:

• src/lte/test/test-asn1-encoding.cc
