6LoWPAN FRAG1 header - see RFC 4944 More...

#include <sixlowpan-header.h>

Inheritance diagram for ns3::SixLowPanFrag1:

Collaboration diagram for ns3::SixLowPanFrag1:

Public Member Functions
	SixLowPanFrag1 (void)

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

uint16_t	GetDatagramSize (void) const
	Get the datagram size. More...

uint16_t	GetDatagramTag (void) const
	Get the datagram tag. More...

virtual TypeId	GetInstanceTypeId (void) const
	Return the instance type identifier. More...

virtual uint32_t	GetSerializedSize (void) const
	Get the serialized size of the packet. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetDatagramSize (uint16_t datagramSize)
	Get the Dispatch type. More...

void	SetDatagramTag (uint16_t datagramTag)
	Set the datagram tag. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint16_t	m_datagramSize
	datagram size More...

uint16_t	m_datagramTag
	datagram tag More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

6LoWPAN FRAG1 header - see RFC 4944

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 380 of file sixlowpan-header.h.

Constructor & Destructor Documentation

ns3::SixLowPanFrag1::SixLowPanFrag1 ( void )

Definition at line 545 of file sixlowpan-header.cc.

Member Function Documentation

uint32_t ns3::SixLowPanFrag1::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Implements ns3::Header.

Definition at line 584 of file sixlowpan-header.cc.

References GetSerializedSize(), m_datagramSize, m_datagramTag, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Here is the call graph for this function:

uint16_t ns3::SixLowPanFrag1::GetDatagramSize ( void ) const

Get the datagram size.

Returns: the datagram size

Definition at line 601 of file sixlowpan-header.cc.

References m_datagramSize.

Referenced by ns3::SixLowPanNetDevice::ProcessFragment().

Here is the caller graph for this function:

uint16_t ns3::SixLowPanFrag1::GetDatagramTag ( void ) const

Get the datagram tag.

Returns: the datagram tag

Definition at line 611 of file sixlowpan-header.cc.

References m_datagramTag.

Referenced by ns3::SixLowPanNetDevice::ProcessFragment().

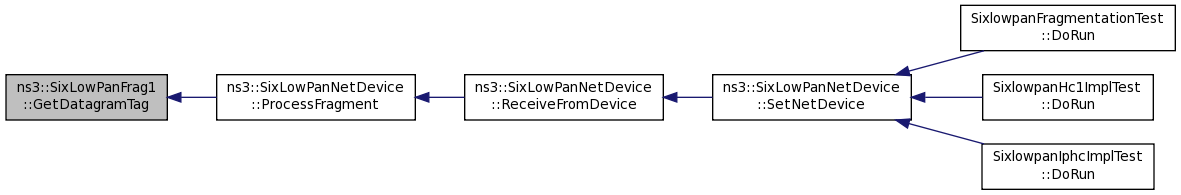

Here is the caller graph for this function:

TypeId ns3::SixLowPanFrag1::GetInstanceTypeId ( void ) const

virtual

Return the instance type identifier.

Returns: instance type ID

Implements ns3::ObjectBase.

Definition at line 557 of file sixlowpan-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::SixLowPanFrag1::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Implements ns3::Header.

Definition at line 567 of file sixlowpan-header.cc.

Referenced by Deserialize(), and ns3::SixLowPanNetDevice::DoFragmentation().

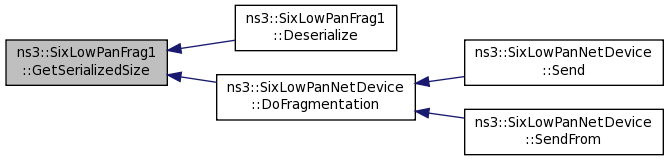

Here is the caller graph for this function:

TypeId ns3::SixLowPanFrag1::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 551 of file sixlowpan-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SixLowPanFrag1::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 562 of file sixlowpan-header.cc.

References m_datagramSize, and m_datagramTag.

Referenced by ns3::operator<<().

Here is the caller graph for this function:
