ns3::SixLowPanHc1 Class Reference
6LoWPAN

6LoWPAN HC1 header - see RFC 4944 More...

#include <sixlowpan-header.h>

+ Inheritance diagram for ns3::SixLowPanHc1:
+ Collaboration diagram for ns3::SixLowPanHc1:

Public Types

enum  LowPanHc1Addr_e { HC1_PIII = 0x00, HC1_PIIC = 0x01, HC1_PCII = 0x02, HC1_PCIC = 0x03 }
 Kind of address compression. More...

enum  LowPanHc1NextHeader_e { HC1_NC = 0x00, HC1_UDP = 0x01, HC1_ICMP = 0x02, HC1_TCP = 0x03 }
 Next header information. More...


Public Member Functions

 SixLowPanHc1 (void)

virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet. More...

LowPanHc1Addr_e GetDstCompression () const
 Get Destination Compression type. More...

const uint8_t * GetDstInterface () const
 Get the destination interface. More...

const uint8_t * GetDstPrefix () const
 Get the destination prefix. More...

uint32_t GetFlowLabel () const
 Get the Flow Label value. More...

uint8_t GetHopLimit (void) const
 Get the "Hop limit" field (TTL). More...

virtual TypeId GetInstanceTypeId (void) const
 Return the instance type identifier. More...

uint8_t GetNextHeader () const
 Get the Next Header value. More...

virtual uint32_t GetSerializedSize (void) const
 Get the serialized size of the packet. More...

LowPanHc1Addr_e GetSrcCompression () const
 Get Source Compression type. More...

const uint8_t * GetSrcInterface () const
 Get the source interface. More...

const uint8_t * GetSrcPrefix () const
 Get the source prefix. More...

uint8_t GetTrafficClass () const
 Get the Traffic Class value. More...

bool IsHc2HeaderPresent () const
 Check if there is a HC2 compressed header. More...

bool IsTcflCompression () const
 Check if the Traffic Class and Flow Labels are compressed. More...

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet. More...

void SetDstCompression (LowPanHc1Addr_e dstCompression)
 Set Destination Compression type. More...

void SetDstInterface (const uint8_t *dstInterface)
 Set the destination interface. More...

void SetDstPrefix (const uint8_t *dstPrefix)
 Set the destination prefix. More...

void SetFlowLabel (uint32_t flowLabel)
 Set the Flow Label value. More...

void SetHc2HeaderPresent (bool hc2HeaderPresent)
 Set the next header a HC2 compressed header. More...

void SetHopLimit (uint8_t limit)
 Get the Dispatch type. More...

void SetNextHeader (uint8_t nextHeader)
 Set the Next Header value. More...

void SetSrcCompression (LowPanHc1Addr_e srcCompression)
 Set Source Compression type. More...

void SetSrcInterface (const uint8_t *srcInterface)
 Set the source interface. More...

void SetSrcPrefix (const uint8_t *srcPrefix)
 Set the source prefix. More...

void SetTcflCompression (bool tcflCompression)
 Set the Traffic Class and Flow Labels as compressed. More...

void SetTrafficClass (uint8_t trafficClass)
 Set the Traffic Class value. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

LowPanHc1Addr_e m_dstCompression
 Destination compresison type. More...

uint8_t m_dstInterface [8]
 Destination interface. More...

uint8_t m_dstPrefix [8]
 Destinaiton prefix. More...

uint32_t m_flowLabel
 Flow Label. More...

bool m_hc2HeaderPresent
 is next header HC2 compressed More...

uint8_t m_hopLimit
 Hop Limit. More...

uint8_t m_nextHeader
 Next header. More...

LowPanHc1NextHeader_e m_nextHeaderCompression
 next header compression More...

LowPanHc1Addr_e m_srcCompression
 Source compresison type. More...

uint8_t m_srcInterface [8]
 Source interface. More...

uint8_t m_srcPrefix [8]
 Source prefix. More...

bool m_tcflCompression
 is TC and FL compressed More...

uint8_t m_trafficClass
 Traffic Class. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

6LoWPAN HC1 header - see RFC 4944

Doxygen introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 133 of file sixlowpan-header.h.

Member Enumeration Documentation

enum ns3::SixLowPanHc1::LowPanHc1Addr_e

Kind of address compression.

The address compression is handled in 4 bits and might mean: PI: Prefix inline, PC: Prefix Compressed, II: Interface Identifier, Inline, IC: Interface Identifier Compressed

Enumerator
HC1_PIII
HC1_PIIC
HC1_PCII
HC1_PCIC

Definition at line 143 of file sixlowpan-header.h.

enum ns3::SixLowPanHc1::LowPanHc1NextHeader_e

Next header information.

The Next header compression is handled in 4 bits and might mean: NC: Not Compressed, UDP, ICMP or TCP.

Enumerator
HC1_NC
HC1_UDP
HC1_ICMP
HC1_TCP

Definition at line 157 of file sixlowpan-header.h.

Constructor & Destructor Documentation

ns3::SixLowPanHc1::SixLowPanHc1 ( void  )

Definition at line 100 of file sixlowpan-header.cc.

Member Function Documentation

uint32_t ns3::SixLowPanHc1::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the packet.

Parameters
startBuffer iterator
Returns
size of the packet

Implements ns3::Header.

Definition at line 269 of file sixlowpan-header.cc.

References GetSerializedSize(), HC1_ICMP, HC1_NC, HC1_PCIC, HC1_PCII, HC1_PIIC, HC1_PIII, HC1_TCP, HC1_UDP, ns3::Ipv6Header::IPV6_ICMPV6, ns3::Ipv6Header::IPV6_TCP, ns3::Ipv6Header::IPV6_UDP, ns3::SixLowPanDispatch::LOWPAN_HC1, m_dstCompression, m_dstInterface, m_dstPrefix, m_flowLabel, m_hc2HeaderPresent, m_hopLimit, m_nextHeader, m_nextHeaderCompression, m_srcCompression, m_srcInterface, m_srcPrefix, m_tcflCompression, m_trafficClass, NS_ASSERT_MSG, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

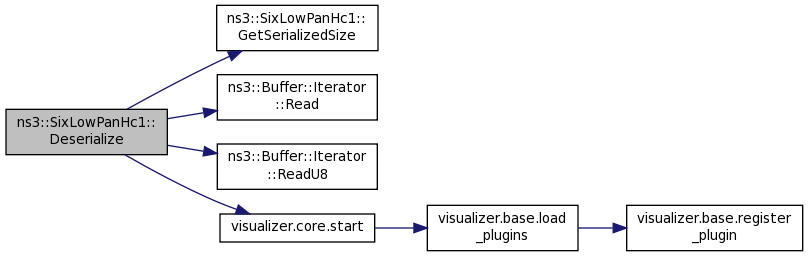

+ Here is the call graph for this function:

SixLowPanHc1::LowPanHc1Addr_e ns3::SixLowPanHc1::GetDstCompression ( ) const

Get Destination Compression type.

Returns
the kind of address compression

Definition at line 393 of file sixlowpan-header.cc.

References m_dstCompression.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

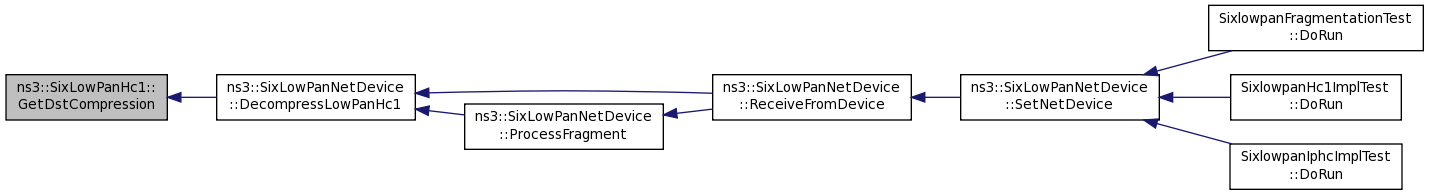

+ Here is the caller graph for this function:

const uint8_t * ns3::SixLowPanHc1::GetDstInterface ( ) const

Get the destination interface.

Returns
the destination interface

Definition at line 398 of file sixlowpan-header.cc.

References m_dstInterface.

const uint8_t * ns3::SixLowPanHc1::GetDstPrefix ( ) const

Get the destination prefix.

Returns
the destination prefix

Definition at line 403 of file sixlowpan-header.cc.

References m_dstPrefix.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

uint32_t ns3::SixLowPanHc1::GetFlowLabel ( void  ) const

Get the Flow Label value.

Returns
the Flow Label

Definition at line 408 of file sixlowpan-header.cc.

References m_flowLabel.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

uint8_t ns3::SixLowPanHc1::GetHopLimit ( void  ) const

Get the "Hop limit" field (TTL).

Returns
the hop limit value

Definition at line 388 of file sixlowpan-header.cc.

References m_hopLimit.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

TypeId ns3::SixLowPanHc1::GetInstanceTypeId ( void  ) const
virtual

Return the instance type identifier.

Returns
instance type ID

Implements ns3::ObjectBase.

Definition at line 111 of file sixlowpan-header.cc.

References GetTypeId().

+ Here is the call graph for this function:

uint8_t ns3::SixLowPanHc1::GetNextHeader ( void  ) const

Get the Next Header value.

Returns
the Next Header value

Definition at line 413 of file sixlowpan-header.cc.

References m_nextHeader.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

uint32_t ns3::SixLowPanHc1::GetSerializedSize ( void  ) const
virtual

Get the serialized size of the packet.

Returns
size

Implements ns3::Header.

Definition at line 132 of file sixlowpan-header.cc.

References HC1_NC, HC1_PCIC, HC1_PCII, HC1_PIIC, HC1_PIII, m_dstCompression, m_nextHeaderCompression, m_srcCompression, and m_tcflCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1(), and Deserialize().

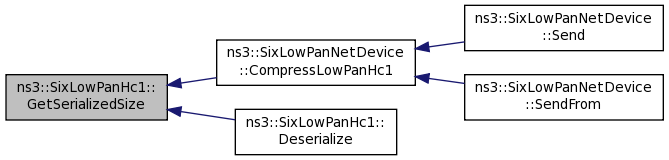

+ Here is the caller graph for this function:

SixLowPanHc1::LowPanHc1Addr_e ns3::SixLowPanHc1::GetSrcCompression ( ) const

Get Source Compression type.

Returns
the kind of address compression

Definition at line 418 of file sixlowpan-header.cc.

References m_srcCompression.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

const uint8_t * ns3::SixLowPanHc1::GetSrcInterface ( ) const

Get the source interface.

Returns
the source interface

Definition at line 423 of file sixlowpan-header.cc.

References m_srcInterface.

const uint8_t * ns3::SixLowPanHc1::GetSrcPrefix ( ) const

Get the source prefix.

Returns
the source prefix

Definition at line 428 of file sixlowpan-header.cc.

References m_srcPrefix.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

uint8_t ns3::SixLowPanHc1::GetTrafficClass ( void  ) const

Get the Traffic Class value.

Returns
the Traffic Class value

Definition at line 433 of file sixlowpan-header.cc.

References m_trafficClass.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

TypeId ns3::SixLowPanHc1::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 105 of file sixlowpan-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::SixLowPanHc1::IsHc2HeaderPresent ( ) const

Check if there is a HC2 compressed header.

Returns
true if next header is HC2 copressed

Definition at line 443 of file sixlowpan-header.cc.

References m_hc2HeaderPresent.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

bool ns3::SixLowPanHc1::IsTcflCompression ( ) const

Check if the Traffic Class and Flow Labels are compressed.

Returns
true if TC and FL are compressed

Definition at line 438 of file sixlowpan-header.cc.

References m_tcflCompression.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

+ Here is the caller graph for this function:

void ns3::SixLowPanHc1::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 116 of file sixlowpan-header.cc.

References m_dstCompression, m_hc2HeaderPresent, m_hopLimit, m_nextHeaderCompression, m_srcCompression, and m_tcflCompression.

Referenced by ns3::operator<<().

+ Here is the caller graph for this function:

void ns3::SixLowPanHc1::Serialize ( Buffer::Iterator  start) const
virtual

Serialize the packet.

Parameters
startBuffer iterator

Implements ns3::Header.

Definition at line 178 of file sixlowpan-header.cc.

References HC1_NC, HC1_PCIC, HC1_PCII, HC1_PIIC, HC1_PIII, ns3::SixLowPanDispatch::LOWPAN_HC1, m_dstCompression, m_dstInterface, m_dstPrefix, m_flowLabel, m_hc2HeaderPresent, m_hopLimit, m_nextHeader, m_nextHeaderCompression, m_srcCompression, m_srcInterface, m_srcPrefix, m_tcflCompression, m_trafficClass, NS_ASSERT_MSG, visualizer.core::start(), ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().

+ Here is the call graph for this function:

void ns3::SixLowPanHc1::SetDstCompression ( LowPanHc1Addr_e  dstCompression)

Set Destination Compression type.

Parameters
dstCompressionthe kind of address compression

Definition at line 448 of file sixlowpan-header.cc.

References m_dstCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

void ns3::SixLowPanHc1::SetDstInterface ( const uint8_t *  dstInterface)

Set the destination interface.

Parameters
dstInterfacethe destination interface

Definition at line 453 of file sixlowpan-header.cc.

References m_dstInterface.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

void ns3::SixLowPanHc1::SetDstPrefix ( const uint8_t *  dstPrefix)

Set the destination prefix.

Parameters
dstPrefixthe destination prefix

Definition at line 461 of file sixlowpan-header.cc.

References m_dstPrefix.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

void ns3::SixLowPanHc1::SetFlowLabel ( uint32_t  flowLabel)

Set the Flow Label value.

Parameters
flowLabelthe Flow Label

Definition at line 469 of file sixlowpan-header.cc.

References m_flowLabel.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

void ns3::SixLowPanHc1::SetHc2HeaderPresent ( bool  hc2HeaderPresent)

Set the next header a HC2 compressed header.

Parameters
hc2HeaderPresenttrue if next header is HC2 compressed

Definition at line 527 of file sixlowpan-header.cc.

References m_hc2HeaderPresent.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

void ns3::SixLowPanHc1::SetHopLimit ( uint8_t  limit)

Get the Dispatch type.

Returns
the Dispatch type Set the "Hop limit" field (TTL).
Parameters
limitthe hop limit value

Definition at line 383 of file sixlowpan-header.cc.

References m_hopLimit.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

void ns3::SixLowPanHc1::SetNextHeader ( uint8_t  nextHeader)

Set the Next Header value.

Parameters
nextHeaderthe Next Header value

Definition at line 474 of file sixlowpan-header.cc.

References HC1_ICMP, HC1_NC, HC1_TCP, HC1_UDP, ns3::Ipv6Header::IPV6_ICMPV6, ns3::Ipv6Header::IPV6_TCP, ns3::Ipv6Header::IPV6_UDP, m_nextHeader, and m_nextHeaderCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

void ns3::SixLowPanHc1::SetSrcCompression ( LowPanHc1Addr_e  srcCompression)

Set Source Compression type.

Parameters
srcCompressionthe kind of address compression

Definition at line 495 of file sixlowpan-header.cc.

References m_srcCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

void ns3::SixLowPanHc1::SetSrcInterface ( const uint8_t *  srcInterface)

Set the source interface.

Parameters
srcInterfacethe source interface

Definition at line 500 of file sixlowpan-header.cc.

References m_srcInterface.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

void ns3::SixLowPanHc1::SetSrcPrefix ( const uint8_t *  srcPrefix)

Set the source prefix.

Parameters
srcPrefixthe source prefix

Definition at line 508 of file sixlowpan-header.cc.

References m_srcPrefix.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

void ns3::SixLowPanHc1::SetTcflCompression ( bool  tcflCompression)

Set the Traffic Class and Flow Labels as compressed.

Parameters
tcflCompressiontrue if TC and FL are compressed

Definition at line 516 of file sixlowpan-header.cc.

References m_tcflCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

void ns3::SixLowPanHc1::SetTrafficClass ( uint8_t  trafficClass)

Set the Traffic Class value.

Parameters
trafficClassthe Traffic Class value

Definition at line 521 of file sixlowpan-header.cc.

References m_trafficClass.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

+ Here is the caller graph for this function:

Member Data Documentation

LowPanHc1Addr_e ns3::SixLowPanHc1::m_dstCompression
private

Destination compresison type.

Definition at line 361 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDstCompression(), GetSerializedSize(), Print(), Serialize(), and SetDstCompression().

uint8_t ns3::SixLowPanHc1::m_dstInterface[8]
private

Destination interface.

Definition at line 356 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDstInterface(), Serialize(), and SetDstInterface().

uint8_t ns3::SixLowPanHc1::m_dstPrefix[8]
private

Destinaiton prefix.

Definition at line 355 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDstPrefix(), Serialize(), and SetDstPrefix().

uint32_t ns3::SixLowPanHc1::m_flowLabel
private

Flow Label.

Definition at line 358 of file sixlowpan-header.h.

Referenced by Deserialize(), GetFlowLabel(), Serialize(), and SetFlowLabel().

bool ns3::SixLowPanHc1::m_hc2HeaderPresent
private

is next header HC2 compressed

Definition at line 364 of file sixlowpan-header.h.

Referenced by Deserialize(), IsHc2HeaderPresent(), Print(), Serialize(), and SetHc2HeaderPresent().

uint8_t ns3::SixLowPanHc1::m_hopLimit
private

Hop Limit.

Definition at line 352 of file sixlowpan-header.h.

Referenced by Deserialize(), GetHopLimit(), Print(), Serialize(), and SetHopLimit().

uint8_t ns3::SixLowPanHc1::m_nextHeader
private

Next header.

Definition at line 359 of file sixlowpan-header.h.

Referenced by Deserialize(), GetNextHeader(), Serialize(), and SetNextHeader().

LowPanHc1NextHeader_e ns3::SixLowPanHc1::m_nextHeaderCompression
private

next header compression

Definition at line 363 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSerializedSize(), Print(), Serialize(), and SetNextHeader().

LowPanHc1Addr_e ns3::SixLowPanHc1::m_srcCompression
private

Source compresison type.

Definition at line 360 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSerializedSize(), GetSrcCompression(), Print(), Serialize(), and SetSrcCompression().

uint8_t ns3::SixLowPanHc1::m_srcInterface[8]
private

Source interface.

Definition at line 354 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSrcInterface(), Serialize(), and SetSrcInterface().

uint8_t ns3::SixLowPanHc1::m_srcPrefix[8]
private

Source prefix.

Definition at line 353 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSrcPrefix(), Serialize(), and SetSrcPrefix().

bool ns3::SixLowPanHc1::m_tcflCompression
private

is TC and FL compressed

Definition at line 362 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSerializedSize(), IsTcflCompression(), Print(), Serialize(), and SetTcflCompression().

uint8_t ns3::SixLowPanHc1::m_trafficClass
private

Traffic Class.

Definition at line 357 of file sixlowpan-header.h.

Referenced by Deserialize(), GetTrafficClass(), Serialize(), and SetTrafficClass().

The documentation for this class was generated from the following files:
