ns3::SixLowPanNetDevice::Fragments Class Reference

A Set of Fragment. More...

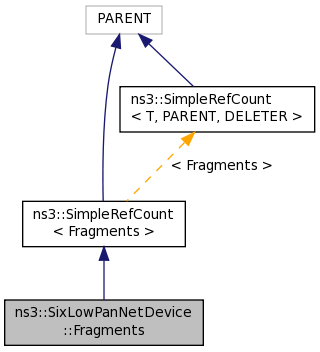

Inheritance diagram for ns3::SixLowPanNetDevice::Fragments:

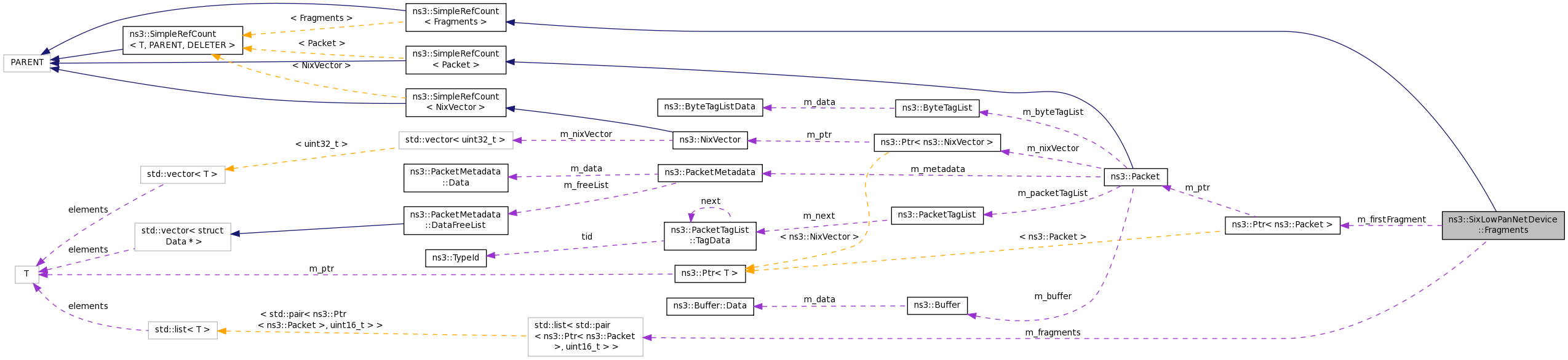

Collaboration diagram for ns3::SixLowPanNetDevice::Fragments:

Public Member Functions
	Fragments ()
	Constructor. More...
	~Fragments ()
	Destructor. More...
void	AddFirstFragment (Ptr< Packet > fragment)
	Add the first packet fragment. More...
void	AddFragment (Ptr< Packet > fragment, uint16_t fragmentOffset)
	Add a fragment to the pool. More...
std::list< Ptr< Packet > >	GetFraments () const
	Get a list of the current stored fragments. More...
Ptr< Packet >	GetPacket () const
	Get the entire packet. More...
bool	IsEntire () const
	If all fragments have been added. More...
void	SetPacketSize (uint32_t packetSize)
	Set the packet-to-be-defragmented size. More...
Public Member Functions inherited from ns3::SimpleRefCount< Fragments >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
Ptr< Packet >	m_firstFragment
	The very first fragment. More...
std::list< std::pair< Ptr < Packet >, uint16_t > >	m_fragments
	The current fragments. More...
uint32_t	m_packetSize
	The size of the reconstructed packet (bytes). More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< Fragments >
static void	Cleanup (void)
	Noop. More...

Detailed Description

A Set of Fragment.

Definition at line 321 of file sixlowpan-net-device.h.

Constructor & Destructor Documentation

ns3::SixLowPanNetDevice::Fragments::Fragments

(

)

Constructor.

Definition at line 1923 of file sixlowpan-net-device.cc.

References m_packetSize, and NS_LOG_FUNCTION.

ns3::SixLowPanNetDevice::Fragments::~Fragments

(

)

Destructor.

Definition at line 1929 of file sixlowpan-net-device.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::SixLowPanNetDevice::Fragments::AddFirstFragment

(

Ptr< Packet >

fragment

)

Add the first packet fragment.

The first fragment is needed to allow the post-defragmentation decompression.

Parameters

fragment

the fragment

Definition at line 1960 of file sixlowpan-net-device.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::SixLowPanNetDevice::ProcessFragment().

Here is the caller graph for this function:

void ns3::SixLowPanNetDevice::Fragments::AddFragment	(	Ptr< Packet >	fragment,
		uint16_t	fragmentOffset
	)

Add a fragment to the pool.

Parameters

fragment	the fragment
fragmentOffset	the offset of the fragment

Definition at line 1934 of file sixlowpan-net-device.cc.

References ns3::Packet::GetSize(), ns3::SixLowPanNetDevice::m_fragments, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::SixLowPanNetDevice::ProcessFragment().

Here is the call graph for this function:

Here is the caller graph for this function:

std::list< Ptr< Packet > > ns3::SixLowPanNetDevice::Fragments::GetFraments

(

)

const

Get a list of the current stored fragments.

Definition at line 2035 of file sixlowpan-net-device.cc.

References ns3::SixLowPanNetDevice::m_fragments.

Ptr< Packet > ns3::SixLowPanNetDevice::Fragments::GetPacket

(

)

const

Get the entire packet.

Returns

the entire packet

Definition at line 1999 of file sixlowpan-net-device.cc.

References ns3::Packet::AddAtEnd(), ns3::SixLowPanNetDevice::m_fragments, NS_ABORT_MSG, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::SixLowPanNetDevice::ProcessFragment().

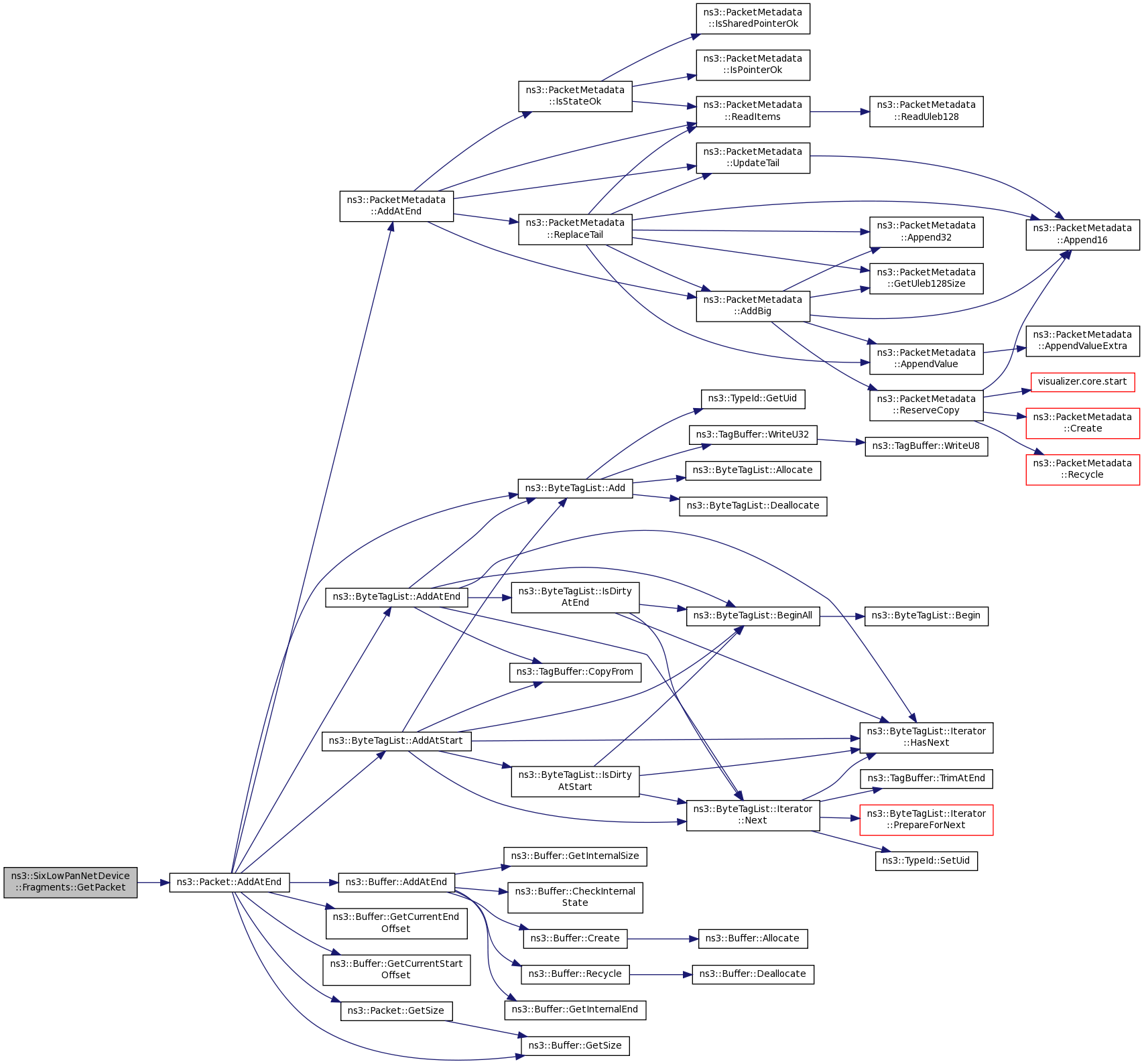

Here is the call graph for this function:

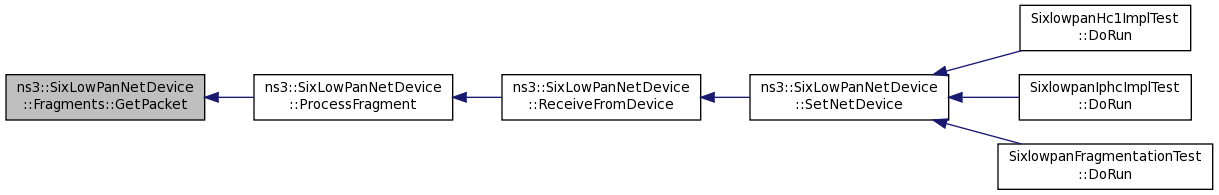

Here is the caller graph for this function:

bool ns3::SixLowPanNetDevice::Fragments::IsEntire

(

)

const

If all fragments have been added.

Returns

true if the packet is entire

Definition at line 1967 of file sixlowpan-net-device.cc.

References list, ns3::SixLowPanNetDevice::m_fragments, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::SixLowPanNetDevice::ProcessFragment().

Here is the caller graph for this function:

void ns3::SixLowPanNetDevice::Fragments::SetPacketSize

(

uint32_t

packetSize

)

Set the packet-to-be-defragmented size.

Parameters

packetSize

the packet size (bytes)

Definition at line 2029 of file sixlowpan-net-device.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::SixLowPanNetDevice::ProcessFragment().

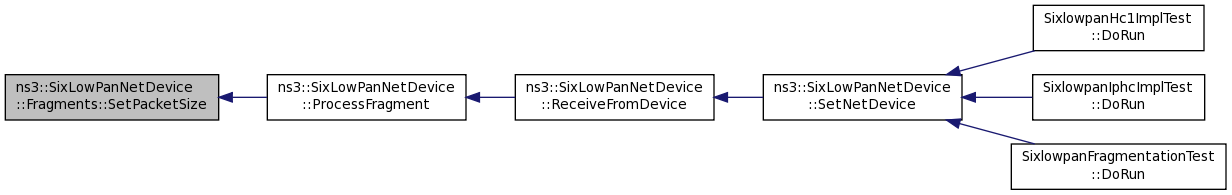

Here is the caller graph for this function:

Member Data Documentation

Ptr<Packet> ns3::SixLowPanNetDevice::Fragments::m_firstFragment

private

The very first fragment.

Definition at line 385 of file sixlowpan-net-device.h.

std::list<std::pair<Ptr<Packet>, uint16_t> > ns3::SixLowPanNetDevice::Fragments::m_fragments

private

The current fragments.

Definition at line 380 of file sixlowpan-net-device.h.

uint32_t ns3::SixLowPanNetDevice::Fragments::m_packetSize

private

The size of the reconstructed packet (bytes).

Definition at line 375 of file sixlowpan-net-device.h.

Referenced by Fragments().

---

The documentation for this class was generated from the following files:

• src/sixlowpan/model/sixlowpan-net-device.h
• src/sixlowpan/model/sixlowpan-net-device.cc
