LOWPAN_NHC Extension Header Encoding - see RFC 6282. More...

#include <sixlowpan-header.h>

Inheritance diagram for ns3::SixLowPanNhcExtension:

Collaboration diagram for ns3::SixLowPanNhcExtension:

Public Types
enum	Eid_e { EID_HOPBYHOP_OPTIONS_H = 0, EID_ROUTING_H, EID_FRAGMENTATION_H, EID_DESTINATION_OPTIONS_H, EID_MOBILITY_H, EID_IPv6_H = 7 }
	EID: IPv6 Extension Header ID. More...

Public Member Functions
	SixLowPanNhcExtension (void)

uint32_t	CopyBlob (uint8_t *blob, uint32_t size) const
	Get the option header data blob. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

Eid_e	GetEid (void) const
	Get the Extension Header Type. More...

virtual TypeId	GetInstanceTypeId (void) const
	Return the instance type identifier. More...

uint8_t	GetNextHeader (void) const
	Get the Next Header field value. More...

bool	GetNh (void) const
	Get the Next Header field value. More...

virtual SixLowPanDispatch::NhcDispatch_e	GetNhcDispatchType (void) const
	Get the NhcDispatch type. More...

virtual uint32_t	GetSerializedSize (void) const
	Get the serialized size of the packet. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetBlob (const uint8_t *blob, uint32_t size)
	Set the option header data blob. More...

void	SetEid (Eid_e extensionHeaderType)
	Set the Extension Header Type. More...

void	SetNextHeader (uint8_t nextHeader)
	Set the Next Header field values. More...

void	SetNh (bool nhField)
	Set the NH field values. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_nhcBlob [256]
	NHC compressed header. More...

uint8_t	m_nhcBlobLength
	Length of the NHC compressed header. More...

uint8_t	m_nhcExtensionHeader
	NHC extension header type. More...

uint8_t	m_nhcNextHeader
	Next header. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

LOWPAN_NHC Extension Header Encoding - see RFC 6282.

Doxygen introspection did not find any typical Config paths.

   0   1   2   3   4   5   6   7
 +---+---+---+---+---+---+---+---+
 | 1 | 1 | 1 | 0 |    EID    |NH |
 +---+---+---+---+---+---+---+---+

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 931 of file sixlowpan-header.h.

Member Enumeration Documentation

enum ns3::SixLowPanNhcExtension::Eid_e

EID: IPv6 Extension Header ID.

EID: IPv6 Extension Header ID: 0: IPv6 Hop-by-Hop Options Header [RFC2460] 1: IPv6 Routing Header [RFC2460] 2: IPv6 Fragment Header [RFC2460] 3: IPv6 Destination Options Header [RFC2460] 4: IPv6 Mobility Header [RFC6275] 5: Reserved 6: Reserved 7: IPv6 Header

Enumerator
EID_HOPBYHOP_OPTIONS_H
EID_ROUTING_H
EID_FRAGMENTATION_H
EID_DESTINATION_OPTIONS_H
EID_MOBILITY_H
EID_IPv6_H

Definition at line 947 of file sixlowpan-header.h.

Constructor & Destructor Documentation

ns3::SixLowPanNhcExtension::SixLowPanNhcExtension ( void )

Definition at line 1425 of file sixlowpan-header.cc.

References m_nhcBlobLength, m_nhcExtensionHeader, and m_nhcNextHeader.

Member Function Documentation

uint32_t ns3::SixLowPanNhcExtension::CopyBlob	(	uint8_t *	blob,
		uint32_t	size
	)		const

Get the option header data blob.

Parameters

blob	a buffer to copy the blob data into
size	the size of the buffer

Returns: the length of the copied data

Definition at line 1533 of file sixlowpan-header.cc.

References m_nhcBlob, m_nhcBlobLength, and NS_ASSERT_MSG.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanNhc().

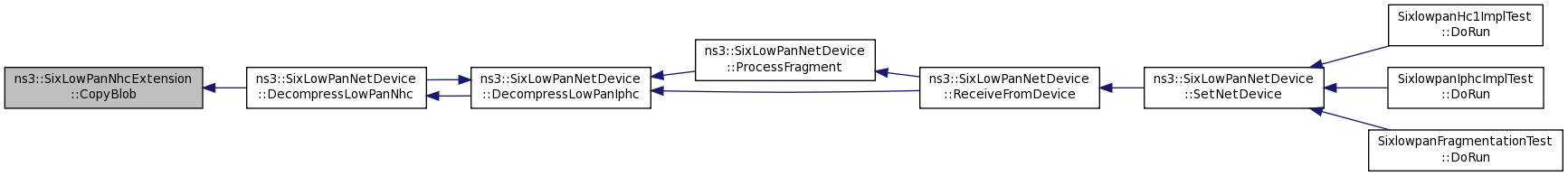

Here is the caller graph for this function:

uint32_t ns3::SixLowPanNhcExtension::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Implements ns3::Header.

Definition at line 1473 of file sixlowpan-header.cc.

References GetNh(), GetSerializedSize(), m_nhcBlob, m_nhcBlobLength, m_nhcExtensionHeader, m_nhcNextHeader, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

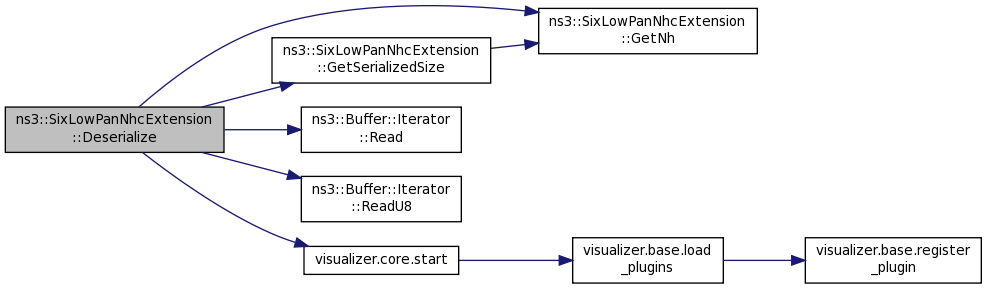

Here is the call graph for this function:

SixLowPanNhcExtension::Eid_e ns3::SixLowPanNhcExtension::GetEid ( void ) const

Get the Extension Header Type.

Returns: the Extension Header Type

Definition at line 1499 of file sixlowpan-header.cc.

References m_nhcExtensionHeader.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanNhc().

Here is the caller graph for this function:

TypeId ns3::SixLowPanNhcExtension::GetInstanceTypeId ( void ) const

virtual

Return the instance type identifier.

Returns: instance type ID

Implements ns3::ObjectBase.

Definition at line 1441 of file sixlowpan-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint8_t ns3::SixLowPanNhcExtension::GetNextHeader ( void ) const

Get the Next Header field value.

Returns: the Next Header field value

Definition at line 1509 of file sixlowpan-header.cc.

References m_nhcNextHeader.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanNhc().

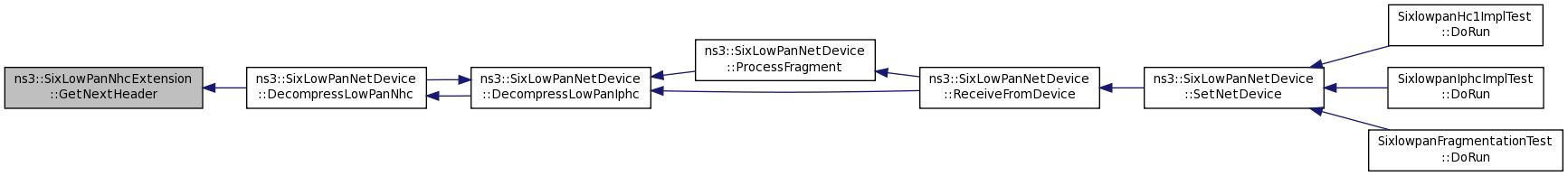

Here is the caller graph for this function:

bool ns3::SixLowPanNhcExtension::GetNh ( void ) const

Get the Next Header field value.

Returns: the NH field value

Definition at line 1520 of file sixlowpan-header.cc.

References m_nhcExtensionHeader.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanNhc(), Deserialize(), GetSerializedSize(), and Serialize().

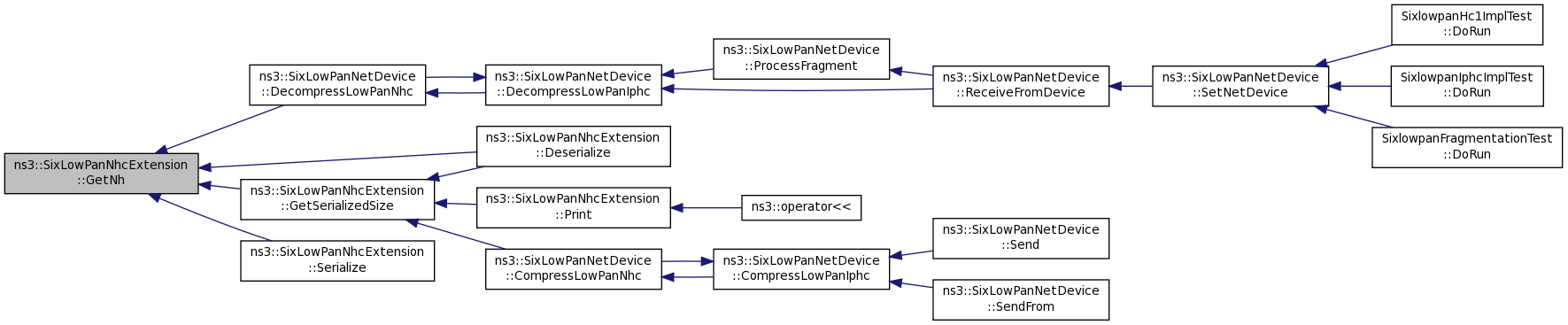

Here is the caller graph for this function:

SixLowPanDispatch::NhcDispatch_e ns3::SixLowPanNhcExtension::GetNhcDispatchType ( void ) const

virtual

Get the NhcDispatch type.

Returns: the NhcDispatch type

Definition at line 1488 of file sixlowpan-header.cc.

References ns3::SixLowPanDispatch::LOWPAN_NHC.

uint32_t ns3::SixLowPanNhcExtension::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Implements ns3::Header.

Definition at line 1451 of file sixlowpan-header.cc.

References GetNh(), and m_nhcBlobLength.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanNhc(), Deserialize(), and Print().

Here is the call graph for this function:

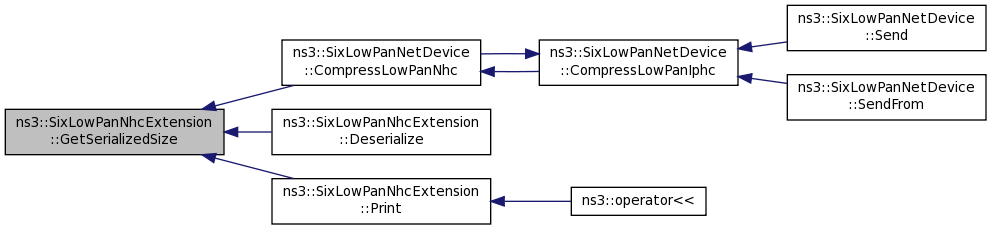

Here is the caller graph for this function:

TypeId ns3::SixLowPanNhcExtension::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 1433 of file sixlowpan-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SixLowPanNhcExtension::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 1446 of file sixlowpan-header.cc.

References GetSerializedSize(), and m_nhcExtensionHeader.

Referenced by ns3::operator<<().

Here is the call graph for this function:
