ns3::SystemWallClockMs Class Reference

measure elapsed time in milliseconds More...

#include <system-wall-clock-ms.h>

Collaboration diagram for ns3::SystemWallClockMs:

Public Member Functions
	SystemWallClockMs ()
	~SystemWallClockMs ()
int64_t	End (void)
	Stop measuring the time since Start() was called. More...
int64_t	GetElapsedReal (void) const
int64_t	GetElapsedSystem (void) const
int64_t	GetElapsedUser (void) const
void	Start (void)
	Start a measure. More...

Private Attributes
class SystemWallClockMsPrivate *	m_priv

Detailed Description

measure elapsed time in milliseconds

Definition at line 32 of file system-wall-clock-ms.h.

Constructor & Destructor Documentation

ns3::SystemWallClockMs::SystemWallClockMs

(

)

Definition at line 130 of file unix-system-wall-clock-ms.cc.

References NS_LOG_FUNCTION.

ns3::SystemWallClockMs::~SystemWallClockMs

(

)

Definition at line 136 of file unix-system-wall-clock-ms.cc.

References m_priv, and NS_LOG_FUNCTION.

Member Function Documentation

int64_t ns3::SystemWallClockMs::End

(

void

)

Stop measuring the time since Start() was called.

Returns

the measured elapsed wall clock time (in milliseconds) since ns3::SystemWallClockMs::Start was invoked.

It is possible to start a new measurement with ns3::SystemWallClockMs::Start after this method returns.

Returns int64_t to avoid dependency on clock_t in ns-3 code.

Definition at line 151 of file unix-system-wall-clock-ms.cc.

References ns3::SystemWallClockMsPrivate::End(), m_priv, and NS_LOG_FUNCTION.

Referenced by ns3::TestCase::Run(), Bench::RunBench(), and runBench().

Here is the call graph for this function:

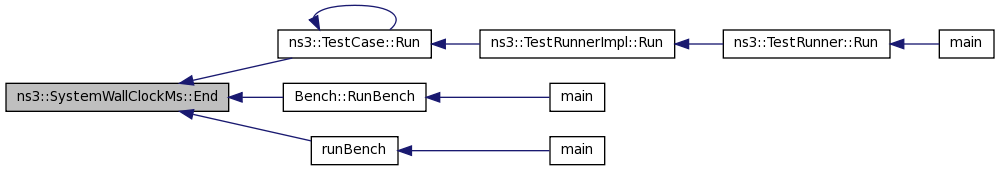

Here is the caller graph for this function:

int64_t ns3::SystemWallClockMs::GetElapsedReal

(

void

)

const

Returns

the measured elapsed wall clock time (in milliseconds) since ns3::SystemWallClockMs::Start was invoked.

Returns int64_t to avoid dependency on clock_t in ns-3 code.

Definition at line 158 of file unix-system-wall-clock-ms.cc.

References ns3::SystemWallClockMsPrivate::GetElapsedReal(), m_priv, and NS_LOG_FUNCTION.

Referenced by ns3::TestRunnerImpl::PrintReport().

Here is the call graph for this function:

Here is the caller graph for this function:

int64_t ns3::SystemWallClockMs::GetElapsedSystem

(

void

)

const

Returns

the measured elapsed 'system' wall clock time (in milliseconds) since ns3::SystemWallClockMs::Start was invoked.

Returns int64_t to avoid dependency on clock_t in ns-3 code.

Definition at line 172 of file unix-system-wall-clock-ms.cc.

References ns3::SystemWallClockMsPrivate::GetElapsedSystem(), m_priv, and NS_LOG_FUNCTION.

Referenced by ns3::TestRunnerImpl::PrintReport().

Here is the call graph for this function:

Here is the caller graph for this function:

int64_t ns3::SystemWallClockMs::GetElapsedUser

(

void

)

const

Returns

the measured elapsed 'user' wall clock time (in milliseconds) since ns3::SystemWallClockMs::Start was invoked.

Returns int64_t to avoid dependency on clock_t in ns-3 code.

Definition at line 165 of file unix-system-wall-clock-ms.cc.

References ns3::SystemWallClockMsPrivate::GetElapsedUser(), m_priv, and NS_LOG_FUNCTION.

Referenced by ns3::TestRunnerImpl::PrintReport().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SystemWallClockMs::Start

(

void

)

Start a measure.

Definition at line 144 of file unix-system-wall-clock-ms.cc.

References m_priv, NS_LOG_FUNCTION, and ns3::SystemWallClockMsPrivate::Start().

Referenced by ns3::TestCase::Run(), Bench::RunBench(), and runBench().

Here is the call graph for this function:

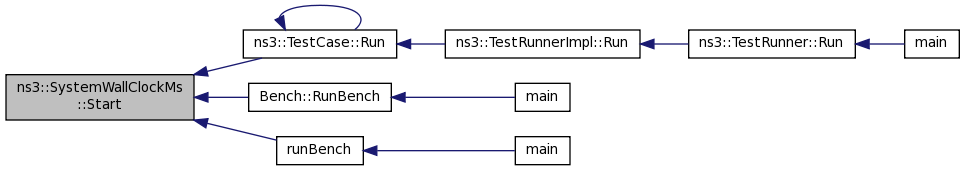

Here is the caller graph for this function:

Member Data Documentation

class SystemWallClockMsPrivate* ns3::SystemWallClockMs::m_priv

private

Definition at line 76 of file system-wall-clock-ms.h.

Referenced by End(), GetElapsedReal(), GetElapsedSystem(), GetElapsedUser(), Start(), and ~SystemWallClockMs().

---

The documentation for this class was generated from the following files:

• src/core/model/system-wall-clock-ms.h
• src/core/model/unix-system-wall-clock-ms.cc
• src/core/model/win32-system-wall-clock-ms.cc
