CallbackImpl for functors with first three arguments bound at construction. More...

#include <callback.h>

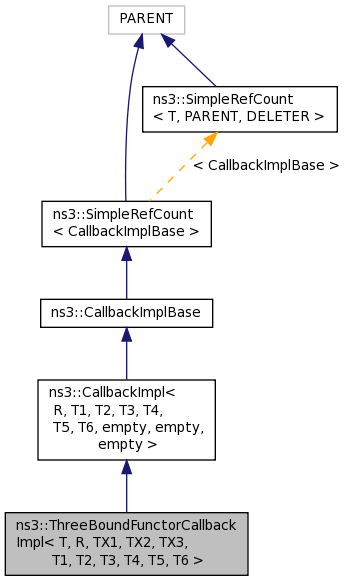

Inheritance diagram for ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >:

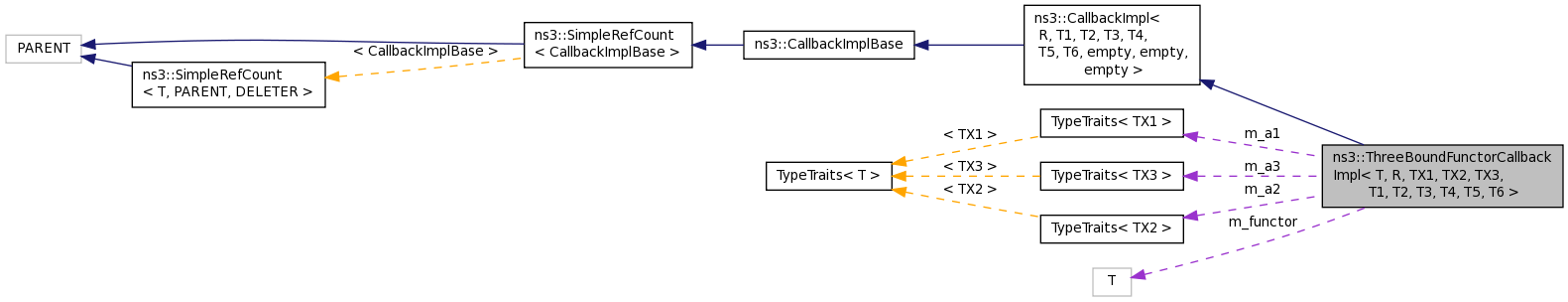

Collaboration diagram for ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >:

Public Member Functions
template<typename FUNCTOR , typename ARG1 , typename ARG2 , typename ARG3 >
	ThreeBoundFunctorCallbackImpl (FUNCTOR functor, ARG1 arg1, ARG2 arg2, ARG3 arg3)
	Construct from functor and three arguments. More...

virtual	~ThreeBoundFunctorCallbackImpl ()

virtual bool	IsEqual (Ptr< const CallbackImplBase > other) const
	Equality test. More...


R	operator() (void)
	Functor with varying numbers of arguments. More...

R	operator() (T1 a1)

R	operator() (T1 a1, T2 a2)

R	operator() (T1 a1, T2 a2, T3 a3)

R	operator() (T1 a1, T2 a2, T3 a3, T4 a4)

R	operator() (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)

R	operator() (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)

Public Member Functions inherited from ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, empty, empty, empty >
virtual	~CallbackImpl ()

Public Member Functions inherited from ns3::CallbackImplBase
virtual	~CallbackImplBase ()
	Virtual destructor. More...

Public Member Functions inherited from ns3::SimpleRefCount< CallbackImplBase >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
TypeTraits< TX1 >::ReferencedType	m_a1
	first bound argument More...

TypeTraits< TX2 >::ReferencedType	m_a2
	second bound argument More...

TypeTraits< TX3 >::ReferencedType	m_a3
	third bound argument More...

T	m_functor
	The functor. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< CallbackImplBase >
static void	Cleanup (void)
	Noop. More...

Detailed Description

template<typename T, typename R, typename TX1, typename TX2, typename TX3, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6>
class ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >

CallbackImpl for functors with first three arguments bound at construction.

Definition at line 733 of file callback.h.

Constructor & Destructor Documentation

template<typename T, typename R, typename TX1, typename TX2, typename TX3, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6>

template<typename FUNCTOR , typename ARG1 , typename ARG2 , typename ARG3 >

ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::ThreeBoundFunctorCallbackImpl	(	FUNCTOR	functor,
		ARG1	arg1,
		ARG2	arg2,
		ARG3	arg3
	)

inline

Construct from functor and three arguments.

Parameters

functor	the functor
arg1	the first argument to bind
arg2	the second argument to bind
arg3	the third argument to bind

Definition at line 743 of file callback.h.

template<typename T, typename R, typename TX1, typename TX2, typename TX3, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6>

virtual ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::~ThreeBoundFunctorCallbackImpl ( )

inlinevirtual

Definition at line 745 of file callback.h.

Member Function Documentation

template<typename T, typename R, typename TX1, typename TX2, typename TX3, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6>

virtual bool ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::IsEqual ( Ptr< const CallbackImplBase > other ) const

inlinevirtual

Equality test.

Parameters

other Callback Ptr

Returns: true if we have the same functor and bound arguments

Implements ns3::CallbackImplBase.

Definition at line 818 of file callback.h.

References ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a1, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a2, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a3, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_functor, and ns3::PeekPointer().

Here is the call graph for this function:

template<typename T, typename R, typename TX1, typename TX2, typename TX3, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6>

R ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::operator() ( void )

inline

Functor with varying numbers of arguments.

Returns: Callback value

Definition at line 751 of file callback.h.

References ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a1, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a2, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a3, and ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_functor.

template<typename T, typename R, typename TX1, typename TX2, typename TX3, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6>

R ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::operator() ( T1 a1 )

inline

Parameters

a1	first argument

Returns: Callback value

Definition at line 758 of file callback.h.

References ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a1, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a2, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a3, and ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_functor.

template<typename T, typename R, typename TX1, typename TX2, typename TX3, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6>

R ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::operator()	(	T1	a1,
		T2	a2
	)

inline

Parameters

a1	first argument
a2	second argument

Returns: Callback value

Definition at line 766 of file callback.h.

References ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a1, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a2, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a3, and ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_functor.

template<typename T, typename R, typename TX1, typename TX2, typename TX3, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6>

R ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::operator()	(	T1	a1,
		T2	a2,
		T3	a3
	)

inline

Parameters

a1	first argument
a2	second argument
a3	third argument

Returns: Callback value

Definition at line 775 of file callback.h.

References ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a1, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a2, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a3, and ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_functor.

template<typename T, typename R, typename TX1, typename TX2, typename TX3, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6>

R ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::operator()	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4
	)

inline

Parameters

a1	first argument
a2	second argument
a3	third argument
a4	fourth argument

Returns: Callback value

Definition at line 785 of file callback.h.

References ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a1, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a2, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a3, and ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_functor.

template<typename T, typename R, typename TX1, typename TX2, typename TX3, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6>

R ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::operator()	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5
	)

inline

Parameters

a1	first argument
a2	second argument
a3	third argument
a4	fourth argument
a5	fifth argument

Returns: Callback value

Definition at line 796 of file callback.h.

References ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a1, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a2, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a3, and ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_functor.

template<typename T, typename R, typename TX1, typename TX2, typename TX3, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6>

R ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::operator()	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6
	)

inlinevirtual

Parameters

a1	first argument
a2	second argument
a3	third argument
a4	fourth argument
a5	fifth argument
a6	sixth argument

Returns: Callback value

Implements ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, empty, empty, empty >.

Definition at line 808 of file callback.h.

References ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a1, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a2, ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a3, and ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_functor.

Member Data Documentation

template<typename T, typename R, typename TX1, typename TX2, typename TX3, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6>

TypeTraits<TX1>::ReferencedType ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a1

private

first bound argument

Definition at line 834 of file callback.h.

Referenced by ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::IsEqual(), and ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::operator()().

template<typename T, typename R, typename TX1, typename TX2, typename TX3, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6>

TypeTraits<TX2>::ReferencedType ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a2

private

second bound argument

Definition at line 835 of file callback.h.

Referenced by ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::IsEqual(), and ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::operator()().

template<typename T, typename R, typename TX1, typename TX2, typename TX3, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6>

TypeTraits<TX3>::ReferencedType ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_a3

private

third bound argument

Definition at line 836 of file callback.h.

Referenced by ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::IsEqual(), and ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::operator()().

template<typename T, typename R, typename TX1, typename TX2, typename TX3, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6>

T ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::m_functor

private

The functor.

Definition at line 833 of file callback.h.

Referenced by ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::IsEqual(), and ns3::ThreeBoundFunctorCallbackImpl< T, R, TX1, TX2, TX3, T1, T2, T3, T4, T5, T6 >::operator()().

The documentation for this class was generated from the following file:

src/core/model/callback.h
