Inner class holding the details about a link between two nodes. More...

#include <topology-reader.h>

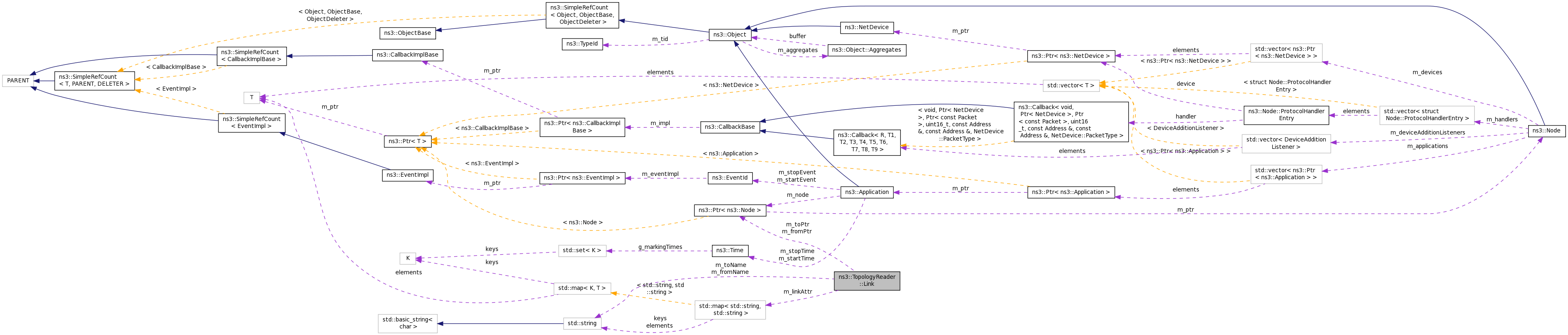

Collaboration diagram for ns3::TopologyReader::Link:

Public Types
typedef std::map< std::string, std::string >::const_iterator	ConstAttributesIterator
	Constant iterator to scan the map of link attributes. More...

Public Member Functions
	Link (Ptr< Node > fromPtr, const std::string &fromName, Ptr< Node > toPtr, const std::string &toName)
	Constructor. More...

ConstAttributesIterator	AttributesBegin (void)
	Returns an iterator to the begin of the attributes. More...

ConstAttributesIterator	AttributesEnd (void)
	Returns an iterator to the end of the attributes. More...

std::string	GetAttribute (const std::string &name) const
	Returns the value of a link attribute. More...

bool	GetAttributeFailSafe (const std::string &name, std::string &value) const
	Returns the value of a link attribute. More...

Ptr< Node >	GetFromNode (void) const
	Returns a Ptr<Node> to the "from" node of the link. More...

std::string	GetFromNodeName (void) const
	Returns the name of the "from" node of the link. More...

Ptr< Node >	GetToNode (void) const
	Returns a Ptr<Node> to the "to" node of the link. More...

std::string	GetToNodeName (void) const
	Returns the name of the "to" node of the link. More...

void	SetAttribute (const std::string &name, const std::string &value)
	Sets an arbitrary link attribute. More...

Private Member Functions
	Link ()

Private Attributes
std::string	m_fromName
	Name of the node the links originates from. More...

Ptr< Node >	m_fromPtr
	The node the links originates from. More...

std::map< std::string, std::string >	m_linkAttr
	Container of the link attributes (if any) More...

std::string	m_toName
	Name of the node the links is directed to. More...

Ptr< Node >	m_toPtr
	The node the links is directed to. More...

Detailed Description

Inner class holding the details about a link between two nodes.

The link is not described in terms of technology. Rather it is only stating an association between two nodes. The nodes are characterized also with names reflecting how the nodes are called in the original topology file.

Definition at line 54 of file topology-reader.h.

Member Typedef Documentation

typedef std::map<std::string, std::string>::const_iterator ns3::TopologyReader::Link::ConstAttributesIterator

Constant iterator to scan the map of link attributes.

Definition at line 60 of file topology-reader.h.

Constructor & Destructor Documentation

ns3::TopologyReader::Link::Link	(	Ptr< Node >	fromPtr,
		const std::string &	fromName,
		Ptr< Node >	toPtr,
		const std::string &	toName
	)

Constructor.

Parameters

fromPtr	Ptr to the node the link is orginating from
fromName	name of the node the link is orginating from
toPtr	Ptr to the node the link is directed to
toName	name of the node the link is directed to

Definition at line 99 of file topology-reader.cc.

References m_fromName, m_fromPtr, m_toName, and m_toPtr.

ns3::TopologyReader::Link::Link ( )

private

Definition at line 107 of file topology-reader.cc.

Member Function Documentation

TopologyReader::Link::ConstAttributesIterator ns3::TopologyReader::Link::AttributesBegin ( void )

Returns an iterator to the begin of the attributes.

Returns: a const iterator to the first attribute of a link.

Definition at line 160 of file topology-reader.cc.

TopologyReader::Link::ConstAttributesIterator ns3::TopologyReader::Link::AttributesEnd ( void )

Returns an iterator to the end of the attributes.

Returns: a const iterator to the last attribute of a link.

Definition at line 165 of file topology-reader.cc.

std::string ns3::TopologyReader::Link::GetAttribute ( const std::string & name ) const

Returns the value of a link attribute.

The attribute must exist.

Parameters

name	the name of the attribute

Returns: the value of the attribute

Definition at line 136 of file topology-reader.cc.

References NS_ASSERT_MSG.

bool ns3::TopologyReader::Link::GetAttributeFailSafe	(	const std::string &	name,
		std::string &	value
	)		const

Returns the value of a link attribute.

Parameters

name	the name of the attribute
value	the value of the attribute

Returns: true if the attribute was defined, false otherwise.

Definition at line 143 of file topology-reader.cc.

Ptr< Node > ns3::TopologyReader::Link::GetFromNode ( void ) const

Returns a Ptr<Node> to the "from" node of the link.

Returns: a Ptr<Node> to the "from" node of the link

Definition at line 112 of file topology-reader.cc.

std::string ns3::TopologyReader::Link::GetFromNodeName ( void ) const

Returns the name of the "from" node of the link.

Returns: the name of the "from" node of the link

Definition at line 118 of file topology-reader.cc.

Ptr< Node > ns3::TopologyReader::Link::GetToNode ( void ) const

Returns a Ptr<Node> to the "to" node of the link.

Returns: a Ptr<Node> to the "to" node of the link

Definition at line 124 of file topology-reader.cc.

std::string ns3::TopologyReader::Link::GetToNodeName ( void ) const

Returns the name of the "to" node of the link.

Returns: the name of the "to" node of the link

Definition at line 130 of file topology-reader.cc.

void ns3::TopologyReader::Link::SetAttribute	(	const std::string &	name,
		const std::string &	value
	)

Sets an arbitrary link attribute.

Parameters

name	the name of the attribute
value	the value of the attribute

Definition at line 154 of file topology-reader.cc.

Referenced by ns3::InetTopologyReader::Read().

Here is the caller graph for this function:

Member Data Documentation

std::string ns3::TopologyReader::Link::m_fromName

private

Name of the node the links originates from.

Definition at line 126 of file topology-reader.h.

Referenced by Link().

Ptr< Node > ns3::TopologyReader::Link::m_fromPtr

private

The node the links originates from.

Definition at line 127 of file topology-reader.h.

Referenced by Link().

std::map<std::string, std::string> ns3::TopologyReader::Link::m_linkAttr

private

Container of the link attributes (if any)

Definition at line 130 of file topology-reader.h.

std::string ns3::TopologyReader::Link::m_toName

private

Name of the node the links is directed to.

Definition at line 128 of file topology-reader.h.

Referenced by Link().

Ptr< Node > ns3::TopologyReader::Link::m_toPtr

private

The node the links is directed to.

Definition at line 129 of file topology-reader.h.

Referenced by Link().

The documentation for this class was generated from the following files:

src/topology-read/model/topology-reader.h
src/topology-read/model/topology-reader.cc
