ns3::Wifi80211pHelper Class Reference

helps to create wifi 802.11p objects of WifiNetDevice class More...

#include <wifi-80211p-helper.h>

Inheritance diagram for ns3::Wifi80211pHelper:

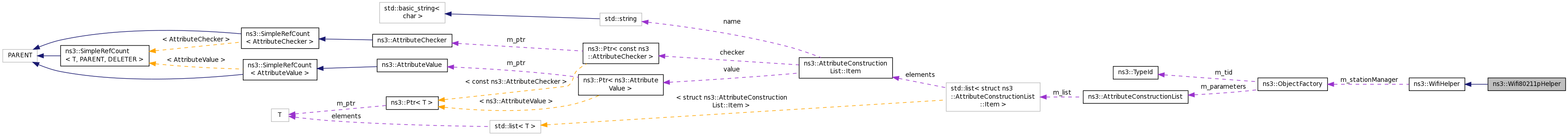

Collaboration diagram for ns3::Wifi80211pHelper:

Public Member Functions
	Wifi80211pHelper ()
virtual	~Wifi80211pHelper ()
virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &macHelper, NodeContainer c) const
virtual void	SetStandard (enum WifiPhyStandard standard)
Public Member Functions inherited from ns3::WifiHelper
	WifiHelper ()
	Create a Wifi helper in an empty state: all its parameters must be set before calling ns3::WifiHelper::Install. More...
virtual	~WifiHelper ()
int64_t	AssignStreams (NetDeviceContainer c, int64_t stream)
	Assign a fixed random variable stream number to the random variables used by the Phy and Mac aspects of the Wifi models. More...
virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, Ptr< Node > node) const
virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, std::string nodeName) const
void	SetRemoteStationManager (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

Static Public Member Functions
static Wifi80211pHelper	Default (void)
static void	EnableLogComponents (void)
	Helper to enable all WifiNetDevice log components with one statement. More...
Static Public Member Functions inherited from ns3::WifiHelper
static WifiHelper	Default (void)
static void	EnableLogComponents (void)
	Helper to enable all WifiNetDevice log components with one statement. More...

Additional Inherited Members
Protected Attributes inherited from ns3::WifiHelper
enum WifiPhyStandard	m_standard
ObjectFactory	m_stationManager

Detailed Description

helps to create wifi 802.11p objects of WifiNetDevice class

This class can help to create a large set of similar wifi 802.11p objects and to configure a large set of their attributes during creation.

Definition at line 38 of file wifi-80211p-helper.h.

Constructor & Destructor Documentation

ns3::Wifi80211pHelper::Wifi80211pHelper

(

)

Definition at line 32 of file wifi-80211p-helper.cc.

ns3::Wifi80211pHelper::~Wifi80211pHelper ( )

virtual

Definition at line 36 of file wifi-80211p-helper.cc.

Member Function Documentation

Wifi80211pHelper ns3::Wifi80211pHelper::Default ( void  )

static

Returns

a new Wifi80211pHelper in a default state

The default state is defined as being an OcbWifiMac MAC layer with constant rate OfdmRate6MbpsBW10MHz and both objects using their default attribute values.

Definition at line 41 of file wifi-80211p-helper.cc.

References ns3::WifiHelper::SetRemoteStationManager(), SetStandard(), and ns3::WIFI_PHY_STANDARD_80211_10MHZ.

Referenced by main().

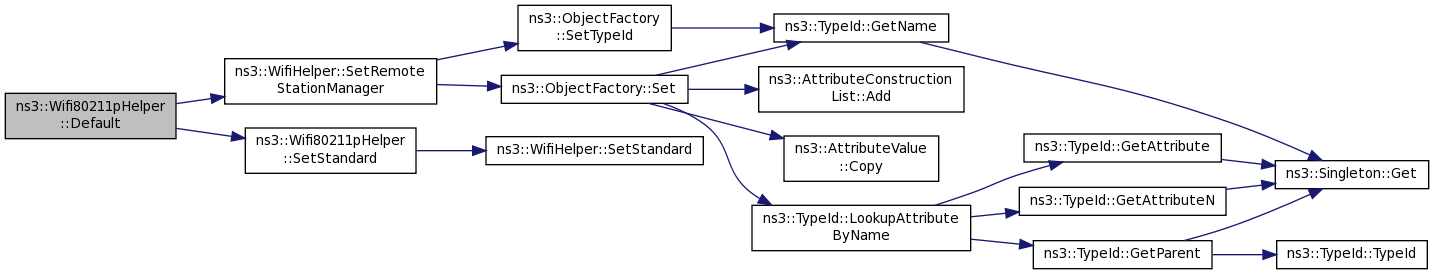

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Wifi80211pHelper::EnableLogComponents ( void  )

static

Helper to enable all WifiNetDevice log components with one statement.

Definition at line 66 of file wifi-80211p-helper.cc.

References ns3::WifiHelper::EnableLogComponents(), ns3::LOG_LEVEL_ALL, and ns3::LogComponentEnable().

Referenced by main().

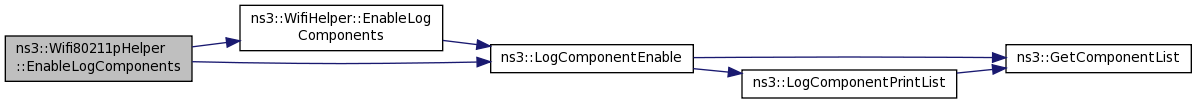

Here is the call graph for this function:

Here is the caller graph for this function:

NetDeviceContainer ns3::Wifi80211pHelper::Install ( const WifiPhyHelper &  phy, const WifiMacHelper &  macHelper, NodeContainer  c  ) const

virtual

Parameters

phy	the PHY helper to create PHY objects
mac	the MAC helper to create MAC objects
c	the set of nodes on which a wifi device must be created

Returns

a device container which contains all the devices created by this method.

Reimplemented from ns3::WifiHelper.

Definition at line 75 of file wifi-80211p-helper.cc.

References ns3::WifiHelper::Install(), and NS_FATAL_ERROR.

Referenced by OcbWifiMacTestCase::ConfigureOcbMode(), and main().

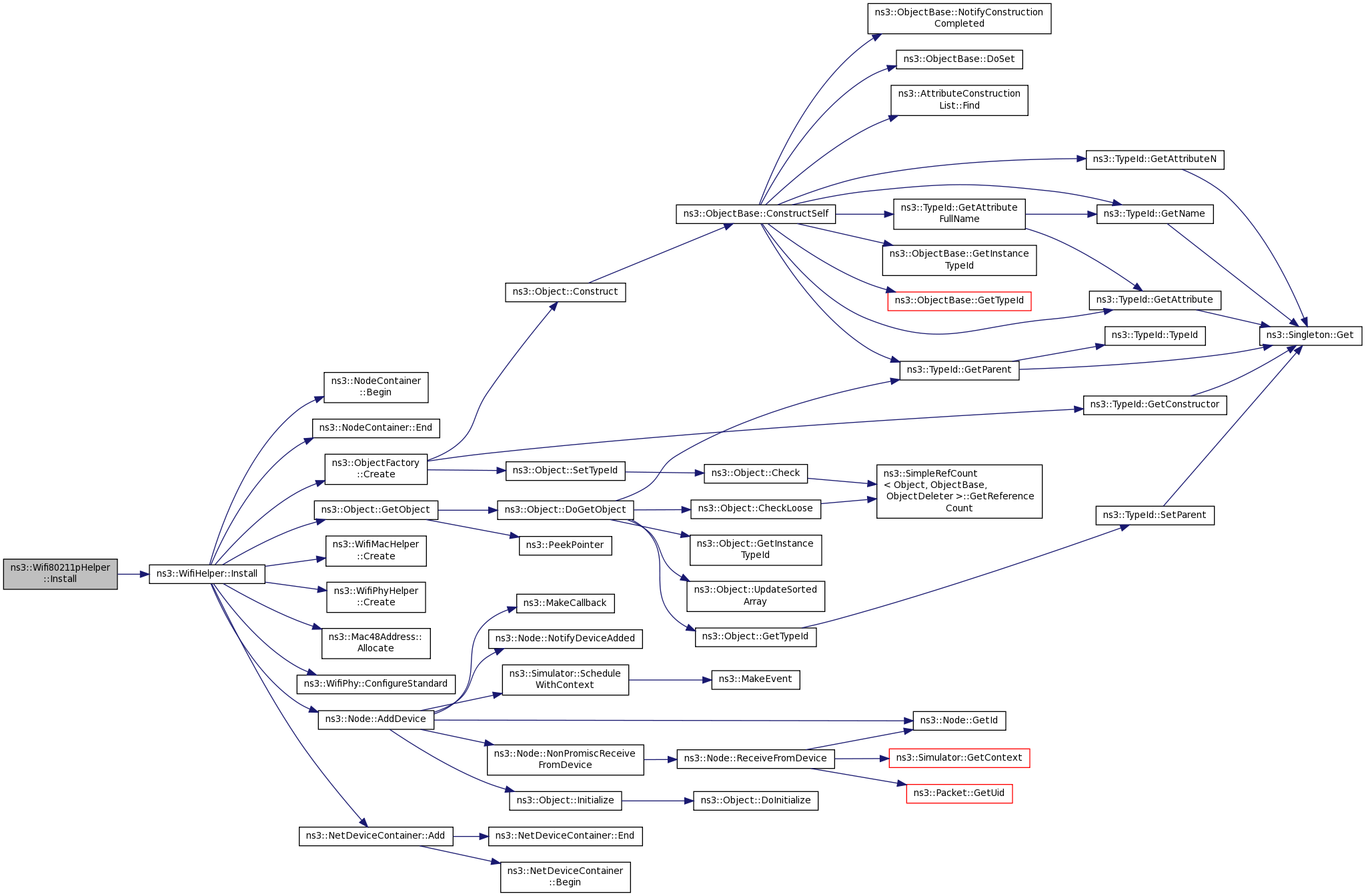

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Wifi80211pHelper::SetStandard ( enum WifiPhyStandard  standard )

virtual

Parameters

standard

the phy standard to configure during installation

Users can only configure 802.11a with 10MHz channel bandwidth indicated by WIFI_PHY_STANDARD_80211_10MHZ or 20MHz channel bandwidth indicated by WIFI_PHY_STANDARD_80211a, other standard types will be not allowed. The default standard is 10MHz.

Reimplemented from ns3::WifiHelper.

Definition at line 52 of file wifi-80211p-helper.cc.

References NS_FATAL_ERROR, ns3::WifiHelper::SetStandard(), ns3::WIFI_PHY_STANDARD_80211_10MHZ, and ns3::WIFI_PHY_STANDARD_80211a.

Referenced by Default().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/wave/helper/wifi-80211p-helper.h
• src/wave/helper/wifi-80211p-helper.cc
