ns3::WifiRadioEnergyModelHelper Class Reference

Assign WifiRadioEnergyModel to wifi devices. More...

#include <wifi-radio-energy-model-helper.h>

Inheritance diagram for ns3::WifiRadioEnergyModelHelper:

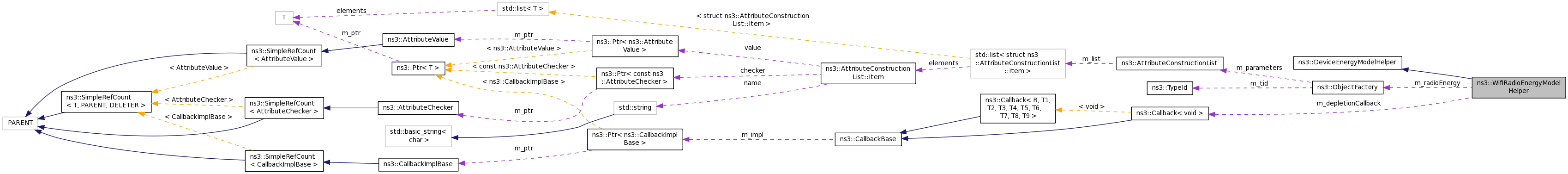

Collaboration diagram for ns3::WifiRadioEnergyModelHelper:

Public Member Functions
	WifiRadioEnergyModelHelper ()
	Construct a helper which is used to add a radio energy model to a node. More...
	~WifiRadioEnergyModelHelper ()
	Destroy a RadioEnergy Helper. More...
void	Set (std::string name, const AttributeValue &v)
void	SetDepletionCallback (WifiRadioEnergyModel::WifiRadioEnergyDepletionCallback callback)
Public Member Functions inherited from ns3::DeviceEnergyModelHelper
virtual	~DeviceEnergyModelHelper ()
DeviceEnergyModelContainer	Install (Ptr< NetDevice > device, Ptr< EnergySource > source) const
DeviceEnergyModelContainer	Install (NetDeviceContainer deviceContainer, EnergySourceContainer sourceContainer) const

Private Member Functions
virtual Ptr< DeviceEnergyModel >	DoInstall (Ptr< NetDevice > device, Ptr< EnergySource > source) const

Private Attributes
WifiRadioEnergyModel::WifiRadioEnergyDepletionCallback	m_depletionCallback
ObjectFactory	m_radioEnergy

Detailed Description

Assign WifiRadioEnergyModel to wifi devices.

This installer installs WifiRadioEnergyModel for only WifiNetDevice objects.

Definition at line 36 of file wifi-radio-energy-model-helper.h.

Constructor & Destructor Documentation

ns3::WifiRadioEnergyModelHelper::WifiRadioEnergyModelHelper

(

)

Construct a helper which is used to add a radio energy model to a node.

Definition at line 30 of file wifi-radio-energy-model-helper.cc.

References m_depletionCallback, m_radioEnergy, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify(), and ns3::ObjectFactory::SetTypeId().

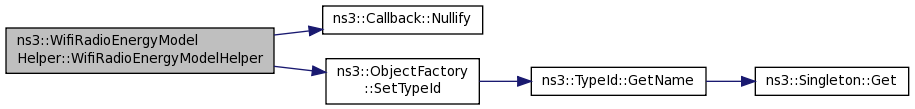

Here is the call graph for this function:

ns3::WifiRadioEnergyModelHelper::~WifiRadioEnergyModelHelper

(

)

Destroy a RadioEnergy Helper.

Definition at line 36 of file wifi-radio-energy-model-helper.cc.

Member Function Documentation

Ptr< DeviceEnergyModel > ns3::WifiRadioEnergyModelHelper::DoInstall ( Ptr< NetDevice >  device, Ptr< EnergySource >  source  ) const

privatevirtual

Parameters

device	Pointer to the NetDevice to install DeviceEnergyModel.
source	Pointer to EnergySource to install.

Implements DeviceEnergyModel::Install.

Implements ns3::DeviceEnergyModelHelper.

Definition at line 58 of file wifi-radio-energy-model-helper.cc.

References ns3::ObjectFactory::Create(), ns3::Object::GetObject(), m_depletionCallback, m_radioEnergy, NS_ASSERT, and NS_FATAL_ERROR.

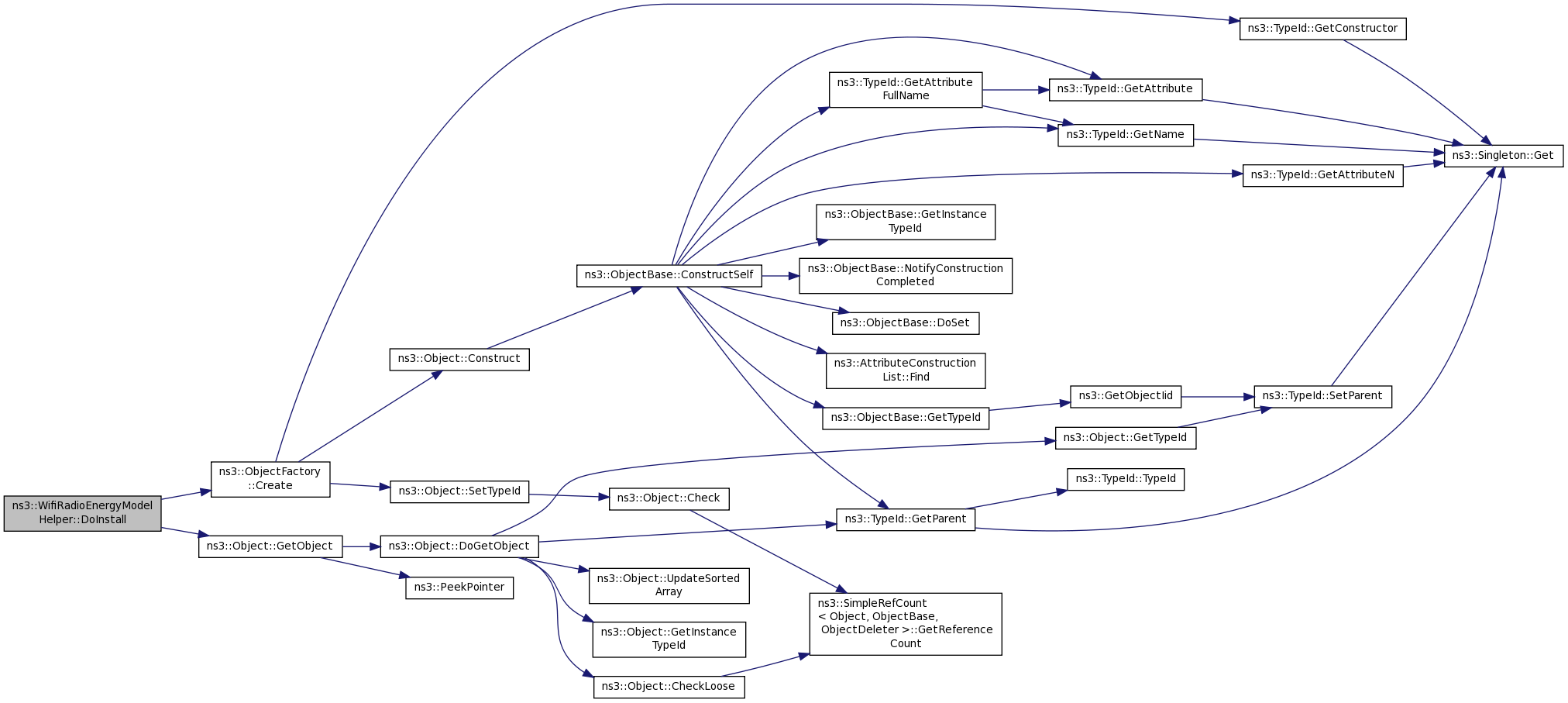

Here is the call graph for this function:

void ns3::WifiRadioEnergyModelHelper::Set ( std::string  name, const AttributeValue &  v  )

virtual

Parameters

name	the name of the attribute to set
v	the value of the attribute

Sets an attribute of the underlying PHY object.

Implements ns3::DeviceEnergyModelHelper.

Definition at line 41 of file wifi-radio-energy-model-helper.cc.

References m_radioEnergy, and ns3::ObjectFactory::Set().

Referenced by BatteryLifetimeTest::ConstantLoadTest(), main(), and BatteryLifetimeTest::VariableLoadTest().

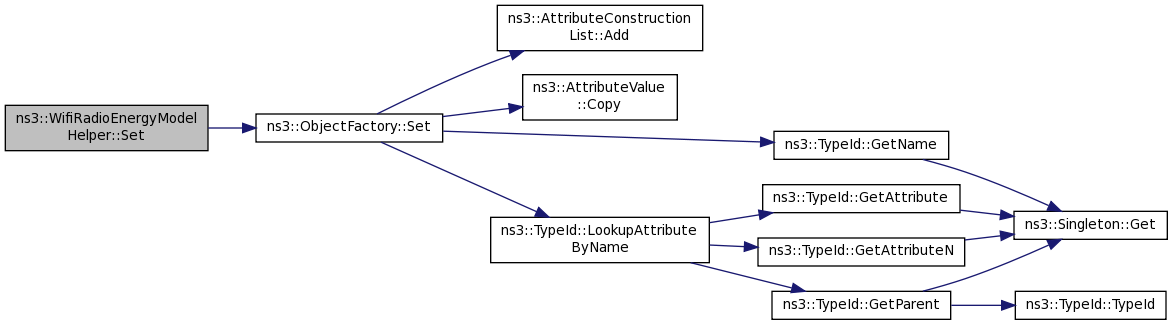

Here is the call graph for this function:

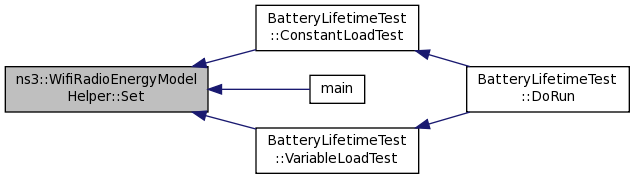

Here is the caller graph for this function:

void ns3::WifiRadioEnergyModelHelper::SetDepletionCallback

(

WifiRadioEnergyModel::WifiRadioEnergyDepletionCallback

callback

)

Parameters

callback

Callback function for energy depletion handling.

Sets the callback to be invoked when energy is depleted.

Definition at line 47 of file wifi-radio-energy-model-helper.cc.

References m_depletionCallback.

Referenced by BasicEnergyDepletionTest::DepletionTestCase().

Here is the caller graph for this function:

Member Data Documentation

WifiRadioEnergyModel::WifiRadioEnergyDepletionCallback ns3::WifiRadioEnergyModelHelper::m_depletionCallback

private

Definition at line 78 of file wifi-radio-energy-model-helper.h.

Referenced by DoInstall(), SetDepletionCallback(), and WifiRadioEnergyModelHelper().

ObjectFactory ns3::WifiRadioEnergyModelHelper::m_radioEnergy

private

Definition at line 77 of file wifi-radio-energy-model-helper.h.

Referenced by DoInstall(), Set(), and WifiRadioEnergyModelHelper().

---

The documentation for this class was generated from the following files:

• src/energy/helper/wifi-radio-energy-model-helper.h
• src/energy/helper/wifi-radio-energy-model-helper.cc
