ns3::aodv::QueueEntry Class Reference

AODV Queue Entry. More...

#include <aodv-rqueue.h>

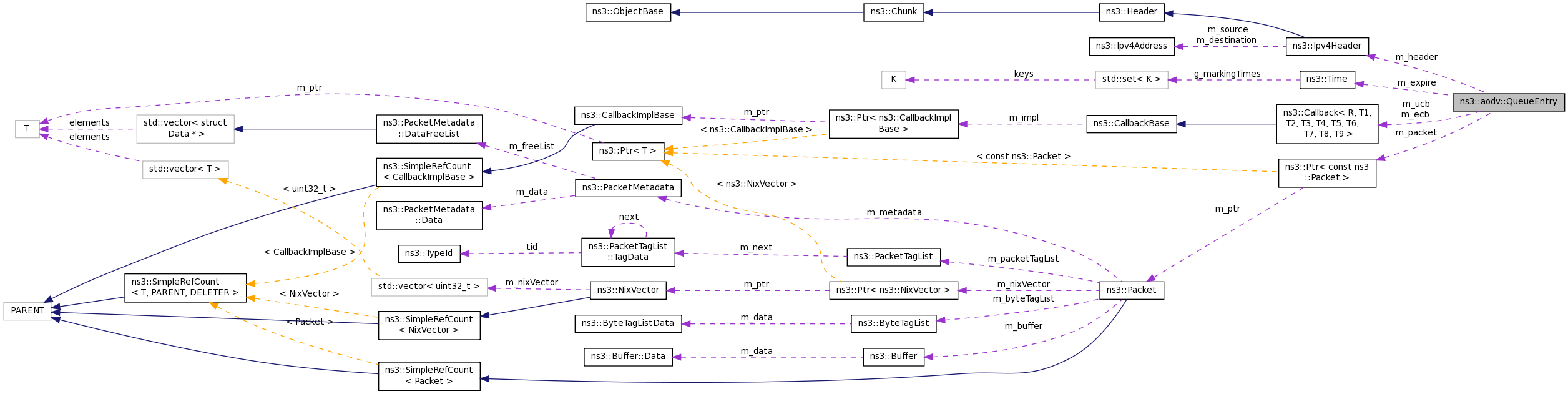

Collaboration diagram for ns3::aodv::QueueEntry:

Public Types
typedef Ipv4RoutingProtocol::ErrorCallback	ErrorCallback
typedef Ipv4RoutingProtocol::UnicastForwardCallback	UnicastForwardCallback

Public Member Functions
	QueueEntry (Ptr< const Packet > pa=0, Ipv4Header const &h=Ipv4Header(), UnicastForwardCallback ucb=UnicastForwardCallback(), ErrorCallback ecb=ErrorCallback(), Time exp=Simulator::Now())
	c-tor More...
bool	operator== (QueueEntry const &o) const
	Compare queue entries. More...
Fields
UnicastForwardCallback	GetUnicastForwardCallback () const
void	SetUnicastForwardCallback (UnicastForwardCallback ucb)
ErrorCallback	GetErrorCallback () const
void	SetErrorCallback (ErrorCallback ecb)
Ptr< const Packet >	GetPacket () const
void	SetPacket (Ptr< const Packet > p)
Ipv4Header	GetIpv4Header () const
void	SetIpv4Header (Ipv4Header h)
void	SetExpireTime (Time exp)
Time	GetExpireTime () const

Private Attributes
ErrorCallback	m_ecb
	Error callback. More...
Time	m_expire
	Expire time for queue entry. More...
Ipv4Header	m_header
	IP header. More...
Ptr< const Packet >	m_packet
	Data packet. More...
UnicastForwardCallback	m_ucb
	Unicast forward callback. More...

Detailed Description

AODV Queue Entry.

Definition at line 43 of file aodv-rqueue.h.

Member Typedef Documentation

typedef Ipv4RoutingProtocol::ErrorCallback ns3::aodv::QueueEntry::ErrorCallback

Definition at line 47 of file aodv-rqueue.h.

typedef Ipv4RoutingProtocol::UnicastForwardCallback ns3::aodv::QueueEntry::UnicastForwardCallback

Definition at line 46 of file aodv-rqueue.h.

Constructor & Destructor Documentation

ns3::aodv::QueueEntry::QueueEntry ( Ptr< const Packet >  pa = 0, Ipv4Header const &  h = Ipv4Header (), UnicastForwardCallback  ucb = UnicastForwardCallback (), ErrorCallback  ecb = ErrorCallback (), Time  exp = Simulator::Now ()  )

inline

c-tor

Definition at line 49 of file aodv-rqueue.h.

Member Function Documentation

ErrorCallback ns3::aodv::QueueEntry::GetErrorCallback ( ) const

inline

Definition at line 68 of file aodv-rqueue.h.

References m_ecb.

Referenced by ns3::aodv::QueueEntryTest::DoRun(), and ns3::aodv::RequestQueue::Drop().

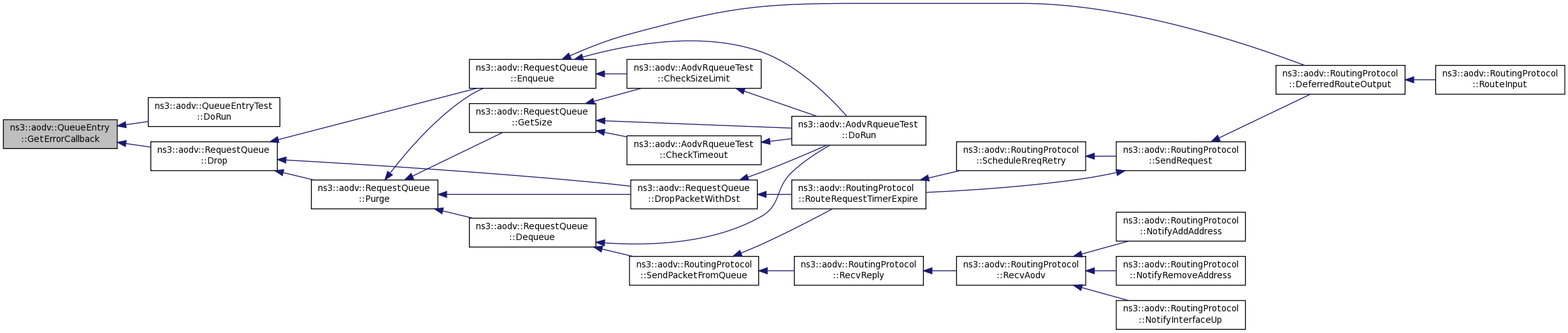

Here is the caller graph for this function:

Time ns3::aodv::QueueEntry::GetExpireTime ( ) const

inline

Definition at line 75 of file aodv-rqueue.h.

References m_expire, and ns3::Simulator::Now().

Referenced by ns3::aodv::QueueEntryTest::DoRun(), and ns3::aodv::IsExpired::operator()().

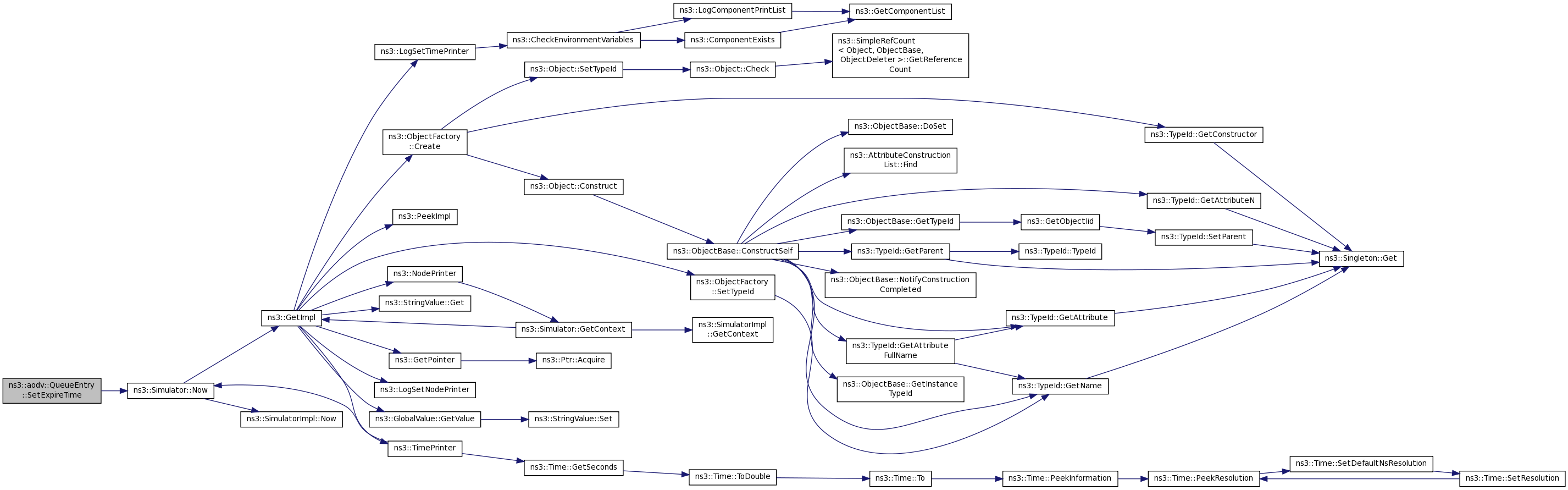

Here is the call graph for this function:

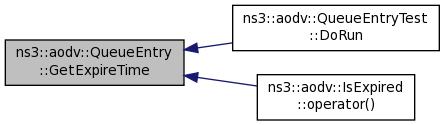

Here is the caller graph for this function:

Ipv4Header ns3::aodv::QueueEntry::GetIpv4Header ( ) const

inline

Definition at line 72 of file aodv-rqueue.h.

References m_header.

Referenced by ns3::aodv::QueueEntryTest::DoRun(), ns3::aodv::RequestQueue::Drop(), ns3::aodv::RequestQueue::Enqueue(), ns3::aodv::RequestQueue::IsEqual(), and ns3::aodv::RoutingProtocol::SendPacketFromQueue().

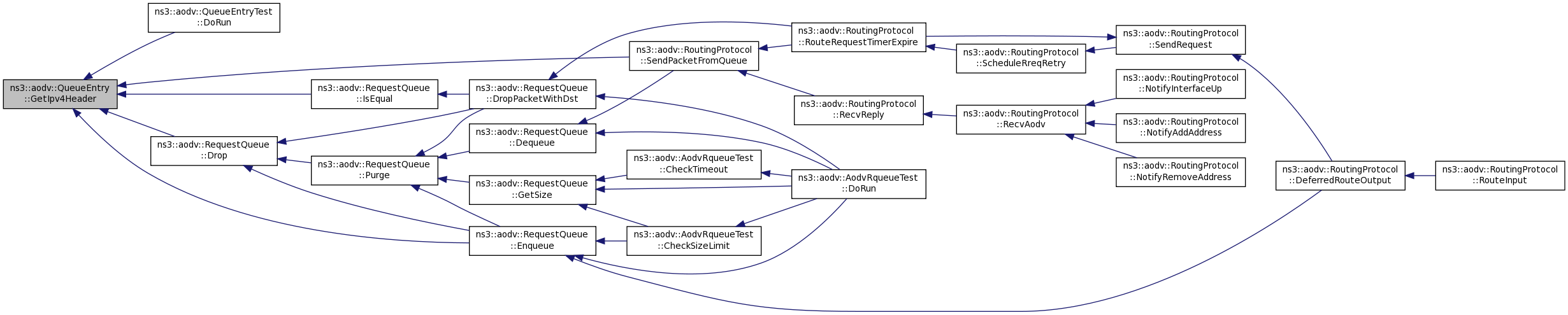

Here is the caller graph for this function:

Ptr<const Packet> ns3::aodv::QueueEntry::GetPacket ( ) const

inline

Definition at line 70 of file aodv-rqueue.h.

References m_packet.

Referenced by ns3::aodv::QueueEntryTest::DoRun(), ns3::aodv::RequestQueue::Drop(), ns3::aodv::RequestQueue::Enqueue(), and ns3::aodv::RoutingProtocol::SendPacketFromQueue().

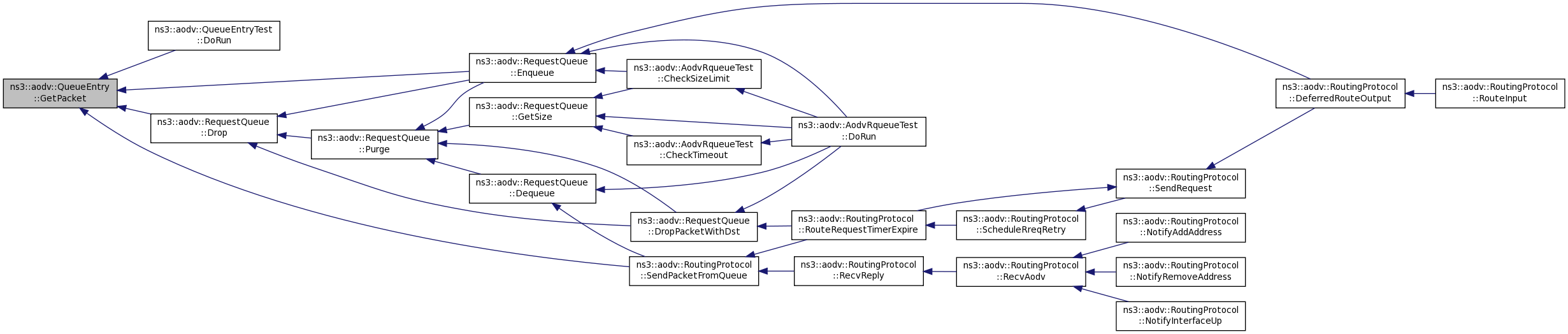

Here is the caller graph for this function:

UnicastForwardCallback ns3::aodv::QueueEntry::GetUnicastForwardCallback ( ) const

inline

Definition at line 66 of file aodv-rqueue.h.

References m_ucb.

Referenced by ns3::aodv::QueueEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::SendPacketFromQueue().

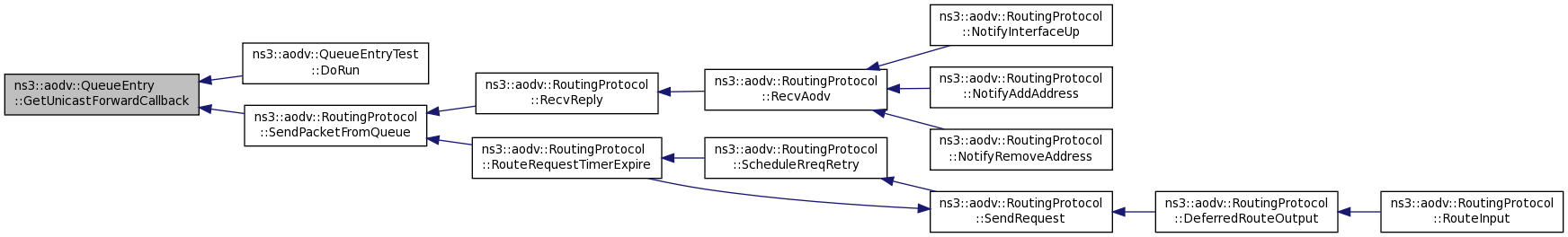

Here is the caller graph for this function:

bool ns3::aodv::QueueEntry::operator== ( QueueEntry const &  o ) const

inline

Compare queue entries.

Returns

true if equal

Definition at line 60 of file aodv-rqueue.h.

References ns3::Ipv4Header::GetDestination(), m_expire, m_header, and m_packet.

Here is the call graph for this function:

void ns3::aodv::QueueEntry::SetErrorCallback ( ErrorCallback  ecb )

inline

Definition at line 69 of file aodv-rqueue.h.

References m_ecb.

Referenced by ns3::aodv::QueueEntryTest::DoRun().

Here is the caller graph for this function:

void ns3::aodv::QueueEntry::SetExpireTime ( Time  exp )

inline

Definition at line 74 of file aodv-rqueue.h.

References m_expire, and ns3::Simulator::Now().

Referenced by ns3::aodv::QueueEntryTest::DoRun(), and ns3::aodv::RequestQueue::Enqueue().

Here is the call graph for this function:

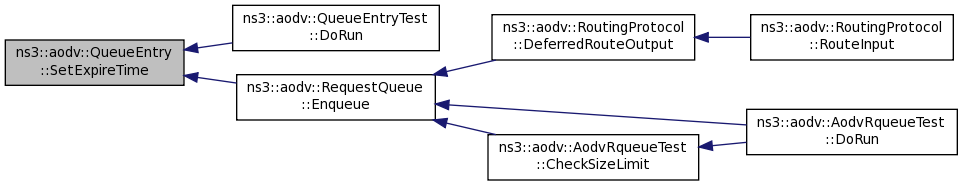

Here is the caller graph for this function:

void ns3::aodv::QueueEntry::SetIpv4Header ( Ipv4Header  h )

inline

Definition at line 73 of file aodv-rqueue.h.

References m_header.

Referenced by ns3::aodv::QueueEntryTest::DoRun().

Here is the caller graph for this function:

void ns3::aodv::QueueEntry::SetPacket ( Ptr< const Packet >  p )

inline

Definition at line 71 of file aodv-rqueue.h.

References m_packet.

void ns3::aodv::QueueEntry::SetUnicastForwardCallback ( UnicastForwardCallback  ucb )

inline

Definition at line 67 of file aodv-rqueue.h.

References m_ucb.

Referenced by ns3::aodv::QueueEntryTest::DoRun().

Here is the caller graph for this function:

Member Data Documentation

ErrorCallback ns3::aodv::QueueEntry::m_ecb

private

Error callback.

Definition at line 85 of file aodv-rqueue.h.

Referenced by GetErrorCallback(), and SetErrorCallback().

Time ns3::aodv::QueueEntry::m_expire

private

Expire time for queue entry.

Definition at line 87 of file aodv-rqueue.h.

Referenced by GetExpireTime(), operator==(), and SetExpireTime().

Ipv4Header ns3::aodv::QueueEntry::m_header

private

IP header.

Definition at line 81 of file aodv-rqueue.h.

Referenced by GetIpv4Header(), operator==(), and SetIpv4Header().

Ptr<const Packet> ns3::aodv::QueueEntry::m_packet

private

Data packet.

Definition at line 79 of file aodv-rqueue.h.

Referenced by GetPacket(), operator==(), and SetPacket().

UnicastForwardCallback ns3::aodv::QueueEntry::m_ucb

private

Unicast forward callback.

Definition at line 83 of file aodv-rqueue.h.

Referenced by GetUnicastForwardCallback(), and SetUnicastForwardCallback().

---

The documentation for this class was generated from the following file:

• src/aodv/model/aodv-rqueue.h
