multirate.cc File Reference

#include "ns3/core-module.h"
#include "ns3/network-module.h"
#include "ns3/applications-module.h"
#include "ns3/mobility-module.h"
#include "ns3/stats-module.h"
#include "ns3/random-variable-stream.h"
#include "ns3/wifi-module.h"
#include "ns3/internet-module.h"
#include "ns3/flow-monitor-helper.h"
#include "ns3/olsr-helper.h"
#include "ns3/ipv4-static-routing-helper.h"
#include "ns3/ipv4-list-routing-helper.h"
#include <iostream>
#include <fstream>

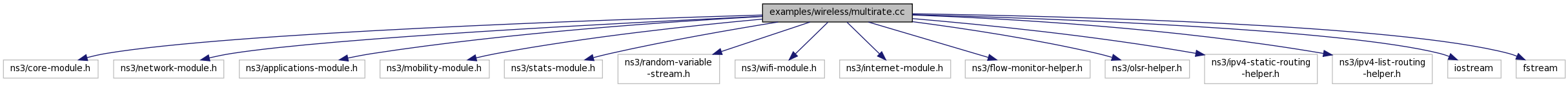

Include dependency graph for multirate.cc:

Go to the source code of this file.

Classes
class	Experiment
	Helper class for UAN CW MAC example. More...

Functions
static Vector	GetPosition (Ptr< Node > node)
int	main (int argc, char *argv[])
	NS_LOG_COMPONENT_DEFINE ("multirate")
	Scenarios: 100 nodes, multiple simultaneous flows, multi-hop ad hoc, routing, and mobility. More...
static std::string	PrintPosition (Ptr< Node > client, Ptr< Node > server)

Function Documentation

static Vector GetPosition ( Ptr< Node >  node )

inlinestatic

Definition at line 315 of file multirate.cc.

References ns3::Object::GetObject(), and ns3::MobilityModel::GetPosition().

Referenced by ns3::LteHelper::AttachToClosestEnb(), ns3::LteEpcE2eDataTestCase::DoRun(), PrintGnuplottableEnbListToFile(), PrintGnuplottableUeListToFile(), PrintPosition(), and NetAnimExperiment::Run().

Here is the call graph for this function:

Here is the caller graph for this function:

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 561 of file multirate.cc.

References ns3::Gnuplot::AddDataset(), Experiment::CommandSetup(), experiment(), ns3::Gnuplot::GenerateOutput(), Experiment::GetOutputFileName(), Experiment::GetRateManager(), Experiment::GetRtsThreshold(), Experiment::GetScenario(), Experiment::IsMobility(), Experiment::IsRouting(), NS_LOG_INFO, Experiment::Run(), ns3::Config::SetDefault(), ns3::WifiHelper::SetRemoteStationManager(), ns3::WifiHelper::SetStandard(), ns3::NqosWifiMacHelper::SetType(), and ns3::WIFI_PHY_STANDARD_holland.

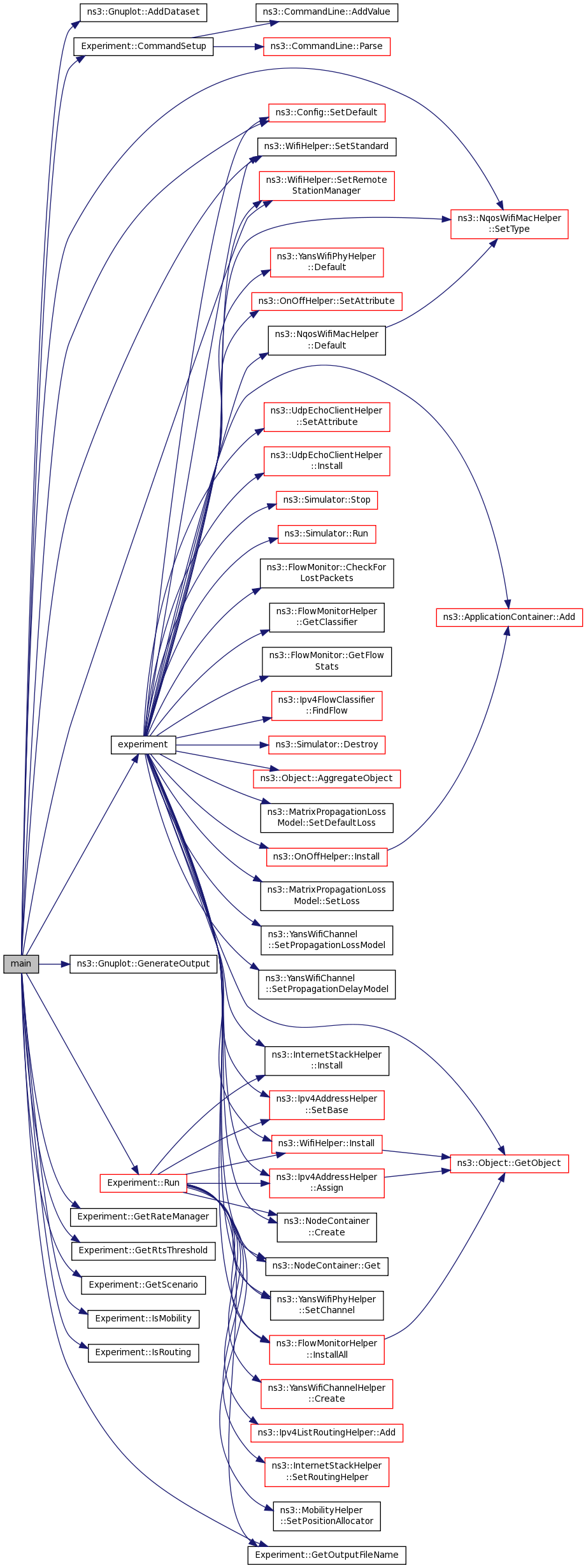

Here is the call graph for this function:

NS_LOG_COMPONENT_DEFINE

(

"multirate"

)

Scenarios: 100 nodes, multiple simultaneous flows, multi-hop ad hoc, routing, and mobility.

QUICK INSTRUCTIONS:

To optimize build: ./waf -d optimized configure ./waf

To compile: ./waf –run multirate

To compile with command line(useful for varying parameters): ./waf –run "multirate --totalTime=0.3s --rateManager=ns3::MinstrelWifiManager"

To turn on NS_LOG: export NS_LOG=multirate=level_all (can only view log if built with ./waf -d debug configure)

To debug: ./waf –shell gdb ./build/debug/examples/wireless/multirate

To view pcap files: tcpdump -nn -tt -r filename.pcap

To monitor the files: tail -f filename.pcap

static std::string PrintPosition ( Ptr< Node >  client, Ptr< Node >  server  )

inlinestatic

Definition at line 322 of file multirate.cc.

References ns3::Ipv4::GetAddress(), ns3::Node::GetDevice(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Object::GetObject(), GetPosition(), ns3::Vector3D::x, ns3::Vector3D::y, and ns3::Vector3D::z.

Referenced by Experiment::ApplicationSetup().

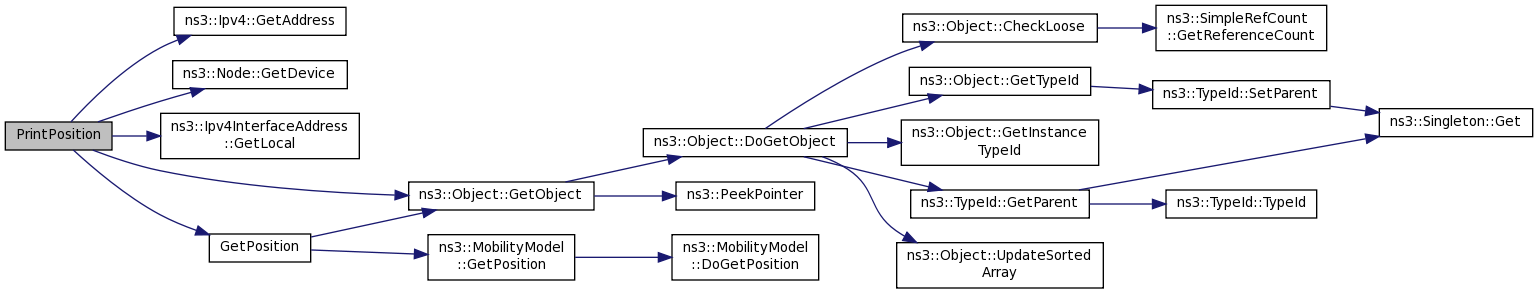

Here is the call graph for this function:

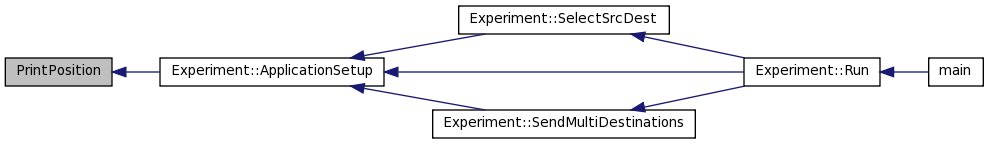

Here is the caller graph for this function:
