ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters Struct Reference

Parameters passed to DataRadioBearerSetupRequest () More...

#include <epc-enb-s1-sap.h>

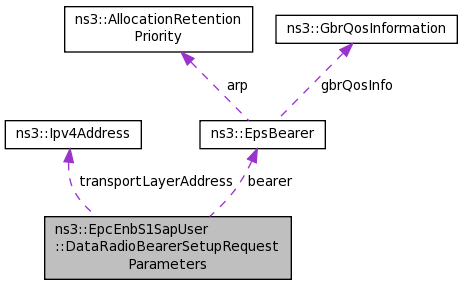

Collaboration diagram for ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters:

Public Attributes
EpsBearer	bearer
	the characteristics of the bearer to be set up More...
uint8_t	bearerId
	the EPS Bearer Identifier More...
uint32_t	gtpTeid
	S1-bearer GTP tunnel endpoint identifier, see 36.423 9.2.1. More...
uint16_t	rnti
	the RNTI identifying the UE for which the DataRadioBearer is to be created More...
Ipv4Address	transportLayerAddress
	IP Address of the SGW, see 36.423 9.2.1. More...

Detailed Description

Parameters passed to DataRadioBearerSetupRequest ()

Definition at line 99 of file epc-enb-s1-sap.h.

Member Data Documentation

EpsBearer ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::bearer

the characteristics of the bearer to be set up

Definition at line 103 of file epc-enb-s1-sap.h.

Referenced by ns3::LteEnbRrc::DoDataRadioBearerSetupRequest(), and ns3::EpcEnbApplication::DoInitialContextSetupRequest().

uint8_t ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::bearerId

the EPS Bearer Identifier

Definition at line 105 of file epc-enb-s1-sap.h.

Referenced by ns3::LteEnbRrc::DoDataRadioBearerSetupRequest(), and ns3::EpcEnbApplication::DoInitialContextSetupRequest().

uint32_t ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::gtpTeid

S1-bearer GTP tunnel endpoint identifier, see 36.423 9.2.1.

Definition at line 106 of file epc-enb-s1-sap.h.

Referenced by ns3::LteEnbRrc::DoDataRadioBearerSetupRequest(), and ns3::EpcEnbApplication::DoInitialContextSetupRequest().

uint16_t ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::rnti

the RNTI identifying the UE for which the DataRadioBearer is to be created

Definition at line 101 of file epc-enb-s1-sap.h.

Referenced by ns3::DrbActivator::ActivateDrb(), ns3::LteEnbRrc::DoDataRadioBearerSetupRequest(), and ns3::EpcEnbApplication::DoInitialContextSetupRequest().

Ipv4Address ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::transportLayerAddress

IP Address of the SGW, see 36.423 9.2.1.

Definition at line 107 of file epc-enb-s1-sap.h.

Referenced by ns3::LteEnbRrc::DoDataRadioBearerSetupRequest().

---

The documentation for this struct was generated from the following file:

• src/lte/model/epc-enb-s1-sap.h
