ns3::EpcTft::PacketFilter Struct Reference

Implement the data structure representing a TrafficFlowTemplate Packet Filter. More...

#include <epc-tft.h>

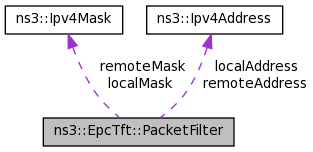

Collaboration diagram for ns3::EpcTft::PacketFilter:

Public Member Functions
	PacketFilter ()
bool	Matches (Direction d, Ipv4Address ra, Ipv4Address la, uint16_t rp, uint16_t lp, uint8_t tos)

Public Attributes
Direction	direction
	whether the filter needs to be applied to uplink / downlink only, or in both cases More...
Ipv4Address	localAddress
	IPv4 address of the UE. More...
Ipv4Mask	localMask
	IPv4 address mask of the UE. More...
uint16_t	localPortEnd
	end of the port number range of the UE More...
uint16_t	localPortStart
	start of the port number range of the UE More...
uint8_t	precedence
	used to specify the precedence for the packet filter among all packet filters in the TFT; higher values will be evaluated last. More...
Ipv4Address	remoteAddress
	IPv4 address of the remote host. More...
Ipv4Mask	remoteMask
	IPv4 address mask of the remote host. More...
uint16_t	remotePortEnd
	end of the port number range of the remote host More...
uint16_t	remotePortStart
	start of the port number range of the remote host More...
uint8_t	typeOfService
	type of service field More...
uint8_t	typeOfServiceMask
	type of service field mask More...

Detailed Description

Implement the data structure representing a TrafficFlowTemplate Packet Filter.

See 3GPP TS 24.008 version 8.7.0 Release 8, Table 10.5.162/3GPP TS 24.008: Traffic flow template information element

With respect to the Packet Filter specification in the above doc, the following features are NOT supported:

• IPv6 filtering (including flow labels)
• IPSec filtering
• filter precedence field is not evaluated, hence it is recommended to setup the TFTs within a PDP context such that TFTs are mutually exclusive

Definition at line 73 of file epc-tft.h.

Constructor & Destructor Documentation

ns3::EpcTft::PacketFilter::PacketFilter

(

)

Definition at line 68 of file epc-tft.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

bool ns3::EpcTft::PacketFilter::Matches	(	Direction	d,
		Ipv4Address	ra,
		Ipv4Address	la,
		uint16_t	rp,
		uint16_t	lp,
		uint8_t	tos
	)

Parameters

d	the direction
ra	the remote address
la	the local address
rp	the remote port
lp	the local port
tos	the type of service

Returns

true if the parameters match with the PacketFilter, false otherwise.

Definition at line 84 of file epc-tft.cc.

References NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Member Data Documentation

Direction ns3::EpcTft::PacketFilter::direction

whether the filter needs to be applied to uplink / downlink only, or in both cases

Definition at line 104 of file epc-tft.h.

Referenced by ns3::operator<<().

Ipv4Address ns3::EpcTft::PacketFilter::localAddress

IPv4 address of the UE.

Definition at line 109 of file epc-tft.h.

Referenced by ns3::EpcTftClassifierTestSuite::EpcTftClassifierTestSuite(), and ns3::operator<<().

Ipv4Mask ns3::EpcTft::PacketFilter::localMask

IPv4 address mask of the UE.

Definition at line 110 of file epc-tft.h.

Referenced by ns3::EpcTftClassifierTestSuite::EpcTftClassifierTestSuite(), and ns3::operator<<().

uint16_t ns3::EpcTft::PacketFilter::localPortEnd

end of the port number range of the UE

Definition at line 115 of file epc-tft.h.

Referenced by ns3::LteX2HandoverTestCase::DoRun(), ns3::LteX2HandoverMeasuresTestCase::DoRun(), ns3::EpcTftClassifierTestSuite::EpcTftClassifierTestSuite(), main(), and ns3::operator<<().

uint16_t ns3::EpcTft::PacketFilter::localPortStart

start of the port number range of the UE

Definition at line 114 of file epc-tft.h.

Referenced by ns3::LteX2HandoverTestCase::DoRun(), ns3::LteX2HandoverMeasuresTestCase::DoRun(), ns3::LteEpcE2eDataTestCase::DoRun(), ns3::EpcTftClassifierTestSuite::EpcTftClassifierTestSuite(), main(), and ns3::operator<<().

uint8_t ns3::EpcTft::PacketFilter::precedence

used to specify the precedence for the packet filter among all packet filters in the TFT; higher values will be evaluated last.

Definition at line 98 of file epc-tft.h.

Referenced by ns3::EpcTft::Add().

Ipv4Address ns3::EpcTft::PacketFilter::remoteAddress

IPv4 address of the remote host.

Definition at line 107 of file epc-tft.h.

Referenced by ns3::EpcTftClassifierTestSuite::EpcTftClassifierTestSuite(), and ns3::operator<<().

Ipv4Mask ns3::EpcTft::PacketFilter::remoteMask

IPv4 address mask of the remote host.

Definition at line 108 of file epc-tft.h.

Referenced by ns3::EpcTftClassifierTestSuite::EpcTftClassifierTestSuite(), and ns3::operator<<().

uint16_t ns3::EpcTft::PacketFilter::remotePortEnd

end of the port number range of the remote host

Definition at line 113 of file epc-tft.h.

Referenced by ns3::LteX2HandoverTestCase::DoRun(), ns3::LteX2HandoverMeasuresTestCase::DoRun(), ns3::LteEpcE2eDataTestCase::DoRun(), ns3::EpcTftClassifierTestSuite::EpcTftClassifierTestSuite(), main(), and ns3::operator<<().

uint16_t ns3::EpcTft::PacketFilter::remotePortStart

start of the port number range of the remote host

Definition at line 112 of file epc-tft.h.

Referenced by ns3::LteX2HandoverTestCase::DoRun(), ns3::LteX2HandoverMeasuresTestCase::DoRun(), ns3::LteEpcE2eDataTestCase::DoRun(), ns3::EpcTftClassifierTestSuite::EpcTftClassifierTestSuite(), main(), and ns3::operator<<().

uint8_t ns3::EpcTft::PacketFilter::typeOfService

type of service field

Definition at line 117 of file epc-tft.h.

Referenced by ns3::operator<<().

uint8_t ns3::EpcTft::PacketFilter::typeOfServiceMask

type of service field mask

Definition at line 118 of file epc-tft.h.

Referenced by ns3::operator<<().

---

The documentation for this struct was generated from the following files:

• src/lte/model/epc-tft.h
• src/lte/model/epc-tft.cc
