ns3::HierarchicalMobilityModel Class Reference

a hierachical mobility model. More...

#include <hierarchical-mobility-model.h>

Inheritance diagram for ns3::HierarchicalMobilityModel:

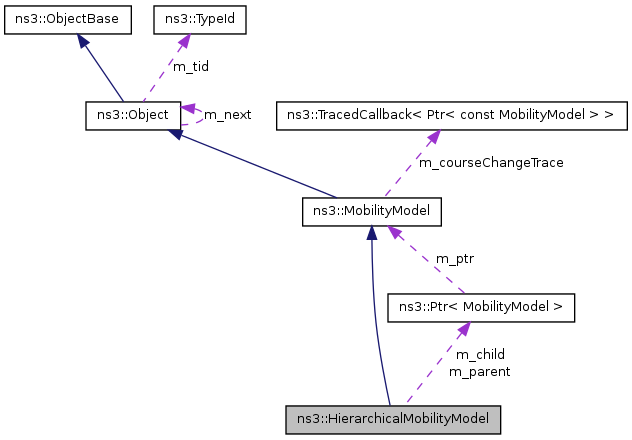

Collaboration diagram for ns3::HierarchicalMobilityModel:

List of all members.

Public Member Functions
Ptr< MobilityModel >	GetChild (void) const
Ptr< MobilityModel >	GetParent (void) const
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::HierarchicalMobilityModel.
Private Member Functions
virtual Vector	DoGetPosition (void) const
virtual void	DoSetPosition (const Vector &position)
virtual Vector	DoGetVelocity (void) const

---

Detailed Description

a hierachical mobility model.

This model allows you to specify the position of a child object relative to a parent object.

---

Member Function Documentation

virtual Vector ns3::HierarchicalMobilityModel::DoGetPosition

(

void

)

const [private, virtual]

Returns:

the current position.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

virtual Vector ns3::HierarchicalMobilityModel::DoGetVelocity

(

void

)

const [private, virtual]

Returns:

the current velocity.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

virtual void ns3::HierarchicalMobilityModel::DoSetPosition

(

const Vector &

position

)

[private, virtual]

Parameters:

position

the position to set.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

Ptr<MobilityModel> ns3::HierarchicalMobilityModel::GetChild

(

void

)

const

Returns:

the child mobility model.

This allows you to get access to the position of the child relative to its parent.

Ptr<MobilityModel> ns3::HierarchicalMobilityModel::GetParent

(

void

)

const

Returns:

the parent mobility model.

This allows you to get access to the position of the parent mobility model which is used as the reference position by the child mobility model.

static TypeId ns3::HierarchicalMobilityModel::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::HierarchicalMobilityModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/$ns3MobilityModel/$ns3HierarchicalMobilityModel

Attributes defined for this type:

• Child: The child mobility model.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::MobilityModel >
  • Initial value: 0
  • Flags: construct write read
• Parent: The parent mobility model.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::MobilityModel >
  • Initial value: 0
  • Flags: construct write read

Attributes defined in parent class ns3::MobilityModel:

• Position: The current position of the mobility model.
  • Set with class: VectorValue
  • Underlying type: Vector
  • Flags: write read
• Velocity: The current velocity of the mobility model.
  • Set with class: VectorValue
  • Underlying type: Vector
  • Flags: read

No TraceSources defined for this type.
TraceSources defined in parent class ns3::MobilityModel:

• CourseChange: The value of the position and/or velocity vector changed

Reimplemented from ns3::MobilityModel.

---

The documentation for this class was generated from the following files:

• src/mobility/hierarchical-mobility-model.h
• doc/introspected-doxygen.h
