keep track of the current position of an object More...
#include <mobility-model.h>
Public Member Functions | |
| Vector | GetPosition (void) const |
| void | SetPosition (const Vector &position) |
| Vector | GetVelocity (void) const |
| double | GetDistanceFrom (Ptr< const MobilityModel > position) const |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::MobilityModel. | |
Protected Member Functions | |
| void | NotifyCourseChange (void) const |
Private Member Functions | |
| virtual Vector | DoGetPosition (void) const =0 |
| virtual void | DoSetPosition (const Vector &position)=0 |
| virtual Vector | DoGetVelocity (void) const =0 |
Private Attributes | |
| TracedCallback< Ptr< const MobilityModel > > | m_courseChangeTrace |
Detailed Description
keep track of the current position of an object
All space coordinates in this class and its subclasses are understood to be meters or meters/s. i.e., they are all metric international units.
Member Function Documentation
| virtual Vector ns3::MobilityModel::DoGetPosition | ( | void | ) | const [private, pure virtual] |
- Returns:
- the current position.
Concrete subclasses of this base class must implement this method.

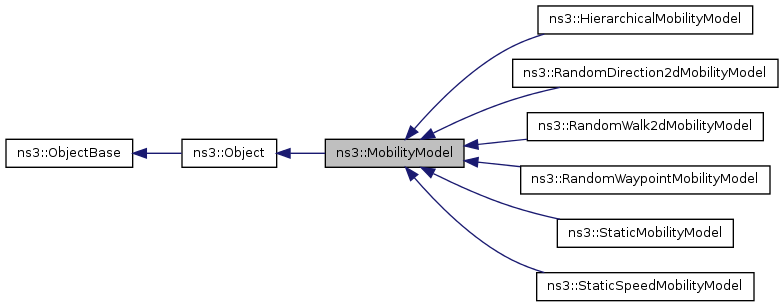

Implemented in ns3::HierarchicalMobilityModel, ns3::RandomDirection2dMobilityModel, ns3::RandomWalk2dMobilityModel, ns3::RandomWaypointMobilityModel, ns3::StaticMobilityModel, and ns3::StaticSpeedMobilityModel.
| virtual Vector ns3::MobilityModel::DoGetVelocity | ( | void | ) | const [private, pure virtual] |
- Returns:
- the current velocity.
Concrete subclasses of this base class must implement this method.
Implemented in ns3::HierarchicalMobilityModel, ns3::RandomDirection2dMobilityModel, ns3::RandomWalk2dMobilityModel, ns3::RandomWaypointMobilityModel, ns3::StaticMobilityModel, and ns3::StaticSpeedMobilityModel.
| virtual void ns3::MobilityModel::DoSetPosition | ( | const Vector & | position | ) | [private, pure virtual] |
- Parameters:
-
position the position to set.
Concrete subclasses of this base class must implement this method.
Implemented in ns3::HierarchicalMobilityModel, ns3::RandomDirection2dMobilityModel, ns3::RandomWalk2dMobilityModel, ns3::RandomWaypointMobilityModel, ns3::StaticMobilityModel, and ns3::StaticSpeedMobilityModel.
| double ns3::MobilityModel::GetDistanceFrom | ( | Ptr< const MobilityModel > | position | ) | const |
- Parameters:
-
position a reference to another mobility model
- Returns:
- the distance between the two objects. Unit is meters.
| Vector ns3::MobilityModel::GetPosition | ( | void | ) | const |
- Returns:
- the current position
| static TypeId ns3::MobilityModel::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::MobilityModel.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/$ns3MobilityModel
Attributes defined for this type:
-
Position: The current position of the mobility model.
- Set with class: VectorValue
- Underlying type: Vector
- Flags: write read
-
Velocity: The current velocity of the mobility model.
- Set with class: VectorValue
- Underlying type: Vector
- Flags: read
TraceSources defined for this type:
- CourseChange: The value of the position and/or velocity vector changed
Reimplemented from ns3::Object.
Reimplemented in ns3::HierarchicalMobilityModel, ns3::RandomDirection2dMobilityModel, ns3::RandomWalk2dMobilityModel, ns3::RandomWaypointMobilityModel, ns3::StaticMobilityModel, and ns3::StaticSpeedMobilityModel.
| Vector ns3::MobilityModel::GetVelocity | ( | void | ) | const |
- Returns:
- the current velocity.
| void ns3::MobilityModel::NotifyCourseChange | ( | void | ) | const [protected] |
Must be invoked by subclasses when the course of the position changes to notify course change listeners.
| void ns3::MobilityModel::SetPosition | ( | const Vector & | position | ) |
- Parameters:
-
position the position to set.
Member Data Documentation
TracedCallback<Ptr<const MobilityModel> > ns3::MobilityModel::m_courseChangeTrace [private] |
Used to alert subscribers that a change in direction, velocity, or position has occurred.
The documentation for this class was generated from the following files:
- src/mobility/mobility-model.h
- doc/introspected-doxygen.h
