ns3::RandomWaypointMobilityModel Class Reference

a random waypoint mobility model More...

#include <random-waypoint-mobility-model.h>

Inheritance diagram for ns3::RandomWaypointMobilityModel:

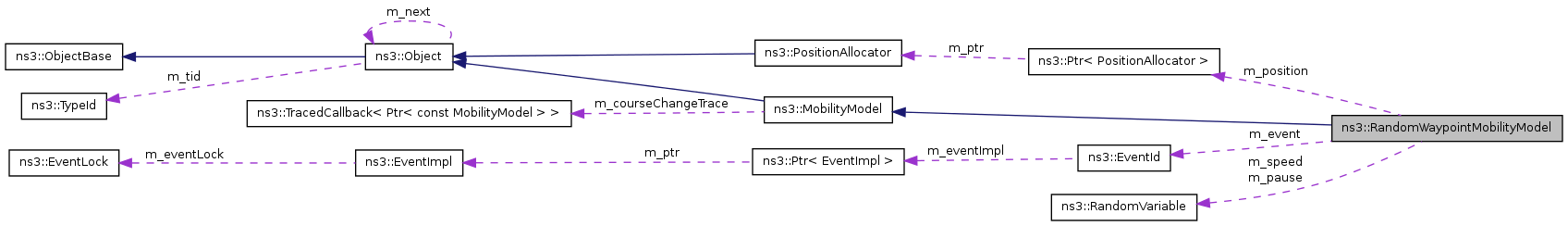

Collaboration diagram for ns3::RandomWaypointMobilityModel:

List of all members.

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::RandomWaypointMobilityModel.
Private Member Functions
virtual Vector	DoGetPosition (void) const
virtual void	DoSetPosition (const Vector &position)
virtual Vector	DoGetVelocity (void) const

---

Detailed Description

a random waypoint mobility model

Each object chooses a random destination "waypoint", a random speed, and a random pause time: it then pauses for the specified pause time, and starts moving towards the specified destination with the specified speed. Once the destination is reached the process starts again.

The implementation of this model is not 2d-specific. i.e. if you provide a 3d random waypoint position model to this mobility model, the model will still work. There is no 3d position allocator for now but it should be trivial to add one.

---

Member Function Documentation

virtual Vector ns3::RandomWaypointMobilityModel::DoGetPosition

(

void

)

const [private, virtual]

Returns:

the current position.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

virtual Vector ns3::RandomWaypointMobilityModel::DoGetVelocity

(

void

)

const [private, virtual]

Returns:

the current velocity.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

virtual void ns3::RandomWaypointMobilityModel::DoSetPosition

(

const Vector &

position

)

[private, virtual]

Parameters:

position

the position to set.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

static TypeId ns3::RandomWaypointMobilityModel::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::RandomWaypointMobilityModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/$ns3MobilityModel/$ns3RandomWaypointMobilityModel

Attributes defined for this type:

• Speed: A random variable used to pick the speed of a random waypoint model.
  • Set with class: RandomVariableValue
  • Underlying type: RandomVariable
  • Initial value: Uniform:0.3:0.7
  • Flags: construct write read
• Pause: A random variable used to pick the pause of a random waypoint model.
  • Set with class: RandomVariableValue
  • Underlying type: RandomVariable
  • Initial value: Constant:2
  • Flags: construct write read
• Position: The position model used to pick a destination point.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::PositionAllocator >
  • Initial value: 0
  • Flags: construct write read

Attributes defined in parent class ns3::MobilityModel:

• Position: The current position of the mobility model.
  • Set with class: VectorValue
  • Underlying type: Vector
  • Flags: write read
• Velocity: The current velocity of the mobility model.
  • Set with class: VectorValue
  • Underlying type: Vector
  • Flags: read

No TraceSources defined for this type.
TraceSources defined in parent class ns3::MobilityModel:

• CourseChange: The value of the position and/or velocity vector changed

Reimplemented from ns3::MobilityModel.

---

The documentation for this class was generated from the following files:

• src/mobility/random-waypoint-mobility-model.h
• doc/introspected-doxygen.h
