ns3::LogDistancePropagationLossModel Class Reference

a log distance propagation model. More...

#include <propagation-loss-model.h>

Inheritance diagram for ns3::LogDistancePropagationLossModel:

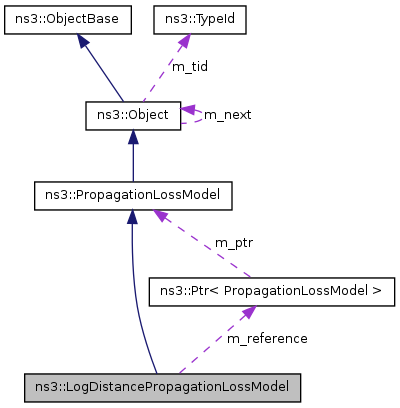

Collaboration diagram for ns3::LogDistancePropagationLossModel:

List of all members.

Public Member Functions
void	SetPathLossExponent (double n)
double	GetPathLossExponent (void) const
void	SetReferenceModel (Ptr< PropagationLossModel > model)
virtual double	GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LogDistancePropagationLossModel.

---

Detailed Description

a log distance propagation model.

This model calculates the reception power with a so-called log-distance propagation model:

where:

• : the path loss distance exponent
• : reference distance (m)
• : path loss at reference distance (dB)
• : distance (m)
• : path loss (dB)

When the path loss is requested at a distance smaller than the reference distance, the tx power is returned.

---

Member Function Documentation

virtual double ns3::LogDistancePropagationLossModel::GetLoss	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)			const [virtual]

Parameters:

	a	the mobility model of the source
	b	the mobility model of the destination

Returns:

the attenuation coefficient (dB)

Implements ns3::PropagationLossModel.

double ns3::LogDistancePropagationLossModel::GetPathLossExponent

(

void

)

const

Returns:

the current path loss exponent.

static TypeId ns3::LogDistancePropagationLossModel::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::LogDistancePropagationLossModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3WifiNetDevice/Channel/PropagationLossModel/$ns3LogDistancePropagationLossModel

Attributes defined for this type:

• Exponent: The exponent of the Path Loss propagation model
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 3
  • Flags: construct write read
• ReferenceDistance: The distance at which the reference loss is calculated (m)
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 1
  • Flags: construct write read
• ReferenceModel: The reference model at the reference distance.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::PropagationLossModel >
  • Initial value: 0
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::PropagationLossModel.

void ns3::LogDistancePropagationLossModel::SetPathLossExponent

(

double

n

)

Parameters:

n

the path loss exponent. Set the path loss exponent.

void ns3::LogDistancePropagationLossModel::SetReferenceModel

(

Ptr< PropagationLossModel >

model

)

Parameters:

model

the reference propagation model

---

The documentation for this class was generated from the following files:

• src/devices/wifi/propagation-loss-model.h
• doc/introspected-doxygen.h
