The propagation loss is random. More...
#include <propagation-loss-model.h>
Inheritance diagram for ns3::RandomPropagationLossModel:

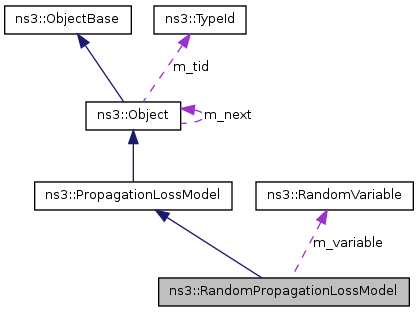

Collaboration diagram for ns3::RandomPropagationLossModel:
Public Member Functions | |
| virtual double | GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::RandomPropagationLossModel. | |
Detailed Description
The propagation loss is random.
Member Function Documentation
| virtual double ns3::RandomPropagationLossModel::GetLoss | ( | Ptr< MobilityModel > | a, | |
| Ptr< MobilityModel > | b | |||
| ) | const [virtual] |
- Parameters:
-
a the mobility model of the source b the mobility model of the destination
- Returns:
- the attenuation coefficient (dB)
Implements ns3::PropagationLossModel.
| static TypeId ns3::RandomPropagationLossModel::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::RandomPropagationLossModel.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/DeviceList/[i]/$ns3WifiNetDevice/Channel/PropagationLossModel/$ns3RandomPropagationLossModel
Attributes defined for this type:
-
Variable: The random variable used to pick a loss everytime GetLoss is invoked.
- Set with class: RandomVariableValue
- Underlying type: RandomVariable
- Initial value: Constant:1
- Flags: construct write read
No TraceSources defined for this type.
Reimplemented from ns3::PropagationLossModel.
The documentation for this class was generated from the following files:
- src/devices/wifi/propagation-loss-model.h
- doc/introspected-doxygen.h
