base class for all MAC-level wifi objects. More...

#include <wifi-mac.h>

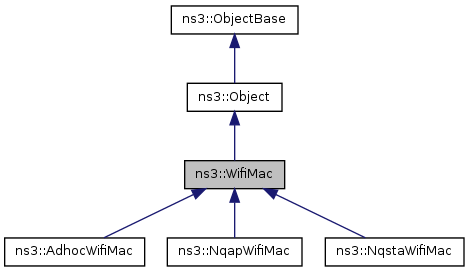

Inheritance diagram for ns3::WifiMac:

Collaboration diagram for ns3::WifiMac:

Public Member Functions
virtual void	SetSlot (Time slotTime)=0
virtual void	SetSifs (Time sifs)=0
virtual void	SetEifsNoDifs (Time eifsNoDifs)=0
virtual void	SetPifs (Time pifs)=0
virtual void	SetCtsTimeout (Time ctsTimeout)=0
virtual void	SetAckTimeout (Time ackTimeout)=0
void	SetMaxPropagationDelay (Time delay)
virtual Time	GetPifs (void) const =0
virtual Time	GetSifs (void) const =0
virtual Time	GetSlot (void) const =0
virtual Time	GetEifsNoDifs (void) const =0
virtual Time	GetCtsTimeout (void) const =0
virtual Time	GetAckTimeout (void) const =0
Time	GetMsduLifetime (void) const
Time	GetMaxPropagationDelay (void) const
uint32_t	GetMaxMsduSize (void) const
virtual Mac48Address	GetAddress (void) const =0
virtual Ssid	GetSsid (void) const =0
virtual void	SetAddress (Mac48Address address)=0
virtual void	SetSsid (Ssid ssid)=0
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::WifiMac.
Private Member Functions
virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)=0
virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to)=0
virtual void	SetWifiPhy (Ptr< WifiPhy > phy)=0
virtual void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)=0
virtual void	SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0
virtual void	SetLinkUpCallback (Callback< void > linkUp)=0
virtual void	SetLinkDownCallback (Callback< void > linkDown)=0

Detailed Description

base class for all MAC-level wifi objects.

This class encapsulates all the low-level MAC functionality DCA, EDCA, etc) and all the high-level MAC functionality (association/disassociation state machines).

Member Function Documentation

virtual void ns3::WifiMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to,
		Mac48Address	from
	)			`[private, pure virtual]`

Parameters:

	packet	the packet to send.
	to	the address to which the packet should be sent.
	from	the address from which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source addresss.

Implemented in ns3::AdhocWifiMac, ns3::NqapWifiMac, and ns3::NqstaWifiMac.

virtual void ns3::WifiMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to
	)			`[private, pure virtual]`

Parameters:

	packet	the packet to send.
	to	the address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC.

Implemented in ns3::AdhocWifiMac, ns3::NqapWifiMac, and ns3::NqstaWifiMac.

virtual Time ns3::WifiMac::GetAckTimeout ( void ) const [pure virtual]

Returns:: the current ACK timeout duration.

Implemented in ns3::AdhocWifiMac, ns3::NqapWifiMac, and ns3::NqstaWifiMac.

virtual Mac48Address ns3::WifiMac::GetAddress ( void ) const [pure virtual]

Returns:: the MAC address associated to this MAC layer.

Implemented in ns3::AdhocWifiMac, ns3::NqapWifiMac, and ns3::NqstaWifiMac.

virtual Time ns3::WifiMac::GetCtsTimeout ( void ) const [pure virtual]

Returns:: the current CTS timeout duration.

Implemented in ns3::AdhocWifiMac, ns3::NqapWifiMac, and ns3::NqstaWifiMac.

virtual Time ns3::WifiMac::GetEifsNoDifs ( void ) const [pure virtual]

Returns:: the current EIFS minus DIFS duration

Implemented in ns3::AdhocWifiMac, ns3::NqapWifiMac, and ns3::NqstaWifiMac.

uint32_t ns3::WifiMac::GetMaxMsduSize ( void ) const

Returns:: the maximum size of a MAC-level data payload.

Time ns3::WifiMac::GetMaxPropagationDelay ( void ) const

Unused for now.

Time ns3::WifiMac::GetMsduLifetime ( void ) const

Unused for now.

virtual Time ns3::WifiMac::GetPifs ( void ) const [pure virtual]

Returns:: the current PIFS duration.

Implemented in ns3::AdhocWifiMac, ns3::NqapWifiMac, and ns3::NqstaWifiMac.

virtual Time ns3::WifiMac::GetSifs ( void ) const [pure virtual]

Returns:: the current SIFS duration.

Implemented in ns3::AdhocWifiMac, ns3::NqapWifiMac, and ns3::NqstaWifiMac.

virtual Time ns3::WifiMac::GetSlot ( void ) const [pure virtual]

Returns:: the current slot duration.

Implemented in ns3::AdhocWifiMac, ns3::NqapWifiMac, and ns3::NqstaWifiMac.

virtual Ssid ns3::WifiMac::GetSsid ( void ) const [pure virtual]

Returns:: the ssid which this MAC layer is going to try to stay in.

Implemented in ns3::AdhocWifiMac, ns3::NqapWifiMac, and ns3::NqstaWifiMac.

static TypeId ns3::WifiMac::GetTypeId ( void ) [static]

This method returns the TypeId associated to ns3::WifiMac.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3WifiNetDevice/Mac

Attributes defined for this type:

CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 75666ns
- Flags: construct write read
AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 75666ns
- Flags: construct write read
Sifs: The value of the SIFS constant.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 16000ns
- Flags: construct write read
EifsNoDifs: The value of EIFS-DIFS
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 60000ns
- Flags: construct write read
Slot: The duration of a Slot.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 9000ns
- Flags: construct write read
Pifs: The value of the PIFS constant.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 25000ns
- Flags: construct write read
MaxPropagationDelay: The maximum propagation delay. Unused for now.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 3333ns
- Flags: construct write read
MaxMsduSize: The maximum size of an MSDU accepted by the MAC layer.This value conforms to the specification.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 1:2304
- Initial value: 2304
- Flags: construct write read
Ssid: The ssid we want to belong to.
- Set with class: SsidValue
- Underlying type: Ssid
- Initial value: default
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Reimplemented in ns3::AdhocWifiMac, ns3::NqapWifiMac, and ns3::NqstaWifiMac.

virtual void ns3::WifiMac::SetAckTimeout ( Time ackTimeout ) [pure virtual]

Parameters:

ackTimeout

the duration of an ACK timeout.

Implemented in ns3::AdhocWifiMac, ns3::NqapWifiMac, and ns3::NqstaWifiMac.

virtual void ns3::WifiMac::SetAddress ( Mac48Address address ) [pure virtual]

Parameters:

address

the current address of this MAC layer.

Implemented in ns3::AdhocWifiMac, ns3::NqapWifiMac, and ns3::NqstaWifiMac.

virtual void ns3::WifiMac::SetCtsTimeout ( Time ctsTimeout ) [pure virtual]

Parameters:

ctsTimeout

the duration of a CTS timeout.

Implemented in ns3::AdhocWifiMac, ns3::NqapWifiMac, and ns3::NqstaWifiMac.

virtual void ns3::WifiMac::SetEifsNoDifs ( Time eifsNoDifs ) [pure virtual]

Parameters:

eifsNoDifs

the duration of an EIFS minus DIFS.

This value is used to calculate the EIFS depending on AIFSN.

Implemented in ns3::AdhocWifiMac, ns3::NqapWifiMac, and ns3::NqstaWifiMac.

virtual void ns3::WifiMac::SetForwardUpCallback ( Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback ) [private, pure virtual]
