ns3::AnimByteTag Class Reference

Byte tag using by Anim to uniquely identify packets. More...

#include <animation-interface.h>

Inheritance diagram for ns3::AnimByteTag:

Collaboration diagram for ns3::AnimByteTag:

Public Member Functions
virtual void	Deserialize (TagBuffer i)
	Deserialize function. More...
uint64_t	Get (void) const
	Get Uid in tag. More...
virtual TypeId	GetInstanceTypeId (void) const
	Get Instance Type Id. More...
virtual uint32_t	GetSerializedSize (void) const
	Get Serialized Size. More...
virtual void	Print (std::ostream &os) const
	Print tag info. More...
virtual void	Serialize (TagBuffer i) const
	Serialize function. More...
void	Set (uint64_t AnimUid)
	Set global Uid in tag. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get Type Id. More...
Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)
	Get the type ID. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint64_t	m_AnimUid

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Byte tag using by Anim to uniquely identify packets.

When Anim receives a Tx Notification we tag the packet with a unique global uint64_t identifier before recording Tx information When Anim receives Rx notifications the tag is used to retrieve Tx information recorded earlier

Definition at line 793 of file animation-interface.h.

Member Function Documentation

void ns3::AnimByteTag::Deserialize ( TagBuffer  i )

virtual

Deserialize function.

Parameters

i	Tag Buffer

Implements ns3::Tag.

Definition at line 2408 of file animation-interface.cc.

References m_AnimUid, and ns3::TagBuffer::ReadU64().

Here is the call graph for this function:

uint64_t ns3::AnimByteTag::Get

(

void

)

const

Get Uid in tag.

Returns

Uid in tag

Definition at line 2424 of file animation-interface.cc.

References m_AnimUid.

Referenced by ns3::AnimationInterface::GetAnimUidFromPacket().

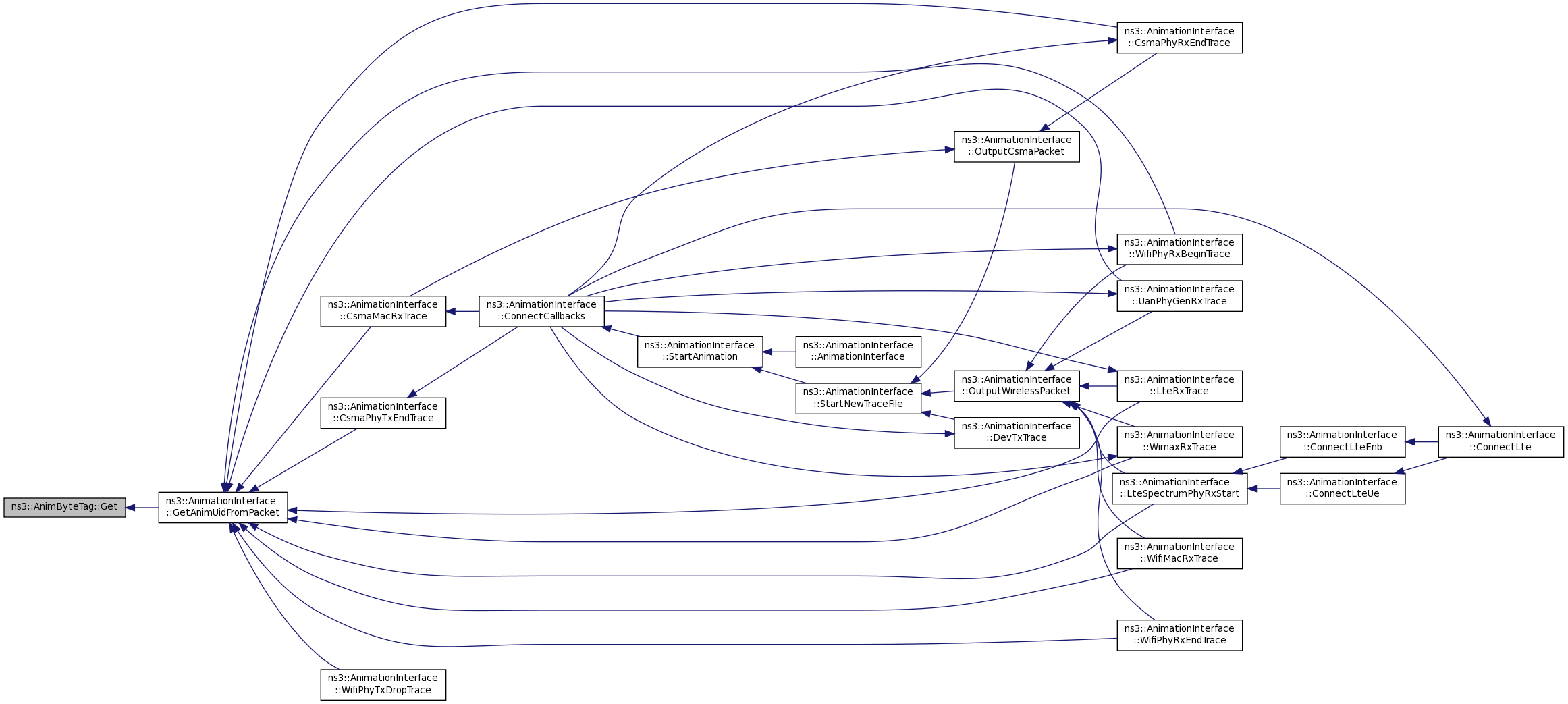

Here is the caller graph for this function:

TypeId ns3::AnimByteTag::GetInstanceTypeId ( void  ) const

virtual

Get Instance Type Id.

Returns

Type Id

Implements ns3::ObjectBase.

Definition at line 2392 of file animation-interface.cc.

References GetTypeId().

Referenced by ns3::AnimationInterface::GetAnimUidFromPacket().

Here is the call graph for this function:

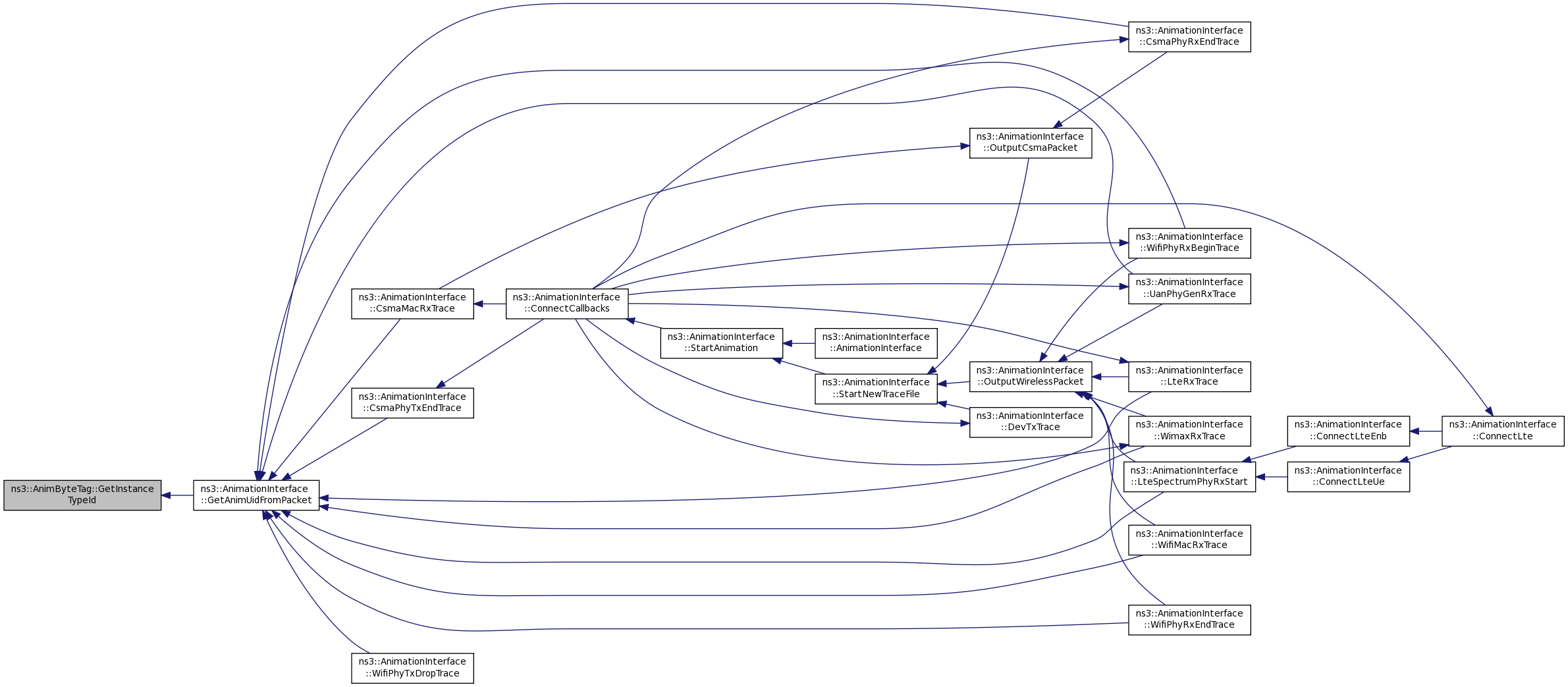

Here is the caller graph for this function:

uint32_t ns3::AnimByteTag::GetSerializedSize ( void  ) const

virtual

Get Serialized Size.

Returns

Serialized Size (i.e size of uint64_t)

Implements ns3::Tag.

Definition at line 2398 of file animation-interface.cc.

TypeId ns3::AnimByteTag::GetTypeId ( void  )

static

Get Type Id.

Returns

Type Id

Definition at line 2383 of file animation-interface.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

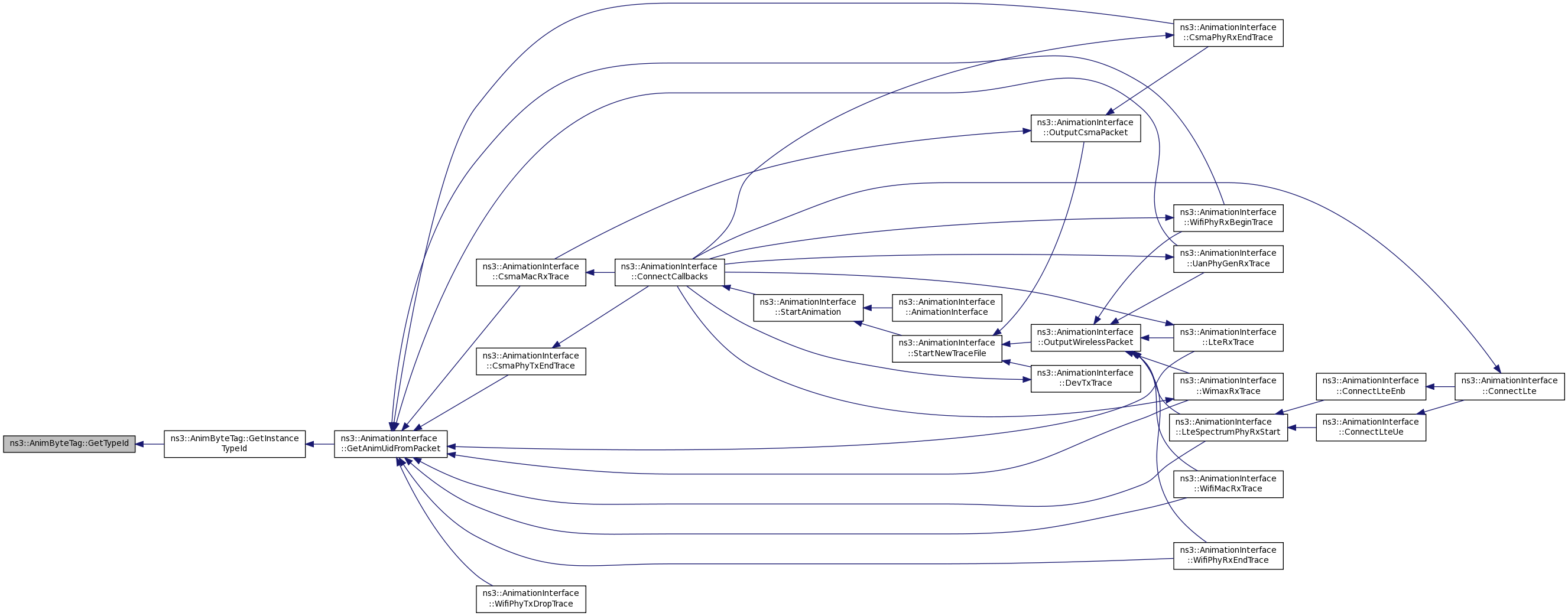

Here is the caller graph for this function:

void ns3::AnimByteTag::Print ( std::ostream &  os ) const

virtual

Print tag info.

Parameters

os	Reference of ostream object

Implements ns3::Tag.

Definition at line 2413 of file animation-interface.cc.

References m_AnimUid.

void ns3::AnimByteTag::Serialize ( TagBuffer  i ) const

virtual

Serialize function.

Parameters

i	Tag Buffer

Implements ns3::Tag.

Definition at line 2403 of file animation-interface.cc.

References m_AnimUid, and ns3::TagBuffer::WriteU64().

Here is the call graph for this function:

void ns3::AnimByteTag::Set

(

uint64_t

AnimUid

)

Set global Uid in tag.

Parameters

AnimUid

global Uid

Definition at line 2418 of file animation-interface.cc.

References m_AnimUid.

Referenced by ns3::AnimationInterface::CsmaPhyTxBeginTrace(), ns3::AnimationInterface::LteSpectrumPhyTxStart(), ns3::AnimationInterface::LteTxTrace(), ns3::AnimationInterface::UanPhyGenTxTrace(), ns3::AnimationInterface::WifiPhyTxBeginTrace(), and ns3::AnimationInterface::WimaxTxTrace().

Here is the caller graph for this function:

Member Data Documentation

uint64_t ns3::AnimByteTag::m_AnimUid

private

Definition at line 854 of file animation-interface.h.

Referenced by Deserialize(), Get(), Print(), Serialize(), and Set().

---

The documentation for this class was generated from the following files:

• src/netanim/model/animation-interface.h
• src/netanim/model/animation-interface.cc
