ns3::ApplicationPacketProbe Class Reference

Probe to translate from a TraceSource to two more easily parsed TraceSources. More...

#include <application-packet-probe.h>

+ Inheritance diagram for ns3::ApplicationPacketProbe:
+ Collaboration diagram for ns3::ApplicationPacketProbe:

Public Member Functions

 ApplicationPacketProbe ()

virtual ~ApplicationPacketProbe ()

virtual bool ConnectByObject (std::string traceSource, Ptr< Object > obj)
 connect to a trace source attribute provided by a given object More...

virtual void ConnectByPath (std::string path)
 connect to a trace source provided by a config path More...

void SetValue (Ptr< const Packet > packet, const Address &address)
 Set a probe value. More...

- Public Member Functions inherited from ns3::Probe
 Probe ()

virtual ~Probe ()

virtual bool IsEnabled (void) const

- Public Member Functions inherited from ns3::DataCollectionObject
 DataCollectionObject ()

virtual ~DataCollectionObject ()

void Disable (void)
 Unset the status of an individual object. More...

void Enable (void)
 Set the status of an individual object. More...

std::string GetName (void) const
 Get the object's name. More...

void SetName (std::string name)
 Set the object's name. All spaces are replaced by underscores. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCount & operator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID. More...

static void SetValueByPath (std::string path, Ptr< const Packet > packet, const Address &address)
 Set a probe value by its name in the Config system. More...

- Static Public Member Functions inherited from ns3::Probe
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::DataCollectionObject
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

void TraceSink (Ptr< const Packet > packet, const Address &address)
 Method to connect to an underlying ns3::TraceSource with arguments of type Ptr<const Packet> and const Address&. More...


Private Attributes

Address m_address
 The socket address for the traced packet. More...

TracedCallback< Ptr< const
Packet >, const Address & > 		m_output
 Output trace, packet and source address. More...

TracedCallback< uint32_t,
uint32_t > 		m_outputBytes
 Output trace, previous packet size and current packet size. More...

Ptr< const Packet > m_packet
 The traced packet. More...

uint32_t m_packetSizeOld
 The size of the traced packet. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...

- Protected Attributes inherited from ns3::Probe
Time m_start
 Time when logging starts. More...

Time m_stop
 Time when logging stops. More...

- Protected Attributes inherited from ns3::DataCollectionObject
bool m_enabled
 Object's activation state. More...

std::string m_name
 Name of the object within the data collection framework. More...


Detailed Description

Probe to translate from a TraceSource to two more easily parsed TraceSources.

Doxygen introspection did not find any typical Config paths.

This class is designed to probe an underlying ns3 TraceSource exporting a packet and a socket address. This probe exports a trace source "Output" with arguments of type Ptr<const Packet> and const Address&. This probe exports another trace source "OutputBytes" with arguments of type uint32_t, which is the number of bytes in the packet. The trace sources emit values when either the probed trace source emits a new value, or when SetValue () is called.


No Attributes are defined for this type.

TraceSources

  • Output: The packet plus its socket address that serve as the output for this probe
  • OutputBytes: The number of bytes in the packet

Definition at line 51 of file application-packet-probe.h.

Constructor & Destructor Documentation

ns3::ApplicationPacketProbe::ApplicationPacketProbe ( )

Definition at line 53 of file application-packet-probe.cc.

References m_packet, and NS_LOG_FUNCTION.

ns3::ApplicationPacketProbe::~ApplicationPacketProbe ( )
virtual

Definition at line 59 of file application-packet-probe.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

bool ns3::ApplicationPacketProbe::ConnectByObject ( std::string  traceSource,
Ptr< Object >  obj
)
virtual

connect to a trace source attribute provided by a given object

Parameters
traceSourcethe name of the attribute TraceSource to connect to
objns3::Object to connect to
Returns
true if the trace source was successfully connected

Implements ns3::Probe.

Definition at line 87 of file application-packet-probe.cc.

References ns3::Names::FindPath(), ns3::MakeCallback(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::ObjectBase::TraceConnectWithoutContext(), and TraceSink().

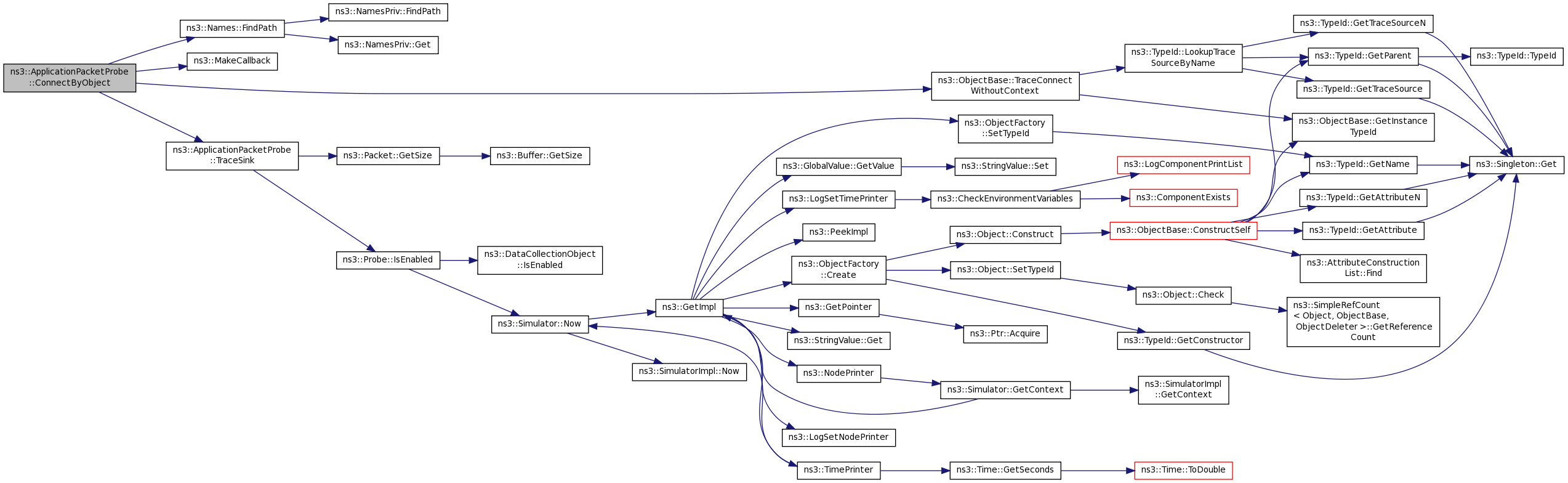

+ Here is the call graph for this function:

void ns3::ApplicationPacketProbe::ConnectByPath ( std::string  path)
virtual

connect to a trace source provided by a config path

Parameters
pathConfig path to bind to

Note, if an invalid path is provided, the probe will not be connected to anything.

Implements ns3::Probe.

Definition at line 96 of file application-packet-probe.cc.

References ns3::Config::ConnectWithoutContext(), ns3::MakeCallback(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and TraceSink().

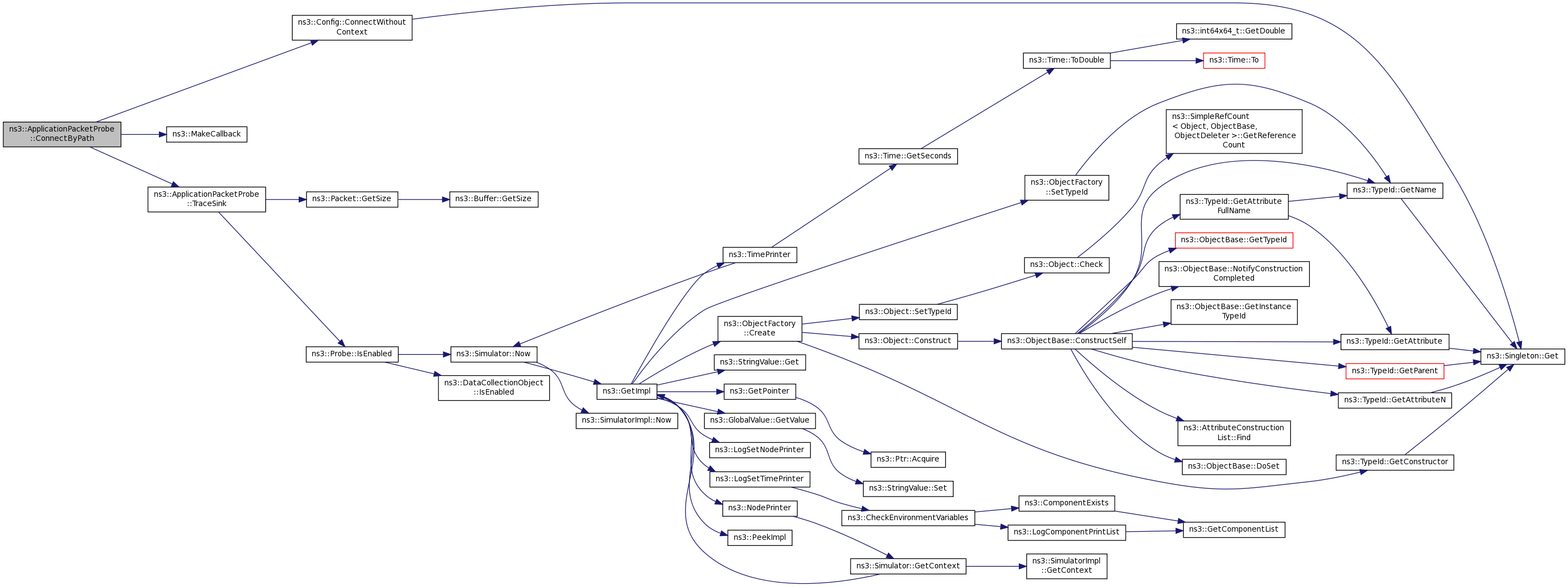

+ Here is the call graph for this function:

TypeId ns3::ApplicationPacketProbe::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 38 of file application-packet-probe.cc.

References m_output, m_outputBytes, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

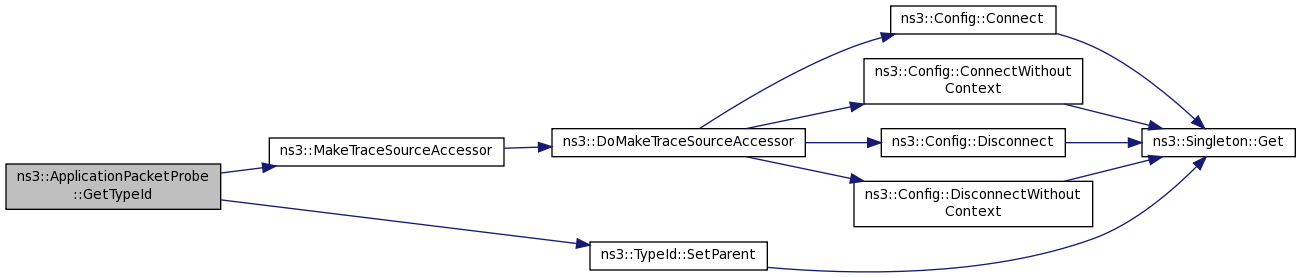

+ Here is the call graph for this function:

void ns3::ApplicationPacketProbe::SetValue ( Ptr< const Packet >  packet,
const Address &  address
)

Set a probe value.

Parameters
packetset the traced packet equal to this
addressset the socket address for the traced packet equal to this

Definition at line 65 of file application-packet-probe.cc.

References first::address, ns3::Packet::GetSize(), m_address, m_output, m_outputBytes, m_packet, m_packetSizeOld, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::ApplicationPacketProbe::SetValueByPath ( std::string  path,
Ptr< const Packet >  packet,
const Address &  address
)
static

Set a probe value by its name in the Config system.

Parameters
pathconfig path to access the probe
packetset the traced packet equal to this
addressset the socket address for the traced packet equal to this

Definition at line 78 of file application-packet-probe.cc.

References NS_ASSERT_MSG, and NS_LOG_FUNCTION.

void ns3::ApplicationPacketProbe::TraceSink ( Ptr< const Packet >  packet,
const Address &  address
)
private

Method to connect to an underlying ns3::TraceSource with arguments of type Ptr<const Packet> and const Address&.

Parameters
packetthe traced packet
addressthe socket address for the traced packet

Definition at line 104 of file application-packet-probe.cc.

References first::address, ns3::Packet::GetSize(), ns3::Probe::IsEnabled(), m_address, m_output, m_outputBytes, m_packet, m_packetSizeOld, and NS_LOG_FUNCTION.

Referenced by ConnectByObject(), and ConnectByPath().

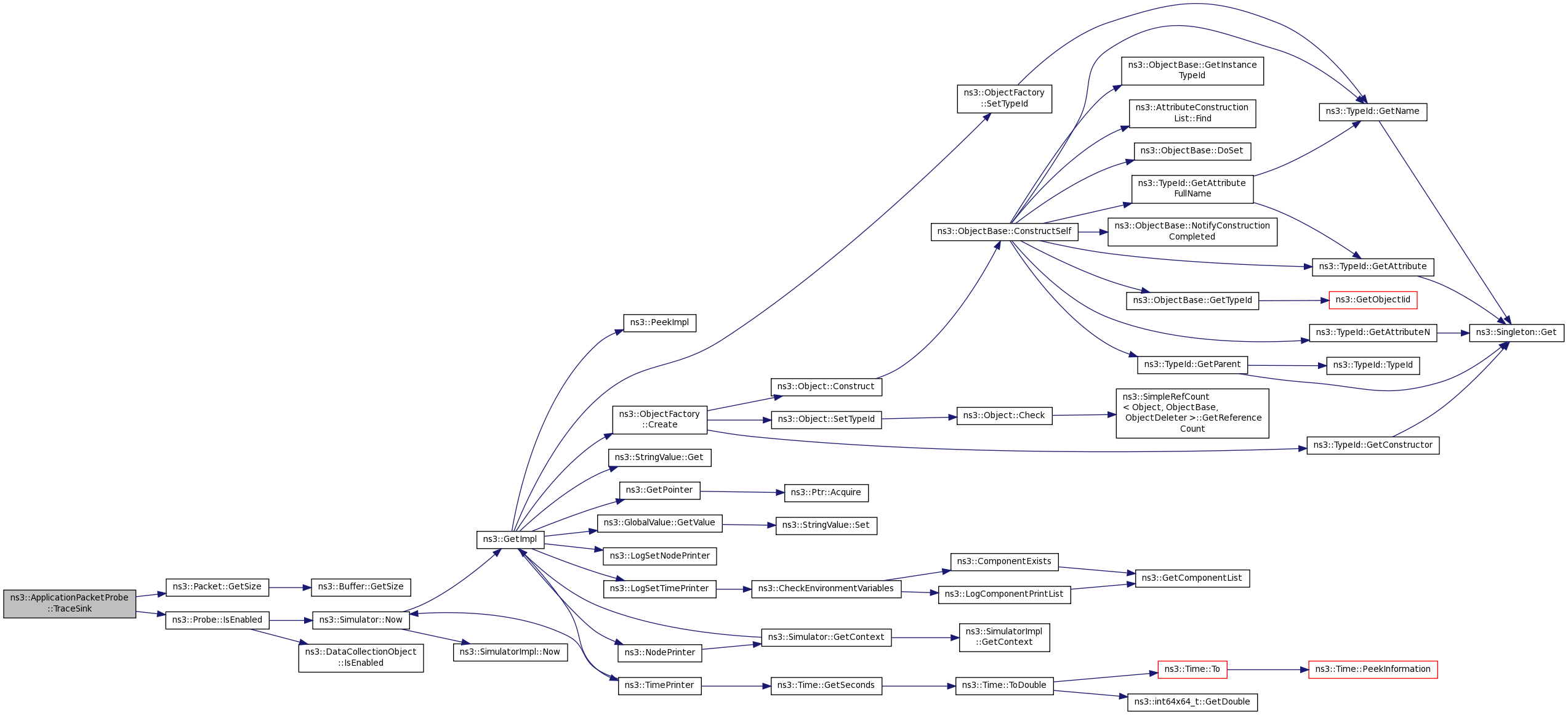

+ Here is the call graph for this function:

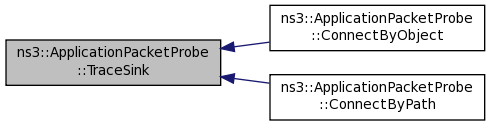

+ Here is the caller graph for this function:

Member Data Documentation

Address ns3::ApplicationPacketProbe::m_address
private

The socket address for the traced packet.

Definition at line 118 of file application-packet-probe.h.

Referenced by SetValue(), and TraceSink().

TracedCallback<Ptr<const Packet>, const Address&> ns3::ApplicationPacketProbe::m_output
private

Output trace, packet and source address.

Definition at line 110 of file application-packet-probe.h.

Referenced by GetTypeId(), SetValue(), and TraceSink().

TracedCallback<uint32_t, uint32_t> ns3::ApplicationPacketProbe::m_outputBytes
private

Output trace, previous packet size and current packet size.

Definition at line 112 of file application-packet-probe.h.

Referenced by GetTypeId(), SetValue(), and TraceSink().

Ptr<const Packet> ns3::ApplicationPacketProbe::m_packet
private

The traced packet.

Definition at line 115 of file application-packet-probe.h.

Referenced by ApplicationPacketProbe(), SetValue(), and TraceSink().

uint32_t ns3::ApplicationPacketProbe::m_packetSizeOld
private

The size of the traced packet.

Definition at line 121 of file application-packet-probe.h.

Referenced by SetValue(), and TraceSink().
