ns3::ArpHeader Class Reference

The packet header for an ARP packet. More...

#include <arp-header.h>

+ Inheritance diagram for ns3::ArpHeader:

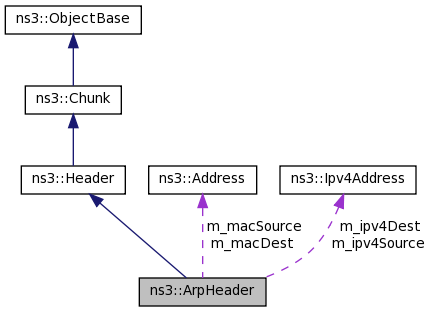

+ Collaboration diagram for ns3::ArpHeader:

Public Types

enum  ArpType_e { ARP_TYPE_REQUEST = 1, ARP_TYPE_REPLY = 2 }
 Enumeration listing the possible ARP types. More...


Public Member Functions

virtual uint32_t Deserialize (Buffer::Iterator start)

Address GetDestinationHardwareAddress (void)
 Returns the destination hardware address. More...

Ipv4Address GetDestinationIpv4Address (void)
 Returns the destination IP address. More...

virtual TypeId GetInstanceTypeId (void) const

virtual uint32_t GetSerializedSize (void) const

Address GetSourceHardwareAddress (void)
 Returns the source hardware address. More...

Ipv4Address GetSourceIpv4Address (void)
 Returns the source IP address. More...

bool IsReply (void) const
 Check if the ARP is a reply. More...

bool IsRequest (void) const
 Check if the ARP is a request. More...

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const

void SetReply (Address sourceHardwareAddress, Ipv4Address sourceProtocolAddress, Address destinationHardwareAddress, Ipv4Address destinationProtocolAddress)
 Set the ARP reply parameters. More...

void SetRequest (Address sourceHardwareAddress, Ipv4Address sourceProtocolAddress, Address destinationHardwareAddress, Ipv4Address destinationProtocolAddress)
 Set the ARP request parameters. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Public Attributes

Ipv4Address m_ipv4Dest
 IP destination address. More...

Ipv4Address m_ipv4Source
 IP source address. More...

Address m_macDest
 hardware destination address More...

Address m_macSource
 hardware source address More...

uint16_t m_type
 type of the ICMP (ARP_TYPE_REQUEST) More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

The packet header for an ARP packet.

Doxygen introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 34 of file arp-header.h.

Member Enumeration Documentation

Enumeration listing the possible ARP types.

Enumerator
ARP_TYPE_REQUEST
ARP_TYPE_REPLY

Definition at line 110 of file arp-header.h.

Member Function Documentation

uint32_t ns3::ArpHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should written.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 168 of file arp-header.cc.

References GetSerializedSize(), m_ipv4Dest, m_ipv4Source, m_macDest, m_macSource, m_type, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

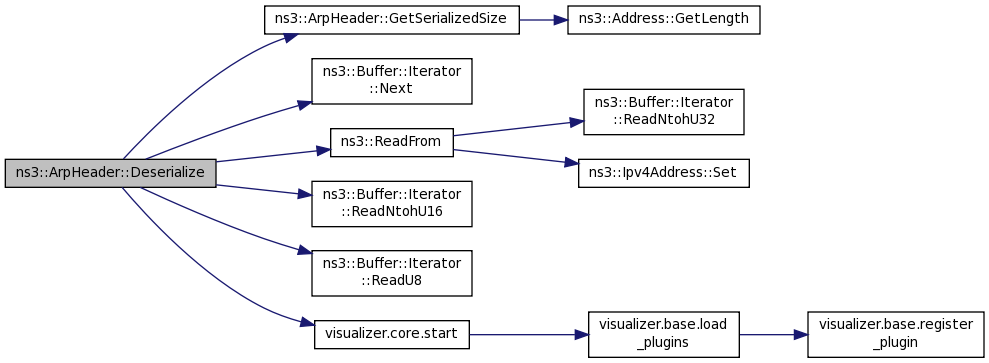

+ Here is the call graph for this function:

Address ns3::ArpHeader::GetDestinationHardwareAddress ( void  )

Returns the destination hardware address.

Returns
the destination hardware address

Definition at line 77 of file arp-header.cc.

References m_macDest, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Receive().

+ Here is the caller graph for this function:

Ipv4Address ns3::ArpHeader::GetDestinationIpv4Address ( void  )

Returns the destination IP address.

Returns
the destination IP address

Definition at line 89 of file arp-header.cc.

References m_ipv4Dest, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Receive().

+ Here is the caller graph for this function:

TypeId ns3::ArpHeader::GetInstanceTypeId ( void  ) const
virtual
Returns
the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 106 of file arp-header.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

uint32_t ns3::ArpHeader::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 135 of file arp-header.cc.

References ns3::Address::GetLength(), m_macDest, m_macSource, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by Deserialize().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Address ns3::ArpHeader::GetSourceHardwareAddress ( void  )

Returns the source hardware address.

Returns
the source hardware address

Definition at line 71 of file arp-header.cc.

References m_macSource, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Receive().

+ Here is the caller graph for this function:

Ipv4Address ns3::ArpHeader::GetSourceIpv4Address ( void  )

Returns the source IP address.

Returns
the source IP address

Definition at line 83 of file arp-header.cc.

References m_ipv4Source, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Receive().

+ Here is the caller graph for this function:

TypeId ns3::ArpHeader::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 97 of file arp-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::ArpHeader::IsReply ( void  ) const

Check if the ARP is a reply.

Returns
true if it is a reply

Definition at line 65 of file arp-header.cc.

References ARP_TYPE_REPLY, m_type, and NS_LOG_FUNCTION.

Referenced by Print(), and ns3::ArpL3Protocol::Receive().

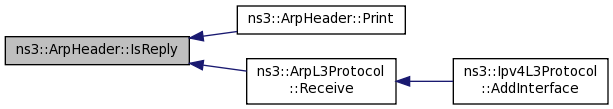

+ Here is the caller graph for this function:

bool ns3::ArpHeader::IsRequest ( void  ) const

Check if the ARP is a request.

Returns
true if it is a request

Definition at line 59 of file arp-header.cc.

References ARP_TYPE_REQUEST, m_type, and NS_LOG_FUNCTION.

Referenced by Print(), and ns3::ArpL3Protocol::Receive().

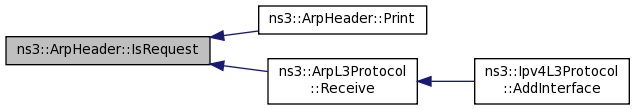

+ Here is the caller graph for this function:

void ns3::ArpHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 112 of file arp-header.cc.

References IsReply(), IsRequest(), m_ipv4Dest, m_ipv4Source, m_macDest, m_macSource, NS_ASSERT, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::ArpHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 148 of file arp-header.cc.

References ns3::Address::GetLength(), m_ipv4Dest, m_ipv4Source, m_macDest, m_macSource, m_type, NS_ASSERT, NS_LOG_FUNCTION, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

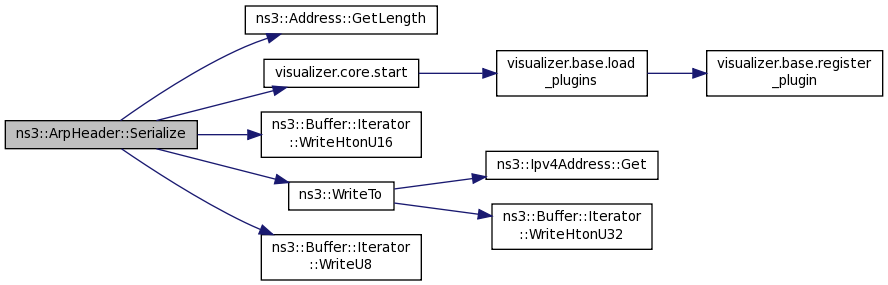

+ Here is the call graph for this function:

void ns3::ArpHeader::SetReply ( Address  sourceHardwareAddress,
Ipv4Address  sourceProtocolAddress,
Address  destinationHardwareAddress,
Ipv4Address  destinationProtocolAddress
)

Set the ARP reply parameters.

Parameters
sourceHardwareAddressthe source hardware address
sourceProtocolAddressthe source IP address
destinationHardwareAddressthe destination hardware address (usually the broadcast address)
destinationProtocolAddressthe destination IP address

Definition at line 46 of file arp-header.cc.

References ARP_TYPE_REPLY, m_ipv4Dest, m_ipv4Source, m_macDest, m_macSource, m_type, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::SendArpReply().

+ Here is the caller graph for this function:

void ns3::ArpHeader::SetRequest ( Address  sourceHardwareAddress,
Ipv4Address  sourceProtocolAddress,
Address  destinationHardwareAddress,
Ipv4Address  destinationProtocolAddress
)

Set the ARP request parameters.

Parameters
sourceHardwareAddressthe source hardware address
sourceProtocolAddressthe source IP address
destinationHardwareAddressthe destination hardware address (usually the broadcast address)
destinationProtocolAddressthe destination IP address

Definition at line 33 of file arp-header.cc.

References ARP_TYPE_REQUEST, m_ipv4Dest, m_ipv4Source, m_macDest, m_macSource, m_type, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::SendArpRequest().

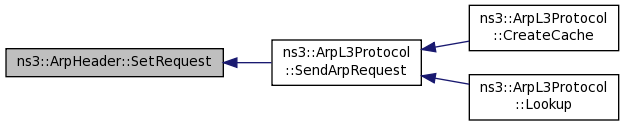

+ Here is the caller graph for this function:

Member Data Documentation

Ipv4Address ns3::ArpHeader::m_ipv4Dest

IP destination address.

Definition at line 118 of file arp-header.h.

Referenced by Deserialize(), GetDestinationIpv4Address(), Print(), Serialize(), SetReply(), and SetRequest().

Ipv4Address ns3::ArpHeader::m_ipv4Source

IP source address.

Definition at line 117 of file arp-header.h.

Referenced by Deserialize(), GetSourceIpv4Address(), Print(), Serialize(), SetReply(), and SetRequest().

Address ns3::ArpHeader::m_macDest

hardware destination address

Definition at line 116 of file arp-header.h.

Referenced by Deserialize(), GetDestinationHardwareAddress(), GetSerializedSize(), Print(), Serialize(), SetReply(), and SetRequest().

Address ns3::ArpHeader::m_macSource

hardware source address

Definition at line 115 of file arp-header.h.

Referenced by Deserialize(), GetSerializedSize(), GetSourceHardwareAddress(), Print(), Serialize(), SetReply(), and SetRequest().

uint16_t ns3::ArpHeader::m_type

type of the ICMP (ARP_TYPE_REQUEST)

Definition at line 114 of file arp-header.h.

Referenced by Deserialize(), IsReply(), IsRequest(), Serialize(), SetReply(), and SetRequest().


The documentation for this class was generated from the following files:
