ns3::BinaryErrorModel Class Reference

#include <error-channel.h>

+ Inheritance diagram for ns3::BinaryErrorModel:

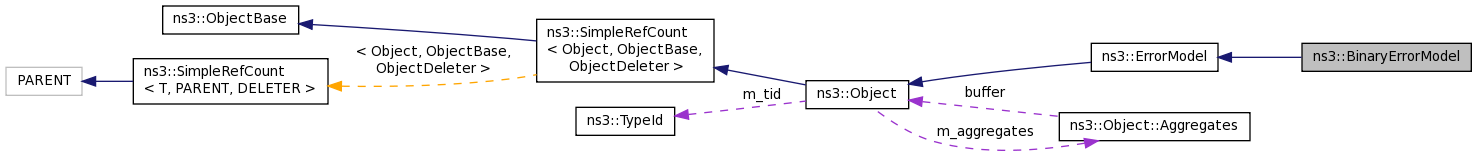

+ Collaboration diagram for ns3::BinaryErrorModel:

Public Member Functions

 BinaryErrorModel ()

virtual ~BinaryErrorModel ()

void Reset (void)

- Public Member Functions inherited from ns3::ErrorModel
 ErrorModel ()

virtual ~ErrorModel ()

void Disable (void)
 Disable the error model. More...

void Enable (void)
 Enable the error model. More...

bool IsCorrupt (Ptr< Packet > pkt)
 Note: Depending on the error model, this function may or may not alter the contents of the packet upon returning true. More...

bool IsEnabled (void) const

void Reset (void)
 Reset any state associated with the error model. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::ErrorModel
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

virtual bool DoCorrupt (Ptr< Packet > p)
 Corrupt a packet according to the specified model. More...

virtual void DoReset (void)
 Re-initialize any state. More...


Private Attributes

uint8_t counter


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Definition at line 73 of file error-channel.h.

Constructor & Destructor Documentation

ns3::BinaryErrorModel::BinaryErrorModel ( )

Definition at line 118 of file error-channel.cc.

References counter.

ns3::BinaryErrorModel::~BinaryErrorModel ( )
virtual

Definition at line 123 of file error-channel.cc.

Member Function Documentation

bool ns3::BinaryErrorModel::DoCorrupt ( Ptr< Packet p)
privatevirtual

Corrupt a packet according to the specified model.

Parameters
pthe packet to corrupt
Returns
true if the packet is corrupted

Implements ns3::ErrorModel.

Definition at line 129 of file error-channel.cc.

References counter, and ns3::ErrorModel::IsEnabled().

+ Here is the call graph for this function:

void ns3::BinaryErrorModel::DoReset ( void  )
privatevirtual

Re-initialize any state.

Implements ns3::ErrorModel.

Definition at line 147 of file error-channel.cc.

References counter.

Referenced by Reset().

+ Here is the caller graph for this function:

TypeId ns3::BinaryErrorModel::GetTypeId ( void  )
static

Definition at line 109 of file error-channel.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

void ns3::BinaryErrorModel::Reset ( void  )

Definition at line 141 of file error-channel.cc.

References DoReset().

Referenced by Ipv4FragmentationTest::DoRun(), and Ipv6FragmentationTest::DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::BinaryErrorModel::counter
private

Definition at line 86 of file error-channel.h.

Referenced by BinaryErrorModel(), DoCorrupt(), and DoReset().


The documentation for this class was generated from the following files:
