keep track of the byte tags stored in a packet. More...

#include <byte-tag-list.h>

Collaboration diagram for ns3::ByteTagList:

Classes
class	Iterator
	An iterator for iterating through a byte tag list. More...

Public Member Functions
	ByteTagList ()

	ByteTagList (const ByteTagList &o)
	Copy constructor, copies the data and increases reference count. More...

	~ByteTagList ()

TagBuffer	Add (TypeId tid, uint32_t bufferSize, int32_t start, int32_t end)

void	Add (const ByteTagList &o)

void	AddAtEnd (int32_t adjustment, int32_t appendOffset)
	Adjust the offsets stored internally by the adjustment delta and make sure that all offsets are smaller than appendOffset which represents the location where new bytes have been added to the byte buffer. More...

void	AddAtStart (int32_t adjustment, int32_t prependOffset)
	Adjust the offsets stored internally by the adjustment delta and make sure that all offsets are bigger than prependOffset which represents the location where new bytes have been added to the byte buffer. More...

ByteTagList::Iterator	Begin (int32_t offsetStart, int32_t offsetEnd) const

ByteTagList &	operator= (const ByteTagList &o)
	Assignment operator, deallocates current data and assigns value of passed in ByteTagList. More...

void	RemoveAll (void)
	Removes all of the tags from the ByteTagList. More...

Private Member Functions
struct ByteTagListData *	Allocate (uint32_t size)
	Allocate the memory for the ByteTagListData. More...

ByteTagList::Iterator	BeginAll (void) const
	Returns an iterator pointing to the very first tag in this list. More...

void	Deallocate (struct ByteTagListData *data)
	Deallocates a ByteTagListData. More...

bool	IsDirtyAtEnd (int32_t appendOffset)
	Check that all offsets are smaller than appendOffset. More...

bool	IsDirtyAtStart (int32_t prependOffset)
	Check that all offsets are bigger than prependOffset. More...

Private Attributes
struct ByteTagListData *	m_data
	the ByteTagListData structure More...

uint16_t	m_used
	the number of used bytes in the buffer More...

Detailed Description

keep track of the byte tags stored in a packet.

This class is mostly private to the Packet implementation and users should never have to access it directly.

Internal:: The implementation of this class is a bit tricky so, there are a couple of things to keep in mind here:

It stores all tags in a single byte buffer: each tag is stored as 4 32bit integers (TypeId, tag data size, start, end) followed by the tag data as generated by Tag::Serialize.
The struct ByteTagListData structure which contains the tag byte buffer is shared and, thus, reference-counted. This data structure is unshared as-needed to emulate COW semantics.
Each tag tags a unique set of bytes identified by the pair of offsets (start,end). These offsets are provided by Buffer::GetCurrentStartOffset and Buffer::GetCurrentEndOffset which means that they are relative to the start of the 'virtual byte buffer' as explained in the documentation for the ns3::Buffer class. Whenever the origin of the offset of the Buffer instance associated to this ByteTagList instance changes, the Buffer class reports this to its container Packet class as a bool return value in Buffer::AddAtStart and Buffer::AddAtEnd. In both cases, when this happens the Packet class calls ByteTagList::AddAtEnd and ByteTagList::AddAtStart to update the byte offsets of each tag in the ByteTagList.
Whenever bytes are removed from the packet byte buffer, the ByteTagList offsets are never updated because we rely on the fact that they will be updated in either the next call to Packet::AddHeader or Packet::AddTrailer or when the user iterates the tag list with Packet::GetTagIterator and TagIterator::Next.

Definition at line 68 of file byte-tag-list.h.

Constructor & Destructor Documentation

ns3::ByteTagList::ByteTagList ( )

Definition at line 139 of file byte-tag-list.cc.

References NS_LOG_FUNCTION.

ns3::ByteTagList::ByteTagList ( const ByteTagList & o )

Copy constructor, copies the data and increases reference count.

Parameters

o	The ByteTagList to copy

Returns: The newly created ByteTagList

Definition at line 145 of file byte-tag-list.cc.

References ns3::ByteTagListData::count, m_data, and NS_LOG_FUNCTION.

ns3::ByteTagList::~ByteTagList ( )

Definition at line 172 of file byte-tag-list.cc.

References Deallocate(), m_data, m_used, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

TagBuffer ns3::ByteTagList::Add	(	TypeId	tid,
		uint32_t	bufferSize,
		int32_t	start,
		int32_t	end
	)

Parameters

tid	the typeid of the tag added
bufferSize	the size of the tag when its serialization will be completed. Typically, the return value of Tag::GetSerializedSize
start	offset which uniquely identifies the first byte tagged by this tag.
end	offset which uniquely identifies the last byte tagged by this tag.

Returns: a buffer which can be used to write the tag data.

Definition at line 181 of file byte-tag-list.cc.

References Allocate(), ns3::ByteTagListData::count, ns3::ByteTagListData::data, Deallocate(), ns3::ByteTagListData::dirty, ns3::TypeId::GetUid(), m_data, m_used, NS_ASSERT, NS_LOG_FUNCTION, ns3::ByteTagListData::size, and ns3::TagBuffer::WriteU32().

Referenced by Add(), AddAtEnd(), ns3::Packet::AddAtEnd(), and AddAtStart().

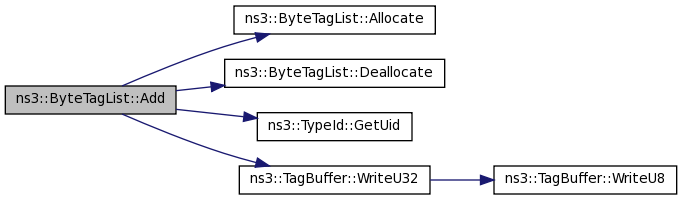

Here is the call graph for this function:

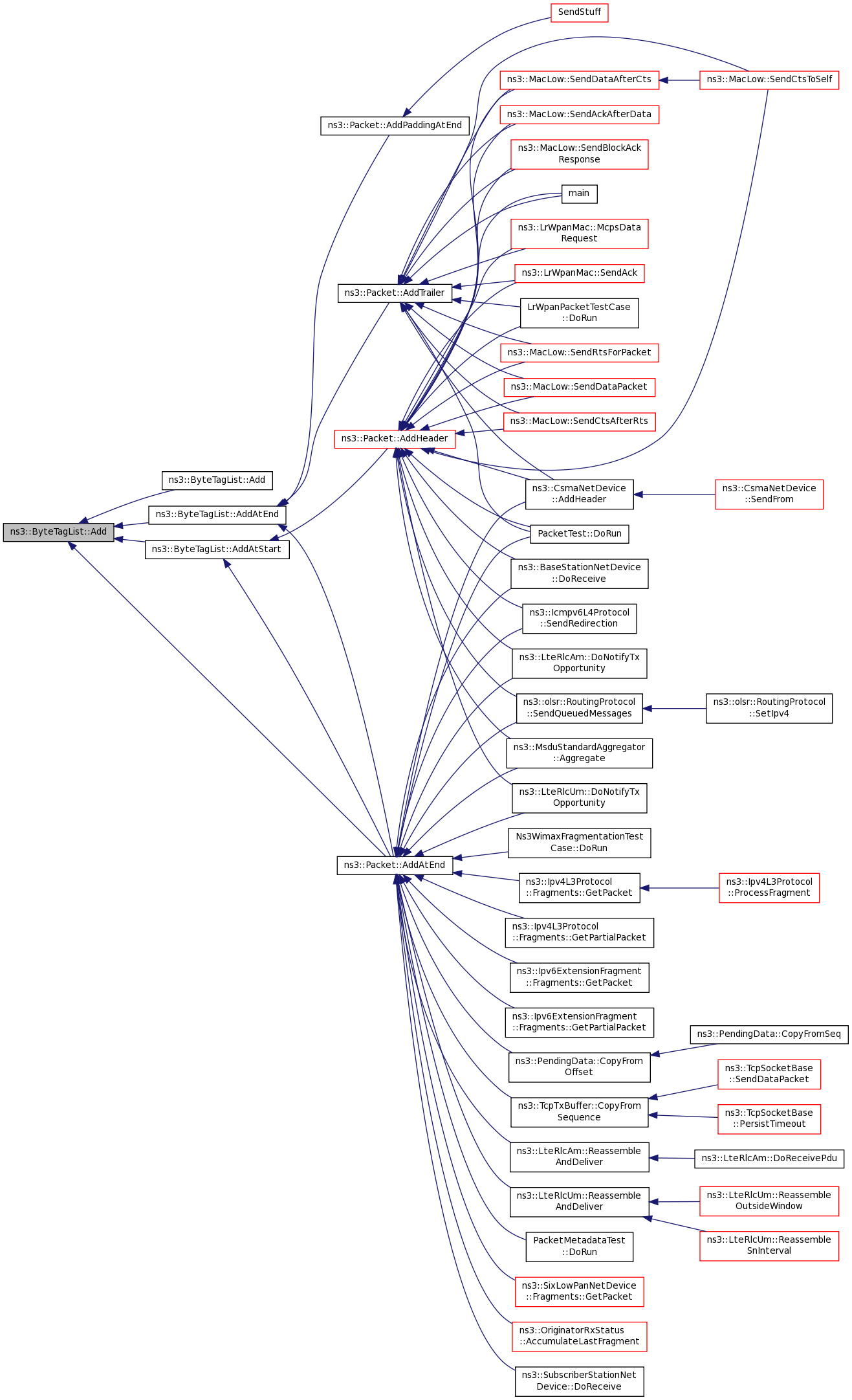

Here is the caller graph for this function:

void ns3::ByteTagList::Add ( const ByteTagList & o )

Parameters

o	the other list of tags to aggregate.

Aggregate the two lists of tags.

Definition at line 211 of file byte-tag-list.cc.

References Add(), BeginAll(), ns3::ByteTagList::Iterator::Item::buf, ns3::TagBuffer::CopyFrom(), ns3::ByteTagList::Iterator::Item::end, ns3::ByteTagList::Iterator::HasNext(), ns3::ByteTagList::Iterator::Next(), NS_LOG_FUNCTION, ns3::ByteTagList::Iterator::Item::size, ns3::ByteTagList::Iterator::Item::start, and ns3::ByteTagList::Iterator::Item::tid.

Here is the call graph for this function:

void ns3::ByteTagList::AddAtEnd	(	int32_t	adjustment,
		int32_t	appendOffset
	)

Adjust the offsets stored internally by the adjustment delta and make sure that all offsets are smaller than appendOffset which represents the location where new bytes have been added to the byte buffer.

Parameters

adjustment	value to change stored offsets by
appendOffset	maximum offset value

Definition at line 288 of file byte-tag-list.cc.

References Add(), BeginAll(), ns3::ByteTagList::Iterator::Item::buf, ns3::TagBuffer::CopyFrom(), ns3::ByteTagList::Iterator::Item::end, ns3::ByteTagList::Iterator::HasNext(), IsDirtyAtEnd(), list, ns3::ByteTagList::Iterator::Next(), NS_LOG_FUNCTION, ns3::ByteTagList::Iterator::Item::size, ns3::ByteTagList::Iterator::Item::start, and ns3::ByteTagList::Iterator::Item::tid.

Referenced by ns3::Packet::AddAtEnd(), ns3::Packet::AddPaddingAtEnd(), and ns3::Packet::AddTrailer().

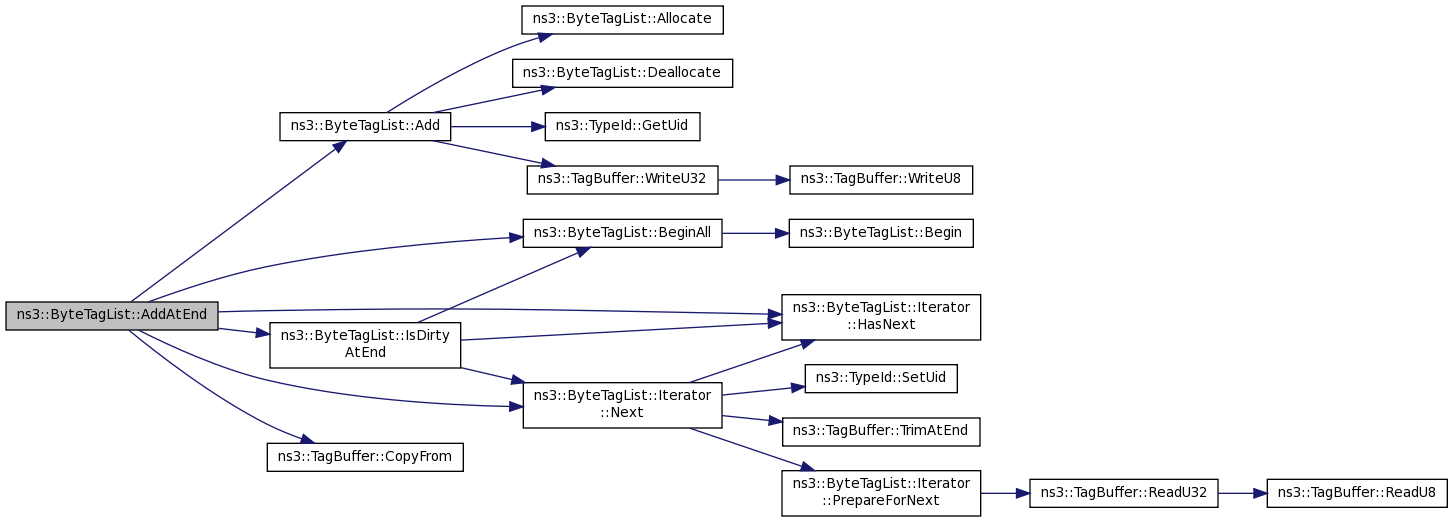

Here is the call graph for this function:

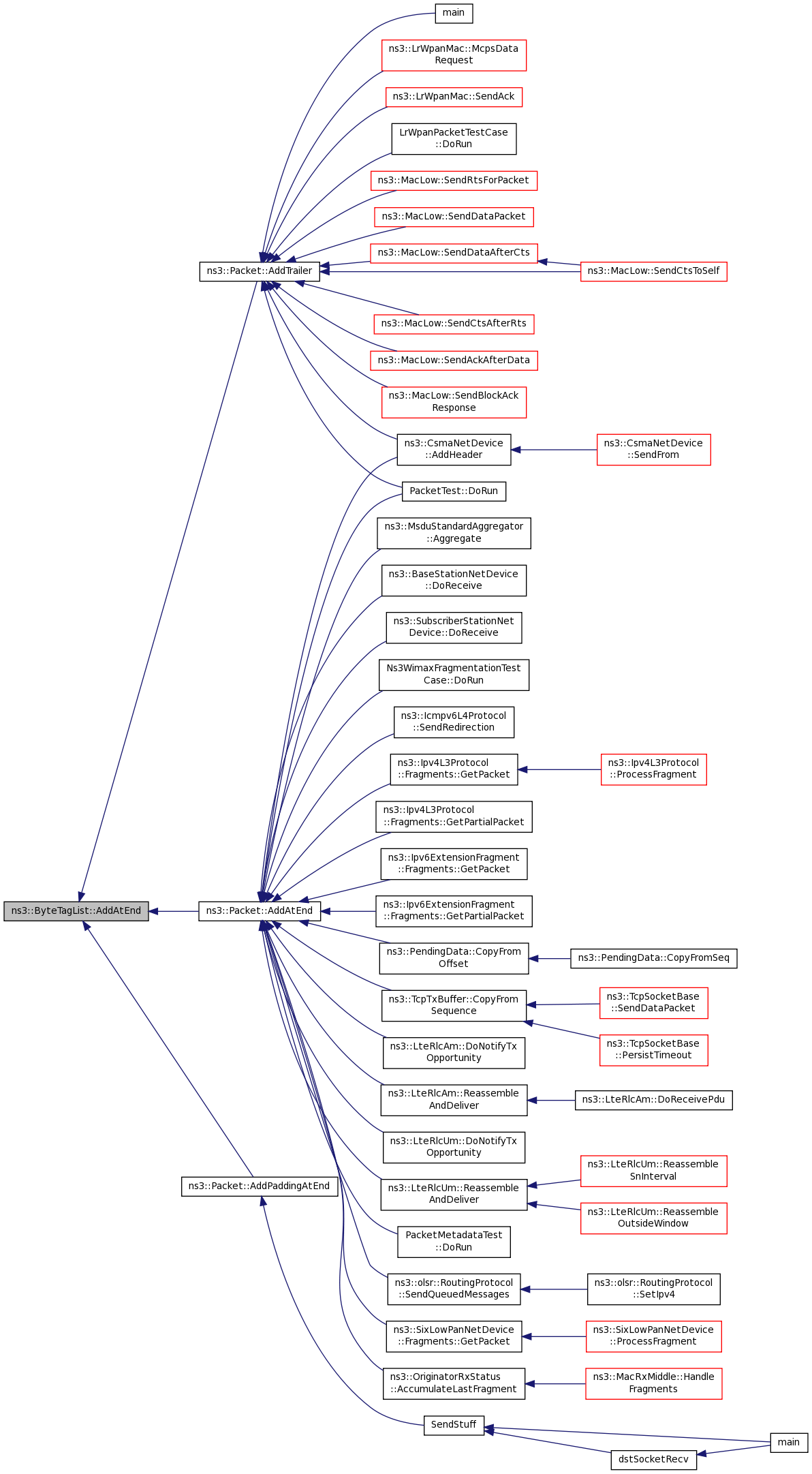

Here is the caller graph for this function:

void ns3::ByteTagList::AddAtStart	(	int32_t	adjustment,
		int32_t	prependOffset
	)

Adjust the offsets stored internally by the adjustment delta and make sure that all offsets are bigger than prependOffset which represents the location where new bytes have been added to the byte buffer.

Parameters

adjustment	value to change stored offsets byte
prependOffset	minimum offset value

Definition at line 322 of file byte-tag-list.cc.

References Add(), BeginAll(), ns3::ByteTagList::Iterator::Item::buf, ns3::TagBuffer::CopyFrom(), ns3::ByteTagList::Iterator::Item::end, ns3::ByteTagList::Iterator::HasNext(), IsDirtyAtStart(), list, ns3::ByteTagList::Iterator::Next(), NS_LOG_FUNCTION, ns3::ByteTagList::Iterator::Item::size, ns3::ByteTagList::Iterator::Item::start, and ns3::ByteTagList::Iterator::Item::tid.

Referenced by ns3::Packet::AddAtEnd(), and ns3::Packet::AddHeader().

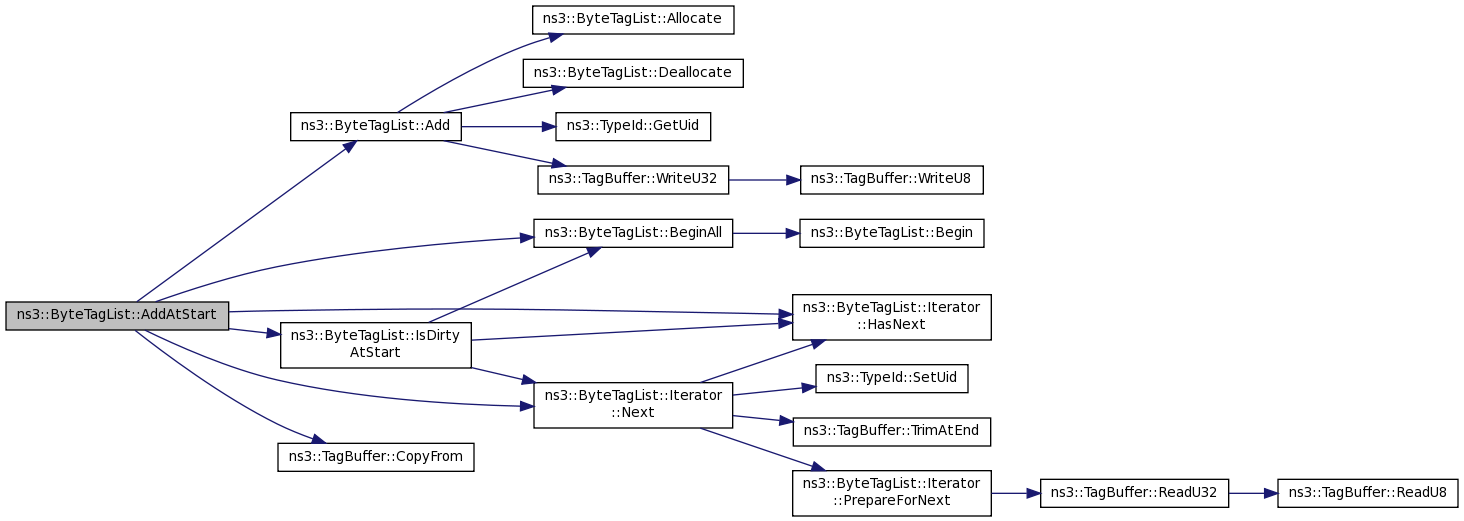

Here is the call graph for this function:

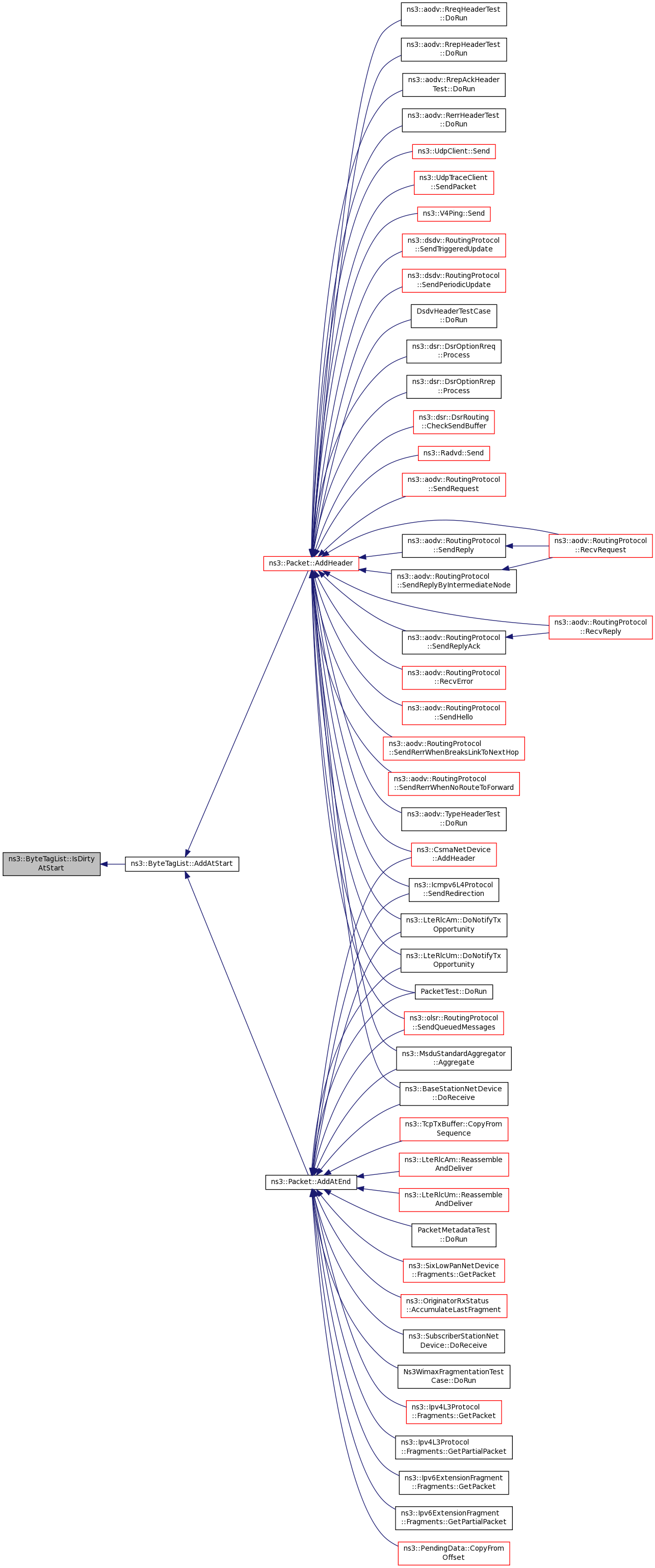

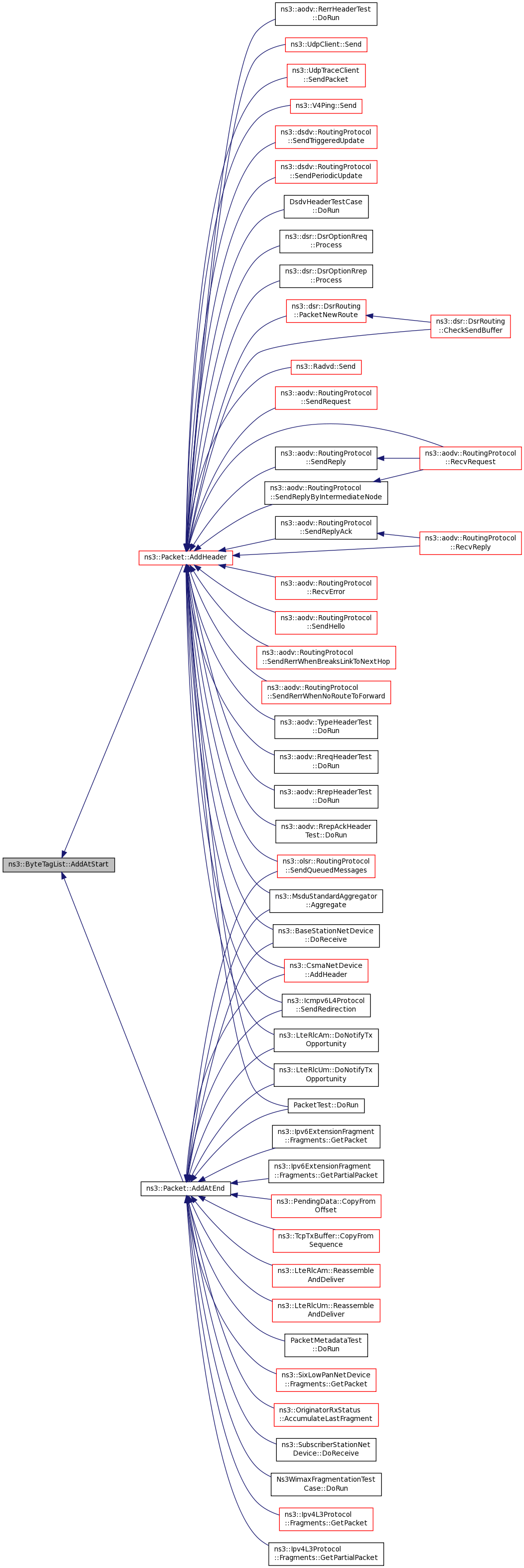

Here is the caller graph for this function:

struct ByteTagListData * ns3::ByteTagList::Allocate ( uint32_t size )

private

Allocate the memory for the ByteTagListData.

Parameters

size	the memory to allocate

Returns: the ByteTagListData structure

Definition at line 358 of file byte-tag-list.cc.

References ns3::ByteTagListData::count, data, ns3::ByteTagListData::dirty, ns3::g_freeList, ns3::g_maxSize, NS_ASSERT, NS_LOG_FUNCTION, and ns3::ByteTagListData::size.

Referenced by Add().

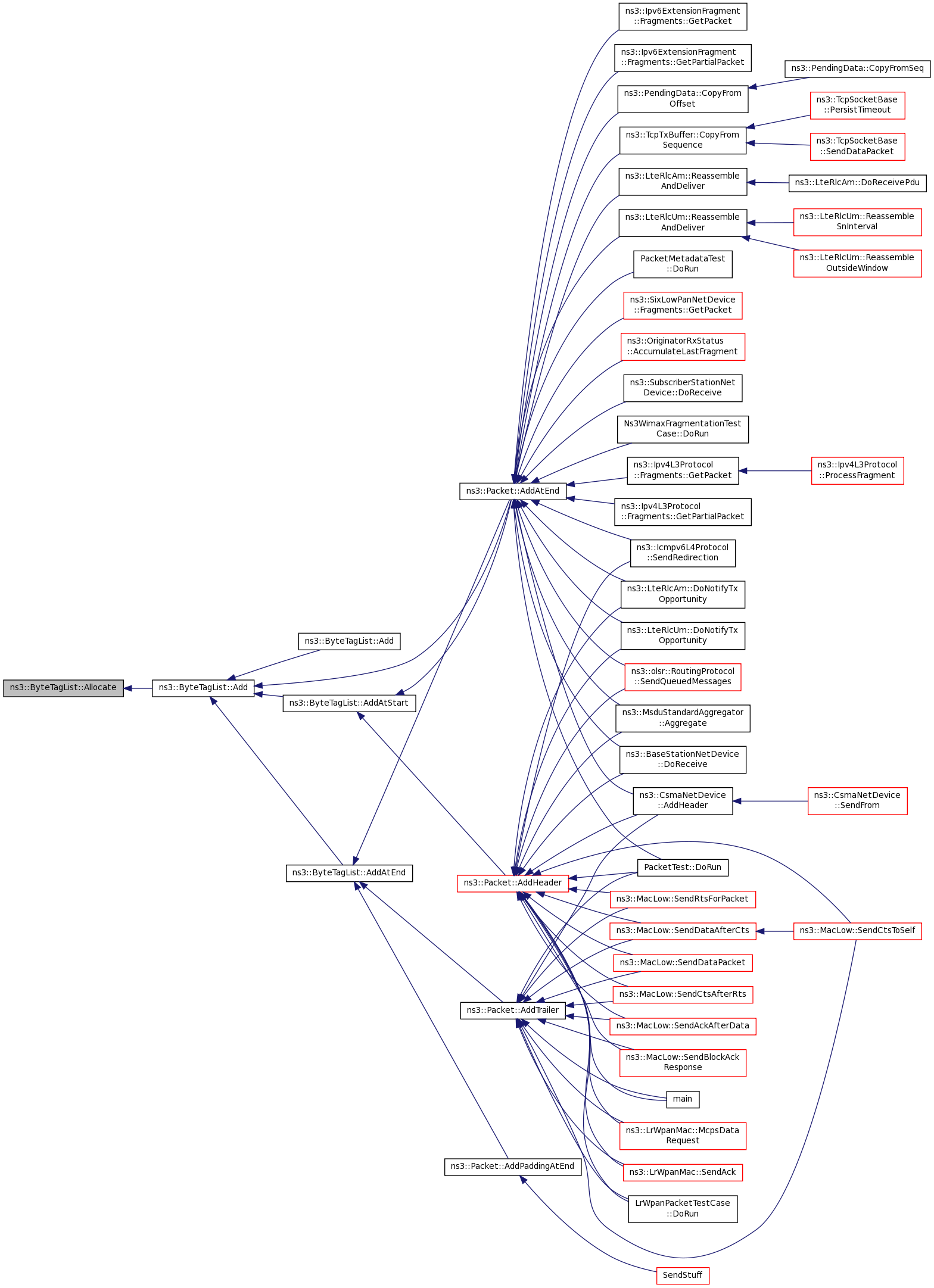

Here is the caller graph for this function:

ByteTagList::Iterator ns3::ByteTagList::Begin	(	int32_t	offsetStart,
		int32_t	offsetEnd
	)		const

Parameters

offsetStart	the offset which uniquely identifies the first data byte present in the byte buffer associated to this ByteTagList.
offsetEnd	the offset which uniquely identifies the last data byte present in the byte buffer associated to this ByteTagList.

Returns: an iterator

The returned iterator will allow you to loop through the set of tags present in this list: the boundaries of each tag as reported by their start and end offsets will be included within the input offsetStart and offsetEnd.

Definition at line 242 of file byte-tag-list.cc.

References ns3::ByteTagListData::data, m_data, m_used, and NS_LOG_FUNCTION.

Referenced by BeginAll(), and ns3::Packet::GetByteTagIterator().

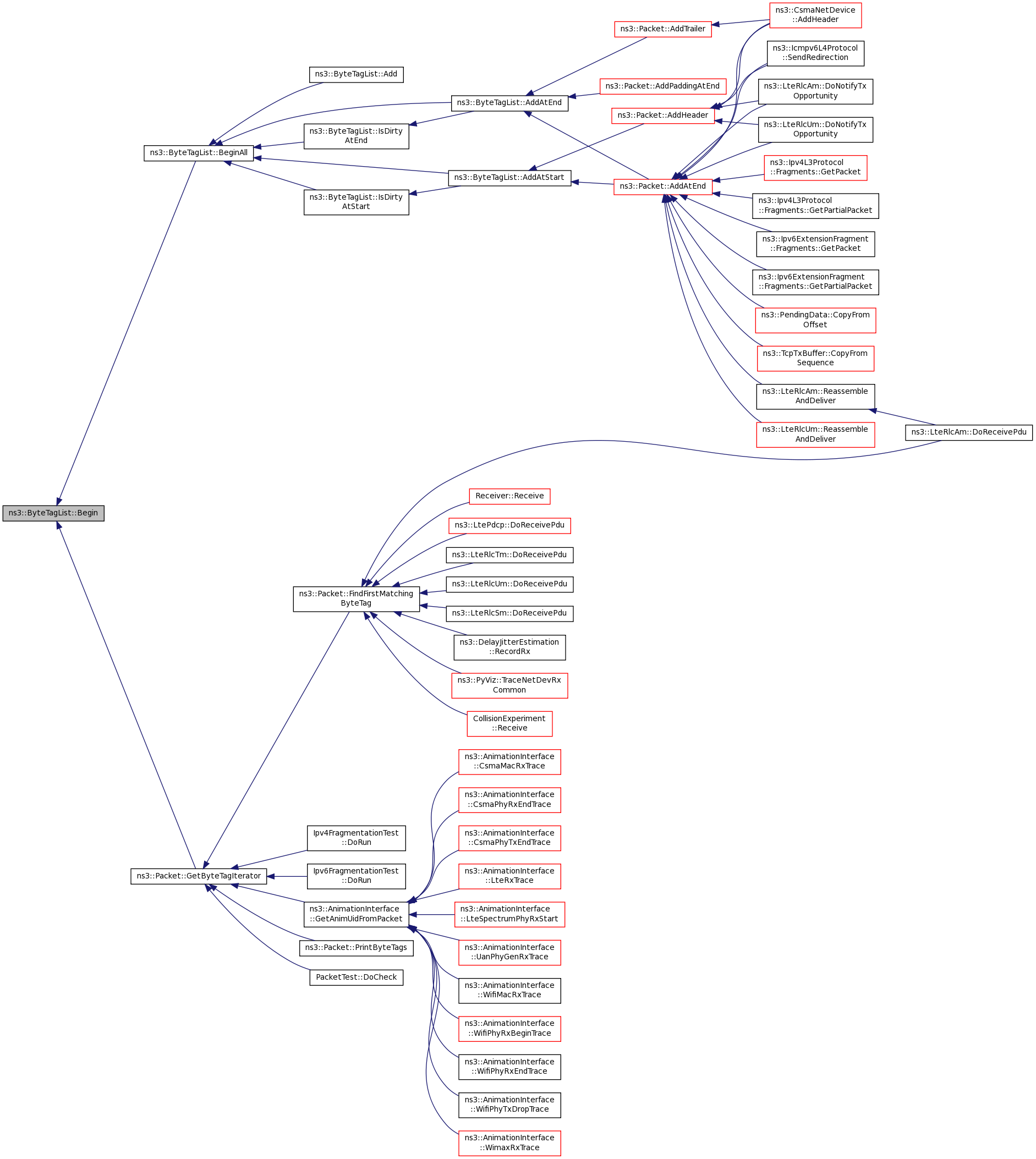

Here is the caller graph for this function:
