ns3::DeviceNameTag Class Reference

This class implements a tag that carries the ns3 device name from where a packet is coming. More...

#include <packet-socket.h>

Inheritance diagram for ns3::DeviceNameTag:

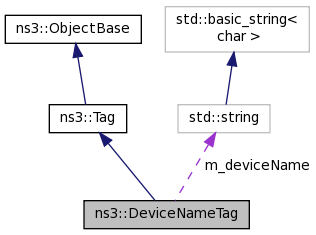

Collaboration diagram for ns3::DeviceNameTag:

Public Member Functions
	DeviceNameTag ()
	Create an empty DeviceNameTag. More...
virtual void	Deserialize (TagBuffer i)
std::string	GetDeviceName (void) const
	Get the device name from where the corresponding packet is coming. More...
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (TagBuffer i) const
void	SetDeviceName (std::string n)
	Set the device name. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...
Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)
	Get the type ID. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
std::string	m_deviceName
	Device name. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

This class implements a tag that carries the ns3 device name from where a packet is coming.

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 249 of file packet-socket.h.

Constructor & Destructor Documentation

ns3::DeviceNameTag::DeviceNameTag

(

)

Create an empty DeviceNameTag.

Definition at line 582 of file packet-socket.cc.

Member Function Documentation

void ns3::DeviceNameTag::Deserialize ( TagBuffer  i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 636 of file packet-socket.cc.

References m_deviceName, ns3::TagBuffer::Read(), and ns3::TagBuffer::ReadU8().

Here is the call graph for this function:

std::string ns3::DeviceNameTag::GetDeviceName

(

void

)

const

Get the device name from where the corresponding packet is coming.

Returns

the device name from where the corresponding packet is coming.

Definition at line 597 of file packet-socket.cc.

References m_deviceName.

TypeId ns3::DeviceNameTag::GetInstanceTypeId ( void  ) const

virtual

Returns

the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 613 of file packet-socket.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::DeviceNameTag::GetSerializedSize ( void  ) const

virtual

Returns

the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 618 of file packet-socket.cc.

References m_deviceName, ns3::PacketTagList::TagData::MAX_SIZE, and s.

TypeId ns3::DeviceNameTag::GetTypeId ( void  )

static

Get the type ID.

Returns

the object TypeId

Definition at line 605 of file packet-socket.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DeviceNameTag::Print ( std::ostream &  os ) const

virtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 645 of file packet-socket.cc.

References m_deviceName.

void ns3::DeviceNameTag::Serialize ( TagBuffer  i ) const

virtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 625 of file packet-socket.cc.

References m_deviceName, ns3::PacketTagList::TagData::MAX_SIZE, ns3::TagBuffer::Write(), and ns3::TagBuffer::WriteU8().

Here is the call graph for this function:

void ns3::DeviceNameTag::SetDeviceName

(

std::string

n

)

Set the device name.

Parameters

n	the device name from where the corresponding packet is coming.

Definition at line 587 of file packet-socket.cc.

References m_deviceName.

Referenced by ns3::PacketSocket::ForwardUp().

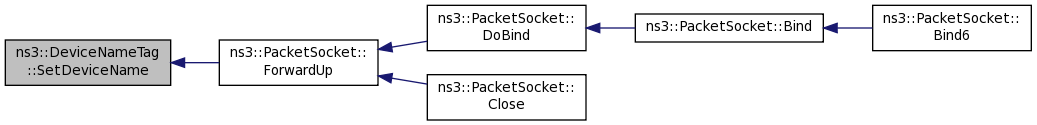

Here is the caller graph for this function:

Member Data Documentation

std::string ns3::DeviceNameTag::m_deviceName

private

Device name.

Definition at line 278 of file packet-socket.h.

Referenced by Deserialize(), GetDeviceName(), GetSerializedSize(), Print(), Serialize(), and SetDeviceName().

---

The documentation for this class was generated from the following files:

• src/network/utils/packet-socket.h
• src/network/utils/packet-socket.cc
