ns3::EnbRrcMemberLteEnbCmacSapUser Class Reference

Class for forwarding CMAC SAP User functions. More...

+ Inheritance diagram for ns3::EnbRrcMemberLteEnbCmacSapUser:

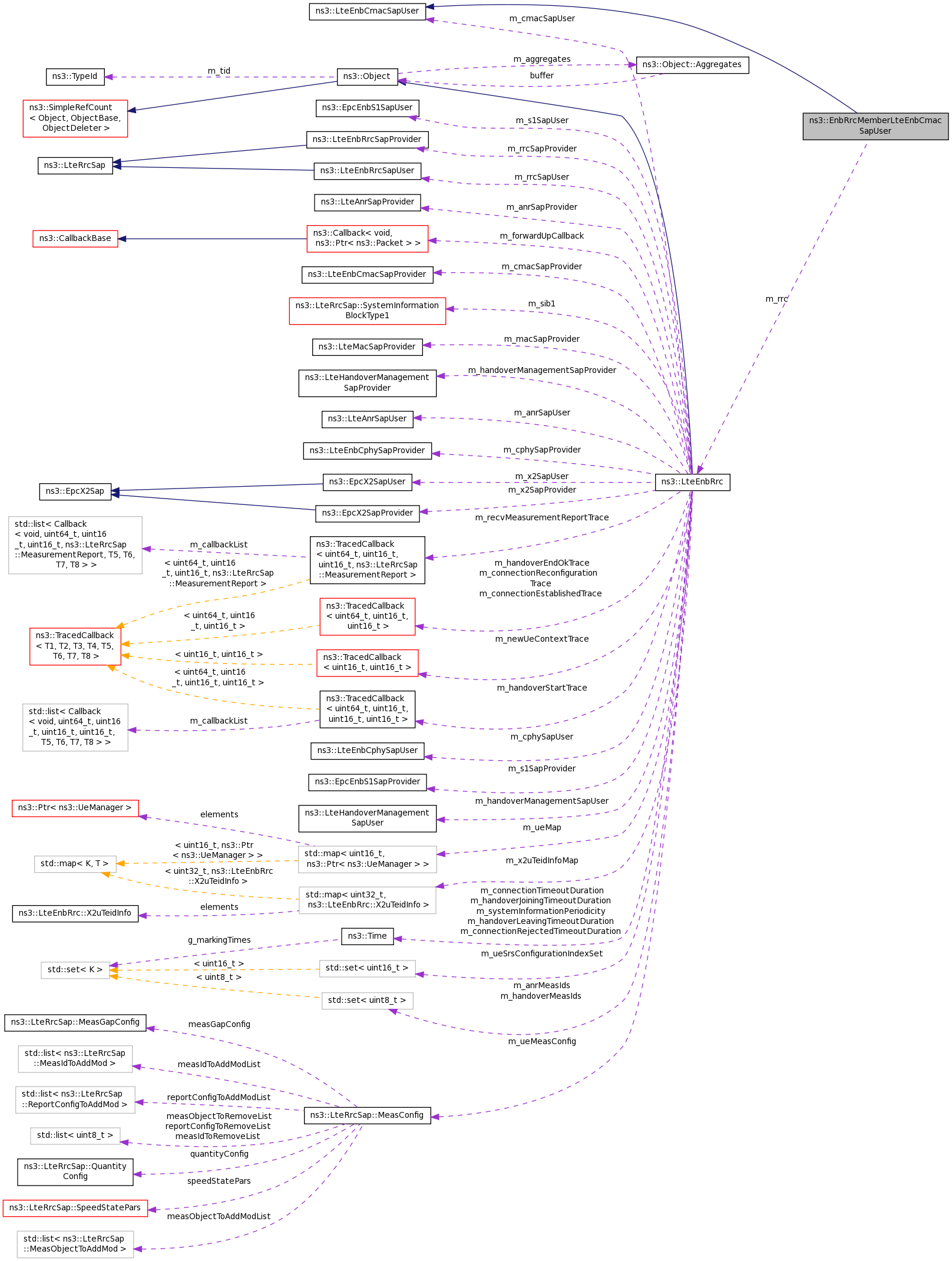

+ Collaboration diagram for ns3::EnbRrcMemberLteEnbCmacSapUser:

Public Member Functions

 EnbRrcMemberLteEnbCmacSapUser (LteEnbRrc *rrc)

virtual uint16_t AllocateTemporaryCellRnti ()
 request the allocation of a Temporary C-RNTI More...

virtual void NotifyLcConfigResult (uint16_t rnti, uint8_t lcid, bool success)
 notify the result of the last LC config operation More...

virtual void RrcConfigurationUpdateInd (UeConfig params)
 Notify the RRC of a UE config updated requested by the MAC (normally, by the scheduler) More...

- Public Member Functions inherited from ns3::LteEnbCmacSapUser
virtual ~LteEnbCmacSapUser ()


Private Attributes

LteEnbRrcm_rrc


Detailed Description

Class for forwarding CMAC SAP User functions.

Definition at line 60 of file lte-enb-rrc.cc.

Constructor & Destructor Documentation

ns3::EnbRrcMemberLteEnbCmacSapUser::EnbRrcMemberLteEnbCmacSapUser ( LteEnbRrc rrc)

Definition at line 73 of file lte-enb-rrc.cc.

Member Function Documentation

uint16_t ns3::EnbRrcMemberLteEnbCmacSapUser::AllocateTemporaryCellRnti ( )
virtual

request the allocation of a Temporary C-RNTI

Returns
the T-C-RNTI

Implements ns3::LteEnbCmacSapUser.

Definition at line 79 of file lte-enb-rrc.cc.

References ns3::LteEnbRrc::DoAllocateTemporaryCellRnti(), and m_rrc.

+ Here is the call graph for this function:

void ns3::EnbRrcMemberLteEnbCmacSapUser::NotifyLcConfigResult ( uint16_t  rnti,
uint8_t  lcid,
bool  success
)
virtual

notify the result of the last LC config operation

Parameters
rntithe rnti of the user
lcidthe logical channel id
successtrue if the operation was successful, false otherwise

Implements ns3::LteEnbCmacSapUser.

Definition at line 85 of file lte-enb-rrc.cc.

References ns3::LteEnbRrc::DoNotifyLcConfigResult(), and m_rrc.

+ Here is the call graph for this function:

void ns3::EnbRrcMemberLteEnbCmacSapUser::RrcConfigurationUpdateInd ( UeConfig  params)
virtual

Notify the RRC of a UE config updated requested by the MAC (normally, by the scheduler)

Parameters
params

Implements ns3::LteEnbCmacSapUser.

Definition at line 91 of file lte-enb-rrc.cc.

References ns3::LteEnbRrc::DoRrcConfigurationUpdateInd(), and m_rrc.

+ Here is the call graph for this function:

Member Data Documentation

LteEnbRrc* ns3::EnbRrcMemberLteEnbCmacSapUser::m_rrc
private

The documentation for this class was generated from the following file:
