ns3::FdNetDeviceFdReader Class Reference

#include <fd-net-device.h>

+ Inheritance diagram for ns3::FdNetDeviceFdReader:

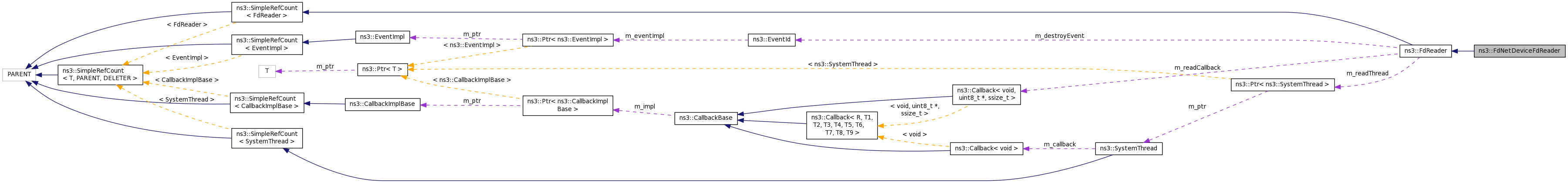

+ Collaboration diagram for ns3::FdNetDeviceFdReader:

Public Member Functions

 FdNetDeviceFdReader ()
 Constructor for the FdNetDevice. More...
void SetBufferSize (uint32_t bufferSize)
 Set size of the read buffer. More...
- Public Member Functions inherited from ns3::FdReader
 FdReader ()
virtual ~FdReader ()
void Start (int fd, Callback< void, uint8_t *, ssize_t > readCallback)
 Start a new read thread. More...
void Stop (void)
 Stop the read thread and reset internal state. More...
- Public Member Functions inherited from ns3::SimpleRefCount< FdReader >
 SimpleRefCount ()
 Constructor. More...
 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...
uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...
SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...
void Ref (void) const
 Increment the reference count. More...
void Unref (void) const
 Decrement the reference count. More...

Private Member Functions

FdReader::Data DoRead (void)
 The read implementation. More...

Private Attributes

uint32_t m_bufferSize

Additional Inherited Members

- Static Public Member Functions inherited from ns3::SimpleRefCount< FdReader >
static void Cleanup (void)
 Noop. More...
- Protected Attributes inherited from ns3::FdReader
int m_fd
 The file descriptor to read from. More...

Detailed Description

Definition at line 43 of file fd-net-device.h.

Constructor & Destructor Documentation

ns3::FdNetDeviceFdReader::FdNetDeviceFdReader ( )

Constructor for the FdNetDevice.

Definition at line 47 of file fd-net-device.cc.

Member Function Documentation

FdReader::Data ns3::FdNetDeviceFdReader::DoRead ( void  )

The read implementation.

The value of m_len returned controls further processing. The callback function is only invoked when m_len is positive; any data read is not processed when m_len is negative; reading stops when m_len is zero.

The management of memory associated with m_buf must be compatible with the read callback.

A structure representing what was read.

Implements ns3::FdReader.

Definition at line 58 of file fd-net-device.cc.

References m_bufferSize, ns3::FdReader::m_fd, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

void ns3::FdNetDeviceFdReader::SetBufferSize ( uint32_t  bufferSize)

Set size of the read buffer.

Definition at line 53 of file fd-net-device.cc.

References m_bufferSize.

Member Data Documentation

uint32_t ns3::FdNetDeviceFdReader::m_bufferSize

Definition at line 60 of file fd-net-device.h.

Referenced by DoRead(), and SetBufferSize().

The documentation for this class was generated from the following files:
