Return a constant received power level independent of the transmit power. More...

#include <propagation-loss-model.h>

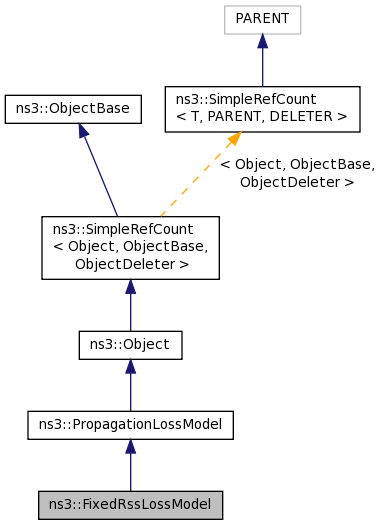

Inheritance diagram for ns3::FixedRssLossModel:

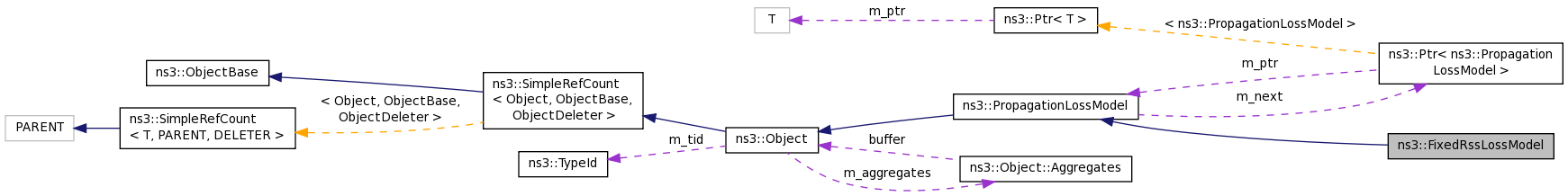

Collaboration diagram for ns3::FixedRssLossModel:

Public Member Functions
	FixedRssLossModel ()

virtual	~FixedRssLossModel ()

void	SetRss (double rss)

Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()

virtual	~PropagationLossModel ()

int64_t	AssignStreams (int64_t stream)
	If this loss model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'. More...

double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal. More...

void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::PropagationLossModel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
	FixedRssLossModel (const FixedRssLossModel &o)

virtual int64_t	DoAssignStreams (int64_t stream)
	Subclasses must implement this; those not using random variables can return zero. More...

virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

FixedRssLossModel &	operator= (const FixedRssLossModel &o)

Private Attributes
double	m_rss

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Return a constant received power level independent of the transmit power.

The received power is constant independent of the transmit power. The user must set received power level through the Rss attribute or public SetRss() method. Note that if this loss model is chained to other loss models via SetNext() method, it can only be the first loss model in such a chain, or else it will disregard the losses computed by loss models that precede it in the chain.

Config Paths

ns3::FixedRssLossModel is accessible through the following paths with Config::Set and Config::Connect:

/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FixedRssLossModel
/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FixedRssLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FixedRssLossModel

Attributes

Rss: The fixed receiver Rss.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -150
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 551 of file propagation-loss-model.h.

Constructor & Destructor Documentation

ns3::FixedRssLossModel::FixedRssLossModel ( )

Definition at line 774 of file propagation-loss-model.cc.

ns3::FixedRssLossModel::~FixedRssLossModel ( )

virtual

Definition at line 779 of file propagation-loss-model.cc.

ns3::FixedRssLossModel::FixedRssLossModel ( const FixedRssLossModel & o )

private

Member Function Documentation

int64_t ns3::FixedRssLossModel::DoAssignStreams ( int64_t stream )

privatevirtual

Subclasses must implement this; those not using random variables can return zero.

Implements ns3::PropagationLossModel.

Definition at line 798 of file propagation-loss-model.cc.

double ns3::FixedRssLossModel::DoCalcRxPower	(	double	txPowerDbm,
		Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

privatevirtual

Implements ns3::PropagationLossModel.

Definition at line 790 of file propagation-loss-model.cc.

References m_rss.

TypeId ns3::FixedRssLossModel::GetTypeId ( void )

static

Definition at line 762 of file propagation-loss-model.cc.

References m_rss, and ns3::TypeId::SetParent().

Here is the call graph for this function:

FixedRssLossModel& ns3::FixedRssLossModel::operator= ( const FixedRssLossModel & o )

private

void ns3::FixedRssLossModel::SetRss ( double rss )

Parameters

rss	(dBm) the received signal strength

Set the received signal strength (RSS) in dBm.

Definition at line 784 of file propagation-loss-model.cc.

References m_rss.

Member Data Documentation

double ns3::FixedRssLossModel::m_rss

private

Definition at line 572 of file propagation-loss-model.h.

Referenced by DoCalcRxPower(), GetTypeId(), and SetRss().

The documentation for this class was generated from the following files:

src/propagation/model/propagation-loss-model.h
src/propagation/model/propagation-loss-model.cc
