Implementation of the GTPv1-U Release 10 as per 3Gpp TS 29.281 document. More...

#include <epc-gtpu-header.h>

Inheritance diagram for ns3::GtpuHeader:

Collaboration diagram for ns3::GtpuHeader:

Public Member Functions
	GtpuHeader ()

virtual	~GtpuHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

bool	GetExtensionHeaderFlag () const

virtual TypeId	GetInstanceTypeId (void) const

uint16_t	GetLength () const

uint8_t	GetMessageType () const

uint8_t	GetNextExtensionType () const

uint8_t	GetNPduNumber () const

bool	GetNPduNumberFlag () const

bool	GetProtocolType () const

uint16_t	GetSequenceNumber () const

bool	GetSequenceNumberFlag () const

virtual uint32_t	GetSerializedSize (void) const

uint32_t	GetTeid () const

uint8_t	GetVersion () const

bool	operator== (const GtpuHeader &b) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetExtensionHeaderFlag (bool m_extensionHeaderFlag)

void	SetLength (uint16_t m_length)

void	SetMessageType (uint8_t m_messageType)

void	SetNextExtensionType (uint8_t m_nextExtensionType)

void	SetNPduNumber (uint8_t m_nPduNumber)

void	SetNPduNumberFlag (bool m_nPduNumberFlag)

void	SetProtocolType (bool m_protocolType)

void	SetSequenceNumber (uint16_t m_sequenceNumber)

void	SetSequenceNumberFlag (bool m_sequenceNumberFlag)

void	SetTeid (uint32_t m_teid)

void	SetVersion (uint8_t m_version)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
bool	m_extensionHeaderFlag
	This flag indicates the presence of a meaningful value of the Next Extension Header field. More...

uint16_t	m_length
	This field indicates the length in octets of the payload, i.e. More...

uint8_t	m_messageType
	This field indicates the type of GTP-U message. More...

uint8_t	m_nextExtensionType
	This field defines the type of Extension Header that follows this field in the GTP-PDU. More...

uint8_t	m_nPduNumber
	This field is used at the Inter SGSN Routeing Area Update procedure and some inter-system handover procedures (e.g. More...

bool	m_nPduNumberFlag
	This flag indicates the presence of a meaningful value of the N-PDU Number field. More...

bool	m_protocolType
	This bit is used as a protocol discriminator between GTP (when PT is '1') and GTP' (when PT is '0'). More...

uint16_t	m_sequenceNumber
	If Sequence Number field is used for G-PDUs (T-PDUs+headers), an increasing sequence number for T-PDUs is transmitted via GTP-U tunnels, when transmission order must be preserved. More...

bool	m_sequenceNumberFlag
	This flag indicates the presence of a meaningful value of the Sequence Number field. More...

uint32_t	m_teid
	This field unambiguously identifies a tunnel endpoint in the receiving GTP-U protocol entity. More...

uint8_t	m_version
	This field is used to determine the version of the GTPU-U protocol. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Implementation of the GTPv1-U Release 10 as per 3Gpp TS 29.281 document.

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 39 of file epc-gtpu-header.h.

Constructor & Destructor Documentation

ns3::GtpuHeader::GtpuHeader ( )

Definition at line 44 of file epc-gtpu-header.cc.

ns3::GtpuHeader::~GtpuHeader ( )

virtual

Definition at line 60 of file epc-gtpu-header.cc.

Member Function Documentation

uint32_t ns3::GtpuHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 91 of file epc-gtpu-header.cc.

References GetSerializedSize(), m_extensionHeaderFlag, m_length, m_messageType, m_nextExtensionType, m_nPduNumber, m_nPduNumberFlag, m_protocolType, m_sequenceNumber, m_sequenceNumberFlag, m_teid, m_version, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

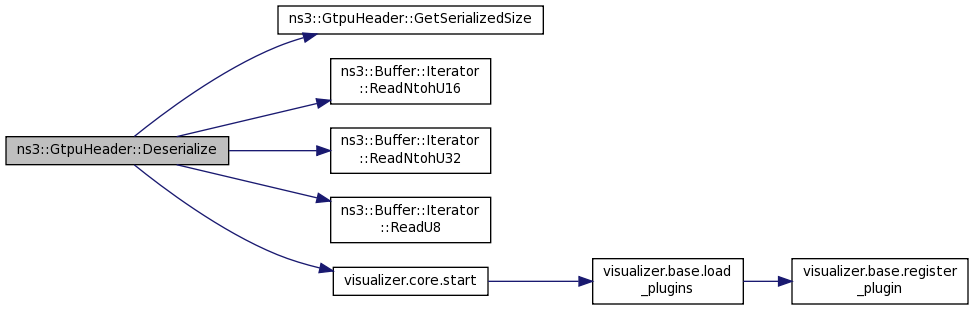

Here is the call graph for this function:

bool ns3::GtpuHeader::GetExtensionHeaderFlag ( ) const

Definition at line 134 of file epc-gtpu-header.cc.

References m_extensionHeaderFlag.

TypeId ns3::GtpuHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 65 of file epc-gtpu-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint16_t ns3::GtpuHeader::GetLength ( ) const

Definition at line 140 of file epc-gtpu-header.cc.

References m_length.

uint8_t ns3::GtpuHeader::GetMessageType ( ) const

Definition at line 146 of file epc-gtpu-header.cc.

References m_messageType.

uint8_t ns3::GtpuHeader::GetNextExtensionType ( ) const

Definition at line 164 of file epc-gtpu-header.cc.

References m_nextExtensionType.

uint8_t ns3::GtpuHeader::GetNPduNumber ( ) const

Definition at line 152 of file epc-gtpu-header.cc.

References m_nPduNumber.

bool ns3::GtpuHeader::GetNPduNumberFlag ( ) const

Definition at line 158 of file epc-gtpu-header.cc.

References m_nPduNumberFlag.

bool ns3::GtpuHeader::GetProtocolType ( ) const

Definition at line 170 of file epc-gtpu-header.cc.

References m_protocolType.

uint16_t ns3::GtpuHeader::GetSequenceNumber ( void ) const

Definition at line 176 of file epc-gtpu-header.cc.

References m_sequenceNumber.

bool ns3::GtpuHeader::GetSequenceNumberFlag ( ) const

Definition at line 182 of file epc-gtpu-header.cc.

References m_sequenceNumberFlag.

uint32_t ns3::GtpuHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 71 of file epc-gtpu-header.cc.

Referenced by Deserialize(), ns3::EpcX2::DoSendUeData(), and ns3::EpcSgwPgwApplication::SendToS1uSocket().

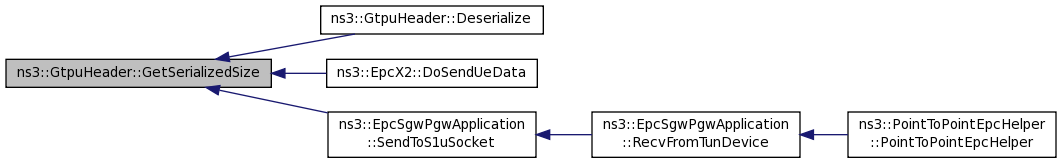

Here is the caller graph for this function:

uint32_t ns3::GtpuHeader::GetTeid ( ) const

Definition at line 188 of file epc-gtpu-header.cc.

References m_teid.

Referenced by ns3::EpcSgwPgwApplication::RecvFromS1uSocket(), ns3::EpcEnbApplication::RecvFromS1uSocket(), and ns3::EpcX2::RecvFromX2uSocket().

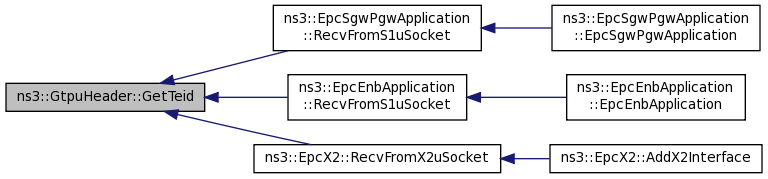

Here is the caller graph for this function:

TypeId ns3::GtpuHeader::GetTypeId ( void )

static

Definition at line 36 of file epc-gtpu-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::GtpuHeader::GetVersion ( void ) const

Definition at line 194 of file epc-gtpu-header.cc.

References m_version.

bool ns3::GtpuHeader::operator== ( const GtpuHeader & b ) const

Definition at line 267 of file epc-gtpu-header.cc.

References m_extensionHeaderFlag, m_length, m_messageType, m_nextExtensionType, m_nPduNumber, m_nPduNumberFlag, m_protocolType, m_sequenceNumber, m_sequenceNumberFlag, m_teid, and m_version.

void ns3::GtpuHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 109 of file epc-gtpu-header.cc.

References m_extensionHeaderFlag, m_length, m_messageType, m_nextExtensionType, m_nPduNumber, m_nPduNumberFlag, m_protocolType, m_sequenceNumber, m_sequenceNumberFlag, m_teid, and m_version.

void ns3::GtpuHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 76 of file epc-gtpu-header.cc.

References m_extensionHeaderFlag, m_length, m_messageType, m_nextExtensionType, m_nPduNumber, m_nPduNumberFlag, m_protocolType, m_sequenceNumber, m_sequenceNumberFlag, m_teid, m_version, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().

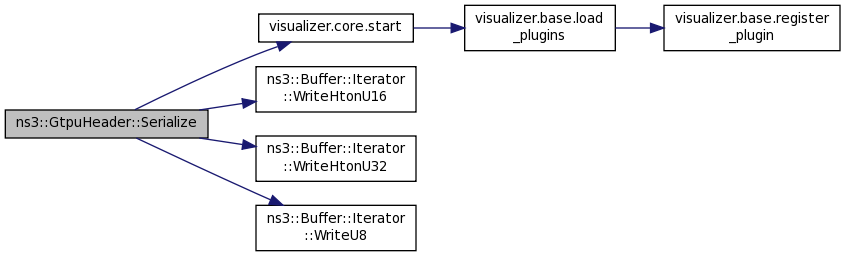

Here is the call graph for this function:

void ns3::GtpuHeader::SetExtensionHeaderFlag ( bool m_extensionHeaderFlag )

Definition at line 200 of file epc-gtpu-header.cc.

References m_extensionHeaderFlag.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

void ns3::GtpuHeader::SetLength ( uint16_t m_length )

Definition at line 206 of file epc-gtpu-header.cc.

References m_length.

Referenced by EpsGtpuHeaderTestCase::DoRun(), ns3::EpcX2::DoSendUeData(), and ns3::EpcSgwPgwApplication::SendToS1uSocket().

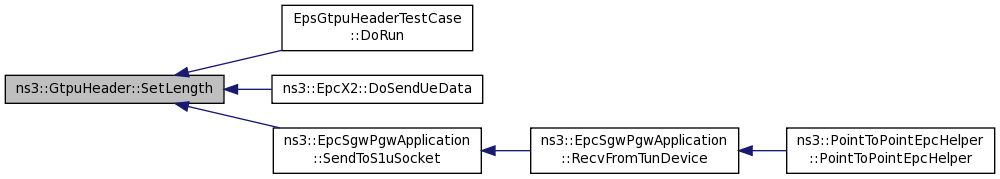

Here is the caller graph for this function:

void ns3::GtpuHeader::SetMessageType ( uint8_t m_messageType )

Definition at line 212 of file epc-gtpu-header.cc.

References m_messageType.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

void ns3::GtpuHeader::SetNextExtensionType ( uint8_t m_nextExtensionType )

Definition at line 230 of file epc-gtpu-header.cc.

References m_nextExtensionType.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

void ns3::GtpuHeader::SetNPduNumber ( uint8_t m_nPduNumber )

Definition at line 218 of file epc-gtpu-header.cc.

References m_nPduNumber.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

void ns3::GtpuHeader::SetNPduNumberFlag ( bool m_nPduNumberFlag )

Definition at line 224 of file epc-gtpu-header.cc.

References m_nPduNumberFlag.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

void ns3::GtpuHeader::SetProtocolType ( bool m_protocolType )

Definition at line 236 of file epc-gtpu-header.cc.

References m_protocolType.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

void ns3::GtpuHeader::SetSequenceNumber ( uint16_t m_sequenceNumber )

Definition at line 242 of file epc-gtpu-header.cc.

References m_sequenceNumber.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

void ns3::GtpuHeader::SetSequenceNumberFlag ( bool m_sequenceNumberFlag )

Definition at line 248 of file epc-gtpu-header.cc.

References m_sequenceNumberFlag.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

void ns3::GtpuHeader::SetTeid ( uint32_t m_teid )

Definition at line 254 of file epc-gtpu-header.cc.

References m_teid.

Referenced by EpsGtpuHeaderTestCase::DoRun(), ns3::EpcX2::DoSendUeData(), ns3::EpcSgwPgwApplication::SendToS1uSocket(), and ns3::EpcEnbApplication::SendToS1uSocket().

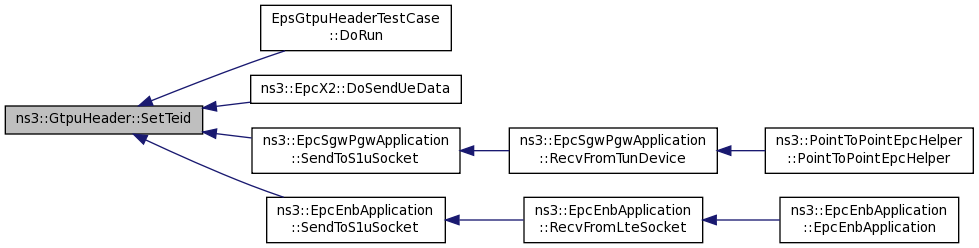

Here is the caller graph for this function:

void ns3::GtpuHeader::SetVersion ( uint8_t m_version )

Definition at line 260 of file epc-gtpu-header.cc.

Referenced by EpsGtpuHeaderTestCase::DoRun().

Here is the caller graph for this function:

Member Data Documentation

bool ns3::GtpuHeader::m_extensionHeaderFlag

private

This flag indicates the presence of a meaningful value of the Next Extension Header field.

When it is set to '0', the Next Extension Header field either is not present or, if present, shall not be interpreted. When it is set to '1', the Next Extension Header field is present, and shall be interpreted

Definition at line 95 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetExtensionHeaderFlag(), operator==(), Print(), Serialize(), and SetExtensionHeaderFlag().

uint16_t ns3::GtpuHeader::m_length

private

This field indicates the length in octets of the payload, i.e.

the rest of the packet following the mandatory part of the GTP header (that is the first 8 octets). The Sequence Number, the N-PDU Number or any Extension headers shall be considered to be part of the payload, i.e. included in the length count

Definition at line 121 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetLength(), operator==(), Print(), Serialize(), and SetLength().

uint8_t ns3::GtpuHeader::m_messageType

private

This field indicates the type of GTP-U message.

Definition at line 114 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetMessageType(), operator==(), Print(), Serialize(), and SetMessageType().

uint8_t ns3::GtpuHeader::m_nextExtensionType

private

This field defines the type of Extension Header that follows this field in the GTP-PDU.

Definition at line 146 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetNextExtensionType(), operator==(), Print(), Serialize(), and SetNextExtensionType().

uint8_t ns3::GtpuHeader::m_nPduNumber

private

This field is used at the Inter SGSN Routeing Area Update procedure and some inter-system handover procedures (e.g.

between 2G and 3G radio access networks). This field is used to co-ordinate the data transmission for acknowledged mode of communication between the MS and the SGSN

Definition at line 141 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetNPduNumber(), operator==(), Print(), Serialize(), and SetNPduNumber().

bool ns3::GtpuHeader::m_nPduNumberFlag

private

This flag indicates the presence of a meaningful value of the N-PDU Number field.

When it is set to '0', the N-PDU Number field either is not present, or, if present, shall not be interpreted. When it is set to '1', the N-PDU Number field is present, and shall be interpreted

Definition at line 110 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetNPduNumberFlag(), operator==(), Print(), Serialize(), and SetNPduNumberFlag().

bool ns3::GtpuHeader::m_protocolType

private

This bit is used as a protocol discriminator between GTP (when PT is '1') and GTP' (when PT is '0').

Definition at line 87 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetProtocolType(), operator==(), Print(), Serialize(), and SetProtocolType().

uint16_t ns3::GtpuHeader::m_sequenceNumber

private

If Sequence Number field is used for G-PDUs (T-PDUs+headers), an increasing sequence number for T-PDUs is transmitted via GTP-U tunnels, when transmission order must be preserved.

Definition at line 134 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetSequenceNumber(), operator==(), Print(), Serialize(), and SetSequenceNumber().

bool ns3::GtpuHeader::m_sequenceNumberFlag

private

This flag indicates the presence of a meaningful value of the Sequence Number field.

When it is set to '0', the Sequence Number field either is not present or, if present, shall not be interpreted. When it is set to '1', the Sequence Number field is present, and shall be interpreted

Definition at line 103 of file epc-gtpu-header.h.

Referenced by Deserialize(), GetSequenceNumberFlag(), operator==(), Print(), Serialize(), and SetSequenceNumberFlag().
