ns3::HighLatencyRtsTxVectorTag Class Reference

Inheritance diagram for ns3::HighLatencyRtsTxVectorTag:

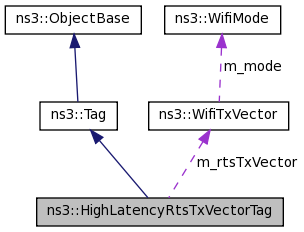

Collaboration diagram for ns3::HighLatencyRtsTxVectorTag:

Public Member Functions
	HighLatencyRtsTxVectorTag ()
	HighLatencyRtsTxVectorTag (WifiTxVector rtsTxVector)
virtual void	Deserialize (TagBuffer i)
virtual TypeId	GetInstanceTypeId (void) const
WifiTxVector	GetRtsTxVector (void) const
virtual uint32_t	GetSerializedSize (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (TagBuffer i) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)
	Get the type ID. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
WifiTxVector	m_rtsTxVector

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Definition at line 111 of file wifi-remote-station-manager.cc.

Constructor & Destructor Documentation

ns3::HighLatencyRtsTxVectorTag::HighLatencyRtsTxVectorTag

(

)

Definition at line 132 of file wifi-remote-station-manager.cc.

ns3::HighLatencyRtsTxVectorTag::HighLatencyRtsTxVectorTag

(

WifiTxVector

rtsTxVector

)

Definition at line 135 of file wifi-remote-station-manager.cc.

Member Function Documentation

void ns3::HighLatencyRtsTxVectorTag::Deserialize ( TagBuffer  i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 170 of file wifi-remote-station-manager.cc.

References m_rtsTxVector, and ns3::TagBuffer::Read().

Here is the call graph for this function:

TypeId ns3::HighLatencyRtsTxVectorTag::GetInstanceTypeId ( void  ) const

virtual

Returns

the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 155 of file wifi-remote-station-manager.cc.

References GetTypeId().

Here is the call graph for this function:

WifiTxVector ns3::HighLatencyRtsTxVectorTag::GetRtsTxVector

(

void

)

const

Returns

the transmission mode to use to send the RTS prior to the transmission of the data packet itself.

Definition at line 141 of file wifi-remote-station-manager.cc.

References m_rtsTxVector.

Referenced by ns3::WifiRemoteStationManager::GetRtsTxVector().

Here is the caller graph for this function:

uint32_t ns3::HighLatencyRtsTxVectorTag::GetSerializedSize ( void  ) const

virtual

Returns

the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 160 of file wifi-remote-station-manager.cc.

TypeId ns3::HighLatencyRtsTxVectorTag::GetTypeId ( void  )

static

Definition at line 146 of file wifi-remote-station-manager.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::HighLatencyRtsTxVectorTag::Print ( std::ostream &  os ) const

virtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 175 of file wifi-remote-station-manager.cc.

References m_rtsTxVector.

void ns3::HighLatencyRtsTxVectorTag::Serialize ( TagBuffer  i ) const

virtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 165 of file wifi-remote-station-manager.cc.

References m_rtsTxVector, and ns3::TagBuffer::Write().

Here is the call graph for this function:

Member Data Documentation

WifiTxVector ns3::HighLatencyRtsTxVectorTag::m_rtsTxVector

private

Definition at line 129 of file wifi-remote-station-manager.cc.

Referenced by Deserialize(), GetRtsTxVector(), Print(), and Serialize().

---

The documentation for this class was generated from the following file:

• src/wifi/model/wifi-remote-station-manager.cc
