ns3::Icmpv6OptionMtu Class Reference

Doxygen introspection did not find any typical Config paths. More...

#include <icmpv6-header.h>

+ Inheritance diagram for ns3::Icmpv6OptionMtu:

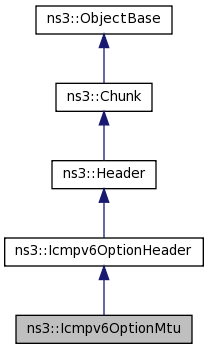

+ Collaboration diagram for ns3::Icmpv6OptionMtu:

Public Member Functions

 Icmpv6OptionMtu ()
 Constructor. More...

 Icmpv6OptionMtu (uint32_t mtu)
 Constructor. More...

virtual ~Icmpv6OptionMtu ()
 Destructor. More...

virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet. More...

virtual TypeId GetInstanceTypeId () const
 Get the instance type ID. More...

uint32_t GetMtu () const
 Get the MTU. More...

uint16_t GetReserved () const
 Get the reserved field. More...

virtual uint32_t GetSerializedSize () const
 Get the serialized size. More...

virtual void Print (std::ostream &os) const
 Print informations. More...

virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet. More...

void SetMtu (uint32_t mtu)
 Set the MTU. More...

void SetReserved (uint16_t reserved)
 Set the reserved field. More...

- Public Member Functions inherited from ns3::Icmpv6OptionHeader
 Icmpv6OptionHeader ()
 Constructor. More...

virtual ~Icmpv6OptionHeader ()
 Destructor. More...

uint8_t GetLength () const
 Get the length of the option in 8 bytes unit. More...

uint8_t GetType () const
 Get the type of the option. More...

void SetLength (uint8_t len)
 Set the length of the option. More...

void SetType (uint8_t type)
 Set the type of the option. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId ()
 Get the UID of this class. More...

- Static Public Member Functions inherited from ns3::Icmpv6OptionHeader
static TypeId GetTypeId ()
 Get the UID of this class. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint32_t m_mtu
 The MTU value. More...

uint16_t m_reserved
 The reserved value. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Doxygen introspection did not find any typical Config paths.

ICMPv6 MTU option.


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 1366 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6OptionMtu::Icmpv6OptionMtu ( )

Constructor.

Definition at line 1547 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_MTU, NS_LOG_FUNCTION, ns3::Icmpv6OptionHeader::SetLength(), SetReserved(), and ns3::Icmpv6OptionHeader::SetType().

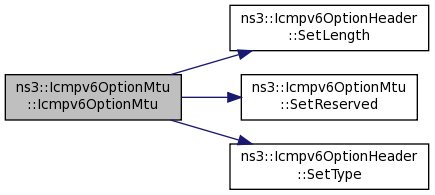

+ Here is the call graph for this function:

ns3::Icmpv6OptionMtu::Icmpv6OptionMtu ( uint32_t  mtu)

Constructor.

Parameters
mtuMTU used.

Definition at line 1555 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_MTU, NS_LOG_FUNCTION, ns3::Icmpv6OptionHeader::SetLength(), SetReserved(), and ns3::Icmpv6OptionHeader::SetType().

+ Here is the call graph for this function:

ns3::Icmpv6OptionMtu::~Icmpv6OptionMtu ( )
virtual

Destructor.

Definition at line 1564 of file icmpv6-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::Icmpv6OptionMtu::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the packet.

Parameters
startstart offset
Returns
length of packet

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1615 of file icmpv6-header.cc.

References GetSerializedSize(), NS_LOG_FUNCTION, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), ns3::Icmpv6OptionHeader::SetLength(), SetMtu(), SetReserved(), ns3::Icmpv6OptionHeader::SetType(), and visualizer.core::start().

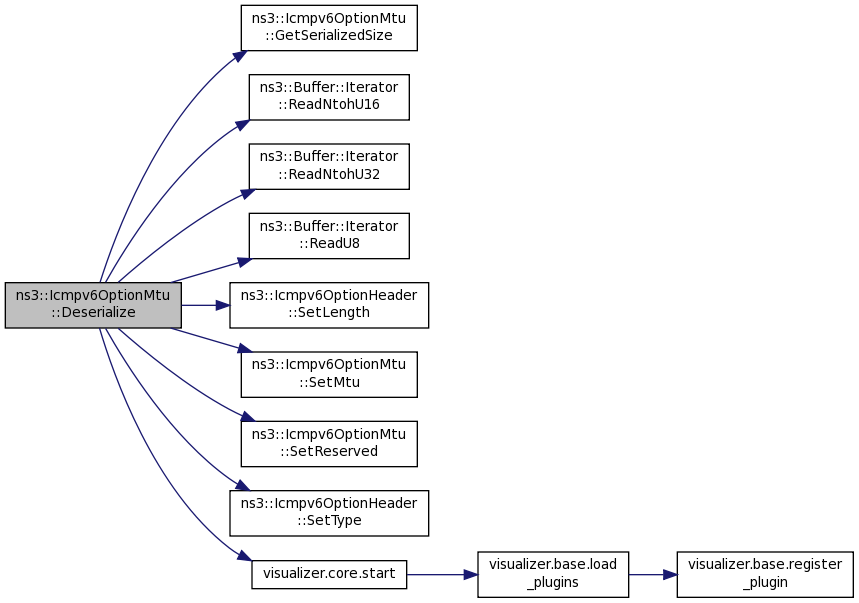

+ Here is the call graph for this function:

TypeId ns3::Icmpv6OptionMtu::GetInstanceTypeId ( void  ) const
virtual

Get the instance type ID.

Returns
instance type ID

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1541 of file icmpv6-header.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

uint32_t ns3::Icmpv6OptionMtu::GetMtu ( void  ) const

Get the MTU.

Returns
the MTU value

Definition at line 1581 of file icmpv6-header.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by Serialize().

+ Here is the caller graph for this function:

uint16_t ns3::Icmpv6OptionMtu::GetReserved ( ) const

Get the reserved field.

Returns
the reserved value

Definition at line 1569 of file icmpv6-header.cc.

References m_reserved, and NS_LOG_FUNCTION.

Referenced by Serialize().

+ Here is the caller graph for this function:

uint32_t ns3::Icmpv6OptionMtu::GetSerializedSize ( void  ) const
virtual

Get the serialized size.

Returns
serialized size

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1599 of file icmpv6-header.cc.

References NS_LOG_FUNCTION.

Referenced by Deserialize().

+ Here is the caller graph for this function:

TypeId ns3::Icmpv6OptionMtu::GetTypeId ( void  )
static

Get the UID of this class.

Returns
UID

Definition at line 1532 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Icmpv6OptionMtu::Print ( std::ostream &  os) const
virtual

Print informations.

Parameters
osoutput stream

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1593 of file icmpv6-header.cc.

References ns3::Icmpv6OptionHeader::GetLength(), ns3::Icmpv6OptionHeader::GetType(), m_mtu, and NS_LOG_FUNCTION.

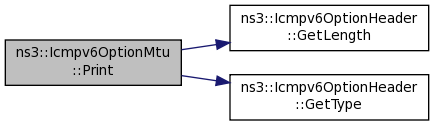

+ Here is the call graph for this function:

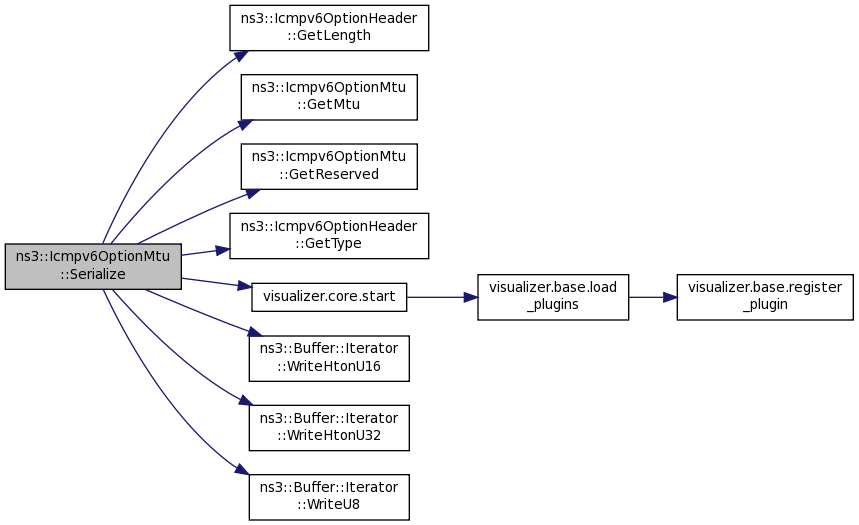

void ns3::Icmpv6OptionMtu::Serialize ( Buffer::Iterator  start) const
virtual
void ns3::Icmpv6OptionMtu::SetMtu ( uint32_t  mtu)

Set the MTU.

Parameters
mtuthe MTU to set

Definition at line 1587 of file icmpv6-header.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by Deserialize().

+ Here is the caller graph for this function:

void ns3::Icmpv6OptionMtu::SetReserved ( uint16_t  reserved)

Set the reserved field.

Parameters
reservedthe reserved value

Definition at line 1575 of file icmpv6-header.cc.

References m_reserved, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and Icmpv6OptionMtu().

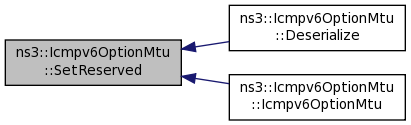

+ Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::Icmpv6OptionMtu::m_mtu
private

The MTU value.

Definition at line 1455 of file icmpv6-header.h.

Referenced by GetMtu(), Print(), and SetMtu().

uint16_t ns3::Icmpv6OptionMtu::m_reserved
private

The reserved value.

Definition at line 1450 of file icmpv6-header.h.

Referenced by GetReserved(), and SetReserved().


The documentation for this class was generated from the following files:
