ns3::Ipv6ExtensionDestinationHeader Class Reference

Doxygen introspection did not find any typical Config paths. More...

#include <ipv6-extension-header.h>

Inheritance diagram for ns3::Ipv6ExtensionDestinationHeader:

Collaboration diagram for ns3::Ipv6ExtensionDestinationHeader:

Public Member Functions
	Ipv6ExtensionDestinationHeader ()
	Constructor. More...
virtual	~Ipv6ExtensionDestinationHeader ()
	Destructor. More...
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID. More...
virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet. More...
virtual void	Print (std::ostream &os) const
	Print some informations about the packet. More...
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...
Public Member Functions inherited from ns3::Ipv6ExtensionHeader
	Ipv6ExtensionHeader ()
	Constructor. More...
virtual	~Ipv6ExtensionHeader ()
	Destructor. More...
uint16_t	GetLength () const
	Get the length of the extension. More...
uint8_t	GetNextHeader () const
	Get the next header. More...
void	SetLength (uint16_t length)
	brief Set the length of the extension. More...
void	SetNextHeader (uint8_t nextHeader)
	Set the "Next header" field. More...
Public Member Functions inherited from ns3::Header
virtual	~Header ()
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
Public Member Functions inherited from ns3::OptionField
	OptionField (uint32_t optionsOffset)
	Constructor. More...
	~OptionField ()
	Destructor. More...
void	AddOption (Ipv6OptionHeader const &option)
	Serialize the option, prepending pad1 or padn option as necessary. More...
uint32_t	Deserialize (Buffer::Iterator start, uint32_t length)
	Deserialize the packet. More...
Buffer	GetOptionBuffer ()
	Get the buffer. More...
uint32_t	GetOptionsOffset ()
	Get the offset where the options begin, measured from the start of the extension header. More...
uint32_t	GetSerializedSize () const
	Get the serialized size of the packet. More...
void	Serialize (Buffer::Iterator start) const
	Serialize all added options. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...
Static Public Member Functions inherited from ns3::Ipv6ExtensionHeader
static TypeId	GetTypeId ()
	Get the type identificator. More...
Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...
Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

Header of IPv6 Extension Destination.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 274 of file ipv6-extension-header.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionDestinationHeader::Ipv6ExtensionDestinationHeader

(

)

Constructor.

Definition at line 273 of file ipv6-extension-header.cc.

ns3::Ipv6ExtensionDestinationHeader::~Ipv6ExtensionDestinationHeader ( )

virtual

Destructor.

Definition at line 278 of file ipv6-extension-header.cc.

Member Function Documentation

uint32_t ns3::Ipv6ExtensionDestinationHeader::Deserialize ( Buffer::Iterator  start )

virtual

Deserialize the packet.

Parameters

start

Buffer iterator

Returns

size of the packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 301 of file ipv6-extension-header.cc.

References ns3::OptionField::Deserialize(), ns3::Ipv6ExtensionHeader::GetLength(), GetSerializedSize(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6ExtensionHeader::SetLength(), ns3::Ipv6ExtensionHeader::SetNextHeader(), and visualizer.core::start().

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanNhc().

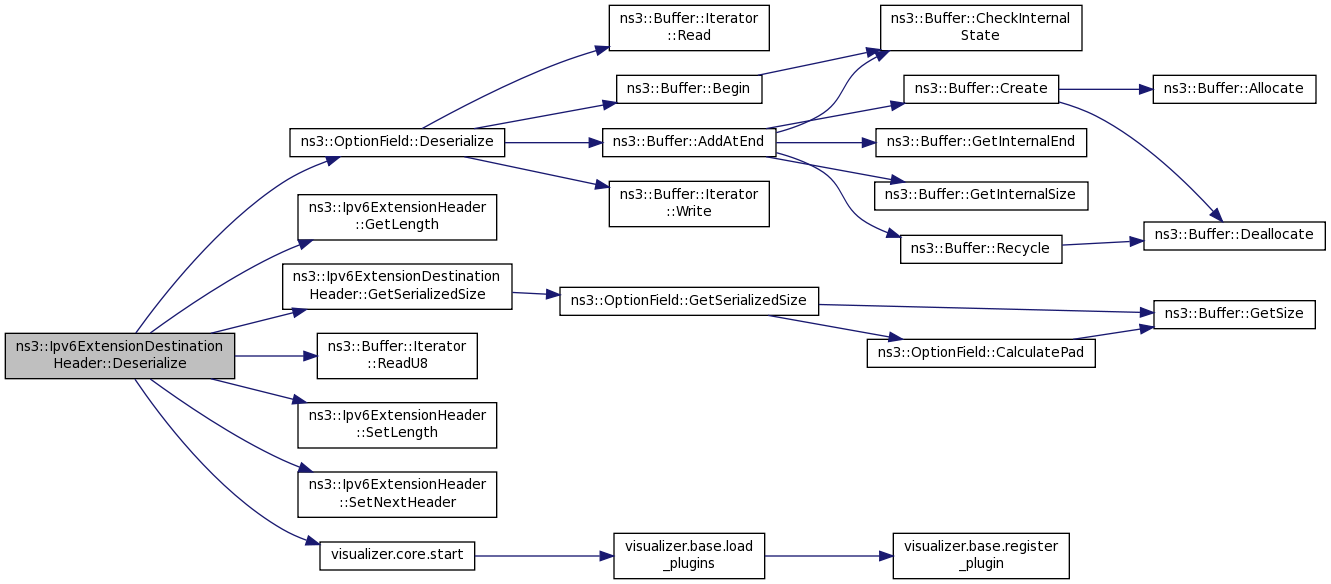

Here is the call graph for this function:

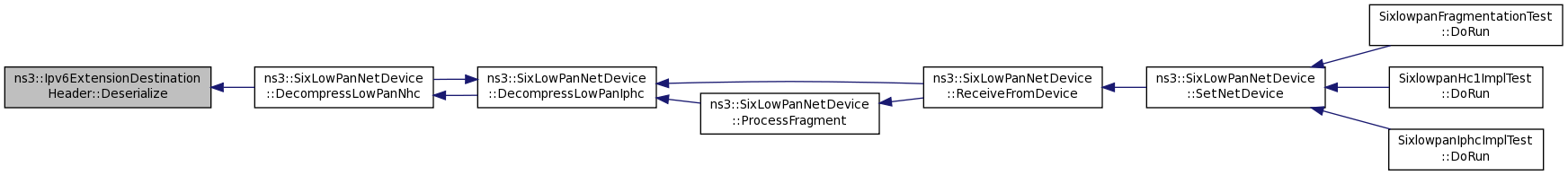

Here is the caller graph for this function:

TypeId ns3::Ipv6ExtensionDestinationHeader::GetInstanceTypeId ( void  ) const

virtual

Get the instance type ID.

Returns

instance type ID

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 268 of file ipv6-extension-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::Ipv6ExtensionDestinationHeader::GetSerializedSize ( void  ) const

virtual

Get the serialized size of the packet.

Returns

size

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 287 of file ipv6-extension-header.cc.

References ns3::OptionField::GetSerializedSize().

Referenced by ns3::SixLowPanNetDevice::CompressLowPanNhc(), Deserialize(), TestEmptyOptionField::DoRun(), TestOptionWithoutAlignment::DoRun(), TestOptionWithAlignment::DoRun(), TestFulfilledAlignment::DoRun(), and Serialize().

Here is the call graph for this function:

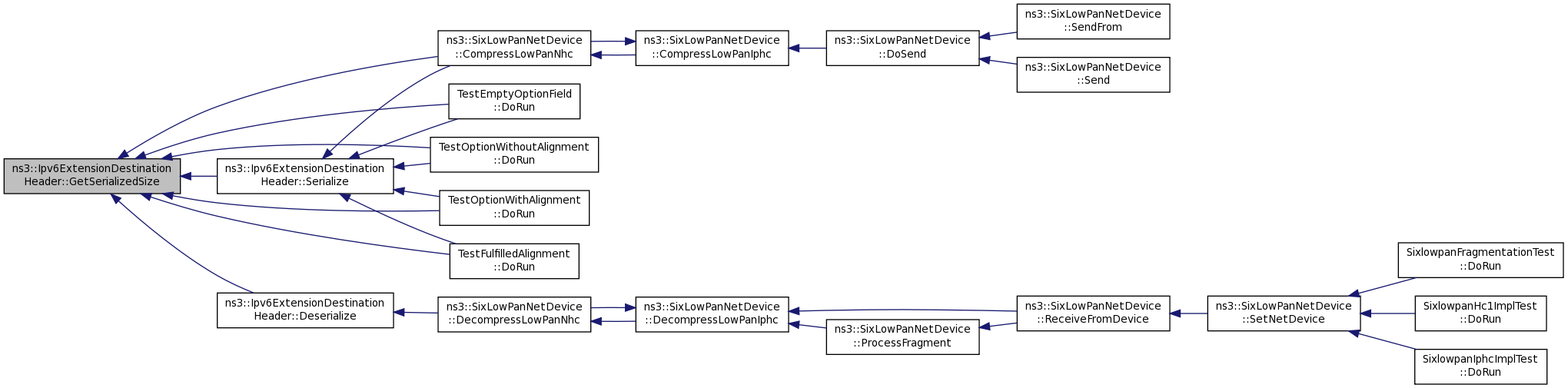

Here is the caller graph for this function:

TypeId ns3::Ipv6ExtensionDestinationHeader::GetTypeId ( void  )

static

Get the type identificator.

Returns

type identificator

Definition at line 259 of file ipv6-extension-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

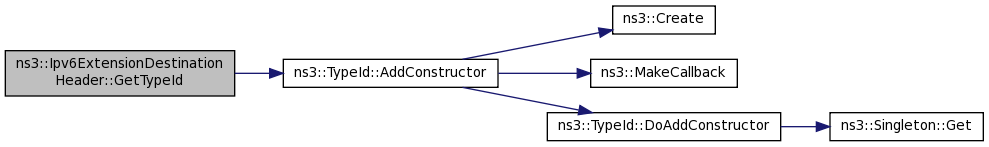

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6ExtensionDestinationHeader::Print ( std::ostream &  os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns

info about this packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 282 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), and ns3::Ipv6ExtensionHeader::GetNextHeader().

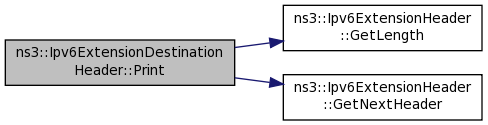

Here is the call graph for this function:

void ns3::Ipv6ExtensionDestinationHeader::Serialize ( Buffer::Iterator  start ) const

virtual

Serialize the packet.

Parameters

start

Buffer iterator

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 292 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetNextHeader(), GetSerializedSize(), ns3::OptionField::Serialize(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::SixLowPanNetDevice::CompressLowPanNhc(), TestEmptyOptionField::DoRun(), TestOptionWithoutAlignment::DoRun(), TestOptionWithAlignment::DoRun(), and TestFulfilledAlignment::DoRun().

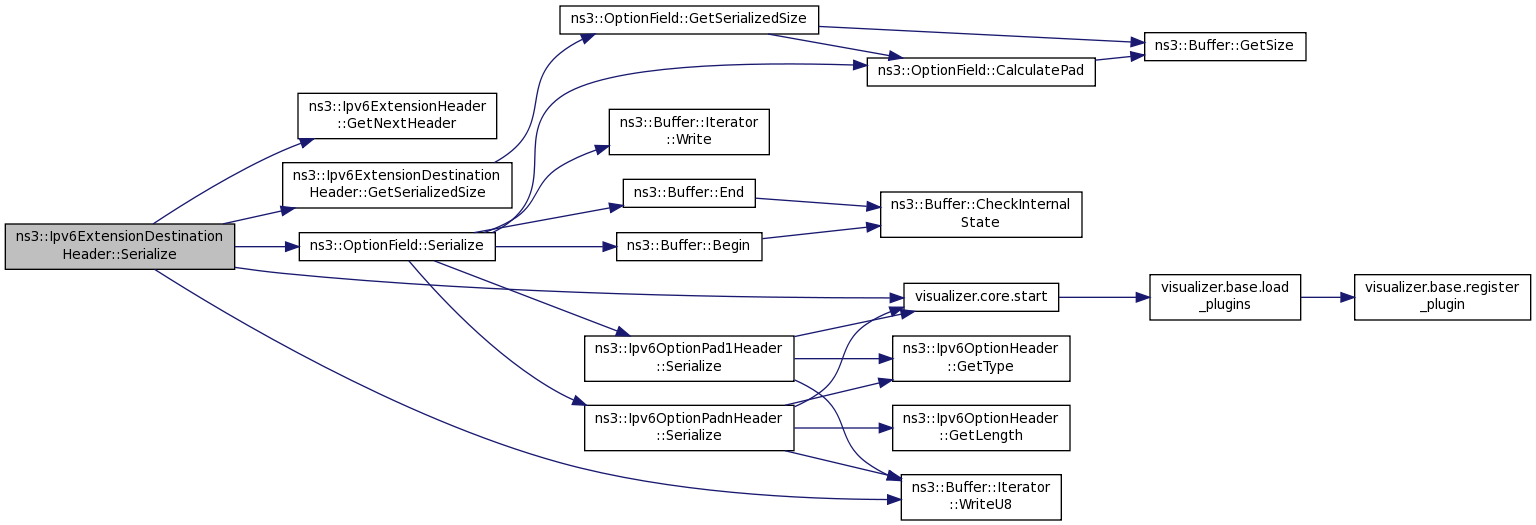

Here is the call graph for this function:

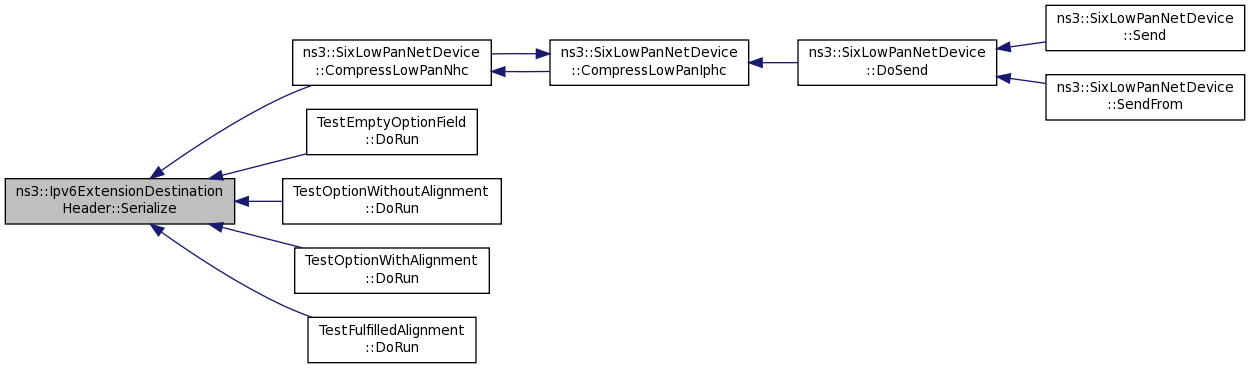

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-extension-header.h
• src/internet/model/ipv6-extension-header.cc
