ns3::Ipv6ExtensionLooseRoutingHeader Class Reference

Doxygen introspection did not find any typical Config paths. More...

#include <ipv6-extension-header.h>

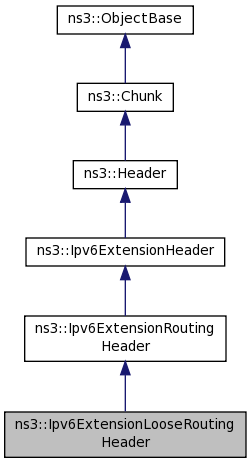

+ Inheritance diagram for ns3::Ipv6ExtensionLooseRoutingHeader:

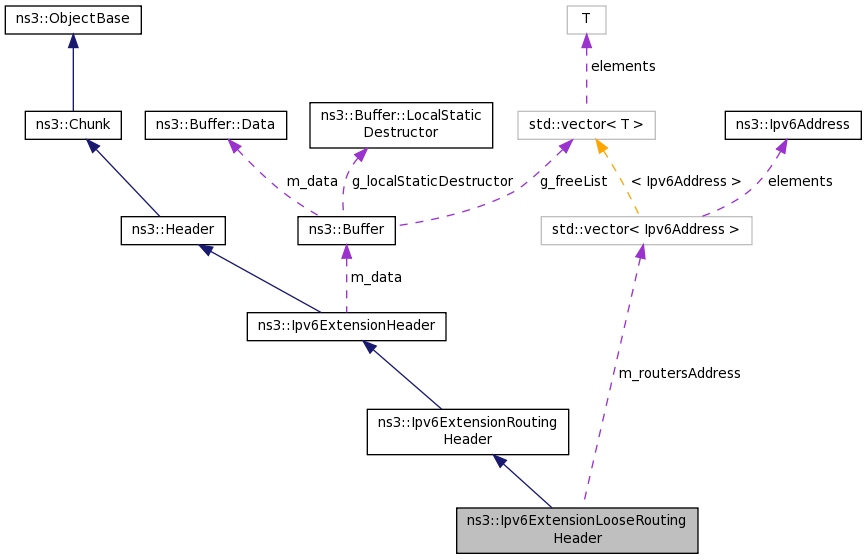

+ Collaboration diagram for ns3::Ipv6ExtensionLooseRoutingHeader:

Public Member Functions

 Ipv6ExtensionLooseRoutingHeader ()
 Constructor. More...

virtual ~Ipv6ExtensionLooseRoutingHeader ()
 Destructor. More...

virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet. More...

virtual TypeId GetInstanceTypeId () const
 Get the instance type ID. More...

Ipv6Address GetRouterAddress (uint8_t index) const
 Get a Router IPv6 Address. More...

std::vector< Ipv6AddressGetRoutersAddress () const
 Get the vector of routers' address. More...

virtual uint32_t GetSerializedSize () const
 Get the serialized size of the packet. More...

virtual void Print (std::ostream &os) const
 Print some informations about the packet. More...

virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet. More...

void SetNumberAddress (uint8_t n)
 Set the number of routers' address. More...

void SetRouterAddress (uint8_t index, Ipv6Address addr)
 Set a Router IPv6 Address. More...

void SetRoutersAddress (std::vector< Ipv6Address > routersAddress)
 Set the vector of routers' address. More...

- Public Member Functions inherited from ns3::Ipv6ExtensionRoutingHeader
 Ipv6ExtensionRoutingHeader ()
 Constructor. More...

virtual ~Ipv6ExtensionRoutingHeader ()
 Destructor. More...

uint8_t GetSegmentsLeft () const
 Get the field "Segments left". More...

uint8_t GetTypeRouting () const
 Get the field "Type of Routing". More...

void SetSegmentsLeft (uint8_t segmentsLeft)
 Set the "Segments left" field. More...

void SetTypeRouting (uint8_t typeRouting)
 Set the "Type of Routing" field. More...

- Public Member Functions inherited from ns3::Ipv6ExtensionHeader
 Ipv6ExtensionHeader ()
 Constructor. More...

virtual ~Ipv6ExtensionHeader ()
 Destructor. More...

uint16_t GetLength () const
 Get the length of the extension. More...

uint8_t GetNextHeader () const
 Get the next header. More...

void SetLength (uint16_t length)
 brief Set the length of the extension. More...

void SetNextHeader (uint8_t nextHeader)
 Set the "Next header" field. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type identificator. More...

- Static Public Member Functions inherited from ns3::Ipv6ExtensionRoutingHeader
static TypeId GetTypeId ()
 Get the type identificator. More...

- Static Public Member Functions inherited from ns3::Ipv6ExtensionHeader
static TypeId GetTypeId ()
 Get the type identificator. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Types

typedef std::vector< Ipv6AddressVectorIpv6Address_t
 A vector of IPv6 Address. More...


Private Attributes

VectorIpv6Address_t m_routersAddress
 The vector of Routers' IPv6 Address. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Doxygen introspection did not find any typical Config paths.

Header of IPv6 Extension Routing : Type 0 (Loose Routing)


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 524 of file ipv6-extension-header.h.

Member Typedef Documentation

A vector of IPv6 Address.

Definition at line 611 of file ipv6-extension-header.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionLooseRoutingHeader::Ipv6ExtensionLooseRoutingHeader ( )

Constructor.

Definition at line 500 of file ipv6-extension-header.cc.

ns3::Ipv6ExtensionLooseRoutingHeader::~Ipv6ExtensionLooseRoutingHeader ( )
virtual

Destructor.

Definition at line 505 of file ipv6-extension-header.cc.

Member Function Documentation

uint32_t ns3::Ipv6ExtensionLooseRoutingHeader::Deserialize ( Buffer::Iterator  start)
virtual
TypeId ns3::Ipv6ExtensionLooseRoutingHeader::GetInstanceTypeId ( void  ) const
virtual

Get the instance type ID.

Returns
instance type ID

Reimplemented from ns3::Ipv6ExtensionRoutingHeader.

Definition at line 495 of file ipv6-extension-header.cc.

References GetTypeId().

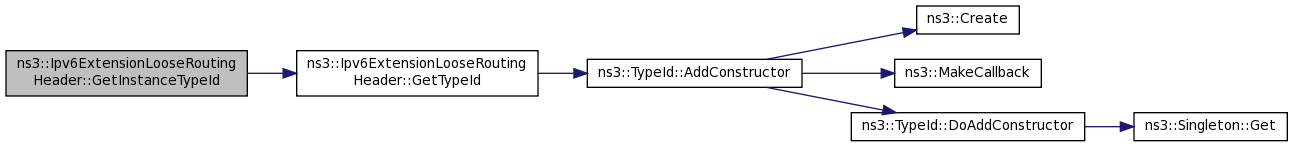

+ Here is the call graph for this function:

Ipv6Address ns3::Ipv6ExtensionLooseRoutingHeader::GetRouterAddress ( uint8_t  index) const

Get a Router IPv6 Address.

Parameters
indexthe index of the IPv6 Address
Returns
the router IPv6 Address

Definition at line 530 of file ipv6-extension-header.cc.

References m_routersAddress.

Referenced by ns3::Ipv6ExtensionLooseRouting::Process().

+ Here is the caller graph for this function:

std::vector< Ipv6Address > ns3::Ipv6ExtensionLooseRoutingHeader::GetRoutersAddress ( ) const

Get the vector of routers' address.

Returns
the vector of routers' address

Definition at line 520 of file ipv6-extension-header.cc.

References m_routersAddress.

uint32_t ns3::Ipv6ExtensionLooseRoutingHeader::GetSerializedSize ( void  ) const
virtual

Get the serialized size of the packet.

Returns
size

Reimplemented from ns3::Ipv6ExtensionRoutingHeader.

Definition at line 548 of file ipv6-extension-header.cc.

References m_routersAddress.

Referenced by Deserialize(), and ns3::Ipv6ExtensionLooseRouting::Process().

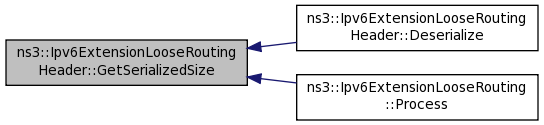

+ Here is the caller graph for this function:

TypeId ns3::Ipv6ExtensionLooseRoutingHeader::GetTypeId ( void  )
static

Get the type identificator.

Returns
type identificator

Definition at line 486 of file ipv6-extension-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

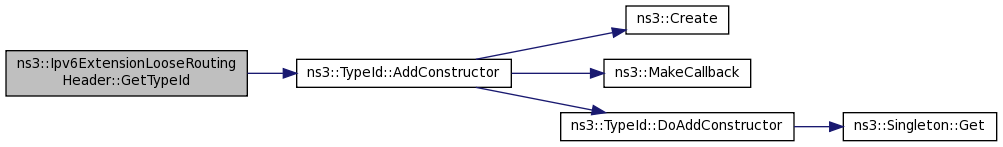

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Ipv6ExtensionLooseRoutingHeader::Print ( std::ostream &  os) const
virtual

Print some informations about the packet.

Parameters
osoutput stream
Returns
info about this packet

Reimplemented from ns3::Ipv6ExtensionRoutingHeader.

Definition at line 535 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), ns3::Ipv6ExtensionHeader::GetNextHeader(), ns3::Ipv6ExtensionRoutingHeader::GetSegmentsLeft(), ns3::Ipv6ExtensionRoutingHeader::GetTypeRouting(), and m_routersAddress.

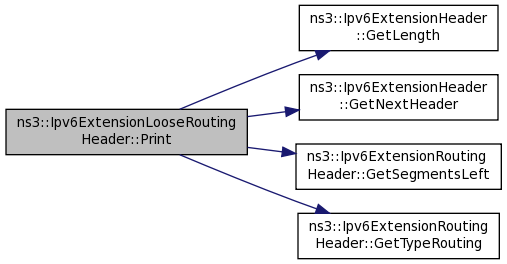

+ Here is the call graph for this function:

void ns3::Ipv6ExtensionLooseRoutingHeader::SetNumberAddress ( uint8_t  n)

Set the number of routers' address.

Parameters
nthe number of routers' address

Definition at line 509 of file ipv6-extension-header.cc.

References m_routersAddress.

Referenced by ns3::Ipv6ExtensionFragment::GetFragments(), and ns3::Ipv6ExtensionLooseRouting::Process().

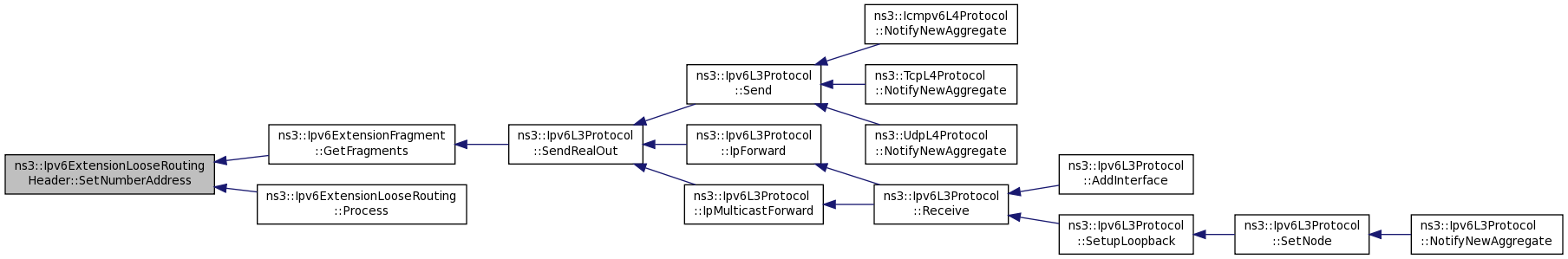

+ Here is the caller graph for this function:

void ns3::Ipv6ExtensionLooseRoutingHeader::SetRouterAddress ( uint8_t  index,
Ipv6Address  addr
)

Set a Router IPv6 Address.

Parameters
indexthe index of the IPv6 Address
addrthe new IPv6 Address

Definition at line 525 of file ipv6-extension-header.cc.

References m_routersAddress.

Referenced by ns3::Ipv6ExtensionLooseRouting::Process().

+ Here is the caller graph for this function:

void ns3::Ipv6ExtensionLooseRoutingHeader::SetRoutersAddress ( std::vector< Ipv6Address routersAddress)

Set the vector of routers' address.

Parameters
routersAddressthe vector of routers's address

Definition at line 515 of file ipv6-extension-header.cc.

References m_routersAddress.

Referenced by ns3::Ping6::Send().

+ Here is the caller graph for this function:

Member Data Documentation

VectorIpv6Address_t ns3::Ipv6ExtensionLooseRoutingHeader::m_routersAddress
private

The documentation for this class was generated from the following files:
