ns3::Ipv6FlowClassifier Class Reference

Classifies packets by looking at their IP and TCP/UDP headers. More...

#include <ipv6-flow-classifier.h>

Inheritance diagram for ns3::Ipv6FlowClassifier:

Collaboration diagram for ns3::Ipv6FlowClassifier:

Classes
struct	FiveTuple
	Structure to classify a packet. More...

Public Member Functions
	Ipv6FlowClassifier ()
bool	Classify (const Ipv6Header &ipHeader, Ptr< const Packet > ipPayload, uint32_t *out_flowId, uint32_t *out_packetId)
	try to classify the packet into flow-id and packet-id More...
FiveTuple	FindFlow (FlowId flowId) const
	Searches for the FiveTuple corresponding to the given flowId. More...
virtual void	SerializeToXmlStream (std::ostream &os, int indent) const
	Serializes the results to an std::ostream in XML format. More...
Public Member Functions inherited from ns3::FlowClassifier
	FlowClassifier ()
virtual	~FlowClassifier ()
Public Member Functions inherited from ns3::SimpleRefCount< FlowClassifier >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
std::map< FiveTuple, FlowId >	m_flowMap
	Map to Flows Identifiers to FlowIds. More...
std::map< FlowId, FlowPacketId >	m_flowPktIdMap

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< FlowClassifier >
static void	Cleanup (void)
	Noop. More...
Protected Member Functions inherited from ns3::FlowClassifier
FlowId	GetNewFlowId ()
	Returns a new, unique Flow Identifier. More...

Detailed Description

Classifies packets by looking at their IP and TCP/UDP headers.

From these packet headers, a tuple (source-ip, destination-ip, protocol, source-port, destination-port) is created, and a unique flow identifier is assigned for each different tuple combination

Definition at line 39 of file ipv6-flow-classifier.h.

Constructor & Destructor Documentation

ns3::Ipv6FlowClassifier::Ipv6FlowClassifier

(

)

Definition at line 99 of file ipv6-flow-classifier.cc.

Member Function Documentation

bool ns3::Ipv6FlowClassifier::Classify	(	const Ipv6Header &	ipHeader,
		Ptr< const Packet >	ipPayload,
		uint32_t *	out_flowId,
		uint32_t *	out_packetId
	)

try to classify the packet into flow-id and packet-id

Warning

: it must be called only once per packet, from SendOutgoingLogger.

Returns

true if the packet was classified, false if not (i.e. it does not appear to be part of a flow).

Parameters

ipHeader	packet's IP header
ipPayload	packet's IP payload
out_flowId	packet's FlowId
out_packetId	packet's identifier

Definition at line 104 of file ipv6-flow-classifier.cc.

References ns3::Packet::CopyData(), data, ns3::Ipv6FlowClassifier::FiveTuple::destinationAddress, ns3::Ipv6FlowClassifier::FiveTuple::destinationPort, ns3::Ipv6Header::GetDestinationAddress(), ns3::FlowClassifier::GetNewFlowId(), ns3::Ipv6Header::GetNextHeader(), ns3::Packet::GetSize(), ns3::Ipv6Header::GetSourceAddress(), ns3::Ipv6Address::IsMulticast(), m_flowMap, m_flowPktIdMap, ns3::Ipv6FlowClassifier::FiveTuple::protocol, ns3::Ipv6FlowClassifier::FiveTuple::sourceAddress, ns3::Ipv6FlowClassifier::FiveTuple::sourcePort, ns3::TCP_PROT_NUMBER, and ns3::UDP_PROT_NUMBER.

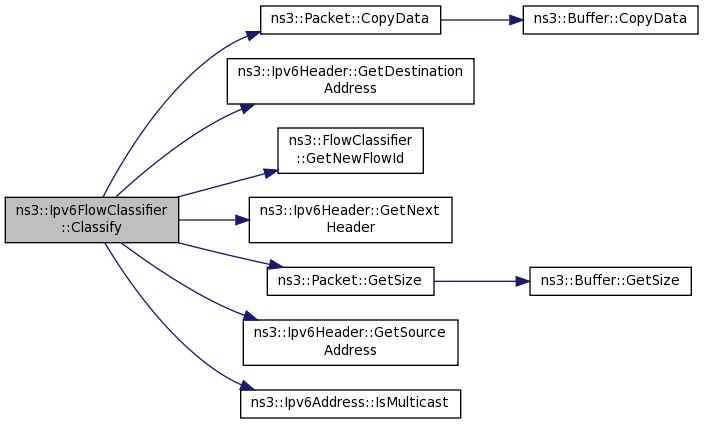

Here is the call graph for this function:

Ipv6FlowClassifier::FiveTuple ns3::Ipv6FlowClassifier::FindFlow

(

FlowId

flowId

)

const

Searches for the FiveTuple corresponding to the given flowId.

Parameters

flowId

the FlowId to search for

Returns

the FiveTuple corresponding to flowId

Definition at line 174 of file ipv6-flow-classifier.cc.

References ns3::Ipv6Address::GetZero(), m_flowMap, and NS_FATAL_ERROR.

Here is the call graph for this function:

void ns3::Ipv6FlowClassifier::SerializeToXmlStream ( std::ostream &  os, int  indent  ) const

virtual

Serializes the results to an std::ostream in XML format.

Parameters

os	the output stream
indent	number of spaces to use as base indentation level

Implements ns3::FlowClassifier.

Definition at line 190 of file ipv6-flow-classifier.cc.

References INDENT, and m_flowMap.

Member Data Documentation

std::map<FiveTuple, FlowId> ns3::Ipv6FlowClassifier::m_flowMap

private

Map to Flows Identifiers to FlowIds.

Definition at line 78 of file ipv6-flow-classifier.h.

Referenced by Classify(), FindFlow(), and SerializeToXmlStream().

std::map<FlowId, FlowPacketId> ns3::Ipv6FlowClassifier::m_flowPktIdMap

private

Definition at line 79 of file ipv6-flow-classifier.h.

Referenced by Classify().

---

The documentation for this class was generated from the following files:

• src/flow-monitor/model/ipv6-flow-classifier.h
• src/flow-monitor/model/ipv6-flow-classifier.cc
