Allocate positions from a deterministic list specified by the user. More...
#include <position-allocator.h>

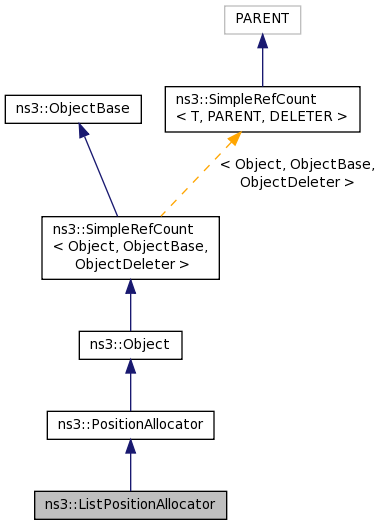

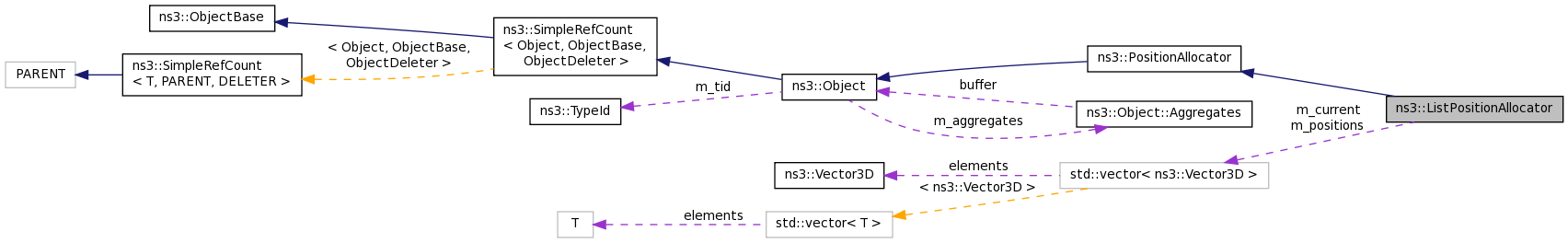

Inheritance diagram for ns3::ListPositionAllocator: Collaboration diagram for ns3::ListPositionAllocator:Public Member Functions | |
| ListPositionAllocator () | |
| void | Add (Vector v) |
| virtual int64_t | AssignStreams (int64_t stream) |
| Assign a fixed random variable stream number to the random variables used by this model. More... | |
| virtual Vector | GetNext (void) const |
| Public Member Functions inherited from ns3::PositionAllocator | |
| PositionAllocator () | |
| virtual | ~PositionAllocator () |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| virtual | ~Object () |
| void | AggregateObject (Ptr< Object > other) |
| void | Dispose (void) |
| Run the DoDispose methods of this object and all the objects aggregated to it. More... | |
| AggregateIterator | GetAggregateIterator (void) const |
| virtual TypeId | GetInstanceTypeId (void) const |
| template<typename T > | |
| Ptr< T > | GetObject (void) const |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| void | Initialize (void) |
| This method calls the virtual DoInitialize method on all the objects aggregated to this object. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount (void) const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment. More... | |
| void | Ref (void) const |
| Increment the reference count. More... | |
| void | Unref (void) const |
| Decrement the reference count. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &attribute) const |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| Static Public Member Functions inherited from ns3::PositionAllocator | |
| static TypeId | GetTypeId (void) |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId (void) |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| static void | Cleanup (void) |
| Noop. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Private Attributes | |
| std::vector< Vector > ::const_iterator | m_current |
| std::vector< Vector > | m_positions |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| virtual void | DoDispose (void) |
| This method is called by Object::Dispose or by the object's destructor, whichever comes first. More... | |
| virtual void | DoInitialize (void) |
| This method is called only once by Object::Initialize. More... | |
| virtual void | NotifyNewAggregate (void) |
| This method is invoked whenever two sets of objects are aggregated together. More... | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| virtual void | NotifyConstructionCompleted (void) |
| This method is invoked once all member attributes have been initialized. More... | |
Allocate positions from a deterministic list specified by the user.
The first call to ListPositionAllocator::GetNext will return the first element of the list, the second call, the second element, and so on.
ns3::ListPositionAllocator is accessible through the following paths with Config::Set and Config::Connect:
No Attributes are defined for this type.
No TraceSources are defined for this type.
Definition at line 67 of file position-allocator.h.
| ns3::ListPositionAllocator::ListPositionAllocator | ( | ) |
Definition at line 62 of file position-allocator.cc.
| void ns3::ListPositionAllocator::Add | ( | Vector | v | ) |
| v | the position to append at the end of the list of positions to return from GetNext. |
Definition at line 66 of file position-allocator.cc.
References m_current, and m_positions.
Referenced by HwmpReactiveRegressionTest::CreateNodes(), LteInterferenceTestCase::DoRun(), LteEnbAntennaTestCase::DoRun(), LteX2HandoverTestCase::DoRun(), LteUeMeasurementsTestCase::DoRun(), LteHandoverDelayTestCase::DoRun(), SpectrumIdealPhyTestCase::DoRun(), LteX2HandoverMeasuresTestCase::DoRun(), LteCellSelectionTestCase::DoRun(), LteHandoverTargetTestCase::DoRun(), LteUeMeasurementsPiecewiseTestCase1::DoRun(), LteUeMeasurementsPiecewiseTestCase2::DoRun(), WaypointMobilityModelViaHelper::DoRun(), LteUeMeasurementsHandoverTestCase::DoRun(), main(), NetAnimExperiment::Run(), Experiment::Run(), and WifiInterferenceTestCase::WifiSimpleInterference().

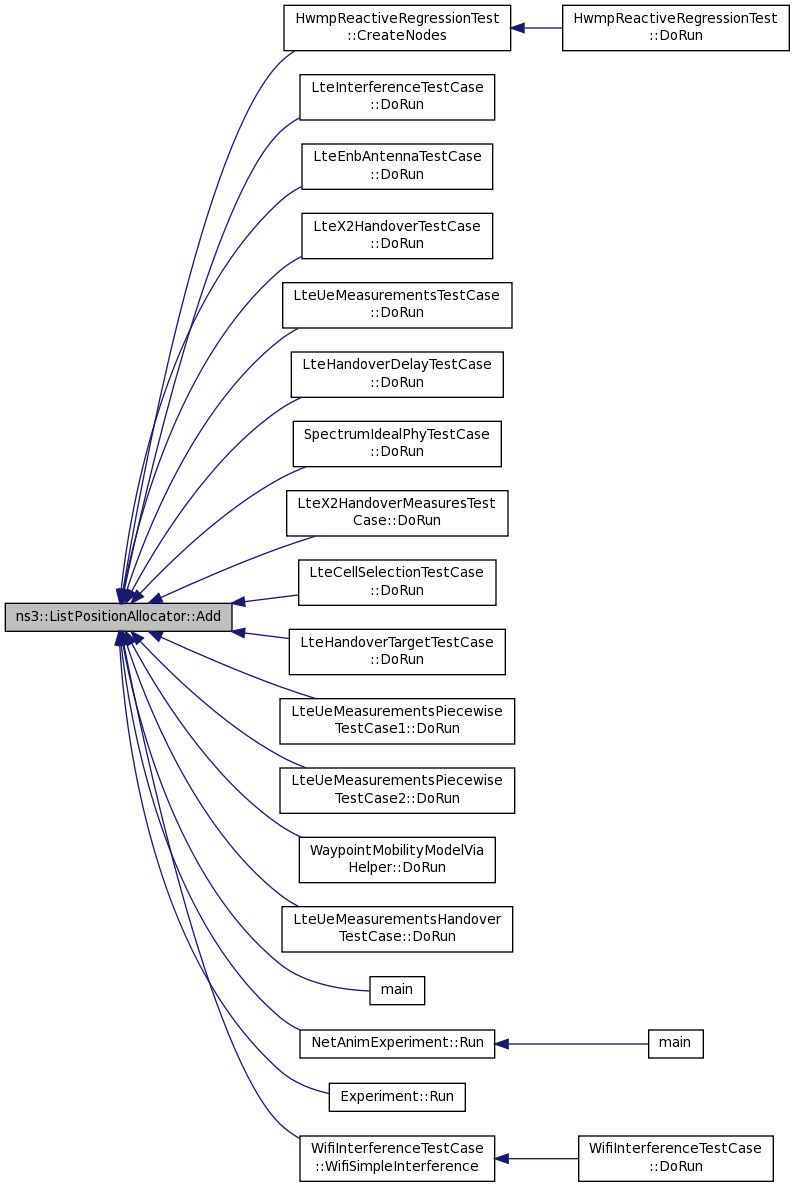

Here is the caller graph for this function:
|
virtual |
Assign a fixed random variable stream number to the random variables used by this model.
Return the number of streams (possibly zero) that have been assigned.
This method must be implement in subclasses.
| stream | first stream index to use |
Implements ns3::PositionAllocator.
Definition at line 83 of file position-allocator.cc.
|
virtual |
This method must be implement in subclasses.
Implements ns3::PositionAllocator.
Definition at line 72 of file position-allocator.cc.
References m_current, and m_positions.
|
static |
Definition at line 54 of file position-allocator.cc.
References ns3::TypeId::SetParent().
Here is the call graph for this function:
|
mutableprivate |
Definition at line 81 of file position-allocator.h.
|
private |
Definition at line 80 of file position-allocator.h.
