Header for the LLC/SNAP encapsulation. More...

#include <llc-snap-header.h>

Inheritance diagram for ns3::LlcSnapHeader:

Collaboration diagram for ns3::LlcSnapHeader:

Public Member Functions
	LlcSnapHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

virtual TypeId	GetInstanceTypeId (void) const

virtual uint32_t	GetSerializedSize (void) const

uint16_t	GetType (void)
	Return the Ethertype. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetType (uint16_t type)
	Set the Ethertype. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint16_t	m_etherType
	the Ethertype More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Header for the LLC/SNAP encapsulation.

Doxygen introspection did not find any typical Config paths.

For a list of EtherTypes, see http://www.iana.org/assignments/ieee-802-numbers/ieee-802-numbers.xhtml

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 42 of file llc-snap-header.h.

Constructor & Destructor Documentation

ns3::LlcSnapHeader::LlcSnapHeader ( )

Definition at line 32 of file llc-snap-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::LlcSnapHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 91 of file llc-snap-header.cc.

References GetSerializedSize(), m_etherType, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, ns3::Buffer::Iterator::ReadNtohU16(), and visualizer.core::start().

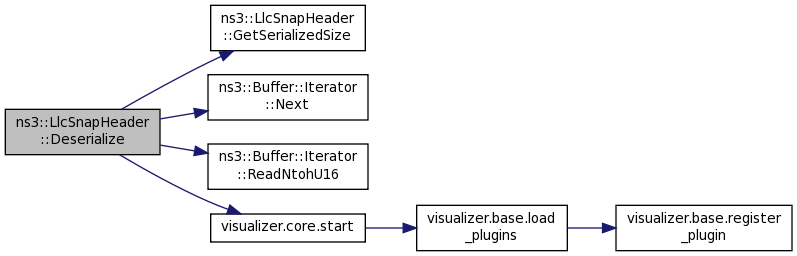

Here is the call graph for this function:

TypeId ns3::LlcSnapHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 67 of file llc-snap-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::LlcSnapHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 51 of file llc-snap-header.cc.

References ns3::LLC_SNAP_HEADER_LENGTH, and NS_LOG_FUNCTION.

Referenced by Deserialize(), ns3::TapBridge::Filter(), ns3::FdNetDevice::ForwardUp(), and ns3::EmuNetDevice::ForwardUp().

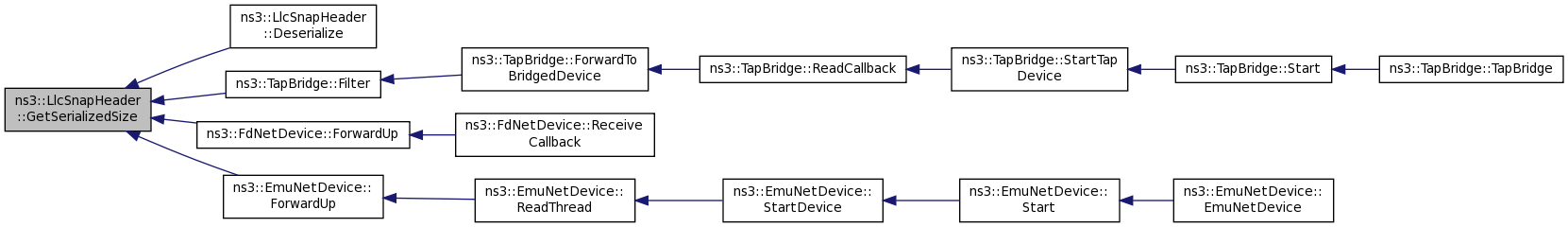

Here is the caller graph for this function:

uint16_t ns3::LlcSnapHeader::GetType ( void )

Return the Ethertype.

Returns: Ethertype

Definition at line 44 of file llc-snap-header.cc.

References m_etherType, and NS_LOG_FUNCTION.

Referenced by ns3::TapBridge::Filter(), ns3::WifiNetDevice::ForwardUp(), ns3::WimaxNetDevice::ForwardUp(), ns3::FdNetDevice::ForwardUp(), ns3::EmuNetDevice::ForwardUp(), and ns3::CsmaNetDevice::Receive().

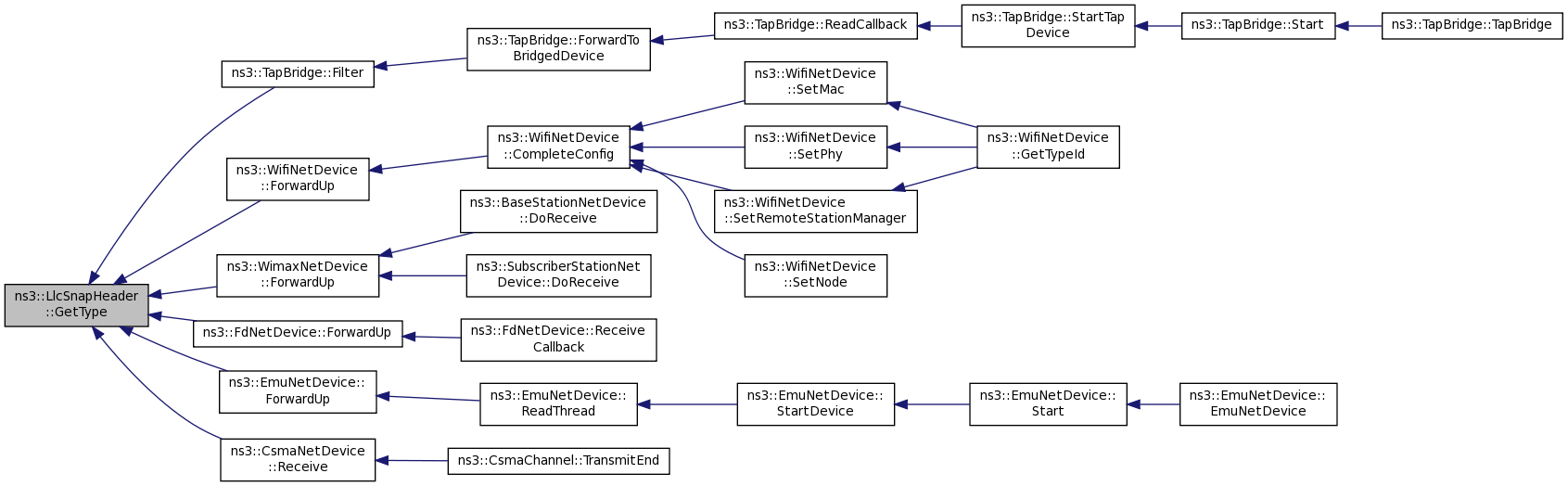

Here is the caller graph for this function:

TypeId ns3::LlcSnapHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 58 of file llc-snap-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LlcSnapHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 72 of file llc-snap-header.cc.

References m_etherType, and NS_LOG_FUNCTION.

void ns3::LlcSnapHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 82 of file llc-snap-header.cc.

References m_etherType, NS_LOG_FUNCTION, visualizer.core::start(), ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteHtonU16().

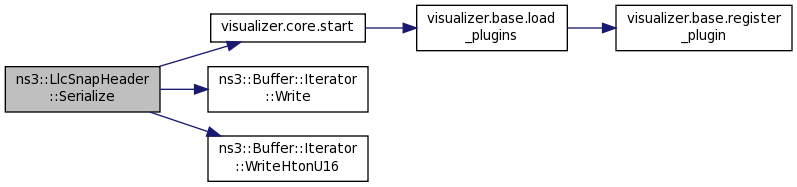

Here is the call graph for this function:
