ns3::LteRlcAm Class Reference

LTE RLC Acknowledged Mode (AM), see 3GPP TS 36.322. More...

#include <lte-rlc-am.h>

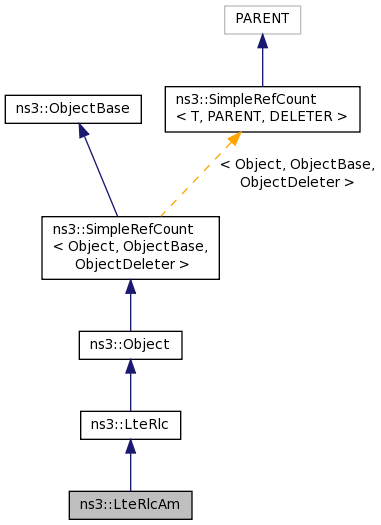

+ Inheritance diagram for ns3::LteRlcAm:

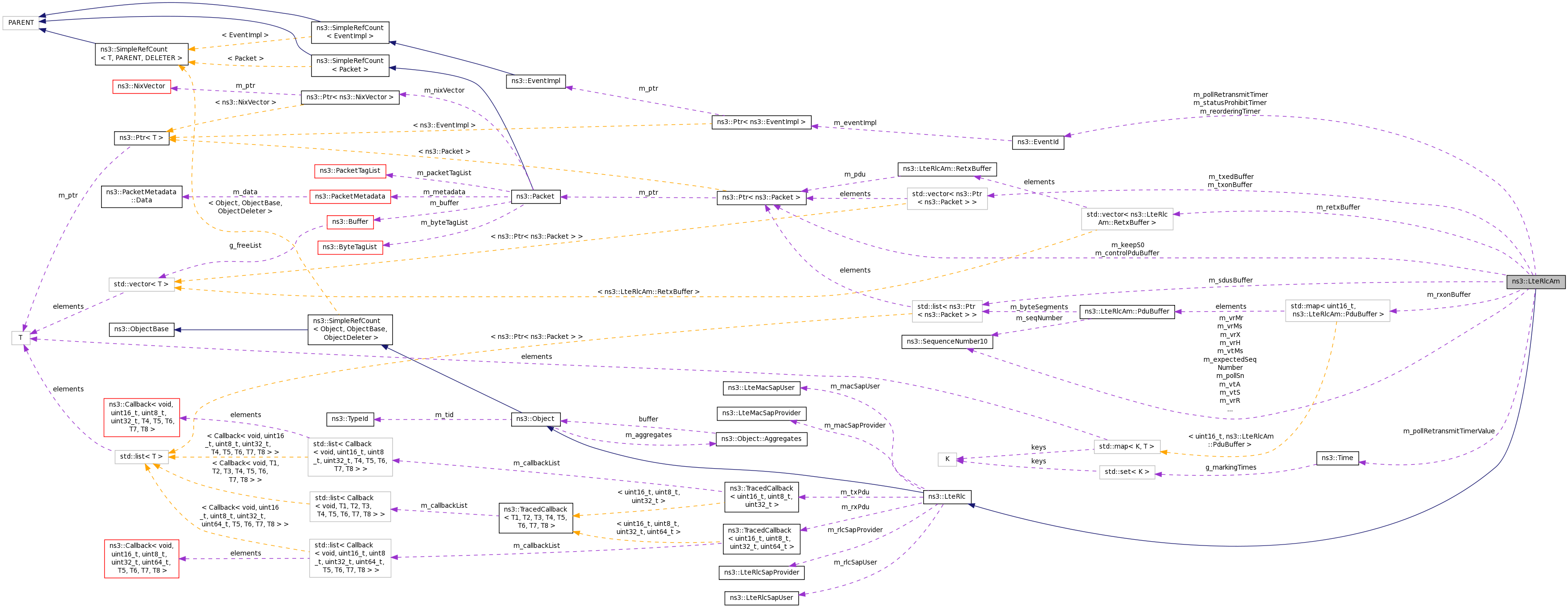

+ Collaboration diagram for ns3::LteRlcAm:

Classes

struct  PduBuffer

struct  RetxBuffer


Public Member Functions

 LteRlcAm ()

virtual ~LteRlcAm ()

virtual void DoDispose ()
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoNotifyHarqDeliveryFailure ()

virtual void DoNotifyTxOpportunity (uint32_t bytes, uint8_t layer, uint8_t harqId)
 MAC SAP. More...

virtual void DoReceivePdu (Ptr< Packet > p)

virtual void DoTransmitPdcpPdu (Ptr< Packet > p)
 RLC SAP. More...

- Public Member Functions inherited from ns3::LteRlc
 LteRlc ()

virtual ~LteRlc ()

LteMacSapUserGetLteMacSapUser ()

LteRlcSapProviderGetLteRlcSapProvider ()

void SetLcId (uint8_t lcId)

void SetLteMacSapProvider (LteMacSapProvider *s)

void SetLteRlcSapUser (LteRlcSapUser *s)

void SetRnti (uint16_t rnti)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::LteRlc
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Types

enum  ReassemblingState_t { NONE = 0, WAITING_S0_FULL = 1, WAITING_SI_SF = 2 }
 SDU Reassembling state. More...


Private Member Functions

void DoReportBufferStatus ()

void ExpirePollRetransmitTimer (void)

void ExpireReorderingTimer (void)
 This method will schedule a timeout at WaitReplyTimeout interval in the future, unless a timer is already running for the cache, in which case this method does nothing. More...

bool IsInsideReceivingWindow (SequenceNumber10 seqNumber)

void ReassembleAndDeliver (Ptr< Packet > packet)


Private Attributes

uint32_t m_byteWithoutPoll

Ptr< Packetm_controlPduBuffer

SequenceNumber10 m_expectedSeqNumber
 Expected Sequence Number. More...

Ptr< Packetm_keepS0

uint16_t m_maxRetxThreshold
 Configurable parameters. More...

uint32_t m_pduWithoutPoll
 Counters. More...

uint16_t m_pollByte

uint16_t m_pollPdu

EventId m_pollRetransmitTimer
 Timers. More...

Time m_pollRetransmitTimerValue

SequenceNumber10 m_pollSn

ReassemblingState_t m_reassemblingState

EventId m_reorderingTimer

std::vector< RetxBufferm_retxBuffer

uint32_t m_retxBufferSize

std::map< uint16_t, PduBufferm_rxonBuffer

std::list< Ptr< Packet > > m_sdusBuffer

uint32_t m_statusPduBufferSize

bool m_statusPduRequested

EventId m_statusProhibitTimer

std::vector< Ptr< Packet > > m_txedBuffer

uint32_t m_txedBufferSize

std::vector< Ptr< Packet > > m_txonBuffer

uint32_t m_txonBufferSize

bool m_txOpportunityForRetxAlwaysBigEnough

SequenceNumber10 m_vrH

SequenceNumber10 m_vrMr

SequenceNumber10 m_vrMs

SequenceNumber10 m_vrR

SequenceNumber10 m_vrX

SequenceNumber10 m_vtA
 State variables. More...

SequenceNumber10 m_vtMs

SequenceNumber10 m_vtS

uint16_t m_windowSize
 Constants. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...

- Protected Attributes inherited from ns3::LteRlc
uint8_t m_lcid

LteMacSapProviderm_macSapProvider

LteMacSapUserm_macSapUser

LteRlcSapProviderm_rlcSapProvider

LteRlcSapUserm_rlcSapUser

uint16_t m_rnti

TracedCallback< uint16_t,
uint8_t, uint32_t, uint64_t >
m_rxPdu
 Used to inform of a PDU reception from the MAC SAP user. More...

TracedCallback< uint16_t,
uint8_t, uint32_t >
m_txPdu
 Used to inform of a PDU delivery to the MAC SAP provider. More...


Detailed Description

LTE RLC Acknowledged Mode (AM), see 3GPP TS 36.322.

Config Paths

ns3::LteRlcAm is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb0/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb1/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb0/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb1/LteRlc/$ns3::LteRlcAm

Attributes

  • PollRetransmitTimer: Value of the t-PollRetransmit (See section 7.3 of 3GPP TS 36.322)
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +100000000.0ns
    • Flags: construct write read
  • TxOpportunityForRetxAlwaysBigEnough: If true, always pretend that the size of a TxOpportunity is big enough for retransmission. If false (default and realistic behavior), no retx is performed unless the corresponding TxOpportunity is big enough.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::LteRlc

  • TxPDU: PDU transmission notified to the MAC.
  • RxPDU: PDU received.

Definition at line 36 of file lte-rlc-am.h.

Member Enumeration Documentation

SDU Reassembling state.

Enumerator
NONE
WAITING_S0_FULL
WAITING_SI_SF

Definition at line 159 of file lte-rlc-am.h.

Constructor & Destructor Documentation

ns3::LteRlcAm::~LteRlcAm ( )
virtual

Definition at line 80 of file lte-rlc-am.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteRlcAm::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::LteRlc.

Definition at line 109 of file lte-rlc-am.cc.

References ns3::EventId::Cancel(), ns3::LteRlc::DoDispose(), m_controlPduBuffer, m_keepS0, m_pollRetransmitTimer, m_reorderingTimer, m_retxBuffer, m_retxBufferSize, m_rxonBuffer, m_sdusBuffer, m_statusProhibitTimer, m_txedBuffer, m_txedBufferSize, m_txonBuffer, m_txonBufferSize, and NS_LOG_FUNCTION.

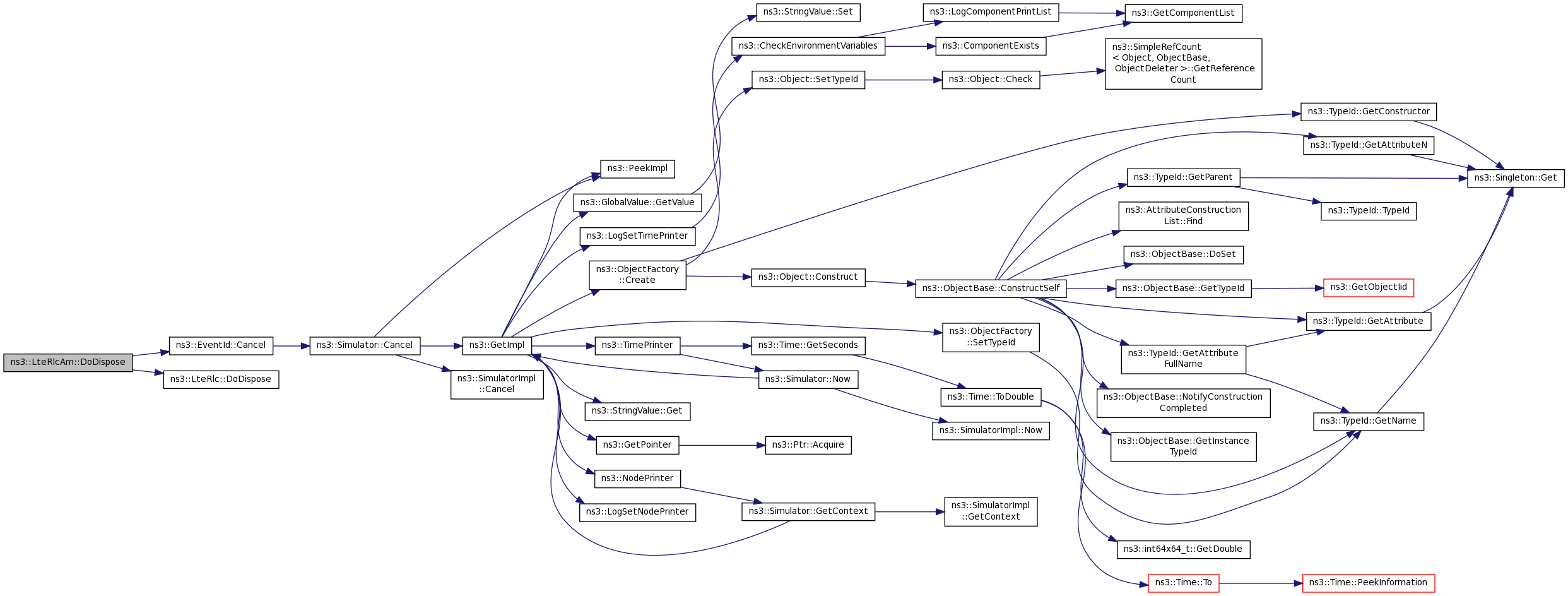

+ Here is the call graph for this function:

void ns3::LteRlcAm::DoNotifyHarqDeliveryFailure ( )
virtual

Implements ns3::LteRlc.

Definition at line 622 of file lte-rlc-am.cc.

References NS_LOG_FUNCTION.

void ns3::LteRlcAm::DoNotifyTxOpportunity ( uint32_t  bytes,
uint8_t  layer,
uint8_t  harqId
)
virtual

MAC SAP.

Implements ns3::LteRlc.

Definition at line 167 of file lte-rlc-am.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddByteTag(), ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::EventId::Cancel(), ns3::Packet::Copy(), ns3::Packet::CreateFragment(), ns3::LteRlcAmHeader::DATA_FIELD_FOLLOWS, ns3::LteRlcAmHeader::E_LI_FIELDS_FOLLOWS, ExpirePollRetransmitTimer(), ns3::LteRlcAmHeader::FIRST_BYTE, ns3::LteRlcSduStatusTag::FIRST_SEGMENT, ns3::LteRlcSduStatusTag::FULL_SDU, ns3::Packet::GetSize(), ns3::LteRlcSduStatusTag::GetStatus(), ns3::SequenceNumber10::GetValue(), ns3::LteMacSapProvider::TransmitPduParameters::harqProcessId, ns3::EventId::IsRunning(), ns3::LteRlcAmHeader::LAST_BYTE, ns3::LteRlcAmHeader::LAST_PDU_SEGMENT, ns3::LteRlcSduStatusTag::LAST_SEGMENT, ns3::LteMacSapProvider::TransmitPduParameters::layer, ns3::LteMacSapProvider::TransmitPduParameters::lcid, m_byteWithoutPoll, ns3::LteRlc::m_lcid, ns3::LteRlc::m_macSapProvider, m_pduWithoutPoll, m_pollByte, m_pollPdu, m_pollRetransmitTimer, m_pollRetransmitTimerValue, m_pollSn, m_retxBuffer, m_retxBufferSize, ns3::LteRlc::m_rnti, m_statusPduBufferSize, m_statusPduRequested, m_statusProhibitTimer, m_txedBuffer, m_txedBufferSize, m_txonBuffer, m_txonBufferSize, m_txOpportunityForRetxAlwaysBigEnough, ns3::LteRlc::m_txPdu, m_vrR, m_vtA, m_vtMs, m_vtS, ns3::LteRlcSduStatusTag::MIDDLE_SEGMENT, ns3::LteRlcAmHeader::NO_FIRST_BYTE, ns3::LteRlcAmHeader::NO_LAST_BYTE, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::LteMacSapProvider::TransmitPduParameters::pdu, ns3::LteRlcAmHeader::PDU, ns3::Packet::PeekHeader(), ns3::Packet::RemoveAtStart(), ns3::Packet::RemovePacketTag(), ns3::LteMacSapProvider::TransmitPduParameters::rnti, ns3::Simulator::Schedule(), ns3::LteRlcAmHeader::SetControlPdu(), ns3::LteRlcAmHeader::SetDataPdu(), ns3::LteRlcAmHeader::STATUS_PDU, ns3::LteRlcAmHeader::STATUS_REPORT_IS_REQUESTED, ns3::LteRlcAmHeader::STATUS_REPORT_NOT_REQUESTED, and ns3::LteMacSapProvider::TransmitPdu().

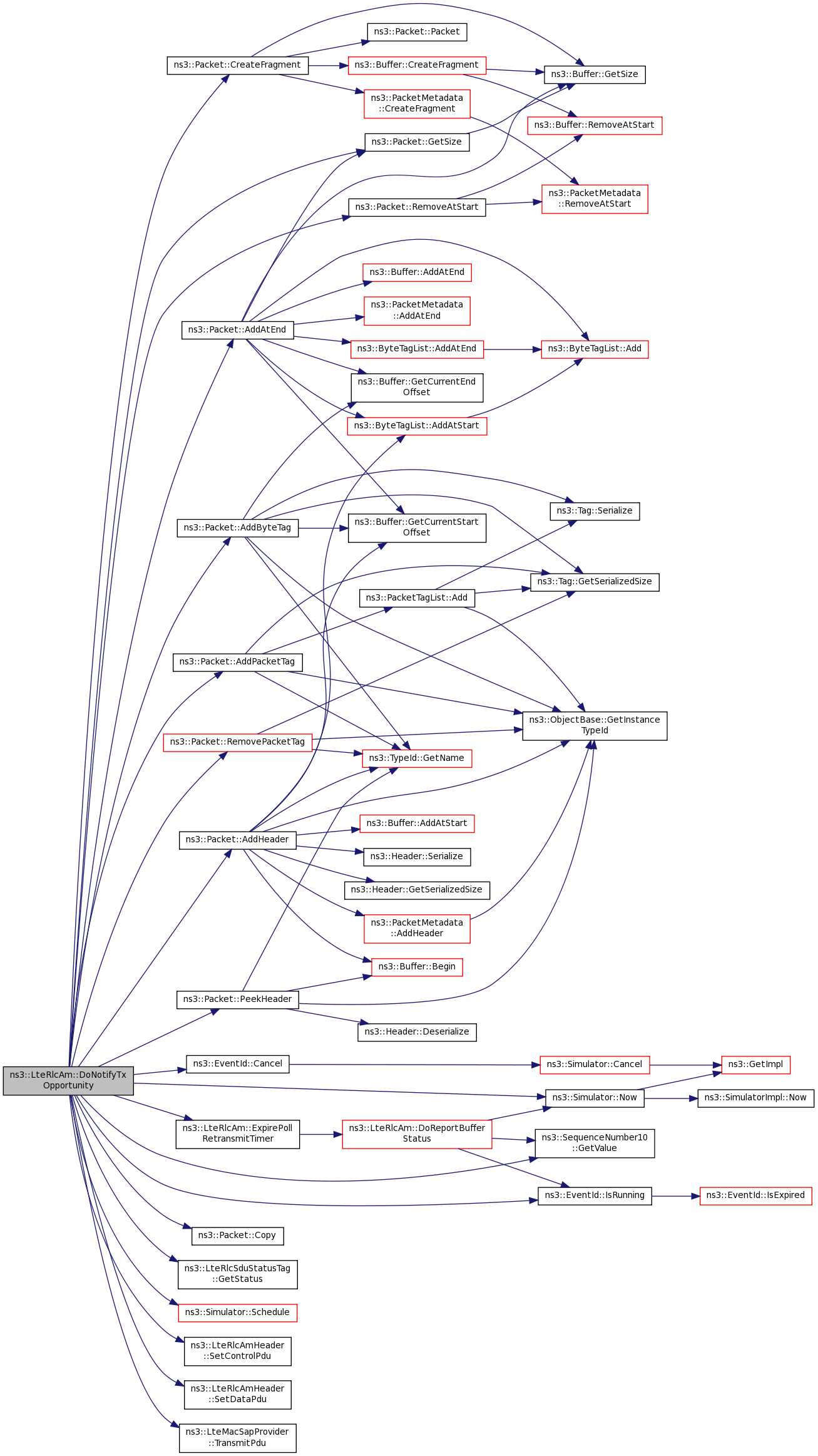

+ Here is the call graph for this function:

void ns3::LteRlcAm::DoTransmitPdcpPdu ( Ptr< Packet p)
virtual
void ns3::LteRlcAm::ExpirePollRetransmitTimer ( void  )
private

Definition at line 1654 of file lte-rlc-am.cc.

References DoReportBufferStatus(), m_retxBufferSize, m_statusPduRequested, m_txedBufferSize, m_txonBufferSize, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by DoNotifyTxOpportunity().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteRlcAm::ExpireReorderingTimer ( void  )
private

This method will schedule a timeout at WaitReplyTimeout interval in the future, unless a timer is already running for the cache, in which case this method does nothing.

Definition at line 1617 of file lte-rlc-am.cc.

References ns3::SequenceNumber10::GetValue(), m_reorderingTimer, m_rxonBuffer, m_vrH, m_vrMs, m_vrX, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Simulator::Schedule().

Referenced by DoReceivePdu().

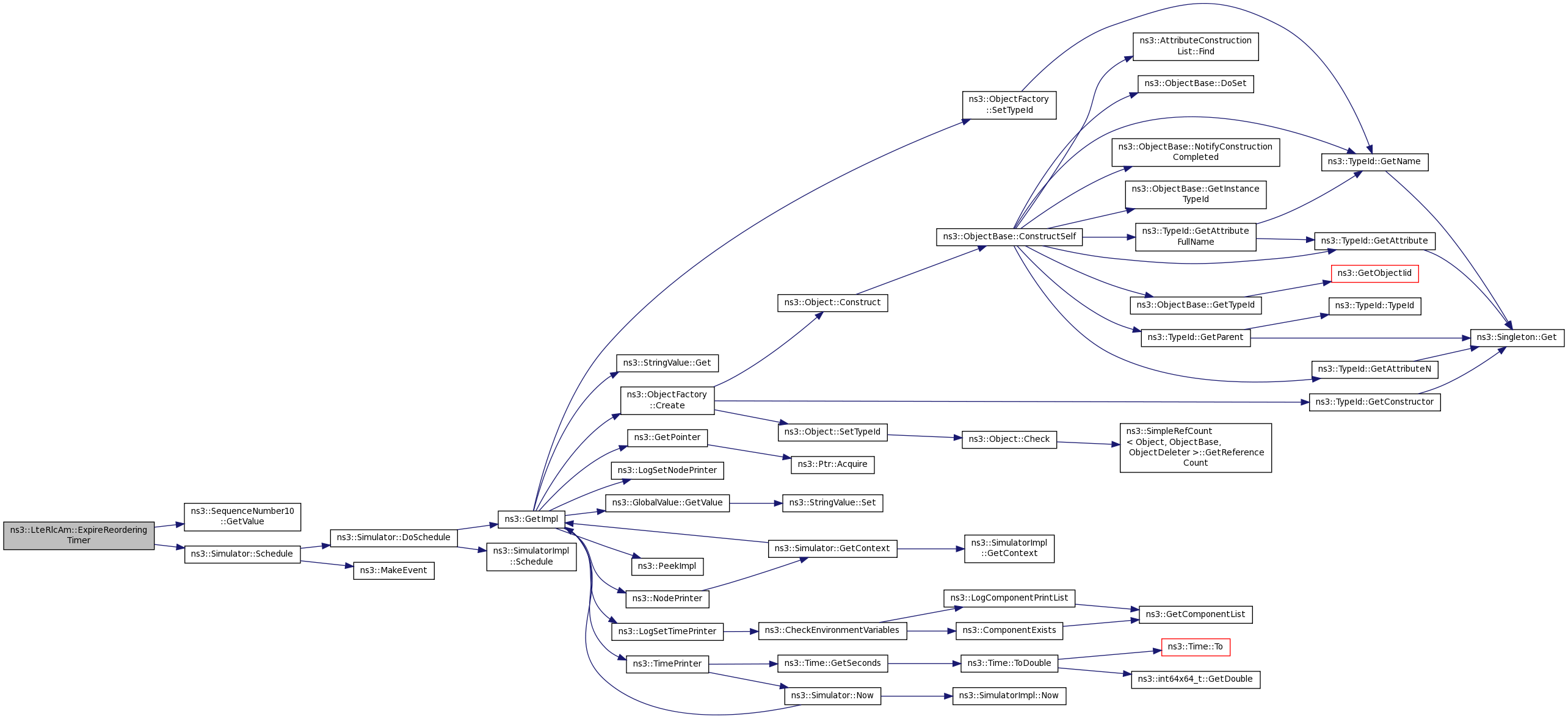

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

TypeId ns3::LteRlcAm::GetTypeId ( void  )
static

Definition at line 86 of file lte-rlc-am.cc.

References m_pollRetransmitTimerValue, m_txOpportunityForRetxAlwaysBigEnough, ns3::MakeTimeChecker(), and ns3::TypeId::SetParent().

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), ns3::LteEnbRrc::GetRlcType(), and ns3::UeManager::SetupDataRadioBearer().

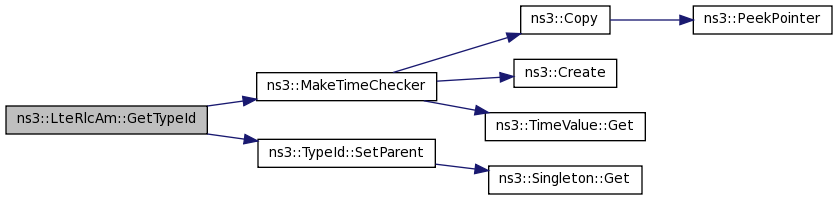

+ Here is the call graph for this function:

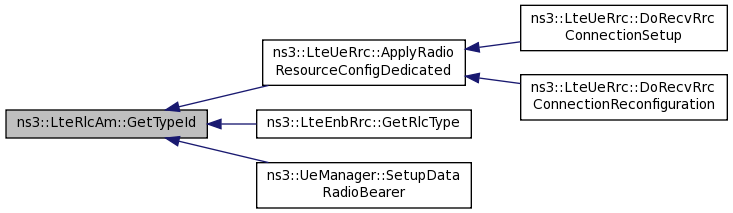

+ Here is the caller graph for this function:

bool ns3::LteRlcAm::IsInsideReceivingWindow ( SequenceNumber10  seqNumber)
private

Definition at line 1055 of file lte-rlc-am.cc.

References m_vrMr, m_vrR, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::SequenceNumber10::SetModulusBase().

Referenced by DoReceivePdu().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteRlcAm::ReassembleAndDeliver ( Ptr< Packet packet)
private
Todo:
What to do in this case? Discard packet and continue? Or Assert?

Deliver one or multiple PDUs

Deliver full PDUs

Keep S0

ERROR: Transition not possible

Deliver (Kept)S0 + SN

Deliver zero, one or multiple PDUs

Keep SI

Deliver (Kept)S0 + SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Deliver one or multiple PDUs

Deliver full PDUs

Keep S0

Discard SN

Deliver zero, one or multiple PDUs

Discard SI or SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Discard S0

Deliver one or multiple PDUs

Discard S0

Deliver zero, one or multiple PDUs

Keep S0

Discard S0

Discard SI or SN

Deliver zero, one or multiple PDUs

Discard S0

Discard SI or SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Definition at line 1079 of file lte-rlc-am.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::CreateFragment(), ns3::LteRlcAmHeader::FIRST_BYTE, ns3::LteRlcAmHeader::GetFramingInfo(), ns3::LteRlcAmHeader::GetSequenceNumber(), ns3::Packet::GetSize(), ns3::LteRlcAmHeader::LAST_BYTE, m_expectedSeqNumber, m_keepS0, m_reassemblingState, ns3::LteRlc::m_rlcSapUser, m_sdusBuffer, ns3::LteRlcAmHeader::NO_FIRST_BYTE, ns3::LteRlcAmHeader::NO_LAST_BYTE, NS_LOG_LOGIC, ns3::LteRlcAmHeader::PopExtensionBit(), ns3::LteRlcAmHeader::PopLengthIndicator(), ns3::LteRlcSapUser::ReceivePdcpPdu(), ns3::Packet::RemoveAtStart(), ns3::Packet::RemoveHeader(), WAITING_S0_FULL, and WAITING_SI_SF.

Referenced by DoReceivePdu().

+ Here is the call graph for this function:

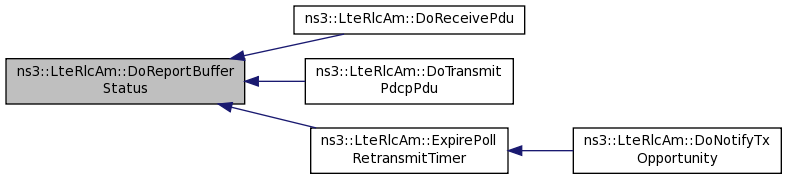

+ Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::LteRlcAm::m_byteWithoutPoll
private

Definition at line 132 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and LteRlcAm().

Ptr<Packet> ns3::LteRlcAm::m_controlPduBuffer
private

Definition at line 105 of file lte-rlc-am.h.

Referenced by DoDispose().

SequenceNumber10 ns3::LteRlcAm::m_expectedSeqNumber
private

Expected Sequence Number.

Definition at line 168 of file lte-rlc-am.h.

Referenced by LteRlcAm(), and ReassembleAndDeliver().

Ptr<Packet> ns3::LteRlcAm::m_keepS0
private

Definition at line 163 of file lte-rlc-am.h.

Referenced by DoDispose(), and ReassembleAndDeliver().

uint16_t ns3::LteRlcAm::m_maxRetxThreshold
private

Configurable parameters.

See section 7.4 in TS 36.322

Definition at line 150 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), and LteRlcAm().

uint32_t ns3::LteRlcAm::m_pduWithoutPoll
private

Counters.

See section 7.1 in TS 36.322

Definition at line 131 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and LteRlcAm().

uint16_t ns3::LteRlcAm::m_pollByte
private

Definition at line 152 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and LteRlcAm().

uint16_t ns3::LteRlcAm::m_pollPdu
private
Todo:
How these parameters are configured???

Definition at line 151 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and LteRlcAm().

EventId ns3::LteRlcAm::m_pollRetransmitTimer
private

Timers.

See section 7.3 in TS 36.322

Definition at line 142 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), and DoReceivePdu().

Time ns3::LteRlcAm::m_pollRetransmitTimerValue
private

Definition at line 143 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), GetTypeId(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_pollSn
private

Definition at line 119 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), and LteRlcAm().

ReassemblingState_t ns3::LteRlcAm::m_reassemblingState
private

Definition at line 162 of file lte-rlc-am.h.

Referenced by LteRlcAm(), and ReassembleAndDeliver().

EventId ns3::LteRlcAm::m_reorderingTimer
private

Definition at line 144 of file lte-rlc-am.h.

Referenced by DoDispose(), DoReceivePdu(), and ExpireReorderingTimer().

std::vector< RetxBuffer > ns3::LteRlcAm::m_retxBuffer
private
uint32_t ns3::LteRlcAm::m_retxBufferSize
private
std::map<uint16_t, PduBuffer > ns3::LteRlcAm::m_rxonBuffer
private

Definition at line 103 of file lte-rlc-am.h.

Referenced by DoDispose(), DoReceivePdu(), and ExpireReorderingTimer().

std::list< Ptr<Packet> > ns3::LteRlcAm::m_sdusBuffer
private

Definition at line 110 of file lte-rlc-am.h.

Referenced by DoDispose(), and ReassembleAndDeliver().

uint32_t ns3::LteRlcAm::m_statusPduBufferSize
private

Definition at line 91 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), and LteRlcAm().

bool ns3::LteRlcAm::m_statusPduRequested
private
EventId ns3::LteRlcAm::m_statusProhibitTimer
private

Definition at line 145 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReceivePdu(), and DoReportBufferStatus().

std::vector< Ptr<Packet> > ns3::LteRlcAm::m_txedBuffer
private
uint32_t ns3::LteRlcAm::m_txedBufferSize
private
std::vector< Ptr<Packet> > ns3::LteRlcAm::m_txonBuffer
private
uint32_t ns3::LteRlcAm::m_txonBufferSize
private
bool ns3::LteRlcAm::m_txOpportunityForRetxAlwaysBigEnough
private

Definition at line 154 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and GetTypeId().

SequenceNumber10 ns3::LteRlcAm::m_vrH
private

Definition at line 126 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), ExpireReorderingTimer(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vrMr
private

Definition at line 123 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), IsInsideReceivingWindow(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vrMs
private

Definition at line 125 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), ExpireReorderingTimer(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vrR
private
SequenceNumber10 ns3::LteRlcAm::m_vrX
private

Definition at line 124 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), ExpireReorderingTimer(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vtA
private

State variables.

See section 7.1 in TS 36.322

Definition at line 116 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vtMs
private

Definition at line 117 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vtS
private

Definition at line 118 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), and LteRlcAm().

uint16_t ns3::LteRlcAm::m_windowSize
private

Constants.

See section 7.2 in TS 36.322

Definition at line 137 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), and LteRlcAm().


The documentation for this class was generated from the following files:
