ns3::LteSignalingRadioBearerInfo Class Reference

store information on active signaling radio bearer instance More...

#include <lte-radio-bearer-info.h>

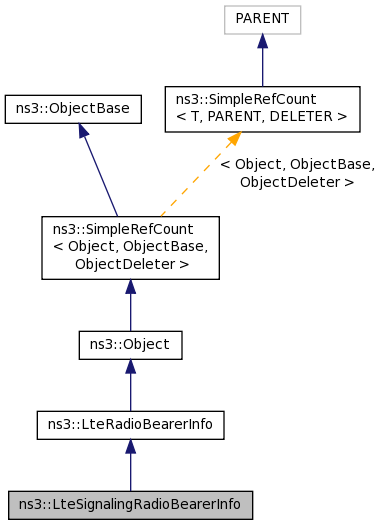

Inheritance diagram for ns3::LteSignalingRadioBearerInfo:

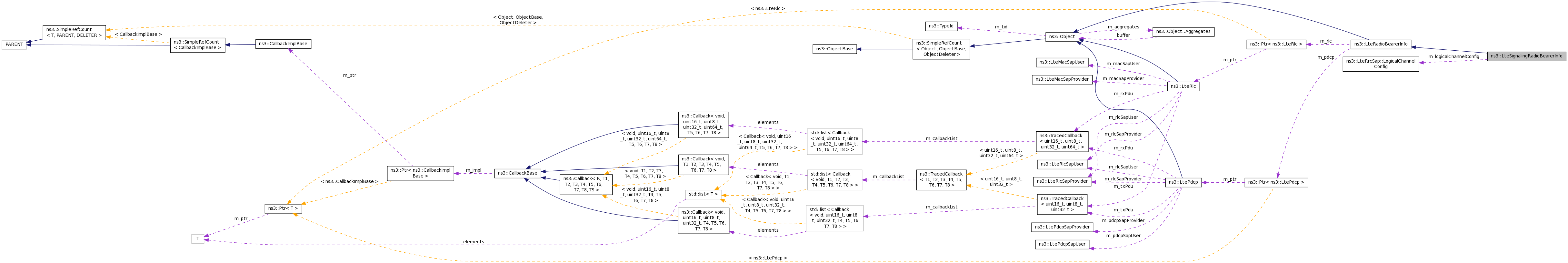

Collaboration diagram for ns3::LteSignalingRadioBearerInfo:

Static Public Member Functions
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::LteRadioBearerInfo
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...
Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Public Attributes
LteRrcSap::LogicalChannelConfig	m_logicalChannelConfig
uint8_t	m_srbIdentity
Public Attributes inherited from ns3::LteRadioBearerInfo
Ptr< LtePdcp >	m_pdcp
Ptr< LteRlc >	m_rlc

Additional Inherited Members
Public Member Functions inherited from ns3::LteRadioBearerInfo
	LteRadioBearerInfo (void)
virtual	~LteRadioBearerInfo (void)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...
virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...
virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

store information on active signaling radio bearer instance

Config Paths

ns3::LteSignalingRadioBearerInfo is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0
• /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1
• /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0
• /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1
• /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb0
• /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb1
• /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb0
• /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb1

Attributes

• SrbIdentity: The id of this Signaling Radio Bearer
  • Set with class: ns3::UintegerValue
  • Underlying type: uint8_t 0:255
  • Flags: read
• LteRlc: RLC instance of the radio bearer.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::LteRlc>
  • Initial value: 0
  • Flags: construct write read
• LtePdcp: PDCP instance of the radio bearer.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::LtePdcp>
  • Initial value: 0
  • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 56 of file lte-radio-bearer-info.h.

Member Function Documentation

TypeId ns3::LteSignalingRadioBearerInfo::GetTypeId ( void  )

static

Definition at line 92 of file lte-radio-bearer-info.cc.

References ns3::TypeId::ATTR_GET, ns3::LteRadioBearerInfo::m_pdcp, ns3::LteRadioBearerInfo::m_rlc, m_srbIdentity, and ns3::TypeId::SetParent().

Here is the call graph for this function:

Member Data Documentation

LteRrcSap::LogicalChannelConfig ns3::LteSignalingRadioBearerInfo::m_logicalChannelConfig

Definition at line 63 of file lte-radio-bearer-info.h.

uint8_t ns3::LteSignalingRadioBearerInfo::m_srbIdentity

Definition at line 62 of file lte-radio-bearer-info.h.

Referenced by GetTypeId().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-radio-bearer-info.h
• src/lte/model/lte-radio-bearer-info.cc
