ns3::LteUeRrcProtocolIdeal Class Reference

Models the transmission of RRC messages from the UE to the eNB in an ideal fashion, without errors and without consuming any radio resources. More...

#include <lte-rrc-protocol-ideal.h>

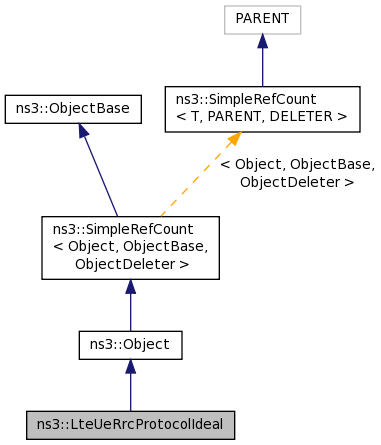

+ Inheritance diagram for ns3::LteUeRrcProtocolIdeal:

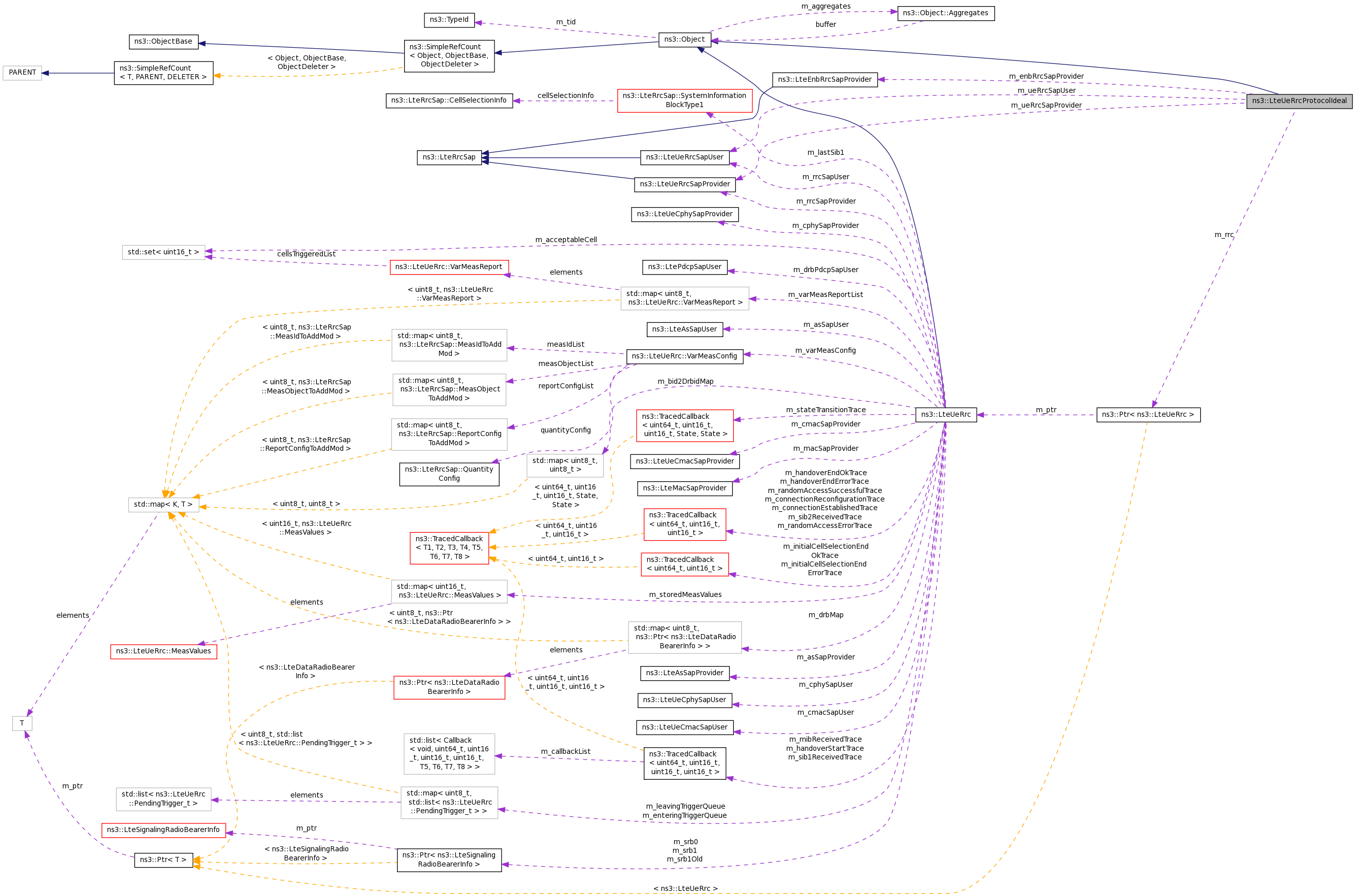

+ Collaboration diagram for ns3::LteUeRrcProtocolIdeal:

Public Member Functions

 LteUeRrcProtocolIdeal ()

virtual ~LteUeRrcProtocolIdeal ()

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

LteUeRrcSapUserGetLteUeRrcSapUser ()

void SetLteUeRrcSapProvider (LteUeRrcSapProvider *p)

void SetUeRrc (Ptr< LteUeRrc > rrc)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

void DoSendMeasurementReport (LteRrcSap::MeasurementReport msg)

void DoSendRrcConnectionReconfigurationCompleted (LteRrcSap::RrcConnectionReconfigurationCompleted msg)

void DoSendRrcConnectionReestablishmentComplete (LteRrcSap::RrcConnectionReestablishmentComplete msg)

void DoSendRrcConnectionReestablishmentRequest (LteRrcSap::RrcConnectionReestablishmentRequest msg)

void DoSendRrcConnectionRequest (LteRrcSap::RrcConnectionRequest msg)

void DoSendRrcConnectionSetupCompleted (LteRrcSap::RrcConnectionSetupCompleted msg)

void DoSetup (LteUeRrcSapUser::SetupParameters params)

void SetEnbRrcSapProvider ()


Private Attributes

LteEnbRrcSapProviderm_enbRrcSapProvider

uint16_t m_rnti

Ptr< LteUeRrcm_rrc

LteUeRrcSapProviderm_ueRrcSapProvider

LteUeRrcSapUserm_ueRrcSapUser


Friends

class MemberLteUeRrcSapUser< LteUeRrcProtocolIdeal >


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Models the transmission of RRC messages from the UE to the eNB in an ideal fashion, without errors and without consuming any radio resources.

Doxygen introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 46 of file lte-rrc-protocol-ideal.h.

Constructor & Destructor Documentation

ns3::LteUeRrcProtocolIdeal::LteUeRrcProtocolIdeal ( )

Definition at line 44 of file lte-rrc-protocol-ideal.cc.

References m_ueRrcSapUser.

ns3::LteUeRrcProtocolIdeal::~LteUeRrcProtocolIdeal ( )
virtual

Definition at line 51 of file lte-rrc-protocol-ideal.cc.

Member Function Documentation

void ns3::LteUeRrcProtocolIdeal::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 56 of file lte-rrc-protocol-ideal.cc.

References m_rrc, m_ueRrcSapUser, and NS_LOG_FUNCTION.

void ns3::LteUeRrcProtocolIdeal::DoSendMeasurementReport ( LteRrcSap::MeasurementReport  msg)
private
void ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReconfigurationCompleted ( LteRrcSap::RrcConnectionReconfigurationCompleted  msg)
private
void ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReestablishmentComplete ( LteRrcSap::RrcConnectionReestablishmentComplete  msg)
private
void ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReestablishmentRequest ( LteRrcSap::RrcConnectionReestablishmentRequest  msg)
private
void ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionRequest ( LteRrcSap::RrcConnectionRequest  msg)
private
void ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionSetupCompleted ( LteRrcSap::RrcConnectionSetupCompleted  msg)
private
void ns3::LteUeRrcProtocolIdeal::DoSetup ( LteUeRrcSapUser::SetupParameters  params)
private

Definition at line 92 of file lte-rrc-protocol-ideal.cc.

References NS_LOG_FUNCTION.

LteUeRrcSapUser * ns3::LteUeRrcProtocolIdeal::GetLteUeRrcSapUser ( )

Definition at line 80 of file lte-rrc-protocol-ideal.cc.

References m_ueRrcSapUser.

TypeId ns3::LteUeRrcProtocolIdeal::GetTypeId ( void  )
static

Definition at line 64 of file lte-rrc-protocol-ideal.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

void ns3::LteUeRrcProtocolIdeal::SetEnbRrcSapProvider ( )
private
void ns3::LteUeRrcProtocolIdeal::SetLteUeRrcSapProvider ( LteUeRrcSapProvider p)

Definition at line 74 of file lte-rrc-protocol-ideal.cc.

References m_ueRrcSapProvider.

void ns3::LteUeRrcProtocolIdeal::SetUeRrc ( Ptr< LteUeRrc rrc)

Definition at line 86 of file lte-rrc-protocol-ideal.cc.

References m_rrc.

Friends And Related Function Documentation

Definition at line 48 of file lte-rrc-protocol-ideal.h.

Member Data Documentation

Ptr<LteUeRrc> ns3::LteUeRrcProtocolIdeal::m_rrc
private
LteUeRrcSapProvider* ns3::LteUeRrcProtocolIdeal::m_ueRrcSapProvider
private

Definition at line 80 of file lte-rrc-protocol-ideal.h.

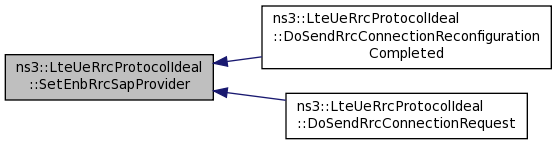

Referenced by SetEnbRrcSapProvider(), and SetLteUeRrcSapProvider().

LteUeRrcSapUser* ns3::LteUeRrcProtocolIdeal::m_ueRrcSapUser
private

Definition at line 81 of file lte-rrc-protocol-ideal.h.

Referenced by DoDispose(), GetLteUeRrcSapUser(), and LteUeRrcProtocolIdeal().


The documentation for this class was generated from the following files:
