ns3::MapScheduler Class Reference

a std::map event scheduler More...

#include <map-scheduler.h>

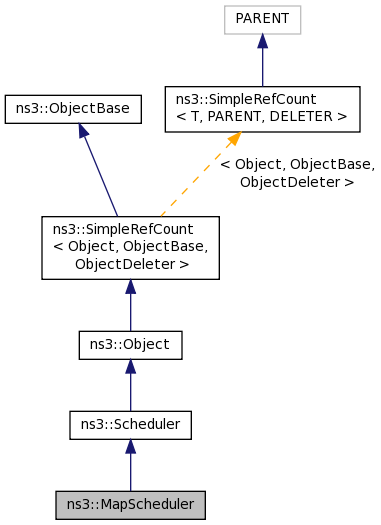

+ Inheritance diagram for ns3::MapScheduler:

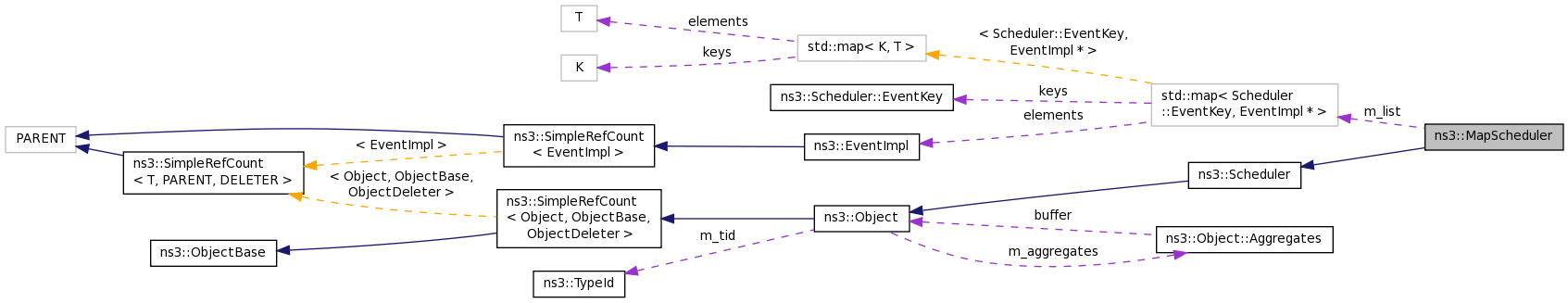

+ Collaboration diagram for ns3::MapScheduler:

Public Member Functions

 MapScheduler ()

virtual ~MapScheduler ()

virtual void Insert (const Event &ev)

virtual bool IsEmpty (void) const

virtual Event PeekNext (void) const

virtual void Remove (const Event &ev)

virtual Event RemoveNext (void)
 This method cannot be invoked if the list is empty. More...

- Public Member Functions inherited from ns3::Scheduler
virtual ~Scheduler ()=0

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Scheduler
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Types

typedef std::map
< Scheduler::EventKey,
EventImpl * >
EventMap

typedef std::map
< Scheduler::EventKey,
EventImpl * >::const_iterator
EventMapCI

typedef std::map
< Scheduler::EventKey,
EventImpl * >::iterator
EventMapI


Private Attributes

EventMap m_list


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

a std::map event scheduler

Doxygen introspection did not find any typical Config paths.

This class implements the an event scheduler using an std::map data structure.


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 38 of file map-scheduler.h.

Member Typedef Documentation

Definition at line 52 of file map-scheduler.h.

typedef std::map<Scheduler::EventKey, EventImpl*>::const_iterator ns3::MapScheduler::EventMapCI
private

Definition at line 54 of file map-scheduler.h.

typedef std::map<Scheduler::EventKey, EventImpl*>::iterator ns3::MapScheduler::EventMapI
private

Definition at line 53 of file map-scheduler.h.

Constructor & Destructor Documentation

ns3::MapScheduler::MapScheduler ( )

Definition at line 44 of file map-scheduler.cc.

References NS_LOG_FUNCTION.

ns3::MapScheduler::~MapScheduler ( )
virtual

Definition at line 48 of file map-scheduler.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

TypeId ns3::MapScheduler::GetTypeId ( void  )
static

Definition at line 35 of file map-scheduler.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

void ns3::MapScheduler::Insert ( const Event ev)
virtual
Parameters
evevent to store in the event list

Implements ns3::Scheduler.

Definition at line 54 of file map-scheduler.cc.

References ns3::Scheduler::Event::impl, ns3::Scheduler::Event::key, m_list, ns3::Scheduler::EventKey::m_ts, ns3::Scheduler::EventKey::m_uid, NS_ASSERT, and NS_LOG_FUNCTION.

bool ns3::MapScheduler::IsEmpty ( void  ) const
virtual
Returns
true if the event list is empty and false otherwise.

Implements ns3::Scheduler.

Definition at line 63 of file map-scheduler.cc.

References m_list, and NS_LOG_FUNCTION.

Scheduler::Event ns3::MapScheduler::PeekNext ( void  ) const
virtual
Returns
a pointer to the next earliest event. The caller takes ownership of the returned pointer.

This method cannot be invoked if the list is empty.

Implements ns3::Scheduler.

Definition at line 70 of file map-scheduler.cc.

References ns3::Scheduler::Event::impl, m_list, NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

void ns3::MapScheduler::Remove ( const Event ev)
virtual
Parameters
evthe event to remove

This methods cannot be invoked if the list is empty.

Implements ns3::Scheduler.

Definition at line 97 of file map-scheduler.cc.

References ns3::Scheduler::Event::impl, ns3::Scheduler::Event::key, m_list, ns3::Scheduler::EventKey::m_ts, ns3::Scheduler::EventKey::m_uid, NS_ASSERT, and NS_LOG_FUNCTION.

Scheduler::Event ns3::MapScheduler::RemoveNext ( void  )
virtual

This method cannot be invoked if the list is empty.

Remove the next earliest event from the event list.

Implements ns3::Scheduler.

Definition at line 83 of file map-scheduler.cc.

References ns3::Scheduler::Event::impl, m_list, NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Member Data Documentation

EventMap ns3::MapScheduler::m_list
private

Definition at line 57 of file map-scheduler.h.

Referenced by Insert(), IsEmpty(), PeekNext(), Remove(), and RemoveNext().


The documentation for this class was generated from the following files:
