Handover algorithm implementation which simply does nothing. More...

#include <no-op-handover-algorithm.h>

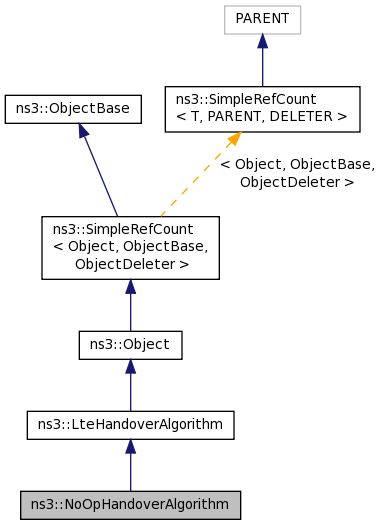

Inheritance diagram for ns3::NoOpHandoverAlgorithm:

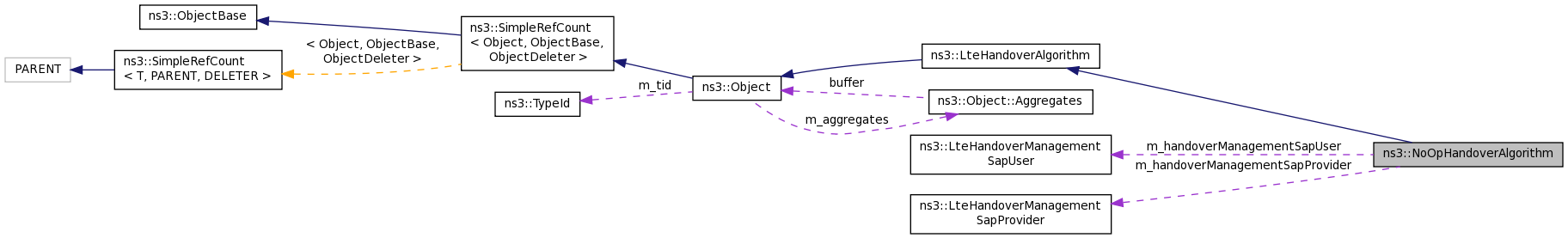

Collaboration diagram for ns3::NoOpHandoverAlgorithm:

Public Member Functions
	NoOpHandoverAlgorithm ()
	Creates a No-op handover algorithm instance. More...

virtual	~NoOpHandoverAlgorithm ()

virtual LteHandoverManagementSapProvider *	GetLteHandoverManagementSapProvider ()
	Export the "provider" part of the Handover Management SAP interface. More...

virtual void	SetLteHandoverManagementSapUser (LteHandoverManagementSapUser *s)
	Set the "user" part of the Handover Management SAP interface that this handover algorithm instance will interact with. More...

Public Member Functions inherited from ns3::LteHandoverAlgorithm
	LteHandoverAlgorithm ()

virtual	~LteHandoverAlgorithm ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::LteHandoverAlgorithm
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize ()
	This method is called only once by Object::Initialize. More...

void	DoReportUeMeas (uint16_t rnti, LteRrcSap::MeasResults measResults)
	Implementation of LteHandoverManagementSapProvider::ReportUeMeas. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Attributes
LteHandoverManagementSapProvider *	m_handoverManagementSapProvider

LteHandoverManagementSapUser *	m_handoverManagementSapUser

Friends
class	MemberLteHandoverManagementSapProvider< NoOpHandoverAlgorithm >

Detailed Description

Handover algorithm implementation which simply does nothing.

Selecting this handover algorithm is equivalent to disabling automatic triggering of handover. This is the default choice.

To enable automatic handover, please select another handover algorithm, i.e., another child class of LteHandoverAlgorithm.

Config Paths

ns3::NoOpHandoverAlgorithm is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteHandoverAlgorithm/$ns3::NoOpHandoverAlgorithm
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteHandoverAlgorithm/$ns3::NoOpHandoverAlgorithm

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 41 of file no-op-handover-algorithm.h.

Constructor & Destructor Documentation

ns3::NoOpHandoverAlgorithm::NoOpHandoverAlgorithm ( )

Creates a No-op handover algorithm instance.

Definition at line 32 of file no-op-handover-algorithm.cc.

References m_handoverManagementSapProvider, and NS_LOG_FUNCTION.

ns3::NoOpHandoverAlgorithm::~NoOpHandoverAlgorithm ( )

virtual

Definition at line 40 of file no-op-handover-algorithm.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::NoOpHandoverAlgorithm::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::LteHandoverAlgorithm.

Definition at line 47 of file no-op-handover-algorithm.cc.

References m_handoverManagementSapProvider, and NS_LOG_FUNCTION.

void ns3::NoOpHandoverAlgorithm::DoInitialize ( void )

protectedvirtual

This method is called only once by Object::Initialize.

If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 82 of file no-op-handover-algorithm.cc.

References ns3::Object::DoInitialize(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::NoOpHandoverAlgorithm::DoReportUeMeas	(	uint16_t	rnti,
		LteRrcSap::MeasResults	measResults
	)

protectedvirtual

Implementation of LteHandoverManagementSapProvider::ReportUeMeas.

Parameters

rnti	Radio Network Temporary Identity, an integer identifying the UE where the report originates from
measResults	a single report of one measurement identity

Implements ns3::LteHandoverAlgorithm.

Definition at line 90 of file no-op-handover-algorithm.cc.

References ns3::LteRrcSap::MeasResults::measId, and NS_LOG_FUNCTION.

LteHandoverManagementSapProvider * ns3::NoOpHandoverAlgorithm::GetLteHandoverManagementSapProvider ( )

virtual

Export the "provider" part of the Handover Management SAP interface.
