ns3::OhBuildingsPropagationLossModel Class Reference

this model combines the OkumuraHata model with the BuildingsPropagationLossModel More...

#include <oh-buildings-propagation-loss-model.h>

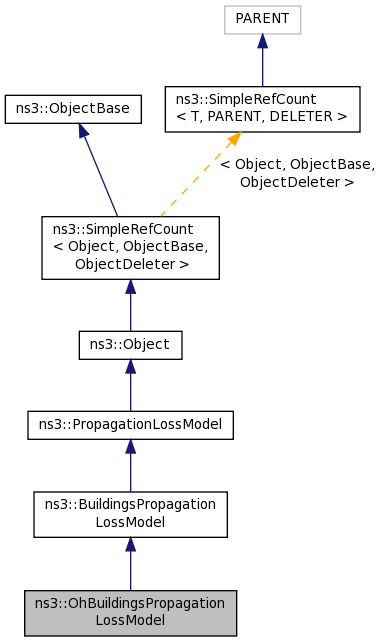

+ Inheritance diagram for ns3::OhBuildingsPropagationLossModel:

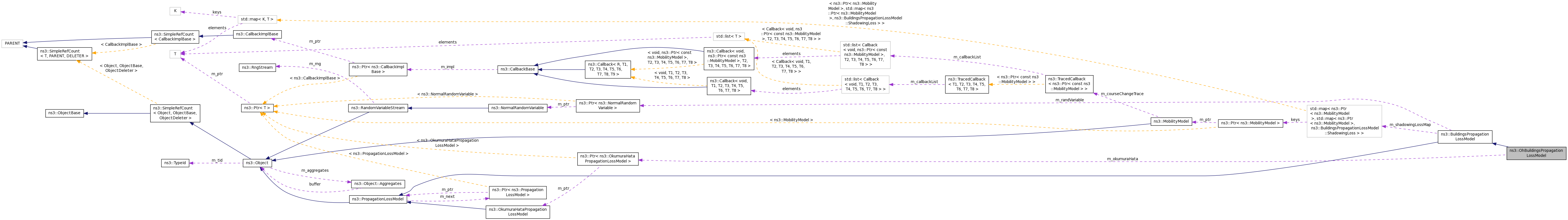

+ Collaboration diagram for ns3::OhBuildingsPropagationLossModel:

Public Member Functions

 OhBuildingsPropagationLossModel ()

 ~OhBuildingsPropagationLossModel ()

virtual double GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

- Public Member Functions inherited from ns3::BuildingsPropagationLossModel
 BuildingsPropagationLossModel ()

virtual double DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

- Public Member Functions inherited from ns3::PropagationLossModel
 PropagationLossModel ()

virtual ~PropagationLossModel ()

int64_t AssignStreams (int64_t stream)
 If this loss model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'. More...

double CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

Ptr< PropagationLossModelGetNext ()
 Gets the next PropagationLossModel in the chain of loss models that act on the signal. More...

void SetNext (Ptr< PropagationLossModel > next)
 Enables a chain of loss models to act on the signal. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::BuildingsPropagationLossModel
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::PropagationLossModel
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Ptr
< OkumuraHataPropagationLossModel
m_okumuraHata


Additional Inherited Members

- Protected Member Functions inherited from ns3::BuildingsPropagationLossModel
virtual int64_t DoAssignStreams (int64_t stream)
 Subclasses must implement this; those not using random variables can return zero. More...

double EvaluateSigma (Ptr< MobilityBuildingInfo > a, Ptr< MobilityBuildingInfo > b) const

double ExternalWallLoss (Ptr< MobilityBuildingInfo > a) const

double GetShadowing (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

double HeightLoss (Ptr< MobilityBuildingInfo > n) const

double InternalWallsLoss (Ptr< MobilityBuildingInfo > a, Ptr< MobilityBuildingInfo > b) const

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...

- Protected Attributes inherited from ns3::BuildingsPropagationLossModel
double m_lossInternalWall

Ptr< NormalRandomVariablem_randVariable

std::map< Ptr< MobilityModel >
, std::map< Ptr< MobilityModel >
, ShadowingLoss > >
m_shadowingLossMap

double m_shadowingSigmaExtWalls

double m_shadowingSigmaIndoor

double m_shadowingSigmaOutdoor


Detailed Description

this model combines the OkumuraHata model with the BuildingsPropagationLossModel

Warning
This model works with MobilityBuildingInfo only

Config Paths

ns3::OhBuildingsPropagationLossModel is accessible through the following paths with Config::Set and Config::Connect:

  • /ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::BuildingsPropagationLossModel/$ns3::OhBuildingsPropagationLossModel
  • /ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::OhBuildingsPropagationLossModel
  • /ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::BuildingsPropagationLossModel/$ns3::OhBuildingsPropagationLossModel
  • /ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::OhBuildingsPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::BuildingsPropagationLossModel/$ns3::OhBuildingsPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::OhBuildingsPropagationLossModel

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 39 of file oh-buildings-propagation-loss-model.h.

Constructor & Destructor Documentation

ns3::OhBuildingsPropagationLossModel::OhBuildingsPropagationLossModel ( )

Definition at line 42 of file oh-buildings-propagation-loss-model.cc.

References m_okumuraHata.

ns3::OhBuildingsPropagationLossModel::~OhBuildingsPropagationLossModel ( )

Definition at line 47 of file oh-buildings-propagation-loss-model.cc.

Member Function Documentation

double ns3::OhBuildingsPropagationLossModel::GetLoss ( Ptr< MobilityModel a,
Ptr< MobilityModel b
) const
virtual
Parameters
athe mobility model of the source
bthe mobility model of the destination
Returns
the propagation loss (in dBm)

Implements ns3::BuildingsPropagationLossModel.

Definition at line 65 of file oh-buildings-propagation-loss-model.cc.

References ns3::BuildingsPropagationLossModel::ExternalWallLoss(), ns3::Object::GetObject(), ns3::BuildingsPropagationLossModel::InternalWallsLoss(), m_okumuraHata, NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_INFO.

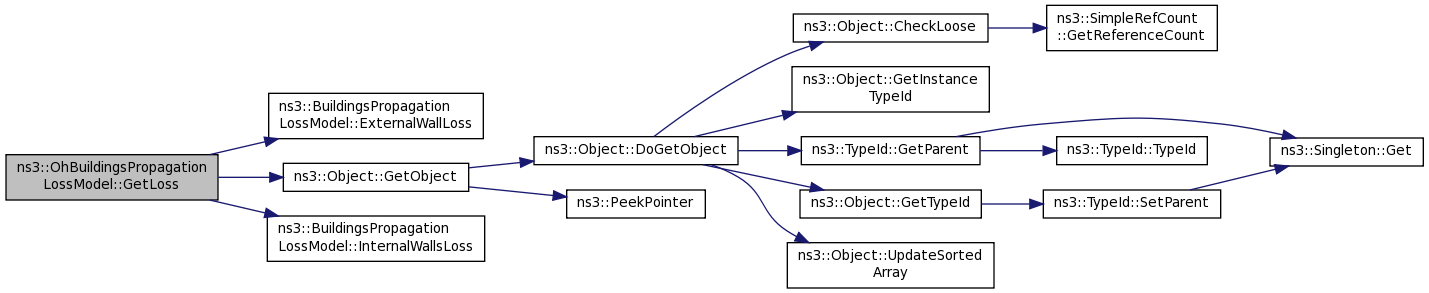

+ Here is the call graph for this function:

TypeId ns3::OhBuildingsPropagationLossModel::GetTypeId ( void  )
static

Definition at line 52 of file oh-buildings-propagation-loss-model.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

Member Data Documentation

Ptr<OkumuraHataPropagationLossModel> ns3::OhBuildingsPropagationLossModel::m_okumuraHata
private

The documentation for this class was generated from the following files:
