Outputs data in a format compatible with OMNeT library and framework. More...
#include <omnet-data-output.h>
Inheritance diagram for ns3::OmnetDataOutput: Collaboration diagram for ns3::OmnetDataOutput:Classes | |
| class | OmnetOutputCallback |
| Class to generate OMNeT output. More... | |
Public Member Functions | |
| OmnetDataOutput () | |
| virtual | ~OmnetDataOutput () |
| virtual void | Output (DataCollector &dc) |
| Outputs information from the provided DataCollector. More... | |
| Public Member Functions inherited from ns3::DataOutputInterface | |
| DataOutputInterface () | |
| virtual | ~DataOutputInterface () |
| std::string | GetFilePrefix () const |
| Gets the file prefix of the DataOutputInterface. More... | |
| void | SetFilePrefix (const std::string prefix) |
| Sets the DataOutputInterface prefix to the provided prefix. More... | |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| virtual | ~Object () |
| void | AggregateObject (Ptr< Object > other) |
| void | Dispose (void) |
| Run the DoDispose methods of this object and all the objects aggregated to it. More... | |
| AggregateIterator | GetAggregateIterator (void) const |
| virtual TypeId | GetInstanceTypeId (void) const |
| template<typename T > | |
| Ptr< T > | GetObject (void) const |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| void | Initialize (void) |
| This method calls the virtual DoInitialize method on all the objects aggregated to this object. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount (void) const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment. More... | |
| void | Ref (void) const |
| Increment the reference count. More... | |
| void | Unref (void) const |
| Decrement the reference count. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &attribute) const |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Protected Member Functions | |
| virtual void | DoDispose () |
| This method is called by Object::Dispose or by the object's destructor, whichever comes first. More... | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| virtual void | DoInitialize (void) |
| This method is called only once by Object::Initialize. More... | |
| virtual void | NotifyNewAggregate (void) |
| This method is invoked whenever two sets of objects are aggregated together. More... | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| virtual void | NotifyConstructionCompleted (void) |
| This method is invoked once all member attributes have been initialized. More... | |
Additional Inherited Members | |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId (void) |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| static void | Cleanup (void) |
| Noop. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Protected Attributes inherited from ns3::DataOutputInterface | |
| std::string | m_filePrefix |
| File prefix for the DataOutputInterface. More... | |
Outputs data in a format compatible with OMNeT library and framework.
Definition at line 39 of file omnet-data-output.h.
| OmnetDataOutput::OmnetDataOutput | ( | ) |
Definition at line 38 of file omnet-data-output.cc.
References ns3::DataOutputInterface::m_filePrefix, and NS_LOG_FUNCTION.
|
virtual |
Definition at line 44 of file omnet-data-output.cc.
References NS_LOG_FUNCTION.
|
protectedvirtual |
This method is called by Object::Dispose or by the object's destructor, whichever comes first.
Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.
It is safe to call GetObject from within this method.
Reimplemented from ns3::DataOutputInterface.
Definition at line 49 of file omnet-data-output.cc.
References ns3::DataOutputInterface::DoDispose(), and NS_LOG_FUNCTION.
Here is the call graph for this function:
|
virtual |
Outputs information from the provided DataCollector.
| dc | DataCollector object |
Implements ns3::DataOutputInterface.
Definition at line 86 of file omnet-data-output.cc.
References ns3::DataCollector::DataCalculatorBegin(), ns3::DataCollector::DataCalculatorEnd(), ns3::DataCollector::GetDescription(), ns3::DataCollector::GetExperimentLabel(), ns3::DataCollector::GetInputLabel(), ns3::DataCollector::GetRunLabel(), ns3::DataCollector::GetStrategyLabel(), isNumeric(), ns3::DataOutputInterface::m_filePrefix, ns3::DataCollector::MetadataBegin(), ns3::DataCollector::MetadataEnd(), and NS_LOG_FUNCTION.

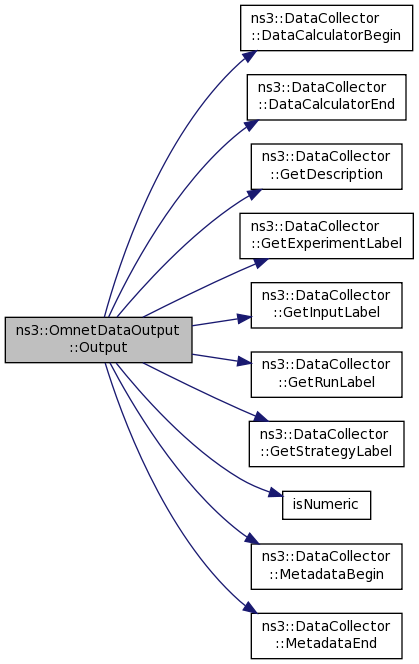

Here is the call graph for this function:
