This class is designed to probe an underlying ns3 TraceSource exporting a packet. More...

#include <packet-probe.h>

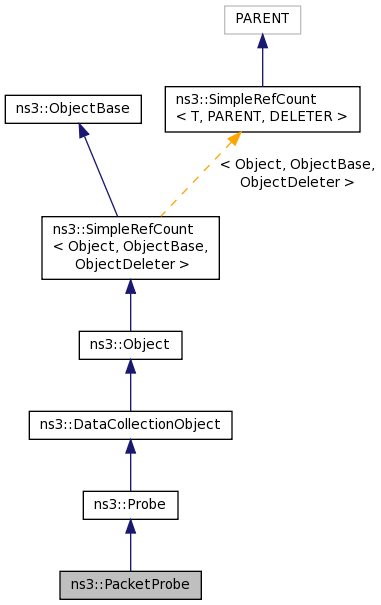

Inheritance diagram for ns3::PacketProbe:

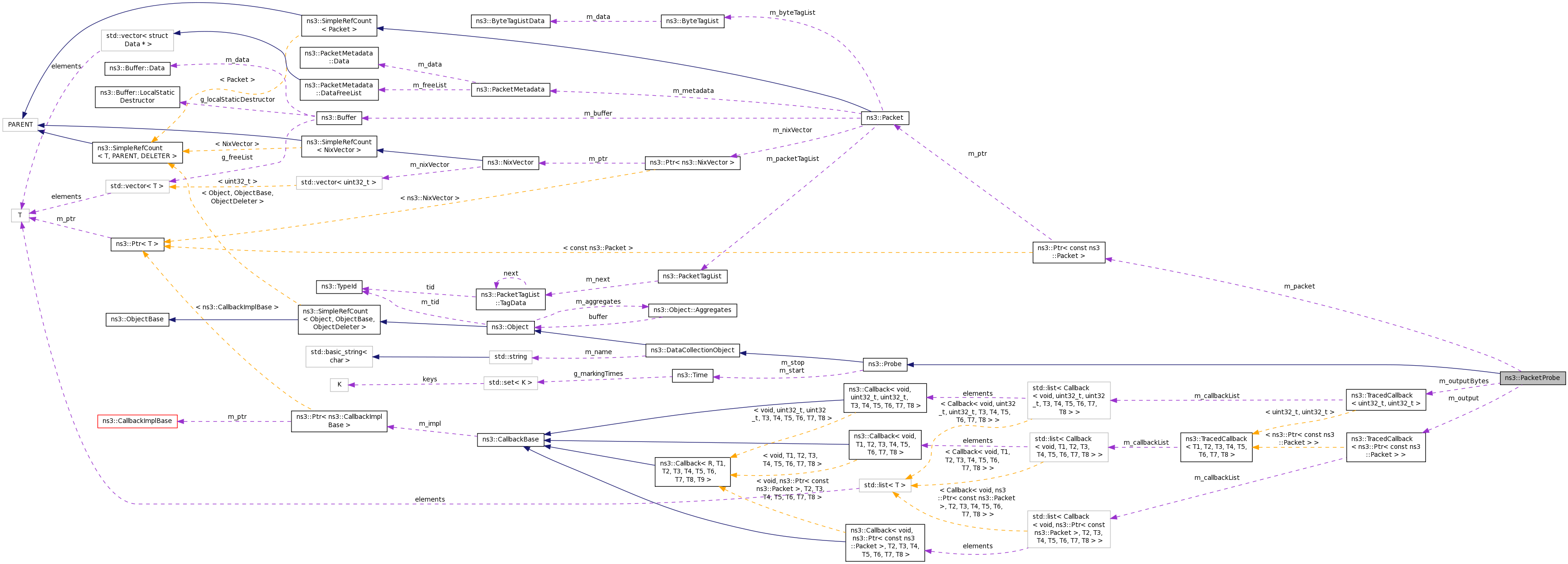

Collaboration diagram for ns3::PacketProbe:

Public Member Functions
	PacketProbe ()

virtual	~PacketProbe ()

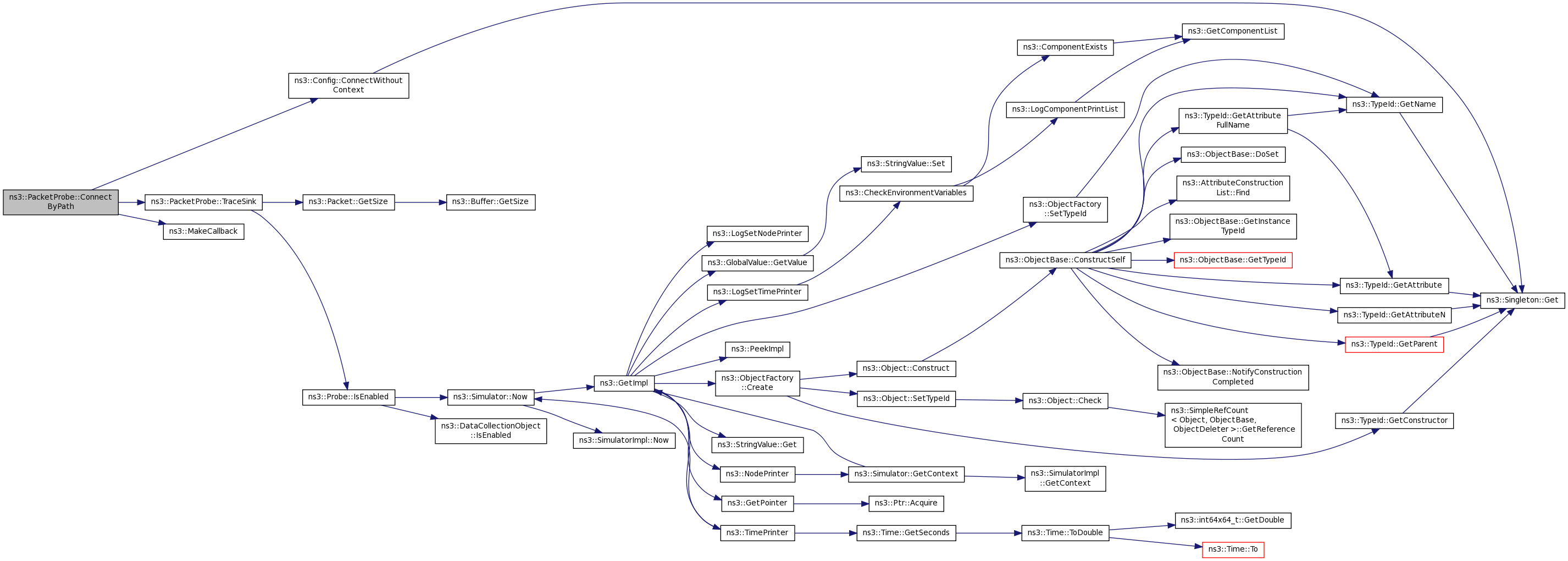

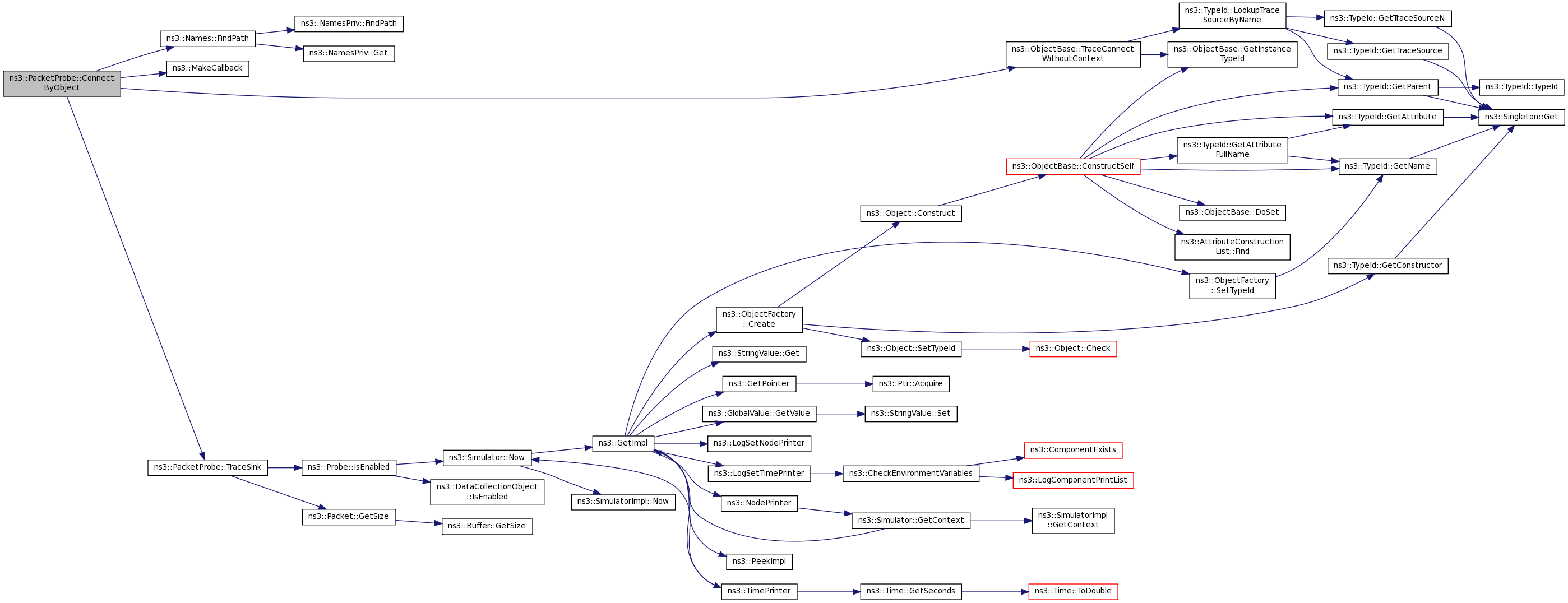

virtual bool	ConnectByObject (std::string traceSource, Ptr< Object > obj)
	connect to a trace source attribute provided by a given object More...

virtual void	ConnectByPath (std::string path)
	connect to a trace source provided by a config path More...

void	SetValue (Ptr< const Packet > packet)
	Set a probe value. More...

Public Member Functions inherited from ns3::Probe
	Probe ()

virtual	~Probe ()

virtual bool	IsEnabled (void) const

Public Member Functions inherited from ns3::DataCollectionObject
	DataCollectionObject ()

virtual	~DataCollectionObject ()

void	Disable (void)
	Unset the status of an individual object. More...

void	Enable (void)
	Set the status of an individual object. More...

std::string	GetName (void) const
	Get the object's name. More...

void	SetName (std::string name)
	Set the object's name. All spaces are replaced by underscores. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

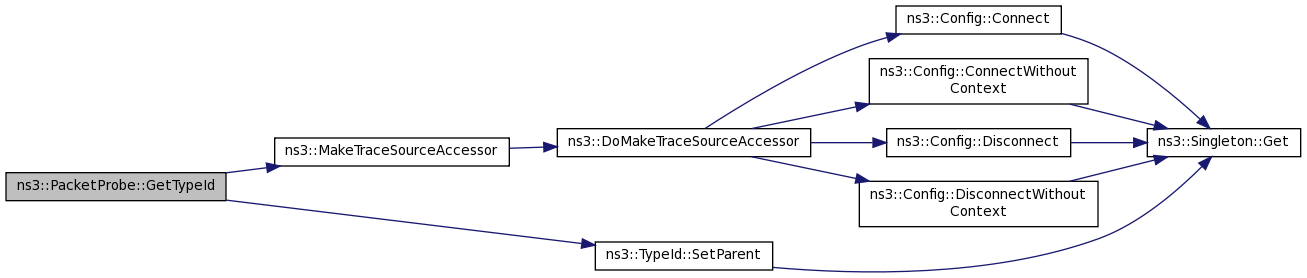

static TypeId	GetTypeId ()
	Get the type ID. More...

static void	SetValueByPath (std::string path, Ptr< const Packet > packet)
	Set a probe value by its name in the Config system. More...

Static Public Member Functions inherited from ns3::Probe
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::DataCollectionObject
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions

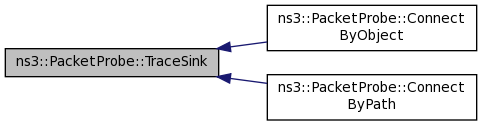

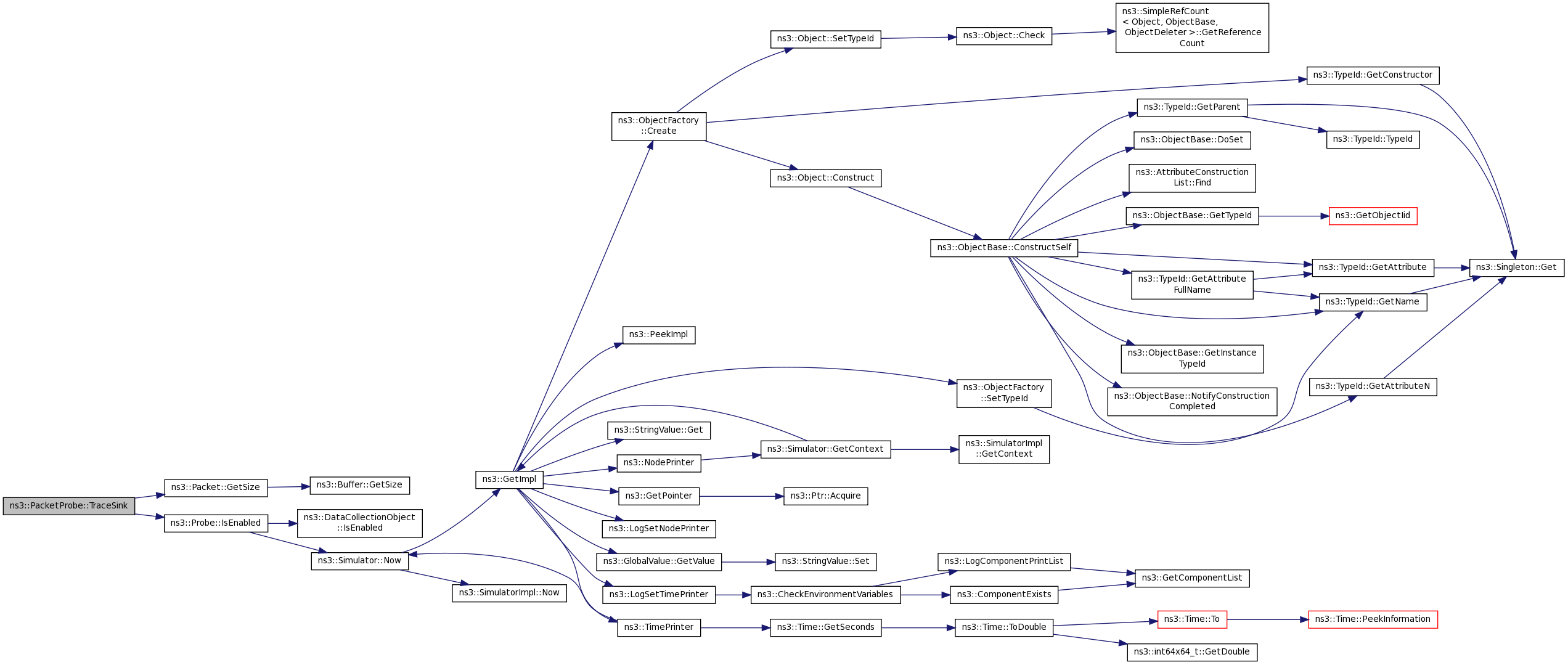

void	TraceSink (Ptr< const Packet > packet)
	Method to connect to an underlying ns3::TraceSource with arguments of type Ptr<const Packet> More...

Private Attributes
TracedCallback< Ptr< const Packet > >	m_output
	Traced callback: packet received. More...

TracedCallback< uint32_t, uint32_t >	m_outputBytes
	Traced callback: size of previous packet receive, size of actual packet received. More...

Ptr< const Packet >	m_packet
	The traced packet. More...

uint32_t	m_packetSizeOld
	The size of the traced packet. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Protected Attributes inherited from ns3::Probe
Time	m_start
	Time when logging starts. More...

Time	m_stop
	Time when logging stops. More...

Protected Attributes inherited from ns3::DataCollectionObject
bool	m_enabled
	Object's activation state. More...

std::string	m_name
	Name of the object within the data collection framework. More...

Detailed Description

This class is designed to probe an underlying ns3 TraceSource exporting a packet.

Doxygen introspection did not find any typical Config paths.

This probe exports a trace source "Output" with argument of type Ptr<const Packet>. This probe exports another trace source "OutputBytes" with arguments of type uint32_t, which is the number of bytes in the packet. The trace sources emit values when either the probed trace source emits a new value, or when SetValue () is called.

No Attributes are defined for this type.
