ns3::PacketSocketFactory Class Reference

This can be used as an interface in a node in order for the node to generate PacketSockets that can connect to net devices. More...

#include <packet-socket-factory.h>

+ Inheritance diagram for ns3::PacketSocketFactory:

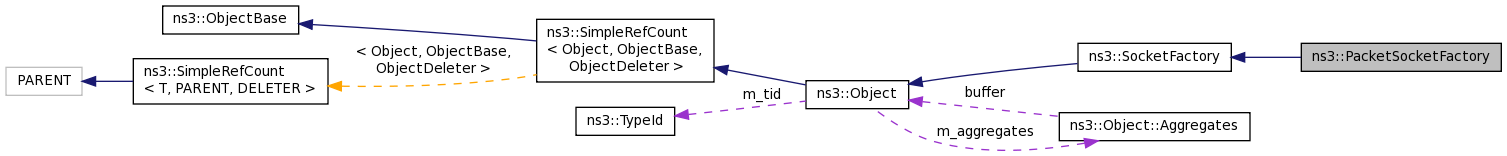

+ Collaboration diagram for ns3::PacketSocketFactory:

Public Member Functions

 PacketSocketFactory ()

virtual Ptr< SocketCreateSocket (void)
 Creates a PacketSocket and returns a pointer to it. More...

- Public Member Functions inherited from ns3::SocketFactory
 SocketFactory ()

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::SocketFactory
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

This can be used as an interface in a node in order for the node to generate PacketSockets that can connect to net devices.

Config Paths

ns3::PacketSocketFactory is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/$ns3::PacketSocketFactory

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 35 of file packet-socket-factory.h.

Constructor & Destructor Documentation

ns3::PacketSocketFactory::PacketSocketFactory ( )

Definition at line 39 of file packet-socket-factory.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Ptr< Socket > ns3::PacketSocketFactory::CreateSocket ( void  )
virtual

Creates a PacketSocket and returns a pointer to it.

Returns
a pointer to the created socket

Implements ns3::SocketFactory.

Definition at line 44 of file packet-socket-factory.cc.

References NS_LOG_FUNCTION.

TypeId ns3::PacketSocketFactory::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 32 of file packet-socket-factory.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:


The documentation for this class was generated from the following files:
